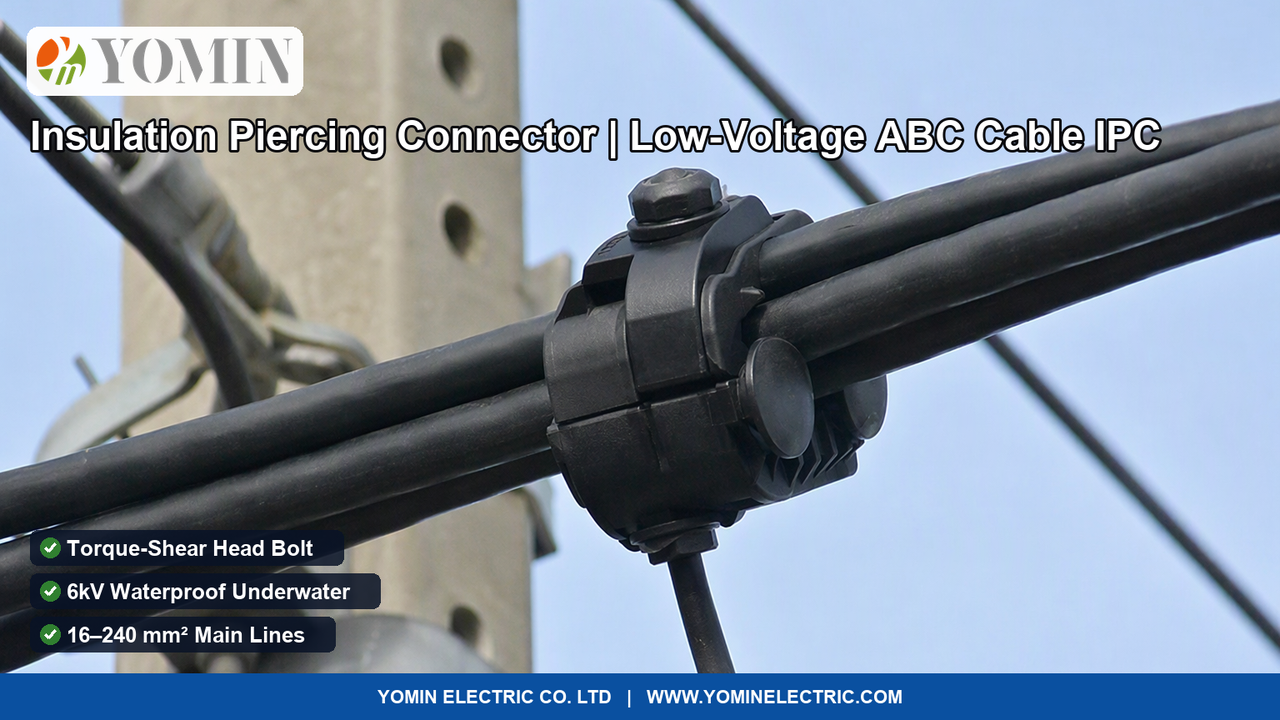

Low-Voltage ABC Cable Networks: What Is an Insulation Piercing Connector (IPC)?
The Modern Foundation of Low-Voltage Overhead Power Distribution
Across emerging power grids in Latin America, Central Asia, Southeast Asia, and Africa, electrical utilities have undertaken an aggressive campaign to replace bare overhead copper and aluminum wires with Aerial Bundled Conductors (ABC). Bare overhead lines are notoriously prone to short-circuits from falling tree branches, high non-technical power theft losses via illegal wire hooking, and fatal electrocution risks.
However, tapping into fully insulated ABC cables to feed residential service drops, commercial buildings, or street lighting created a major engineering challenge: traditional connection methods required stripping the insulation, leaving exposed conductor splices that invited water ingress, galvanic corrosion, and electrocution hazards.
The Insulation Piercing Connector (IPC) solved this challenge permanently, enabling linemen to tap energized, fully insulated power lines in minutes without stripping insulation, without interrupting customer service, and with guaranteed submersible waterproof integrity.
Engineering Anatomy: How the IPC Functions Under Load
A high-performance IPC incorporates four precision engineering subsystems:
- Conductive Contact Blades: Formed from high-tensile copper alloy or bimetallic aluminum, electro-tin plated to prevent galvanic reaction when connecting aluminum main lines to copper service drops. Pyramid-profile teeth cut cleanly through tough XLPE jacket insulation.
- Submersible Waterproof Gaskets: Molded elastomeric silicone or EPDM boots pre-filled with high-viscosity dielectric grease surround the contact blades. When compressed, the grease completely displaces air and moisture, passing stringent 6kV underwater insulation tests.
- Calibrated Shear-Head Nut: A dual-head bolt system. The outer hexagon head shears off at a precise, factory-tested torque rating, ensuring optimal electrical contact pressure without severing inner conductor strands.
- Weatherproof Insulating Enclosure: Molded from glass-fiber reinforced polyamide (PA66), providing high dielectric withstand (≥ 6kV), UV resistance, and mechanical resilience against thermal cycling and vibration.
Comparison: Insulation Piercing Connector vs. Traditional Tapping Methods
| Engineering Feature | Traditional Parallel Groove (PG) Clamp | Manual Cable Strip & Tape Splice | YOMIN Modern Insulation Piercing Connector (IPC) |
|---|---|---|---|
| Insulation Stripping Required | Yes (Must strip outer jacket). | Yes (Must strip 100mm+). | None (No-strip direct piercing). |
| Live-Line Working Safety | Extremely dangerous; requires shutdown. | High risk of electric shock/short. | 100% Safe Live-Line Tapping (No exposed live metal). |
| Installation Time per Tap | 10 to 15 minutes. | 15 to 25 minutes. | Under 2 minutes with standard ratchet wrench. |
| Waterproof Seal Quality | Poor (Relies on manual mastic tape). | Unreliable; moisture causes corrosion. | IP67 / IP68 Submersible (Factory silicone gel). |
| Torque Accuracy Guarantee | Uncontrolled (Lineman guess). | No torque mechanism. | Calibrated Shear-Nut snaps off at exact torque. |
| Anti-Tamper & Theft Resistance | Very easy to unbolt and tap illegally. | Vulnerable to illegal splicing. | Sheared round head prevents unauthorized tampering. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Main Conductor Cross-Section Range | Main line cable cross-section: 16–95 mm², 25–150 mm², or 50–240 mm² (Aluminum or Copper ABC conductors) |
| Branch / Tap Conductor Range | Tap/service line cross-section: 1.5–10 mm², 6–35 mm², 16–95 mm², or 25–120 mm² (bimetallic Al/Cu compatibility) |
| Rated System Voltage & Frequency | Low-voltage distribution AC 1kV (tested up to 6kV withstand voltage underwater for 1 minute per EN 50483-4) |
| Contact Blade Material & Geometry | High-conductivity tin-plated copper or corrosion-resistant hardened aluminum alloy with pyramid/v-groove piercing teeth |
| Body Material & Mechanical Strength | Heavy-duty weather-resistant, UV-stabilized, glass-fiber reinforced thermoplastic (polyamide PA66) composite |
| Torque Control & Tightening Mechanism | Calibrated shear-head hex nut (typically 8–18 N·m depending on size) that snaps off cleanly when proper contact pressure is achieved |
| Waterproofing & Environmental Sealing | Integrated UV-resistant elastomeric sealing ring and pre-filled silicone dielectric grease ensuring IP67/IP68 hermetic sealing |
| Compliance & Standard Testing | Fully compliant with EN 50483-4, NFC 33-020, IEC 61238-1, and ANSI C119.4 electrical and environmental performance standards |
Frequently Asked Questions
What is an Insulation Piercing Connector (IPC) and how does it tap electrical cables without stripping insulation?
An Insulation Piercing Connector (IPC)—also known as an insulated piercing tap clamp or ABC cable tap—is a specialized distribution connector designed to establish a reliable, permanent electrical connection between an energized main Aerial Bundled Conductor (ABC) and a branch service line without stripping the polymer insulation from either conductor. The connector features precision-engineered metallic piercing teeth enclosed within a high-strength, weatherproof insulating housing. As the lineman tightens the single top shear bolt, the clamping plates draw together, forcing the sharp contact blades to pierce cleanly through the outer XLPE or PVC insulation of both conductors until they bite deeply into the underlying stranded aluminum or copper wire cores. Surrounding elastomeric rubber gaskets simultaneously compress around the cable entry points, creating a watertight, air-tight seal that completely isolates the energized joint from moisture, corrosion, and accidental human contact.
Why is the shear-head torque nut so critical during IPC installation on live overhead power lines?
The shear-head torque nut is the single most important safety and quality-control feature of a modern insulation piercing connector: <ul><li><strong>Prevents Under-Tightening:</strong> If a connector is under-tightened, the piercing teeth will not penetrate deep enough into the conductor strands, resulting in high contact resistance, localized overheating, and eventual fire or power outage under heavy electrical load.</li><li><strong>Prevents Over-Tightening & Conductor Damage:</strong> If over-tightened with a standard wrench, metallic teeth can sever or crush the delicate aluminum wire strands, severely compromising the tensile strength of the overhead cable and causing it to snap under wind or ice loading.</li><li><strong>Guaranteed Inspection Verdict:</strong> The calibrated shear nut is engineered to snap off cleanly at an exact factory-calibrated torque (e.g. 14 N·m). Once the outer hex head shears off, a smooth rounded head remains. Utility safety inspectors can instantly verify from ground level that the connector was installed to exact manufacturer specifications without needing a torque wrench.</li></ul>
What are the key advantages of using IPCs over traditional split-bolt or parallel groove (PG) clamps?
Traditional bare-wire clamps (like PG clamps) require stripping the cable insulation, taping the joint manually, and de-energizing the feeder to avoid lethal arc flash. By contrast, IPCs allow **100% safe live-line installation**, require zero cable stripping, take under two minutes to install, feature integrated 6kV submersible waterproofing, and eliminate non-technical commercial losses by making unauthorized electricity theft taps virtually impossible to conceal.
