Adjustable AC Voltage Control & Testing: What Is a Variac Transformer?
Precision Voltage Control in Electrical Testing & R&D
In electrical research and development laboratories, industrial quality assurance departments, and equipment manufacturing plants, engineers must rigorously test how new electrical products behave under severe voltage sags, brownouts, and severe utility overvoltages. Powering a prototype device directly from fixed 230V or 400V mains leaves technicians blind to low-voltage startup stalls or insulation breakdown thresholds.

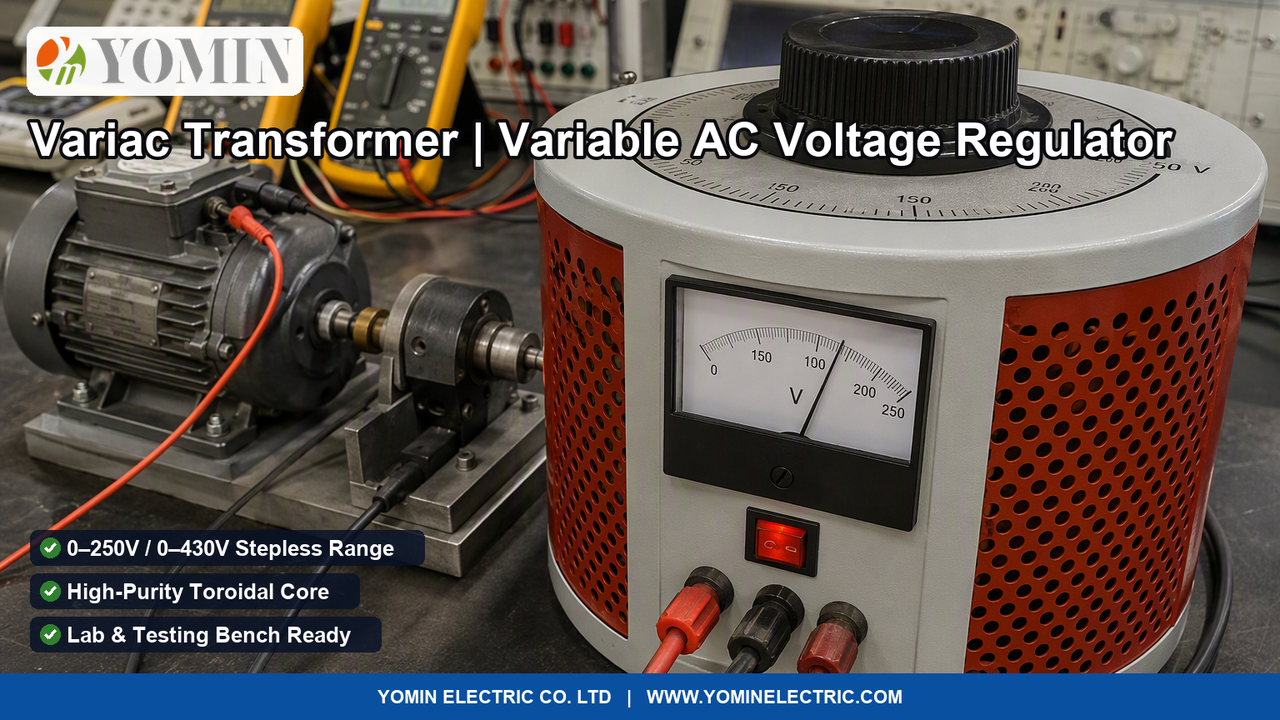

The variable autotransformer (universally known across electrical engineering as the Variac) is the foundational test bench tool, providing smooth, stepless manual AC voltage adjustment from true zero up to maximum line potential.
Toroidal Electromagnetic Induction & Carbon Brush Commutation
The timeless reliability and electrical elegance of the variac rests on precision mechanical and magnetic engineering:
- Continuous Toroidal Core: A seamless circular core of high-grade grain-oriented silicon steel is wound uniformly with heavy magnet wire. Because the core forms an unbroken magnetic ring, magnetic leakage flux is near zero, achieving operating efficiencies exceeding 95%.
- Precision-Lapped Commutator Track: Along the top annular face of the toroidal winding, the insulation is precision-machined away, exposing clean, flat copper conductor faces that form a circular commutator track.
- Spring-Loaded Carbon Contact Brush: A self-lubricating carbon brush with engineered electrical resistance is held in firm contact against the track. The brush is wide enough to bridge between adjacent turns without breaking the circuit, while its internal resistance limits circular short-circuit currents between neighboring wire turns to a negligible fraction of an ampere.
- Over-Voltage Boost Capability: Many commercial variacs (such as the YOMIN TDGC2 series) are wound with extended secondary turns, allowing the output voltage to be stepped up from 220V input up to 250V output (a 12% over-voltage boost), enabling comprehensive overvoltage stress testing.
Primary Industrial Applications for Variac Transformers
| Industrial Domain | Operational Role | Key Benefit |
|---|---|---|
| Laboratory Testing & Calibration | Testing power supplies, relays, and meters under variable AC voltages. | Delivers pure true sine wave output without harmonic distortion (THD < 0.1%). |
| Electric Motor Soft-Starting | Ramping up voltage gradually to start large AC motors on test benches. | Eliminates massive starting inrush currents, protecting test bench circuit breakers. |
| Industrial Heating & Furnace Control | Regulating power to high-temperature heating elements and kiln furnaces. | Continuous stepless thermal tuning without noisy contactor chatter. |
| Vintage Electronics & Transformer Reforming | Slowly powering up aged tube equipment and reforming electrolytic capacitors. | Prevents catastrophic capacitor explosions caused by sudden full-voltage application. |
Frequently Asked Questions
What is a variac transformer and how does it work?
A variac (short for variable autotransformer, or contact voltage regulator) is an adjustable electrical autotransformer designed to provide a continuously variable alternating current (AC) output voltage from zero up to maximum line voltage (and often 10% to 15% above line voltage). Unlike a conventional transformer with separate primary and secondary coils, a variac features a single continuous toroidal copper winding wrapped around a circular magnetic core. A top-mounted rotating dial controls a spring-loaded carbon brush that glides along an exposed, polished commutator track on the winding. By rotating the dial, the user smoothly taps off any desired fraction of the winding turns, achieving stepless, jitter-free voltage adjustment without disconnecting the load.
What is the difference between a variac transformer and a modern electronic solid-state dimmer/regulator?
Electronic solid-state voltage controllers (such as SCR thyristor or triac phase-angle dimmers) regulate effective RMS voltage by rapidly switching power on and off mid-cycle (phase chopping). While inexpensive and compact, phase chopping destroys the pure AC sine wave, generating severe high-frequency harmonic distortion, electromagnetic interference (EMI), and destructive voltage spikes that cause electric motors to overheat and digital instruments to malfunction. A variac operates through true electromagnetic induction, delivering a perfectly smooth, distortion-free true sine wave identical to utility power, making it the indispensable gold standard for precision laboratory calibration, motor testing, and audio equipment repair.
Why is an external isolation transformer recommended when using a variac for electronic repair?
A variac is an autotransformer, which means its output shares a common electrical connection with the utility input neutral and live lines; it does not provide galvanic isolation. If a technician touches the output terminals or chassis of an energized device under test (DUT) powered directly by a variac, they face a dangerous shock hazard connected directly to the building electrical mains. In professional electronics repair laboratories and testing benches, engineers always place a dedicated 1:1 isolation transformer in series with the variac to float the ground reference and guarantee total technician safety.
