For electric distribution utilities across developing economies, non-technical losses (electricity theft, meter tampering, unbilled consumption, and non-payment) represent an existential financial crisis. In many regional power networks, non-technical losses exceed 20% to 35% of total generated electricity, starving utilities of the capital required to maintain power plants and expand grid infrastructure.
Traditional integrated prepayment meters—where the keypad and measurement electronics reside in a single box installed inside the customer's hallway—remain vulnerable to physical assault. Determined fraudsters drill enclosure walls, insert foreign objects to jam relays, place powerful neodymium magnets over current coils, or tap incoming service drop cables before the meter.

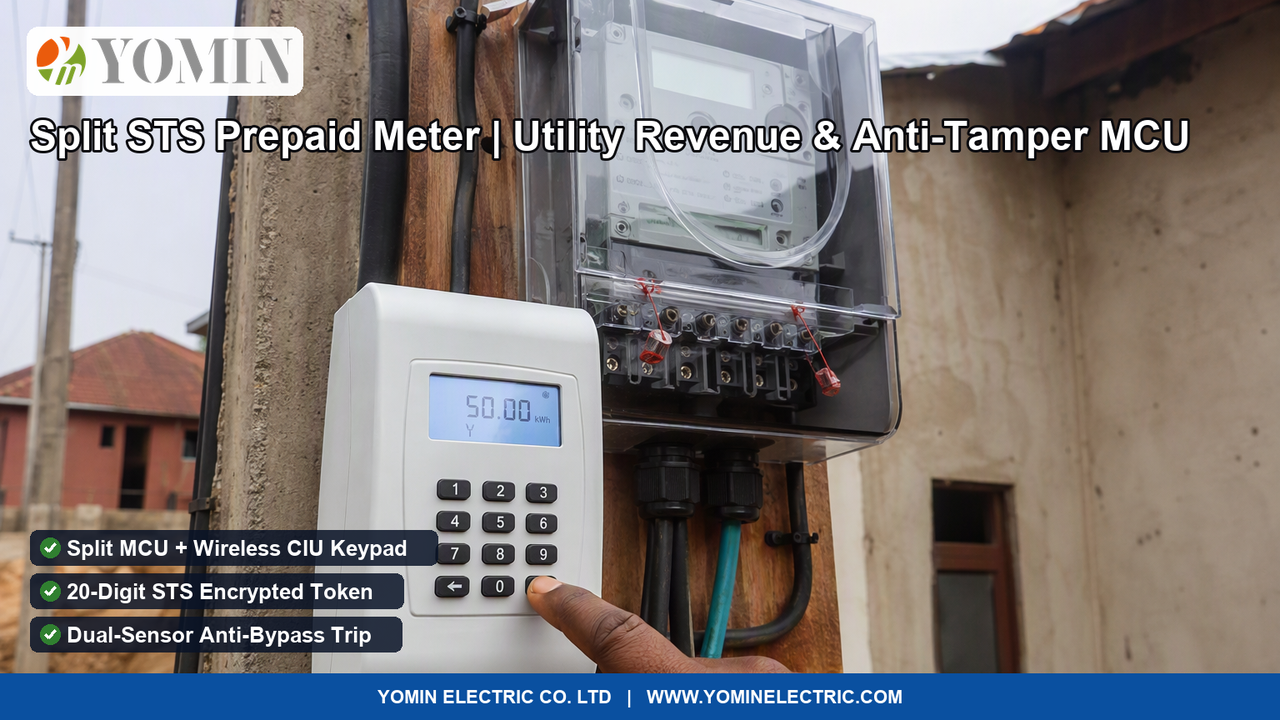

The Split-Type STS Prepaid Electricity Meter solves this vulnerability through physical segregation, relocating the metering core beyond the reach of consumers while preserving an effortless indoor recharging experience.
Split Architecture: MCU vs. CIU Integration
A certified split prepayment system operates across two discrete functional nodes communicating via Power Line Carrier (PLC) or wireless Radio Frequency (RF):
| System Component | Physical Location | Core Functional Hardware | Security Role |
|---|---|---|---|
| Measurement & Control Unit (MCU) | Outdoor utility pole crossarm, secure boundary meter kiosk, or locked multi-meter riser cabinet. | Class 1.0 metering microchip, dual phase/neutral current sensors, 100A bi-stable latching relay, tamper-proof terminal block. | Performs all legal metrology and automated power disconnection. Completely physically inaccessible to building occupants. |
| Customer Interface Unit (CIU) | Indoor kitchen or living room wall, plugged into a standard electrical outlet or battery operated. | Tactile 12-key numeric keypad, high-contrast backlit LCD screen, audible low-credit buzzer alarm. | Allows consumers to enter 20-digit STS tokens, check remaining kWh credit balance, view instantaneous load, and track consumption history. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| System Architecture | Split two-part architecture: Outdoor Measurement and Control Unit (MCU) paired with Indoor Customer Interface Unit (CIU) keypad |
| Communication Medium | Power Line Carrier (PLC), Wireless Radio Frequency (RF 433/868 MHz), or M-Bus cable communicating up to 150m between MCU and CIU |
| Token Encryption Standard | Standard Transfer Specification (STS) compliant; 20-digit encrypted numeric tokens adhering to IEC 62055-41 and IEC 62055-51 |
| Rated Voltage & Current | Single-Phase 230V AC (5(60)A or 5(80)A) and Three-Phase 3×230/400V AC (5(100)A frame sizes); 50Hz / 60Hz frequency |
| Disconnection Mechanism | Internal heavy-duty bi-stable magnetic latching relay (100A rated contact) disconnecting load automatically at zero credit |
| Multi-Sensor Anti-Tamper Protection | Dual current sensors (Phase and Neutral current measurement), terminal cover open sensor, magnetic field detector (≥ 0.4T), reverse energy trip |
| Enclosure & Ingress Protection | Outdoor MCU: IP54/IP65 UV-resistant polycarbonate enclosure for pole-top or boundary wall mounting; Indoor CIU: IP51 wall/tabletop mount |
| Applicable International Standards | IEC 62052-11, IEC 62053-21 (Class 1.0), IEC 62055-31, IEC 62055-41, STS Association certified |
Frequently Asked Questions
What is a split prepaid meter and how does its physical architecture prevent electricity theft?
A split prepaid meter divides the traditional all-in-one electricity meter into two physically separated components: 1. **Measurement and Control Unit (MCU):** The actual metering computer and 100A disconnect relay, mounted high up on an outdoor utility distribution pole or locked inside a secure street boundary enclosure beyond the consumer's physical reach. 2. **Customer Interface Unit (CIU):** A convenient indoor keypad device placed inside the consumer's home or apartment, equipped with an LCD display and numeric keys. The consumer enters their 20-digit STS recharge token on the indoor CIU keypad. The token is transmitted wirelessly (via RF) or through existing power wiring (PLC) to the outdoor MCU, which credits the account. Because the actual metering unit and power lines are physically inaccessible to the consumer, illegal line bridging, meter shunting, and physical tampering are eliminated.
How does the dual-sensor measurement technology inside the MCU detect neutral bypass tampering?
A common method of electricity theft involves disconnecting the meter's neutral wire and grounding the home circuits locally, or introducing an illegal bypass wire across the live terminals so current bypasses the measuring element. YOMIN split prepaid MCUs incorporate **dual current sensors** measuring current independently in both the active phase wire and the neutral wire. Under normal conditions, phase current matches neutral current exactly. If an unbalanced bypass or earth leakage is detected exceeding a preset threshold (e.g. 6.25%), the MCU firmware immediately logs a tamper event, lights a tamper warning LED, continues billing on whichever conductor carries higher current, or trips the internal relay, completely thwarting bypass theft.
What is the Standard Transfer Specification (STS) and how does token encryption protect utility revenue?
The Standard Transfer Specification (STS) is the globally recognized open international standard (IEC 62055) for secure prepayment vending systems. When a consumer purchases electricity at a vending station or mobile banking app, the central vending software generates a unique **20-digit encrypted numeric token**. This token contains encrypted instructions including the exact kilowatt-hour value, a unique transaction sequence number, and the specific meter serial number. The token cannot be decoded by any other meter, cannot be reused twice, and cannot be counterfeited, guaranteeing absolute revenue security for the power utility.
