Power Factor Correction & APFC Panels: What Is a Capacitor Switching Contactor?
The Critical Challenge of Switching Power Factor Correction Capacitors
In modern industrial manufacturing facilities, commercial office towers, and utility substations, inductive loads such as induction motors, HVAC chillers, and welding transformers consume substantial reactive power. This lowers the electrical power factor (PF), triggering severe utility penalty charges, reducing transformer capacity, and causing excessive distribution line voltage drop.
To maintain a unity power factor (≥ 0.95), facilities install Automatic Power Factor Correction (APFC) panels. These multi-stage switchboards continuously monitor the grid and step capacitor banks in and out of service as factory loads fluctuate.
However, energizing a power capacitor is among the most severe switching duties in electrical engineering. Without specialized control gear, switching inrush currents will instantly weld standard contactor contacts and destroy capacitor dielectric film.

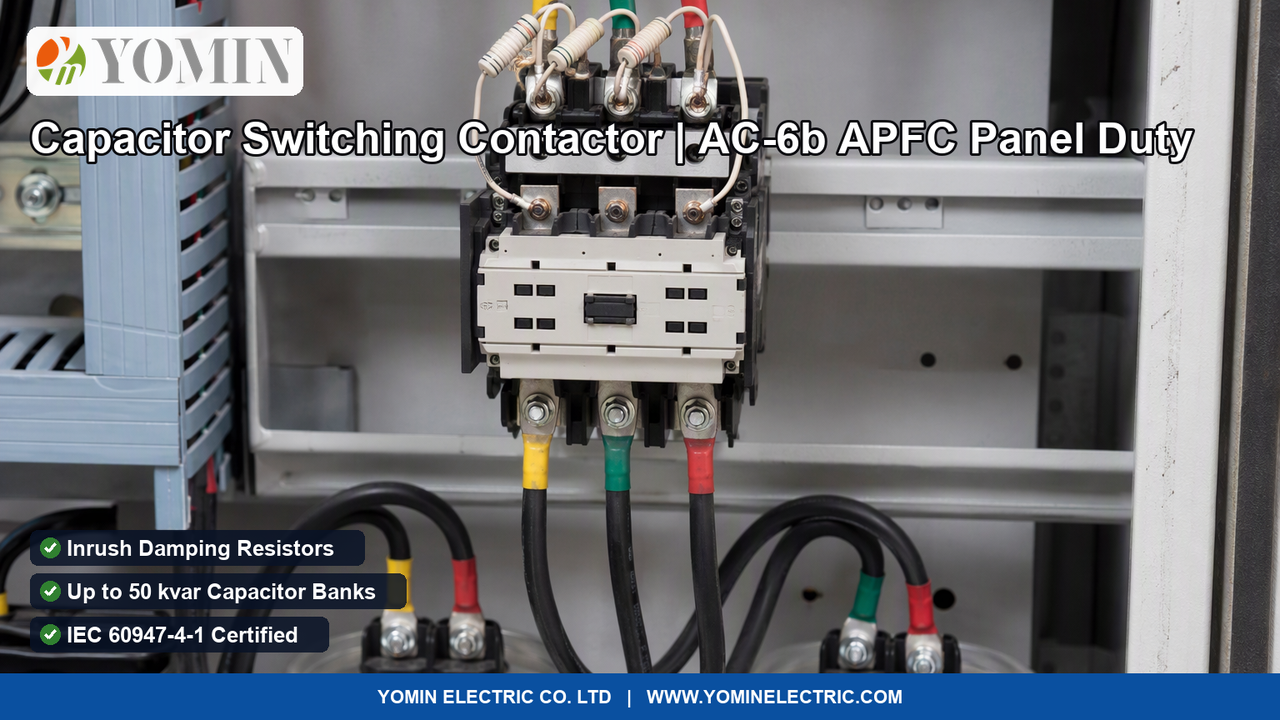

The Capacitor Switching Contactor (Model CJ19 / CJ19C Series) provides the dedicated engineering solution: an AC-6b rated device that dampens inrush spikes by up to 90%, ensuring reliable, maintenance-free capacitor switching for millions of cycles.
Engineering Anatomy: Inside a Dedicated AC-6b Capacitor Contactor
- Top-Mounted Auxiliary Early-Make Contact Block: Features spring-loaded mechanical linkages that bridge the circuit 2–5 ms ahead of main contacts, absorbing the initial transient shock wave.
- Looped High-Resistance Damping Wire Coils: Specialized nichrome or alloy damping loops connect across the auxiliary poles, converting the explosive inrush current pulse into safe, dissipated thermal energy.
- Heavy-Duty Silver Alloy Main Contacts: High-purity silver-nickel or silver-tin-oxide contacts designed for maximum conductivity and minimal contact resistance under continuous capacitive load.
- Automatic Resistor Disconnect Mechanism: Automatically breaks the auxiliary circuit after main contact closure, ensuring damping resistors remain cool and consume zero standby power during steady-state operation.
- Arc-Quenching De-Ionizing Chamber: High-temperature thermoset arc chutes rapidly extinguish opening arcs, preventing restrike during capacitor de-energization.
Comparison: Capacitor Switching Contactor (AC-6b) vs. Standard AC-3 Motor Contactor
| Comparison Parameter | Standard AC-3 Motor Contactor | YOMIN CJ19 Capacitor Switching Contactor (AC-6b) |
|---|---|---|
| Applicable IEC Load Category | AC-3 (Squirrel-cage motor starting & running). | AC-6b (Low-voltage power capacitor bank switching). |
| Peak Inrush Surge Handling | Direct undamped inrush: Spikes to 150–200 × In. | Pre-charge damped inrush: Suppressed to ≤ 20–30 × In. |
| Contact Welding Vulnerability | Extremely high; contacts frequently weld on first surge. | Zero contact welding; auxiliary contacts absorb peak surge. |
| Capacitor Life Expectancy Impact | Severe; high-frequency voltage spikes degrade dielectric film. | Extends capacitor service life by up to 300%–400%. |
| Auxiliary Damping Circuitry | None (Direct main terminal connection only). | Integrated early-make contacts + alloy damping wire loops. |
| Grid Power Quality Impact | Creates severe line voltage dips and harmonics for PLCs/VFDs. | Smooth capacitive connection with negligible grid disturbance. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated Operational Voltage & Frequency | Rated operational voltage (Ue): AC 380V / 400V / 415V / 690V at 50/60 Hz; insulation voltage (Ui): 690V / 1000V |
| Controlled Power Capacitor Bank Capacity | Modular ratings controlling capacitor banks from 12.5 kvar, 20 kvar, 25 kvar, 30 kvar, up to 50 kvar (single or multi-stage APFC) |
| Inrush Current Peak Suppression Ratio | Suppresses severe initial inrush current from > 200 × In down to ≤ 20–30 × In via leading damping wire coils |
| Operational Utilization Category | Certified for IEC 60947-4-1 Utilization Category AC-6b (dedicated capacitive load switching, exceeding standard AC-3 motor duty) |
| Early-Make Leading Contact Mechanism | Auxiliary contact block makes contact 2 to 5 milliseconds *before* main contacts, automatically disconnecting damping resistors once closed |
| Damping Resistor Wire Loop Construction | Specialized high-temperature resistance alloy wire loops mounted on top housing, dissipating pre-charge transient energy safely |
| Mechanical and Electrical Endurance Life | Mechanical life ≥ 1,000,000 operations; electrical life under full AC-6b rated capacitive duty ≥ 100,000 operations |
| Applicable International Testing Standards | Fully compliant with IEC 60947-4-1, EN 60947-4-1, GB/T 14048.4, and CE low-voltage directives |
Frequently Asked Questions
What is a Capacitor Switching Contactor and why can standard AC-3 motor contactors NOT be used for capacitor banks?
A Capacitor Switching Contactor—commonly designated under international standards as an AC-6b duty contactor or APFC contactor—is a specialized electromagnetic contactor engineered with early-make auxiliary contacts and inrush-limiting damping resistors to safely switch low-voltage power factor correction capacitors. Standard general-purpose contactors (designed for AC-3 inductive motor loads) suffer catastrophic failure when connected to capacitors for three physical reasons: <ul><li><strong>1. Massive Initial Inrush Current ($200 imes I_n$):</strong> At the instant of voltage switch-on, an uncharged capacitor acts as a pure electrical short-circuit. The resulting inrush current can spike to between 100 and 200 times the capacitor's rated nominal current within a fraction of a millisecond.</li><li><strong>2. Contact Welding:</strong> Standard AC-3 contactor contacts experience contact bounce upon closing. Under a 200 $I_n$ surge, this micro-arcing instantly melts the silver-cadmium contacts, permanently welding them shut and preventing the stage from turning off.</li><li><strong>3. Capacitor Dielectric Degradation & Voltage Surges:</strong> High-frequency inrush oscillations generate destructive transient overvoltages that puncture metallized polypropylene capacitor film, blow upstream branch fuses, and disrupt sensitive PLCs and variable frequency drives on the same bus.</li></ul>Capacitor contactors eliminate these hazards by routing the initial surge through current-limiting damping resistors milliseconds before the main contacts touch.
How does the two-stage early-make contact mechanism physically suppress capacitor inrush current?
The operation of an advanced capacitor contactor (such as the YOMIN CJ19 series) follows an exact mechanical timing sequence during each closing cycle: <ul><li><strong>Stage 1 (Pre-Charge via Damping Resistors):</strong> When the contactor coil energizes, mechanical linkages cause the top-mounted auxiliary contact block to close approximately 2 to 5 milliseconds <em>before</em> the main power contacts touch. The incoming AC power flows through looped high-resistance damping wires into the capacitor bank. These resistors act as an instantaneous buffer, absorbing the peak surge energy and capping the inrush current below 20 to 30 times rated current while pre-charging the capacitor.</li><li><strong>Stage 2 (Main Contact Engagement & Resistor Disconnection):</strong> As the armature reaches full stroke, the heavy silver-nickel main power contacts close, carrying the full continuous operating current with near-zero contact resistance. Simultaneously, a spring-loaded mechanical release automatically separates the auxiliary contacts, completely disconnecting the damping resistors so they do not consume continuous power or overheat during normal steady-state operation.</li></ul>
How do you calculate and select the correct capacitor contactor rating for an APFC panel stage?
Contactor sizing requires factoring in harmonic distortion and continuous overcurrent margins per IEC 60831: <ul><li><strong>Standard 1.35x Safety Factor:</strong> Capacitor standards require equipment to withstand up to 130% continuous nominal current due to harmonic voltage distortion plus a 10% capacitor capacitance tolerance ($1.30 imes 1.10 pprox 1.43$).</li><li><strong>Selection by kvar Rating:</strong> Always select the contactor directly by its AC-6b rated reactive power (kvar) at the operational voltage. For example, for a 25 kvar 400V capacitor step, specify a <strong>CJ19-43</strong> or <strong>CJ19-63</strong> rated for ≥ 25 kvar. Never size a capacitor contactor using standard AC-3 motor horsepower or kW charts, as doing so leads to severe undersizing and premature burnout.</li></ul>
