EV & BESS Battery Pack Interconnection: What Is a Cell Contact System (CCS)?
The Critical Interconnection Layer of Modern Lithium Battery Packs
As global energy infrastructure transitions toward renewable solar and wind power, massive utility-scale Battery Energy Storage Systems (BESS) and electric mobility platforms demand unprecedented battery capacity, safety, and manufacturing throughput. A single utility energy storage container houses thousands of individual lithium iron phosphate (LiFePO4) prismatic battery cells.
Connecting these thousands of cells to carry hundreds of amperes of charging current while simultaneously monitoring every single cell's voltage and temperature represents one of the greatest manufacturing challenges in clean tech. Traditional hand-assembled wire harnesses and loose bolted copper links are too bulky, too slow to assemble, and prone to catastrophic assembly errors.

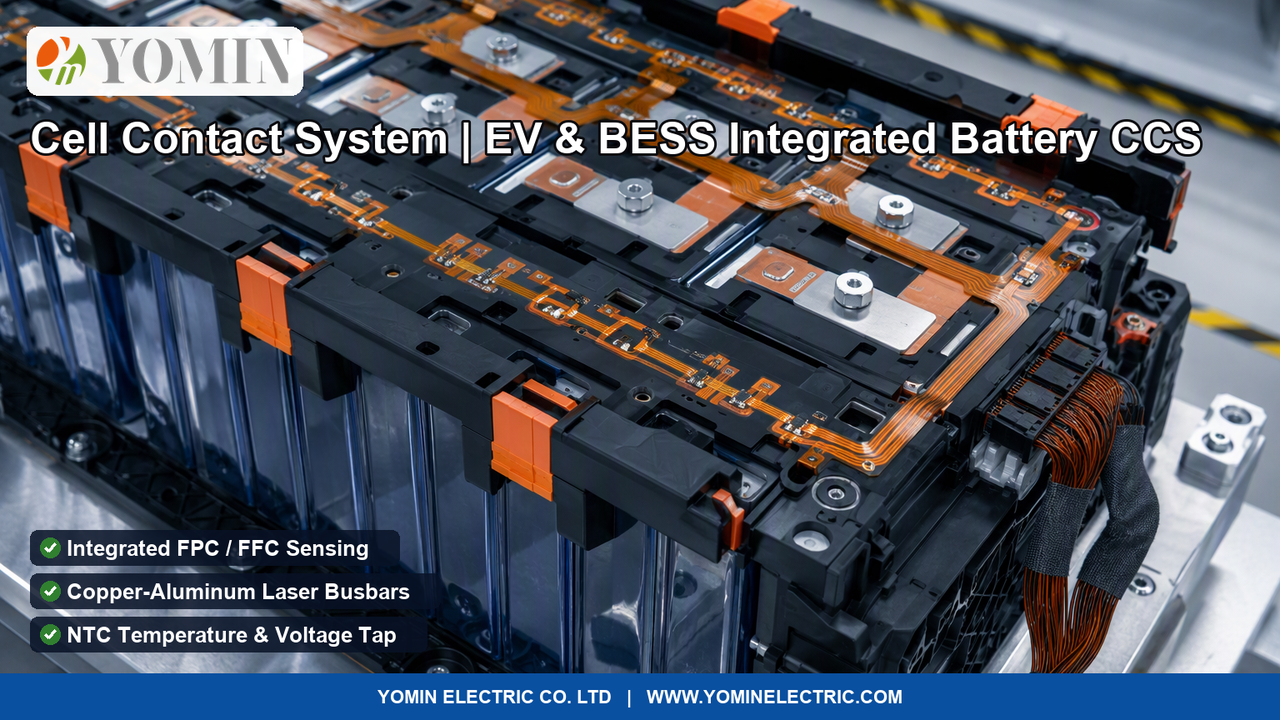

The Cell Contact System (CCS) is the engineering breakthrough that made automated high-speed battery pack production possible, consolidating high-power electrical busbars and precision BMS telemetry sensing into a single unified modular assembly.
Dual Functionality: Power Distribution Meets Precision Sensing
A high-performance Cell Contact System functions as both the "arteries" and the "nervous system" of the battery module:
- Power Transmission Layer: Precision-stamped aluminum or copper busbars bridge adjacent battery cell terminal posts. The busbars feature laser-weldable bonding tabs that fuse permanently with the battery cell terminals in milliseconds via high-speed robotic fiber laser welding.
- Telemetry Acquisition Layer: An ultra-thin Flexible Printed Circuit (FPC) or Flexible Flat Cable (FFC) layer sits directly on top of the busbars. Nickel sensing leads contact each busbar to monitor individual cell voltage, while miniature surface-mount NTC thermistors press firmly against critical cell zones to detect thermal runaway risks before they escalate.
- Unified BMS Output Connector: All individual voltage and temperature signals converge into a single multi-pin automotive-grade locking header, plugging directly into the Battery Management System slave board.
Comparison: Traditional Discrete Wire Harness vs. Modern Integrated CCS Module
| Engineering Metric | Traditional Hand-Wired Battery Harness | YOMIN Modern Integrated Cell Contact System (CCS) |
|---|---|---|
| Module Assembly Method | Manual bolting and point-to-point wire routing. | 100% Automated Robotic Pick-and-Place & Laser Welding. |
| Assembly Time per Module | 15 to 30 minutes of intensive manual labor. | Under 60 seconds on automated production lines. |
| Z-Axis Headspace & Thickness | Bulky wire looms requiring 15mm to 25mm clearance. | Ultra-thin profile (< 5mm tray, < 1mm hot-pressed film). |
| Volumetric Energy Density Impact | Consumes critical battery enclosure space. | Maximizes cell packing ratio for higher Wh/L density. |
| Wiring Error & Polarity Risk | High human error rate (miswired sense lines). | Zero possibility of wiring transposition (Hard-etched FPC). |
| Vibration & Thermal Fatigue | Solder joints crack under continuous mechanical vibration. | Automotive-grade fatigue resistance (ISO 16750-3 certified). |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Carrier Structure & Assembly Technology | Injection-molded ABS/PC flame-retardant tray (UL 94 V-0) or lightweight PET/PI film hot-pressing lamination carrier |
| High-Current Busbar Material & Rating | High-purity C1100 electrolytic copper or 1060 aluminum alloy laminated busbars rated for 100A to 600A continuous discharge current |
| Busbar-to-Cell Terminal Welding Process | Precision laser welding (fiber laser) compatible with prismatic aluminum or copper-aluminum friction-stir welded battery terminal posts |
| Signal Acquisition & Harness Technology | Ultra-thin Flexible Printed Circuit (FPC) or Flexible Flat Cable (FFC) with integrated surface-mount nickel voltage-sensing tabs |
| Temperature Sensing & Protection | Surface-mount NTC thermistors (10kΩ or 100kΩ, ±1% accuracy) positioned directly over cell terminals or inter-cell gaps |
| Insulation Resistance & Dielectric Withstand | Dielectric withstand voltage ≥ 2500V DC / 1 minute; insulation resistance ≥ 500MΩ at 1000V DC per IEC 62660-2 |
| BMS Interface & Connector Specification | Automotive-grade high-density locking header connector (e.g. Molex/JST compatible) with gold-plated pins ensuring vibration resistance |
| Thermal & Environmental Operating Range | Operating temperature −40°C to +105°C; compliant with automotive vibration (ISO 16750-3) and thermal shock testing |
Frequently Asked Questions
What is a Cell Contact System (CCS) and how does it replace traditional battery wiring harnesses?
A Cell Contact System (CCS)—also known as an integrated battery busbar module or cell sensing assembly—is a unified modular component engineered to serve two simultaneous functions within modern electric vehicle (EV) battery packs and utility-scale Battery Energy Storage Systems (BESS): <ul><li><strong>1. High-Current Power Interconnection:</strong> Heavy-gauge copper or aluminum busbars connect individual prismatic or cylindrical lithium-ion cells in series and parallel configurations, handling continuous loads from 100A to over 600A.</li><li><strong>2. Low-Voltage BMS Telemetry Sensing:</strong> An integrated Flexible Printed Circuit (FPC) snakes across the entire module, capturing millivolt-level cell voltages and micro-degree temperature changes via embedded NTC thermistors, feeding telemetry directly to the Battery Management System (BMS).</li></ul>Historically, battery modules required workers to manually bolt or solder dozens of individual copper links, route tangled bundles of multi-wire sensing cables, and paste individual temperature sensors by hand. A modern CCS integrates all power busbars, sensing lines, and connectors onto a single pre-tested polymer tray or hot-pressed film. Automated robotic pick-and-place systems drop the complete CCS onto the battery cell cluster in a single step, followed by rapid automated laser welding, reducing module assembly time by over 70% while eliminating human wiring errors.
Why are Flexible Printed Circuits (FPC) preferred over traditional copper wire harnesses in modern CCS modules?
Traditional discrete wire harnesses suffer from severe engineering bottlenecks in high-density lithium battery packs: <ul><li><strong>Volume & Weight:</strong> A wiring harness with 30+ insulated copper wires occupies significant headspace above the battery cells and adds dead weight. An FPC is less than 0.3 mm thick, dramatically increasing the volumetric energy density ($Wh/L$) of the pack.</li><li><strong>Vibration Reliability:</strong> In electric vehicles and shipping container BESS units, road vibration and thermal expansion cause point stresses on soldered wire joints. FPCs feature photolithographically etched copper traces laminated between flexible polyimide (PI) films, providing virtually indestructible fatigue resistance.</li><li><strong>Automated Production:</strong> FPC traces are manufactured with sub-millimeter positioning accuracy. Surface-mount NTC sensors and fuse links are placed by automated SMT pick-and-place machines, guaranteeing 100% electrical repeatability and zero wiring transposition mistakes.</li></ul>
What is the difference between an Injection-Molded Tray CCS and a PET Hot-Pressed Film CCS?
The difference lies in mechanical structural support versus ultra-thin packaging: <ul><li><strong>Injection-Molded Plastic Tray CCS:</strong> Utilizes a rigid, flame-retardant ABS or polycarbonate (PC) skeleton. It provides strong mechanical locating brackets for heavy copper busbars and isolates cell tops, making it ideal for large commercial and industrial BESS container racks.</li><li><strong>PET/PI Hot-Pressed Film CCS:</strong> Employs two thin sheets of PET or Polyimide film that sandwich the busbars and FPC under heat and pressure. It eliminates the heavy plastic tray entirely, reducing module height by several millimeters and saving critical weight in high-performance EV battery packs.</li></ul>
EV & BESS Battery Pack Interconnection: What Is a Cell Contact System (CCS)?
Designing utility-scale Battery Energy Storage Systems (BESS), commercial LiFePO4 battery modules, or clean energy vehicle battery packs requiring custom-engineered Cell Contact Systems (CCS)? YOMIN manufactures precision FPC/FFC integrated busbar assemblies.
