Battery Energy Storage Systems (BESS): What Is an Energy Storage Connector?
The Safety Backbone of Modern Battery Energy Storage Systems (BESS)
As global utility grids rapidly transition to intermittent renewable power sources such as solar and wind, utility-scale Battery Energy Storage Systems (BESS) have become the indispensable foundation of grid stability, frequency regulation, and peak shaving.
To maximize energy density and inverter efficiency, modern commercial and utility storage installations operate at high voltages up to 1500V DC. Thousands of lithium iron phosphate (LiFePO4) battery cells are grouped into modules, stacked in steel racks, and connected in series and parallel.
However, 1500V DC battery strings present unprecedented electrical hazards: immense prospective short-circuit currents, continuous non-zero-crossing DC arcs, and thermal runaway risks during maintenance.

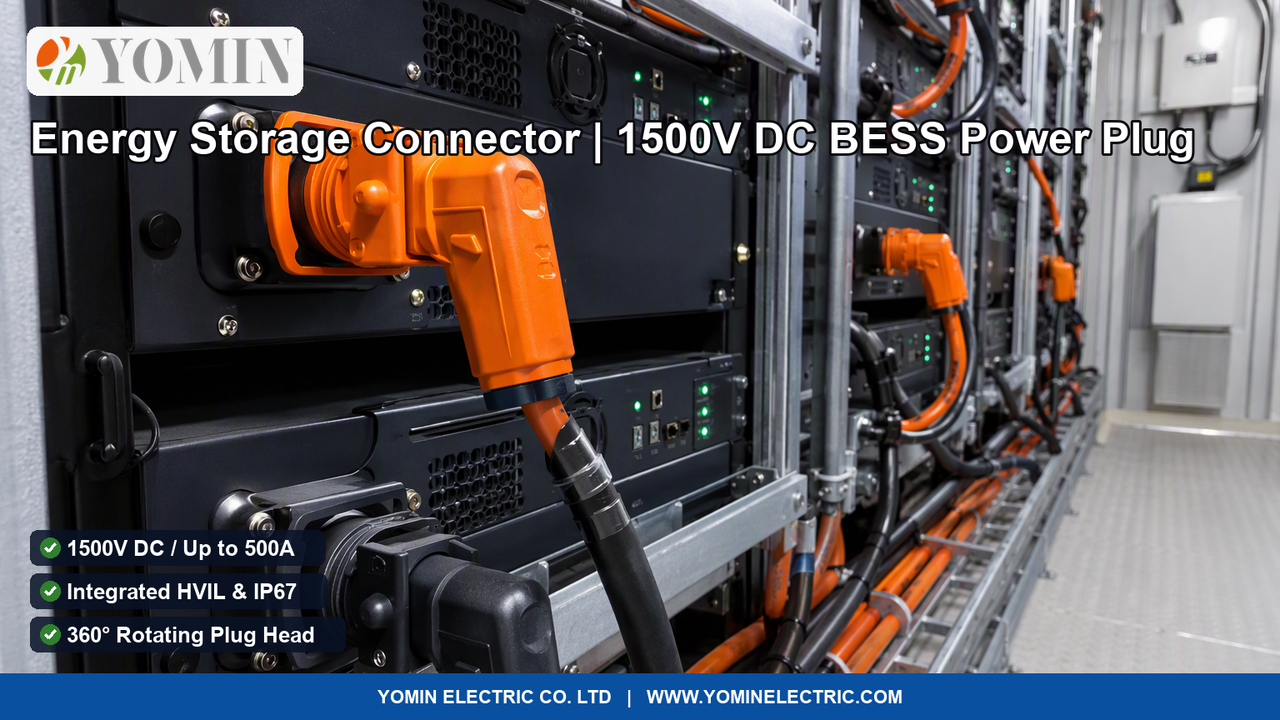

The Energy Storage Connector (Model YM-ES / Rhino Series) provides the dedicated engineering solution: a robust, touch-proof quick-lock power disconnect engineered with integrated High Voltage Interlock (HVIL), IP67 sealing, and mechanical anti-reversal keying.
Engineering Anatomy: Inside a 1500V BESS Power Connector
- Silver-Plated Crown Spring Contact Pin: Machined from high-conductivity tellurium copper with multi-leaf spring louvers, delivering contact resistance ≤ 0.3 mΩ to eliminate thermal buildup under 500A continuous charging.
- High Voltage Interlock Loop (HVIL) Safety Circuit: Shorter auxiliary pins break first during unplugging, commanding the BMS to drop contactors before primary power pins separate, eradicating arc flash risks.
- 360-Degree Rotating Elbow Plug Body: Allows linemen and assembly technicians to route heavy 70–120 mm² battery cables cleanly without mechanical strain in compact rack enclosures.
- Mechanical Physical Keying & Color Differentiation: Distinct physical keyways and high-visibility Safety Orange (+) and Jet Black (-) housings prevent catastrophic cross-polarity connections.
- IP67 Dual-O-Ring Sealing & IP2X Finger Safety: Fluorosilicone seals protect internal contacts from moisture and condensation inside outdoor containers, while plastic shrouds prevent fingers from touching live parts during installation.
Comparison: Energy Storage Quick Connector vs. Standard Bolted Cable Lug vs. Industrial Cam-Lock Plug
| Engineering Feature | Standard Bolted Cable Lug & Stud | YOMIN YM-ES Energy Storage Quick Connector | Industrial Cam-Lock Power Plug |
|---|---|---|---|
| Connection & Maintenance Speed | Slow: Requires torque wrenches and insulated hand tools aloft. | Instant: Tool-free push-pull quick-lock click in 3 seconds. | Twist-lock requiring manual alignment. |
| Live-Part Touch Protection (IP2X) | Unsafe: Bare live metallic stud exposed during cover removal. | 100% Touch-proof: IP2X insulated shrouds isolate live pins. | Moderate; rubber boot can slip back. |
| High Voltage Interlock Loop (HVIL) | None: No signal circuit to prevent disconnect under load. | Integrated HVIL pins cut signal before power pins break. | None: Zero electrical interlock capability. |
| Reverse Polarity Prevention | Relies solely on visual cable tagging (prone to human error). | Mechanical physical keyway prevents reverse connection. | Color coded only; mechanical keying absent. |
| Vibration Loosening in Transit/Operation | Bolts can loosen under shipping and HVAC vibration. | Dual-stage positive snap-latch immune to vibration loosening. | Twist mechanism can back out under vibration. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated Operating Voltage & Dielectric Proof | Rated continuous operating voltage up to 1500V DC; withstand dielectric test voltage ≥ 5000V AC / 1 minute |
| Current Carrying Capacity Options | Standard modular continuous current ratings: 120A, 200A, 250A, 350A, and 500A (accommodating 16 mm² to 120 mm² high-voltage shielded cables) |
| Integrated High Voltage Interlock Loop (HVIL) | Integrated two-pin signal circuit that disconnects 10 to 30 milliseconds *before* high-voltage power pins to trigger inverter/BMS de-energization |
| Contact Pin Material & Surface Plating | High-conductivity tellurium copper or beryllium copper crown spring contacts with thick micro-silver plating (≥ 3 μm) for minimal contact resistance |
| Environmental Protection & Ingress Sealing | Certified IP67 waterproof and dustproof in mated condition with dual fluorosilicone O-rings; IP2X finger-safe touch protection unmated |
| Mechanical Anti-Mismating Keying & Colors | Mechanical physical keyway indexing and visual color coding: Safety Orange for positive (+), Jet Black for negative (-) |
| Flexible Cable Orientation & Locking Mechanism | 360-degree freely rotating right-angle plug head; dual-action push-pull self-locking latch with audible click and secondary security slide |
| Applicable International Safety Standards | Fully compliant with UL 4128 (standard for connectors in electrochemical battery systems), IEC 61984, and RoHS/REACH |
Frequently Asked Questions
What is an Energy Storage Connector and why can standard industrial plugs NOT be used for 1500V BESS racks?
An Energy Storage Connector—frequently referred to by battery engineers as a BESS power connector or quick-lock battery plug—is a specialized single-pole, touch-proof electrical quick-disconnect fitting engineered specifically to carry high continuous DC current between rack-mounted lithium-ion battery modules (LiFePO4/NMC) and the central DC busbar in energy storage containers. Standard multi-pin industrial plugs or conventional screw terminals fail catastrophically in 1500V DC battery environments for three critical reasons: <ul><li><strong>1. Lethal DC Arc Flash:</strong> Direct current (DC) does not have a natural zero-crossing point like AC power. If a connection carrying 300A at 1500V DC is accidentally unplugged under load, an uncontained, continuous plasma arc will form across the gap, instantly vaporizing copper, creating an explosive arc flash, and incinerating the battery rack.</li><li><strong>2. Reverse Polarity Explosion:</strong> In series-connected battery strings, connecting positive to negative creates a dead short-circuit with prospective fault currents exceeding 50,000 amperes, triggering immediate thermal runaway. Energy storage connectors utilize mechanical keying and distinct color coding (orange/black) that makes cross-polarity insertion physically impossible.</li><li><strong>3. Extreme Thermal Stresses in Sealed Racks:</strong> High continuous charging/discharging cycles demand sub-milliohm contact resistance. Energy storage connectors utilize silver-plated multi-contact crown springs that maintain low operating temperature and resist vibration loosening.</li></ul>
How does the High Voltage Interlock Loop (HVIL) physically prevent electrical accidents during maintenance?
The High Voltage Interlock Loop (HVIL) is a life-critical safety circuit integrated directly into the connector geometry. Inside the plug, two small auxiliary signal pins sit alongside the primary high-current power contact. Critically, these HVIL signal pins are physically shorter than the main power pins: <ul><li><strong>During Disconnection (Unplugging):</strong> As a technician presses the release button and pulls the plug, the shorter HVIL pins separate first—approximately 10 to 30 milliseconds <em>before</em> the high-voltage power contact breaks. The Battery Management System (BMS) and power conversion system (PCS) instantly detect the broken circuit and open the main DC contactors, de-energizing the battery rack before physical pin separation. This completely eliminates the possibility of an open-air DC arc flash.</li><li><strong>During Connection (Plugging In):</strong> The main power pins make contact and seat fully inside the socket <em>before</em> the HVIL circuit closes, ensuring the system cannot be energized while contacts are only partially engaged.</li></ul>
Why is a 360-degree rotating plug head essential for containerized BESS battery enclosures?
Containerized energy storage enclosures pack hundreds of megawatt-hours of battery cells into cramped 20-foot or 40-foot shipping containers. Space between battery module trays and rack doors is typically less than 10 to 15 centimeters. High-current cables (e.g., 50 mm² to 120 mm²) are extremely stiff with large bending radii. A fixed-angle connector forces cables into awkward bends that stress internal PCB terminals and cause micro-cracks over thermal cycles. The 360-degree freely rotating plug head of the YOMIN YM-ES connector allows technicians to orient the cable exit angle in any direction (upward, downward, or sideways into adjacent vertical wire ducts) without applying mechanical shear strain to the socket or battery enclosure.
Battery Energy Storage Systems (BESS): What Is an Energy Storage Connector?
Designing containerized battery energy storage systems (BESS), commercial microgrids, or solar-plus-storage battery racks requiring UL 4128 and IEC 61984 certified 1500V energy storage quick connectors? YOMIN manufactures industrial-grade BESS connectors.
