Battery Energy Storage Systems (BESS): What Is a Manual Service Disconnect (MSD)?
The Critical Safety Barrier in High-Voltage Energy Storage Racks
Modern commercial and utility-scale Battery Energy Storage Systems (BESS) pack thousands of kilowatt-hours into containerized enclosures operating at high voltages from 600V to 1000V+ DC. These immense battery banks provide grid-scale frequency response, solar peak shifting, and microgrid backup power.
However, working on live DC battery packs represents an extreme hazard for electrical technicians, utility operators, and emergency first responders. Unlike AC networks where current passes through zero 100 to 120 times per second, direct current (DC) sustains intense, non-extinguishing electric arcs that can instantly vaporize metal and trigger explosive battery fires.
International safety standards—including NFPA 855, UL 9540, and ISO 6469—mandate a dedicated, tool-free mechanical device to isolate high-voltage strings before any human intervention.

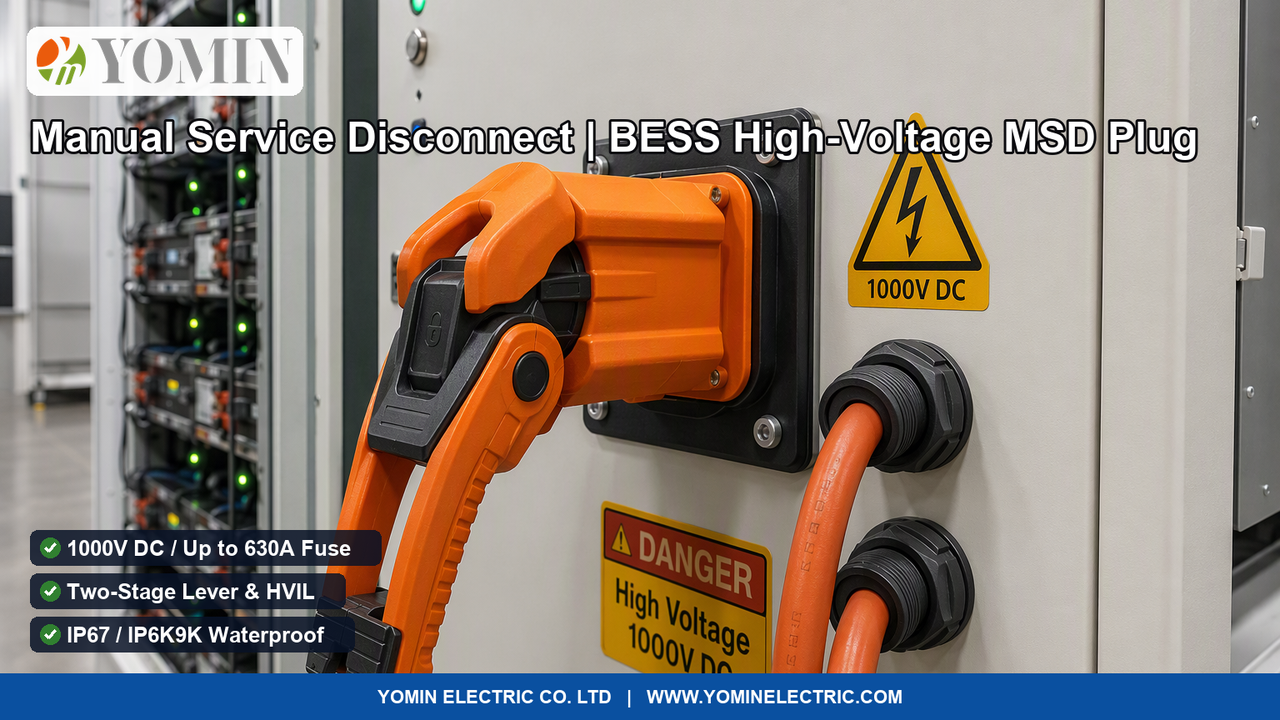

The Manual Service Disconnect (Model MSD Series) is the standardized solution: a high-voltage safety plug combining an internal high-speed DC fuse, a two-stage arc-prevention lever, and an integrated High Voltage Interlock Loop (HVIL).
Engineering Anatomy: Inside a Certified 1000V DC Manual Service Disconnect
- Ergonomic Two-Stage Extraction Handle: Engineered with a mechanical interlock that enforces a mandatory physical delay between breaking the low-voltage HVIL circuit (Stage 1) and separating the high-voltage power pins (Stage 2).
- Integrated High-Rupturing-Capacity Ceramic DC Fuse: Protects the battery pack against catastrophic external short-circuit faults (up to 50kA breaking capacity), mounted securely inside the insulated plug body.
- Dual-Pin High Voltage Interlock Loop (HVIL): Shorter auxiliary micro-switch pins disconnect 10–30 ms before the power circuit breaks, signaling the BMS to drop the main contactors under zero load.
- Silver-Plated Crown Spring Contact Terminals: Machined from tellurium copper with multi-contact louvered springs and ≥ 5 μm silver plating, maintaining sub-milliohm contact resistance under 400A–630A continuous load.
- IP67 / IP6K9K Dual-O-Ring Compression Sealing: High-grade fluorosilicone gaskets prevent ingress of water, salt fog, and dust inside outdoor containerized BESS enclosures.
- IP2X Touch-Proof Receptacle Shrouds: Deeply recessed female contacts prevent human fingers from touching live busbars even when the MSD plug is completely removed.
Comparison: Manual Service Disconnect (MSD) vs. DC Molded Case Circuit Breaker (MCCB)
| Engineering Feature | DC Molded Case Circuit Breaker (MCCB) | YOMIN High-Voltage Manual Service Disconnect (MSD) |
|---|---|---|
| Physical Contact Air-Gap Visibility | Hidden: Contacts sealed inside breaker casing; cannot visually confirm separation. | Visible Air Gap: Complete physical removal of plug creates 100% visible, foolproof isolation gap. |
| Contact Welding Failure Risk | High: Electronic contacts can weld closed during high-current short-circuit events. | Zero Risk: Plug removal physically breaks the circuit mechanically, regardless of electrical state. |
| Integrated Fast-Acting Fuse Protection | Thermal-magnetic or electronic trip unit with 20–50 ms mechanical delay. | Integrated ultra-fast silver-element ceramic DC fuse clears massive faults in ≤ 5 ms. |
| Tool-Free Operation & Touch Safety | Requires operating lever; live busbar terminals exposed under maintenance panels. | 100% Tool-free two-stage handle; IP2X touch-proof female sockets prevent accidental shock. |
| Enclosure Space & Weight Footprint | Heavy, bulky unit requiring dedicated chassis and mounting brackets. | Compact, panel-mounted plug-and-socket design optimized for dense battery module faces. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated System Operational Voltage | Rated continuous operating voltage up to 1000V DC / 1500V DC; insulation dielectric test voltage ≥ 5000V AC / 1 minute |
| Continuous Current & Integrated Fuse Ratings | Modular continuous current ratings from 150A, 250A, 350A, 400A, up to 630A DC (accommodating high-speed aR/gR DC fuse links) |
| Integrated High Voltage Interlock Loop (HVIL) | Dual-pin integrated signal circuit that physically disconnects 10 to 30 milliseconds *before* high-voltage power contacts separate |
| Two-Stage Mechanical Lever Extraction | Tool-free two-step extraction handle: Stage 1 breaks HVIL and opens signal circuit; Stage 2 unlocks and extracts the main fuse plug |
| Ingress Protection & Environmental Sealing | Certified IP67 and IP6K9K high-pressure waterproof/dustproof in mated condition with silicone compression seals; IP2X touch-proof unmated |
| Contact Terminal Material & Plating | High-purity forged tellurium copper contacts with thick silver plating (≥ 5 μm) for sub-milliohm contact resistance (≤ 0.2 mΩ) |
| Mechanical Durability & Endurance Life | Rated mechanical life ≥ 500 mating/unmating cycles without degradation; flame-retardant thermoplastic housing (UL 94 V-0) |
| International Safety Standards Compliance | Certified to UL 4128, USCAR-2, USCAR-37, IEC 60664-1, ISO 6469, and UN 38.3 transport safety requirements |
Frequently Asked Questions
What is a Manual Service Disconnect (MSD) and why is it mandatory in high-voltage BESS and EV battery packs?
A Manual Service Disconnect—universally abbreviated as an MSD—is a specialized high-voltage mechanical safety disconnect plug featuring an integrated DC fuse and a two-stage manual extraction lever. It is mounted directly on the exterior casing of high-voltage battery enclosures (ranging from 400V to 1000V+ DC) in utility-scale Battery Energy Storage Systems (BESS), commercial solar microgrids, and electric commercial vehicles. An MSD fulfills three non-negotiable life-safety functions: <ul><li><strong>1. Physical Circuit Interruption for Technicians:</strong> When servicing, transporting, or repairing high-voltage battery racks, technicians cannot rely solely on software or electronic contactors (which can fail closed or suffer welded contacts). Pulling the MSD physically splits the series battery string in half, dropping the rack voltage to harmless, non-lethal potential levels.</li><li><strong>2. Integrated High-Breaking DC Short-Circuit Protection:</strong> Inside the plug handle, the MSD houses a fast-acting ceramic DC fuse (rated up to 630A at 1000V DC with 50kA interrupting capacity). If an external short circuit occurs, the fuse blows in milliseconds, protecting battery cells from catastrophic thermal runaway.</li><li><strong>3. Arc Flash Elimination via Two-Stage Lever:</strong> DC power has no zero-crossing voltage point, making DC arcs explosive and persistent. The two-stage lever design guarantees that the High Voltage Interlock Loop (HVIL) drops system power *before* physical contacts disengage, preventing deadly arc flashes.</li></ul>
How does the two-stage extraction lever and HVIL physically eliminate DC arc flash during manual disconnection?
Pulling an MSD plug under high-current load without protection would create a blinding plasma explosion. The MSD prevents this through an exact mechanical interlock sequence: <ul><li><strong>Stage 1 (HVIL Interruption & Pause):</strong> The technician flips the primary orange release latch and lifts the lever to the intermediate position (~45 degrees). This action separates the internal High Voltage Interlock Loop (HVIL) signal pins while the heavy high-voltage power fuse contacts remain fully engaged. The Battery Management System (BMS) instantly senses the broken HVIL circuit and opens the main DC vacuum/air contactors, de-energizing the battery loop in under 20 milliseconds. A mechanical stop physically blocks the lever, forcing the technician to pause.</li><li><strong>Stage 2 (Dead-Circuit Pin Separation):</strong> The technician presses a secondary red safety release button, unlocking the remaining lever stroke. The handle pulls the high-voltage power fuse contacts out of the female socket jaws. Because the circuit was already de-energized by the BMS in Stage 1, the physical separation occurs under zero current (dead circuit), completely eliminating electric arcs and contact erosion.</li></ul>
What is the difference between an MSD and an Energy Storage Quick Connector?
While both components serve high-voltage battery energy storage installations, their mechanical and electrical purposes are distinct: <ul><li><strong>Manual Service Disconnect (MSD):</strong> A safety maintenance disconnect and overcurrent device. It features a two-stage extraction handle, houses an internal replaceable high-speed DC fuse link inside the plug body, and is permanently bolted to the battery pack bulkhead to split series strings during servicing.</li><li><strong>Energy Storage Quick Connector:</strong> A high-current power transfer cable fitting (cable-to-bus or cable-to-rack). It does not contain an internal fuse, features a 360-degree rotating cable head, and is used to interconnect battery module terminals to external DC combiner busbars or inverter inputs.</li></ul>
