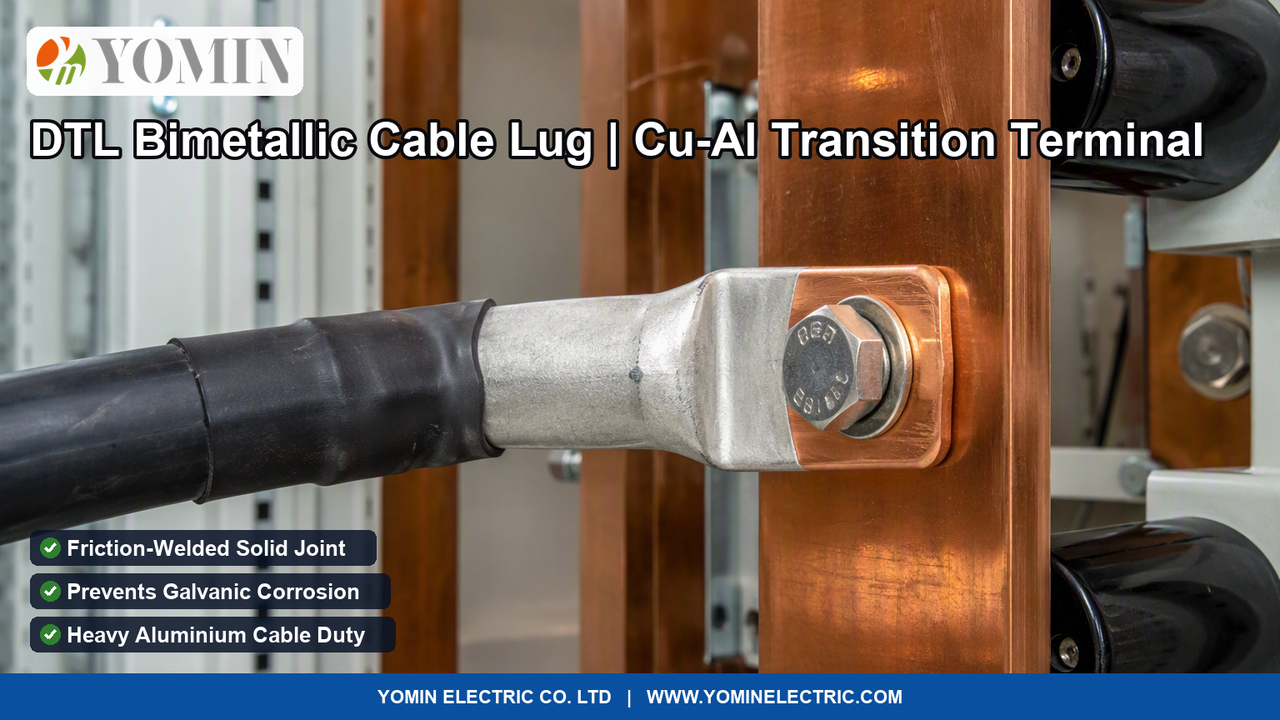

Bimetallic Cable Lug Guide: Copper-Aluminium Transition & Termination
As transmission and distribution utilities increasingly specify aluminium conductors (AAC, AAAC, ACSR, and ABC cables) for cost and weight advantages, terminating these cables into indoor switchgear and transformer bushings poses a serious engineering challenge. Nearly all electrical switchgear busbars, circuit breaker terminals, and disconnect switches are constructed from solid electrolytic copper.
Connecting an aluminium cable directly to a copper terminal invites rapid joint failure, joint oxidation, and catastrophic electrical fires. The engineered solution mandated by international standards (IEC 61238-1 and DIN 46235) is the bimetallic cable lug (DTL series).
| Lug Type | Construction | Conductor Compatibility | Busbar Connection | Galvanic Risk |
|---|---|---|---|---|
| DTL-1 Bimetallic Lug | Friction-welded Cu palm + Al barrel | Aluminium stranded cable (16 mm² – 630 mm²) | Copper busbar / terminal | Zero (Transition occurs inside solid molecular joint) |
| DTL-2 Heavy-Duty Bimetallic Lug | Extended friction-welded Cu palm + thick-wall Al barrel | Heavy aluminium feeder cables up to 800 mm² | Medium-voltage switchboard copper busbars | Zero (Enhanced mechanical pull-out strength) |
| Standard Tinned Copper Lug | 100% Extruded / cast copper with tin plating | Copper conductors only | Copper busbars | High if used on Al (Tin wears; galvanic cell forms) |
| Aluminium Mechanical Shear-Bolt Lug | Aluminium alloy body + brass/Al shear bolts | Aluminium or Copper conductors | Requires bimetal washer on copper busbars | Medium (Requires Belleville spring washers and barrier paste) |
1. The Science of the Copper-Aluminium Interface
Direct contact between copper and aluminium in an energized electrical system creates two destructive phenomena:
- Galvanic Electrochemical Cell: Copper has an electrode potential of +0.34 V, while aluminium has a potential of -1.66 V. The resulting electromotive force of ~2.00 V creates an aggressive galvanic cell in the presence of airborne moisture or humidity. Aluminium atoms rapidly sacrifice into hydrated aluminium oxide ($Al_2O_3$), which is an electrical insulator. Contact resistance spikes, creating localized hot spots exceeding 300°C.
- Thermal Creep and Ratcheting: The coefficient of thermal expansion for aluminium ($23 imes 10^{-6}/ ext{K}$) is ~38% higher than that of copper ($16.5 imes 10^{-6}/ ext{K}$). When a crimped joint warms under load, the aluminium expands against the stiffer copper terminal. When it cools, the aluminium relaxes with permanent deformation (creep), loosening the crimp connection after dozens of thermal cycles.
2. Friction Welding: How True Bimetallic Lugs Are Made
Inferior market lugs use electroplating or copper flash-coating over aluminium. Under high fault currents, the microscopic plating fractures or oxidizes, leading to catastrophic failure. High-quality DTL bimetallic lugs employ rotary friction welding:
- Rotary Forge Bonding: A solid billet of 99.9% purity electrolytic copper (Cu-ETP) is spun at thousands of RPM against a stationary barrel of 99.5% electrical-grade aluminium (Al 1050 / 1060) under immense hydraulic axial pressure.
- Solid-State Diffusion: The resulting mechanical friction generates intense localized forge heat, reaching plastic deformation state without melting. Atoms diffuse across the interface, forming an intermetallic bond with shear and tensile strength exceeding the parent aluminium itself.
- Precision Machining: The welded blank is forged, the barrel is drilled and chamfered, and the copper palm is stamped and punched to standard bolt hole dimensions (M8 to M20).
3. Proper Crimping and Installation Protocol
Even the finest bimetallic lug will fail if installed with improper field tooling. Field engineers must enforce three strict rules:
- Pre-Filled Antioxidant Paste: Aluminium starts re-oxidizing within seconds of exposure to atmosphere. The inside of the aluminium barrel must be packed with zinc-loaded conductive contact grease (such as Penetrox or neutral petroleum jelly with suspended zinc dust). High-grade YOMIN lugs ship pre-filled and factory capped.
- Conductor Preparation: Strip insulation cleanly without nicking outer strands. Vigorously wire-brush the exposed aluminium strands under a coating of antioxidant paste to break through surface oxide films immediately before insertion.
- Hexagonal or Indent Compression: Always use verified hydraulic crimping tools with correctly matched hexagonal dies (DIN 46235 standard). Ensure the prescribed number of compressions starting from the palm end and working back toward the cable entrance to push excess compound forward.
4. Quality and Compliance Standards for Project Specification
When preparing procurement specifications for industrial power plants, solar farms, or municipal grids, insist on the following standards:
- IEC 61238-1 Class A: Specifies 1,000 thermal cycles with short-circuit fault current surges, verifying that electrical resistance across the friction weld remains stable ($k_m \le 1.5$) throughout the test.
- Clear Markings: Every lug should be stamped with conductor cross-section (e.g., $150 ext{ mm}^2$), bolt hole diameter ($M12$), and die index code.
- 100% Spark Testing / Ultrasonic Weld Inspection: Factory quality assurance verifying 100% fusion across the copper-aluminium weld face with zero micro-voids.
Frequently Asked Questions
Why cannot an aluminium power cable be crimped into a standard copper cable lug?
Terminating an aluminium conductor directly into a copper lug causes rapid failure through two distinct mechanisms: (1) Galvanic Corrosion: Copper and aluminium have an electrochemical potential difference of approximately 1.66 V. In the presence of ambient atmospheric moisture, aluminium acts as a sacrificial anode and aggressively corrodes, forming non-conductive aluminium oxide that causes terminal overheating and fires. (2) Differential Thermal Expansion: Aluminium expands ~38% more than copper under thermal cycling ($23 \times 10^{-6}/\text{K}$ vs $16.5 \times 10^{-6}/\text{K}$), causing mechanical creep, loose crimp barrel joints, and escalating contact resistance.
How are bimetallic lugs manufactured to ensure a permanent molecular bond?
Industrial bimetallic lugs (such as DTL-1 and DTL-2 series) are manufactured using precision Rotary Friction Welding. An electrolytic copper palm (99.9% Cu) and an electrical-grade aluminium barrel (99.5% Al) are rotated against each other under high axial compressive force. The mechanical friction heats the interface to plastic forge temperatures below the melting point, creating an atomic-level solid-state diffusion bond with zero voiding, exceptional shear strength, and 100% electrical conductivity.
What preparation is required before crimping an aluminium cable into a bimetallic lug barrel?
Aluminium forms an invisible, high-resistance insulating oxide layer ($Al_2O_3$) within milliseconds of exposure to air. Before crimping, the stripped conductor strands must be vigorously wire-brushed under a neutral contact grease (anti-oxidation paste containing suspended zinc particles). High-quality bimetal lugs are supplied pre-filled with antioxidant compound inside the barrel and sealed with plastic end caps.
