Busbar Connector Guide: Flexible Laminated Links for 300 A DC

A busbar connector is the piece of conductor that joins two things carrying current: a battery module to a rack bus, a rack to a combiner, a cell terminal to a fuse holder. At low currents it is a wire. At the currents inside a battery energy storage system it is a formed copper link, and the shape of that link is doing more work than it first appears.

Why flexible laminated links, not solid bar

The obvious way to connect two heavy terminals is a solid copper bar. It works in a cabinet where nothing moves. It fails in a battery pack, for three reasons:

• Thermal expansion. A busbar carrying 300 A warms and cools with every charge and discharge cycle. A rigid link between two fixed terminals transfers that expansion into the terminals themselves, working the bolted joints loose over thousands of cycles.
• Vibration. Transport, and in the case of mobile applications the vehicle itself, applies vibration to every connection. A rigid bar has nowhere to put that energy; a laminated link absorbs it.
• Tolerance. Module positions are never exactly where the drawing says they are. A laminated link can be flexed to meet a hole that is a few millimetres off; a solid bar cannot, and forcing it puts permanent stress on the joint.

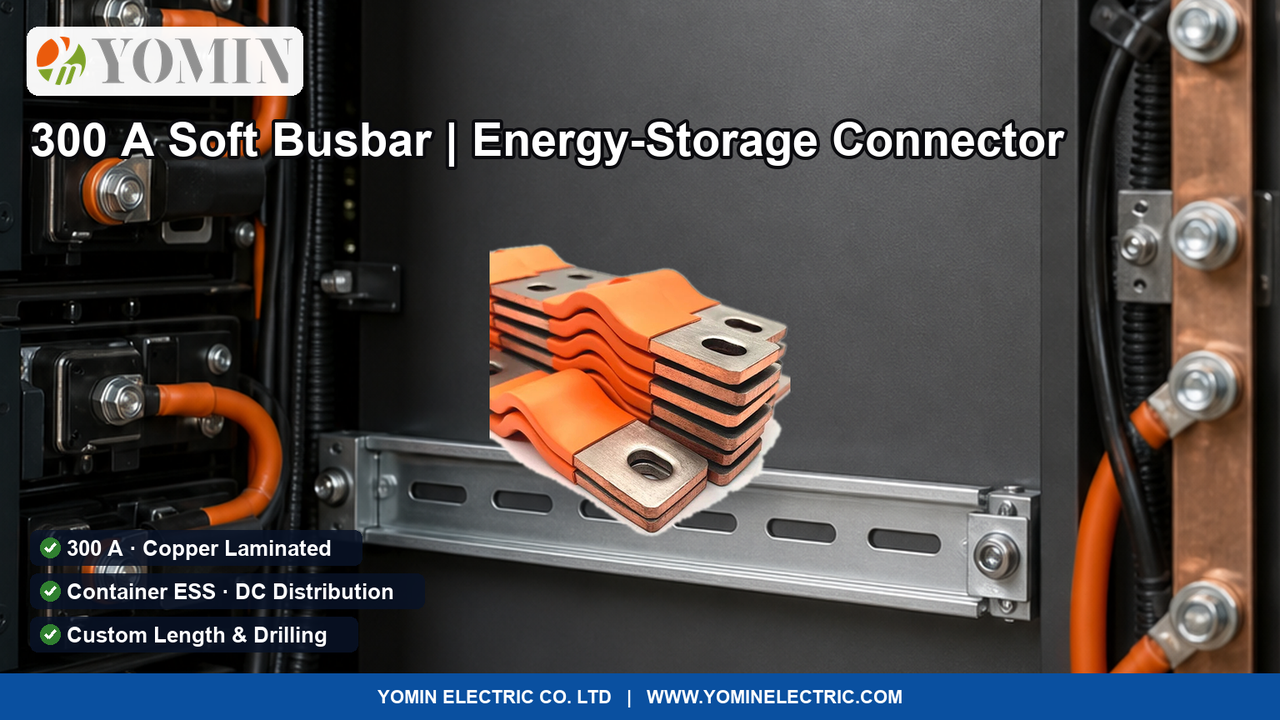

A laminated connector is built from many thin copper strips stacked and pressed together, with the ends welded or pressed solid and drilled for termination. The stack flexes as a unit, which is why these are often called soft busbars. The arched or offset section you can see in the middle of such a link is not styling — it is the part that must be free to move.

What the construction gives you

The 300 A class in a DC system

Current rating alone does not describe a busbar connector, because the same link behaves differently at different voltages and in different air. Three things move the usable current:

• Cross-section and ambient. A link rated 300 A in open air at 25 °C will carry less inside a closed enclosure at 50 °C. The figure on a datasheet assumes a reference condition.
• Voltage and insulation. In a 1500 V DC system the clearance and creepage distances around the link, and the dielectric strength of its insulation, matter as much as the copper. Higher system voltage with the same current demands more insulation, not more copper.
• Termination quality. The joint is usually the hottest point in the circuit, not the conductor. Hole size, plating, bolt grade and tightening torque decide whether the link runs warm or runs away.

This is why our energy storage connectors are specified by application as much as by current: container ESS and commercial storage racks, and DC distribution, where the link has to survive a defined voltage as well as a defined current.

The measurements to send

A laminated busbar connector is a made-to-drawing part. Nine times out of ten a quotation stalls because one of these is missing:

Material choice is a real decision rather than a default. Copper is the better conductor and the usual answer for a 300 A link. Aluminium is lighter and cheaper and is used where weight matters more than cross-section, but it needs more material for the same current and its joints need more care. Our storage connectors are offered in both.

Installation points worth stating

• Torque the joint to specification and record it. A loose high-current joint heats, oxidises, raises its own resistance and heats further.
• Keep the flexible section free. Clamping the middle of a laminated link to a fixed point removes the movement it was bought for.
• Support long runs. Flexibility is not a substitute for mechanical support over distance.
• Check clearance after forming. A link that is bent on site to reach a terminal may end up closer to an earthed enclosure than the insulation system allows.
• Do not mix metals at the joint without thinking. Copper against aluminium needs an appropriate interface, not just a bolt.

Frequently asked questions

What is a busbar connector used for?

Joining two current-carrying points where a rigid bar would be unsuitable — between battery modules and rack busbars, between racks and combiner boxes, and at DC distribution points in energy storage and power electronics assemblies.

Why are busbar connectors laminated instead of solid?

So they can flex. A laminated stack absorbs thermal expansion, vibration and assembly tolerance between two fixed terminals instead of transferring that load into the bolted joints.

How do I choose between copper and aluminium?

Copper conducts better and needs a smaller cross-section for the same current, so it is the usual choice at 300 A. Aluminium is lighter and cheaper but needs more section for the same rating and more care at the joint. Weight and cost targets decide between them.

Does the current rating change with system voltage?

The copper does not, but the permissible design does. Higher system voltage, such as 1500 V DC, demands more insulation, clearance and creepage around the connector, which constrains the shape even when the current is unchanged.

If you are specifying one, send us the current, the system voltage, the hole-to-hole distance and the hole pattern of both ends, plus the space you have for the link. We will confirm the lamination stack, the insulation and the plating rather than quoting a nearest-size part.
