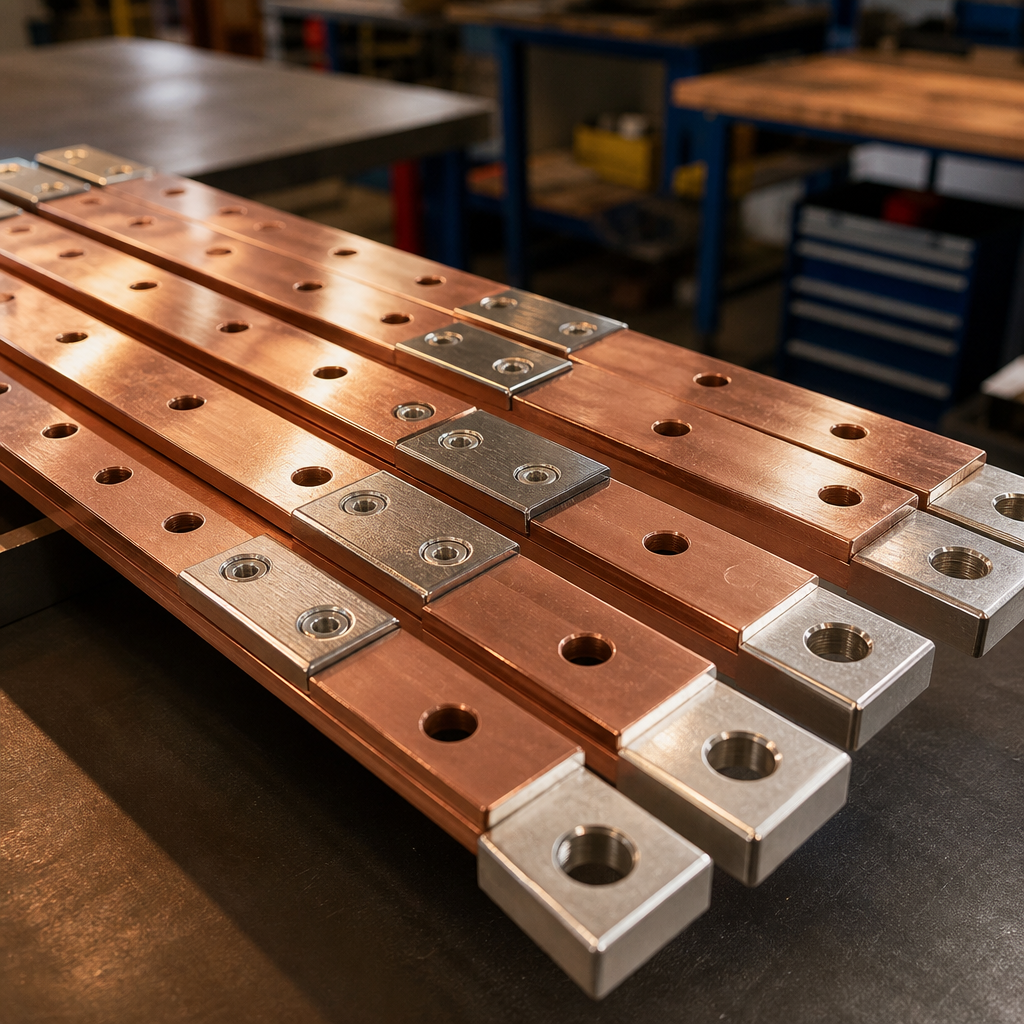

Busbar Design Basics: How to Choose the Right Material and Size

Busbars are the backbone of every switchboard, battery pack, and distribution panel. Choosing the right material and cross-section is what separates a reliable system from a recurring maintenance headache. This guide walks through the engineering decisions — material, size, insulation and joints — that determine whether a busbar system runs cool for decades or fails under load.

What a Busbar Actually Does

A busbar is a solid metal strip or bar that distributes electrical power to multiple branch circuits. Instead of running dozens of individual cables, a single bar collects current from a source (a transformer, generator, or battery) and distributes it to multiple feeders through bolted or spring-loaded connections. Because the bar is continuous, joints are fewer and reliability is higher than an equivalent cable harness.

• Switchboards and distribution panels — main horizontal and vertical bars carrying feeder current.
• Battery racks and energy storage — series and parallel interconnects between cells and modules.
• EV and hybrid systems — compact, vibration-tolerant power paths between inverter, battery and motor.
• Solar combiner boxes — collecting string currents into a single output.

Copper vs Aluminum: The Core Trade-Off

Copper has roughly 60% lower resistance than aluminum of the same cross-section, which means less heat and lower losses at high currents. Aluminum, however, weighs about one-third of copper and costs significantly less, making it the standard for utility-scale distribution where weight and budget dominate.

If the same cross-section is used, aluminum must be upsized roughly 1.26 times (in area) to match copper's ampacity — which usually still saves money and weight on long horizontal runs. For compact equipment like battery packs and switchgear where space is tight, copper is usually the right call.

Sizing the Cross-Section

Cross-section is determined by the continuous current the bar must carry and the allowable temperature rise. As a rule of thumb, a 1 mm² copper bar carries roughly 2–4 A depending on ventilation and duty cycle, but always confirm with the manufacturer's current-carrying tables for your exact configuration.

• Continuous current rating — the bar must carry full load current without exceeding the insulation class temperature (typically 90–105 °C for common insulations).
• Temperature rise limit — switchgear standards commonly allow a 60–70 K rise over ambient on bare bars.
• Short-circuit withstand — the bar must survive fault current for the clearing time; a larger section also means lower impedance and less mechanical stress.
• Skin and proximity effects — at high AC currents, current concentrates near the surface; multiple thin bars in parallel often outperform one thick bar.

Insulation and Plating

Bare bars need clearance distances; insulated or sleeved bars allow compact layouts and prevent accidental contact. Nickel plating on copper terminals improves corrosion resistance and maintains low contact resistance in humid environments. Tin plating is common on aluminum-to-copper joints to prevent galvanic corrosion.

• Heat-shrink sleeving — quick, compact insulation for busbars in enclosures.
• Powder coating or epoxy — durable finish for bars exposed to dust or moisture.
• Plating — nickel for copper, tin for mixed-metal joints, silver for very high-current contacts.

Joints, Bolts and Contact Pressure

The weakest point of any busbar system is the joint. A loose or corroded joint adds resistance, generates heat, and eventually fails. Use Belleville washers to maintain contact pressure through thermal cycling, apply proper torque, and keep joint surfaces clean. For frequent disassembly, consider bolted splice plates with anti-oxidation compound.

Application-Specific Guidance

For EV battery packs and energy storage, flexible laminated busbars absorb vibration and simplify assembly. For switchgear, rigid bars with proper support spacing minimize mechanical stress during short circuits. For solar and UPS systems, aluminum busbars in combiner boxes keep weight and cost down while copper connects battery and inverter stages where current density is highest.

Common Mistakes to Avoid

• Upsizing aluminum without checking joint compatibility with copper terminals.
• Ignoring ambient temperature — a bar rated for 40 °C may be undersized in a 50 °C enclosure.
• Using one thick bar where parallel thin bars give better cooling and easier bending.
• Skipping short-circuit calculation entirely.

FAQ

Can I join copper and aluminum busbars directly?

Only with proper bi-metallic connectors or tin-plated interfaces and anti-oxidation paste. Direct copper-aluminum contact corrodes quickly, especially in humid environments.

How do I calculate busbar ampacity?

Use the manufacturer's tables based on bar size, material, ambient temperature and mounting orientation. As a starting estimate, a 100 A per 20–25 mm² of copper is a common rule of thumb for enclosed bars.

Why are multiple thin bars used instead of one thick bar?

Parallel bars increase surface area for cooling and reduce skin-effect losses at high AC currents, while remaining easier to bend and install.

Conclusion

Match material to cost and weight needs, size cross-section from real current and temperature data, and choose the right insulation for your environment. Pay attention to joints and plating — they fail before the bar does. When in doubt, consult the busbar supplier's engineering tables; they exist for a reason. Yomin Electric manufactures rigid, flexible and laminated busbars for switchgear, storage and EV applications — browse the busbar range or ask our engineers for a sizing recommendation.
