Cable Terminations: What Is a Bimetallic Cable Lug?
The Critical Role of Bimetallic Connectors in Modern Power Systems
In electrical power distribution, substation engineering, and renewable energy infrastructure, engineers frequently face an unavoidable material dilemma: while aluminum cables are widely chosen for underground transmission and feeder runs due to their lightweight properties and significant cost savings, switchgear busbars, circuit breaker terminals, and transformer connection studs are almost exclusively manufactured from high-conductivity electrolytic copper.
Attempting to bolt an aluminum cable lug directly to a copper busbar, or crimping a copper lug directly onto an aluminum conductor, creates an immediate engineering catastrophe known as galvanic corrosion:
- The Galvanic Battery Effect: Copper and aluminum possess a massive electrochemical potential difference of approximately $0.78\, ext{V}$. In the presence of ambient humidity or industrial atmospheric moisture, a microscopic galvanic cell forms. Aluminum, being the more anodic metal, sacrifices itself and corrodes aggressively.
- Thermal Expansion Differential: Aluminum expands at approximately $23 imes 10^{-6}/ ext{K}$, while copper expands at only $17 imes 10^{-6}/ ext{K}$. Thermal cycling during daily peak loads causes mechanical loosening, air ingress, oxidation, elevated contact resistance, and ultimate thermal runaway.

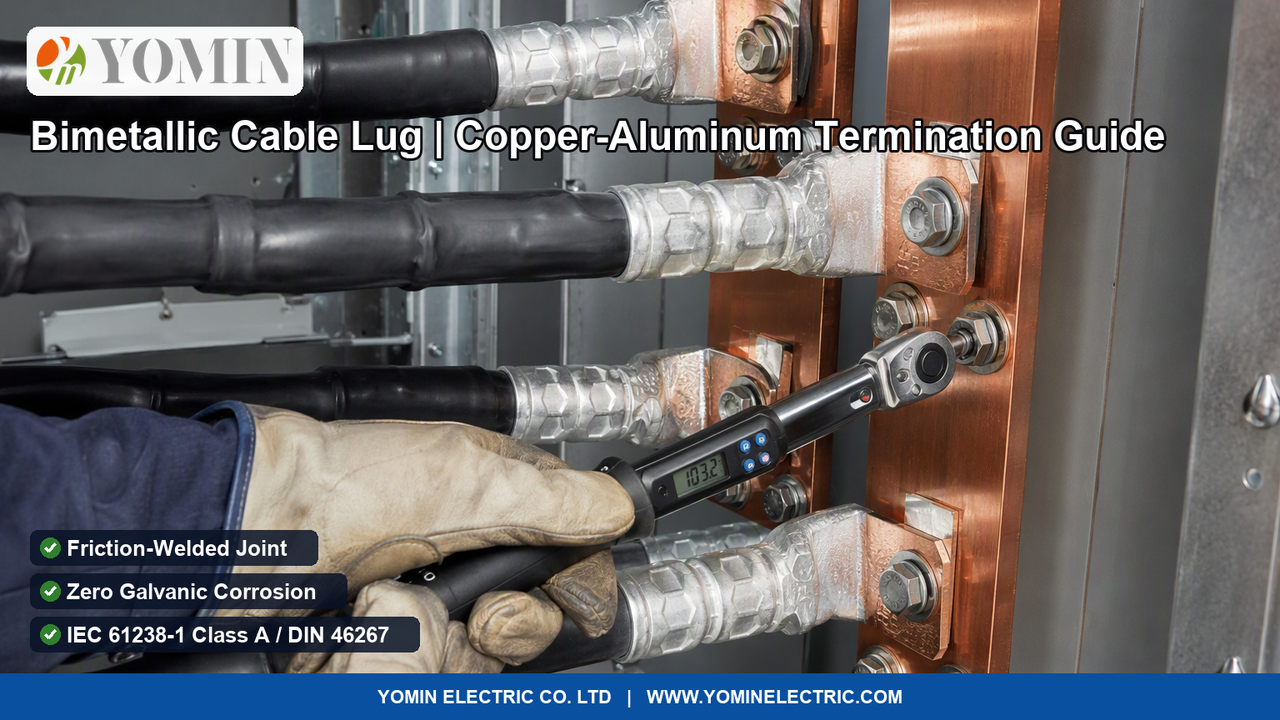

The bimetallic cable lug completely solves this dilemma through solid-state friction welding, providing an imperishable molecular bridge between copper switchgear and aluminum cables.
Engineering Anatomy: Friction Welding vs. Mechanical Cladding
| Design Characteristic | YOMIN Friction-Welded Bimetallic Lug (DTL Series) | Inferior Cladded / Soldered Lugs |
|---|---|---|
| Transition Joint Strength | 100% Solid-State Molecular Bond: Joint tensile strength exceeds the yield strength of the parent aluminum barrel. | Weak mechanical crimp or brazed joint prone to delamination under electrodynamic short-circuit forces. |
| Intermetallic Compound Formation | Zero Brittle $ ext{CuAl}_2$ Phases: Solid-state process avoids melting temperatures, maintaining ductile crystalline continuity. | High heat during soldering or brazing generates brittle copper-aluminum alloys that crack under thermal shock. |
| Internal Corrosion Protection | Pre-filled with zinc-loaded antioxidant paste and capped at the factory to block moisture during storage and transit. | Dry barrel; requires manual on-site paste application that technicians frequently forget. |
| Short-Circuit Thermal Endurance | Tested to withstand $250^\circ ext{C}$ short-circuit conditions under IEC 61238-1 Class A without degradation. | Solder melts or softens at temperatures above $180^\circ ext{C}$, causing catastrophic terminal detachment. |
Technical Specifications
| Technical Specification & Parameter | Standard Metric Rating & Engineering Compliance |
|---|---|
| Palm Material Composition | High-conductivity electrolytic forged copper ($Cu \ge 99.95\%$, IACS conductivity $> 100\%$) for low-resistance bolting to copper busbars |
| Barrel Material Composition | High-purity electrical grade aluminum ($Al \ge 99.5\%$) designed for compression crimping onto stranded aluminum conductors |
| Metallurgical Joining Technology | Solid-state rotary friction welding: Generates molecular inter-diffusion without melting, yielding 100% molecular bonding without brittle intermetallic phases |
| Internal Corrosion Protection | Factory pre-filled with neutral zinc-loaded antioxidant contact grease and sealed with a protective plastic end-cap to prevent aluminum oxidation |
| Operating Temperature Rating | Continuous operation up to $105^\circ ext{C}$; Short-circuit maximum withstand temperature $250^\circ ext{C}$ without joint failure under IEC 61238-1 |
| Electrochemical Voltage Isolation | Completely eliminates the $0.78\, ext{V}$ electrochemical potential difference between copper and aluminum inside the electrical contact zone |
| Applicable Conductor Cross-Sections | Standard sizes from $16\, ext{mm}^2$ up to $630\, ext{mm}^2$ (AWG 6 to 1000 kcmil) matching metric and imperial cable gauges |
| International Manufacturing Standards | Fully certified and tested to IEC 61238-1 Class A (heavy-duty through-fault electrical and mechanical cycling) and DIN 46267 Part 2 |
Frequently Asked Questions
What is a bimetallic cable lug and why is it essential in electrical engineering?
A bimetallic cable lug (often designated as Model DTL or bi-metal terminal) is an engineered electrical connector comprising a high-purity aluminum barrel joined seamlessly via solid-state friction welding to an electrolytic copper palm. It is mandatory whenever an <strong>aluminum conductor</strong> must be bolted to a <strong>copper busbar, circuit breaker terminal, or transformer stud</strong>. Directly connecting aluminum wire to copper terminals causes rapid <strong>galvanic corrosion</strong> due to their $0.78\, ext{V}$ electrochemical potential difference, forming non-conductive aluminum oxide films that increase contact resistance ($R_{ ext{contact}}$), overheat, and ignite switchgear fires. A bimetallic lug keeps the copper-to-aluminum transition hermetically sealed inside the molecular friction weld, completely eliminating galvanic degradation.
How does friction welding guarantee zero failure at the copper-aluminum interface?
Friction welding is a solid-state joining process where the aluminum rod is rotated at high speed under immense axial pressure against the stationary copper palm. Frictional heat plasticizes the interface without melting the metals. When rotation stops, forge pressure forces out surface contaminants and creates a true <strong>atomic-level crystalline bond</strong> between copper and aluminum atoms. Because melting is avoided, the formation of brittle intermetallic compounds ($ ext{CuAl}_2$) is strictly prevented. Tensile testing under IEC 61238-1 proves that the friction weld is stronger than the parent aluminum metal—the cable or barrel will yield before the friction weld shears.
What is the correct crimping procedure for installing bimetallic cable lugs?
To achieve a certified Class A electrical termination, follow these engineering steps: <ol><li><strong>Cable Stripping:</strong> Strip the cable insulation to the exact depth of the aluminum barrel without nicking the aluminum strands.</li><li><strong>Oxide Removal:</strong> Wire-brush the bare aluminum strands immediately prior to insertion to break up any invisible aluminum oxide ($ ext{Al}_2 ext{O}_3$) layer.</li><li><strong>Antioxidant Verification:</strong> Ensure the factory-injected neutral antioxidant grease inside the barrel is retained; do not wipe it out. The grease seals out atmospheric moisture and breaks surface oxides during compression.</li><li><strong>Hexagonal Die Compression:</strong> Use calibrated hydraulic crimping tools with standard DIN hexagonal dies. Crimp starting from the palm end and move progressively toward the cable entry, ensuring complete die closure on each bite.</li><li><strong>Insulation Sealing:</strong> Install a heavy-wall polyolefin heat-shrink sleeve over the barrel-to-cable transition to provide IP67 environmental moisture protection.</li></ol>
Cable Terminations: What Is a Bimetallic Cable Lug?
Engineering electrical power distribution switchgear, utility transformer connections, or commercial solar balance-of-system infrastructure requiring certified, heavy-duty bimetallic cable lugs? YOMIN manufactures friction-welded copper-aluminum lugs from 16mm² to 630mm² certified under IEC 61238-1 Class A.
