CEE / IEC Power Connector Guide: High-Current Connectors for ESS

A CEE / IEC power connector is a plug-and-socket connection rated to carry real current — not a signal, and not a domestic load. It exists so that a high-current circuit can be disconnected and reconnected quickly, by hand, without a tool and without opening the enclosure.

That requirement is what drives every design decision in the part. A bolted busbar joint is electrically better in almost every way, but you cannot undo it in a service window with the panel live. A connector trades a little contact resistance for that access.

Where these connectors are actually used

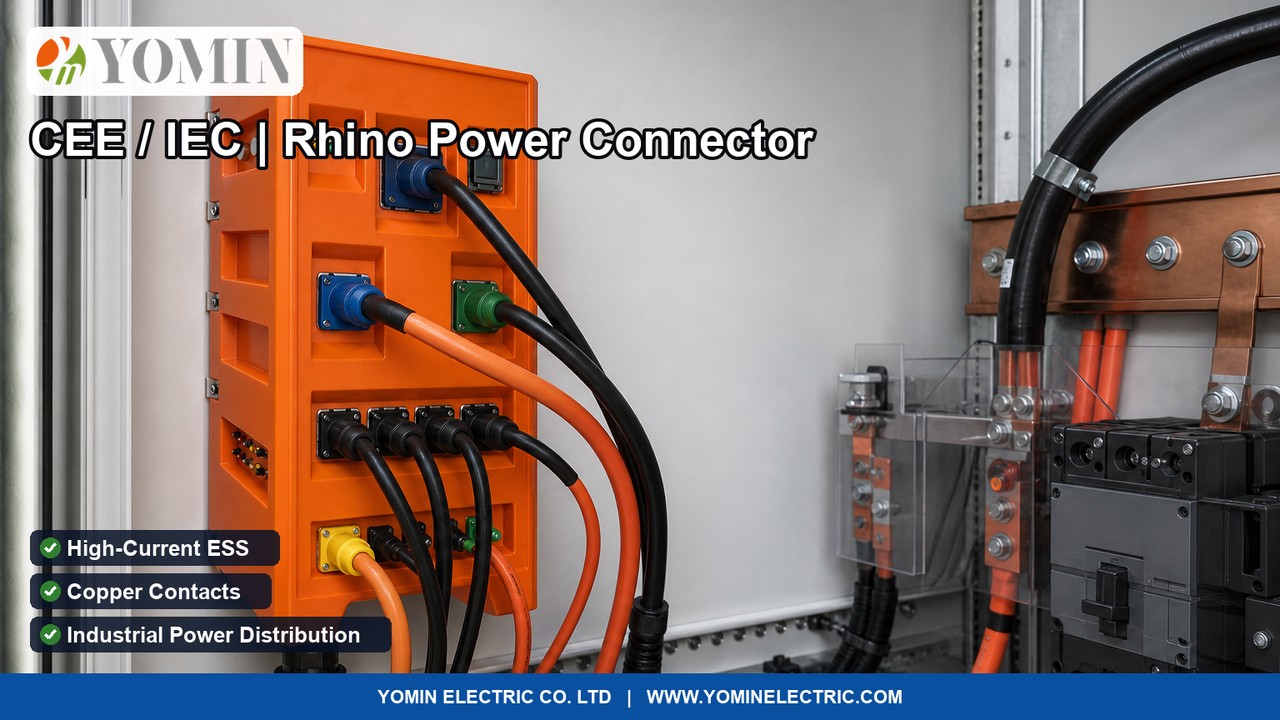

The published application for the YOMIN CEE / IEC rhino power connector is high-current ESS and industrial power. In practice that means:

• Battery energy storage systems — rack-to-rack and system-to-inverter DC connections that have to be broken for maintenance or transport.
• Industrial power distribution — high-current feeds to machinery and distribution units where a plug connection is required rather than a fixed one.
• Mobile and containerised equipment — anything that is assembled on site, moved, or shipped with the power connections separated.

The common thread is that the connection must be repeatable. A connector that is mated once at the factory is a worse choice than a bolted joint; a connector that is mated every time a rack is serviced is the only sensible choice.

Start from the current, then the contacts

Choosing a connector is mostly matching three numbers, in this order:

1. Continuous current. The connector must carry the sustained load, not just the peak. Derate for the ambient inside a closed cabinet, which is usually far hotter than the room.
2. Voltage and system type. DC energy storage and AC industrial power make different demands, particularly on arc control when the connection is broken under load.
3. Conductor size. The connector has to accept the cable or bar you are actually using. This is where most late-design surprises appear.

Contacts on the YOMIN range are copper. That is the right starting point: copper is the standard high-current contact material, and plating quality on top of it decides whether the contact resistance stays low after a hundred mate-and-unmate cycles. A cheap connector with thin or uneven plating will measure fine on the bench and then run hot in service, because contact resistance climbs as the plating wears through.

What to check before ordering

• Colour coding and keying. Multi-pole systems use colour and mechanical keying to prevent mismating. Confirm the coding matches the rest of your installation — a connector that is individually correct but coded differently from everything else on site is a maintenance hazard.
• Protective cover. An unused socket is an exposed live part. Where the connector may be left unmated, specify the version with a protective cover.
• Mounting arrangement. Panel-mount, cable-end and enclosure-mount versions are not interchangeable. Send the panel cut-out drawing, not just a photo.
• Sealing and environment. Indoor panel use and outdoor container use need different protection. Do not assume the indoor part will survive a container roof.
• Standards compliance. CEE and IEC designations describe dimensional and safety conventions. Confirm which standard the part is built to, and that it matches your market.

Design the joint, not just the part

Most connector failures are installation failures. Three rules prevent nearly all of them:

• Use the correct conductor preparation. Ferrules or crimped terminations where the terminal is designed for them — never a twisted strand in a screw clamp.
• Respect the torque. Under-torqued terminals run hot; over-torqued terminals crack or strip. Use a torque wrench and record it.
• Keep strain off the contact. Support the cable so the connector is not carrying the weight of the loom. This is the single most common cause of a cracked housing.

Sourcing and production

YOMIN manufactures CEE / IEC rhino power connectors for energy storage and industrial power under ISO 9001 and CE certified manufacturing, in copper contact construction. Standard lead time is 15–25 working days, extending to 30–45 days for OEM and custom variants, with a minimum order of 100 units (500 for OEM or custom). Units carry a two-year warranty against manufacturing defects.

If you are specifying for a new ESS platform, send the current rating, the system voltage, the conductor size and the panel cut-out. Those four items are enough for an accurate quotation — and for a manufacturer to tell you honestly whether a standard part will do or whether you need a custom variant.
