Comb Busbar Guide: Pin vs Fork Modular MCB Distribution
The Critical Transition from Cable Looping to Modular Comb Busbars
In low-voltage residential consumer units, commercial panelboards, and industrial motor control cabinets, distributing electrical power to multiple DIN-rail mounted miniature circuit breakers (MCBs), residual current circuit breakers (RCCBs), and modular surge arresters has historically relied on manual cable looping. Electricians stripped and bent individual lengths of flexible copper wire, daisy-chaining one breaker terminal into the next.

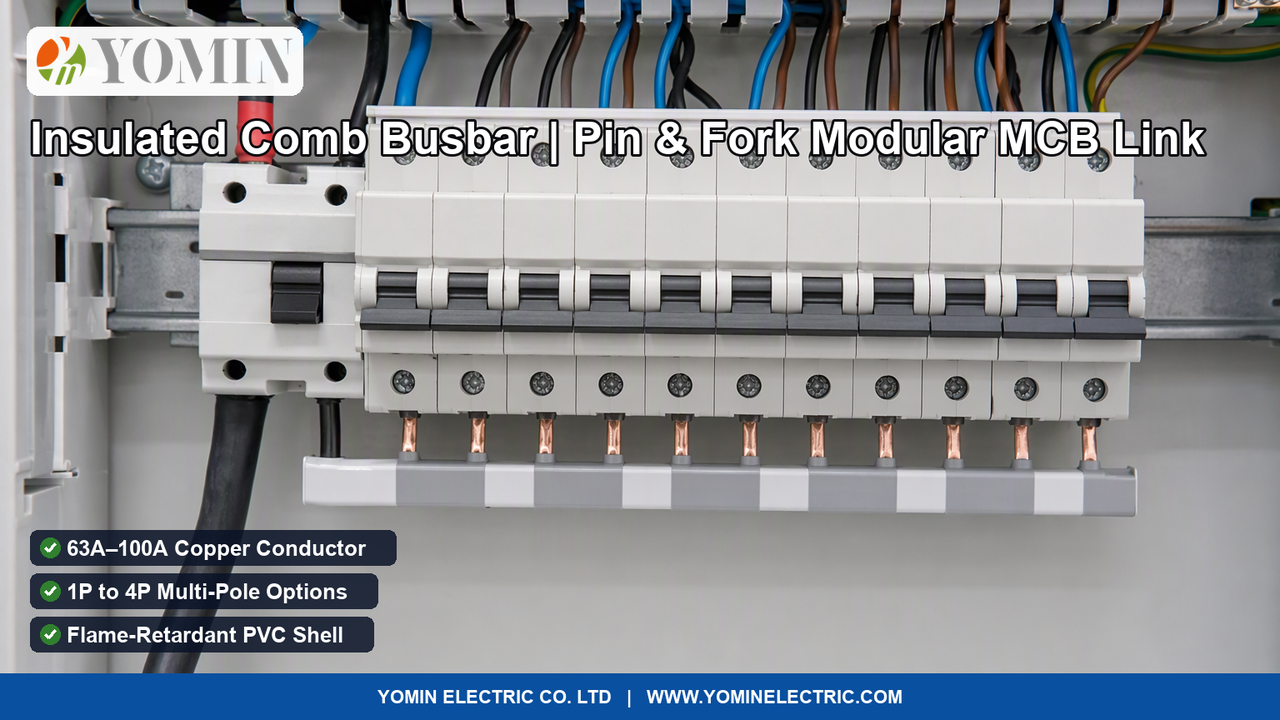

This traditional wiring method suffers from severe engineering defects: uneven screw terminal pressure when multiple wire strands share a single cage clamp, localized thermal hotspots, wire insulation pinching, and chaotic panel clutter. The insulated copper comb busbar (also referred to as a pin busbar, fork busbar, or modular MCB busbar) replaces manual jumpers with a precision-machined, monolithic copper conductor encased in a rigid flame-retardant insulating shroud. It represents the global standard for modern, professional electrical distribution.
Pin Type vs. Fork Type: Mechanical & Terminal Interface Comparison
Selecting the appropriate comb busbar format depends entirely on the terminal architecture of the connected modular circuit breakers:
| Engineering Parameter | Pin-Type (Tooth / Needle) Comb Busbar | Fork-Type (Spade / U-Lug) Comb Busbar |
|---|---|---|
| Terminal Interface | Solid vertical copper pins that insert into the breaker cage clamp. | Notched U-shaped prongs that slide underneath the terminal screw head. |
| Breaker Compatibility | Universal compatibility across standard DIN-rail MCBs, RCDs, and SPDs. | Requires breakers with rear bi-connect slots or exposed screw heads. |
| Simultaneous Cable Insertion | Cable must share the cage clamp opening with the busbar pin. | Independent wiring: cable enters the cage clamp while fork clamps to the screw. |
| Contact Surface Area | Linear contact along the pin face; requires precision tightening torque. | Large planar clamping area clamped directly under the heavy screw washer. |
| Typical Regional Standard | Widely utilized in British, Asian, Middle Eastern, and Commonwealth markets. | Predominant in European (DIN/VDE) and North American industrial panel designs. |
Ampacity, Copper Cross-Section, and Short-Circuit Coordination
Specifying comb busbars requires rigorous verification of continuous thermal capacity and short-circuit withstand:
- Continuous Current Ratings (63A vs. 100A): Standard 1P/2P/3P/4P comb busbars feature a 10 mm² copper cross-section rated for 63A continuous current when end-fed. For larger distribution boards fed by 80A or 100A main circuit breakers, panel builders must specify heavy-duty busbars with 16 mm² or 18 mm² copper strips. Sizing too small leads to excessive joule heating ($I^2R$) and premature breaker thermal tripping.
- Center-Fed Current Optimization: When a distribution board contains a high number of outgoing ways (e.g. 24 or 36 poles), feeding the busbar from the central breaker rather than one end allows the total load current to divide equally in two directions. A standard 63A busbar center-fed can safely support a total connected lineup load up to 100A without overheating.
- Flame-Retardant PVC Insulation: The rigid plastic enclosure must be manufactured from high-impact, self-extinguishing PVC certified to UL 94 V-0 flame-retardant standards. It must withstand dielectric test voltages of 2,500 V AC without breakdown and resist operating temperatures up to 85°C without deformation.
Frequently Asked Questions
What is the difference between a pin-type comb busbar and a fork-type comb busbar?
A pin-type (or tooth-type) comb busbar features solid rectangular copper blades designed to insert directly into the standard cage-clamp terminals of miniature circuit breakers (MCBs) alongside incoming cables. A fork-type (or spade-type) comb busbar features U-shaped notched prongs that slot under the screw head of dual-terminal or bi-connect circuit breakers. While pin busbars are universally compatible with standard DIN-rail breakers, fork busbars provide superior mechanical clamping surface area and allow direct cable insertion into the cage clamp without sharing terminal space.
Why are insulated comb busbars preferred over manual cable link jumping (daisy-chaining) in distribution boards?
Manual cable looping using cut flexible wire jumpers creates high contact resistance, uneven terminal screw clamping, severe heat accumulation, and wire-crowding hazards inside consumer units. An insulated copper comb busbar provides a monolithic copper conductor with identical contact resistance across all connected breakers, reduces installation time by over 70%, guarantees clean phase distribution without crossing wires, and eliminates terminal loosening caused by wire strand creep.
Why must cut ends of a comb busbar always be fitted with dedicated insulation end caps?
When an electrician cuts a 1-meter comb busbar stick to fit a custom breaker lineup, the raw copper strip is exposed at the cutting edge. Without terminal end caps (protective plastic shroud covers), the exposed copper end presents a critical phase-to-phase or phase-to-chassis flashover hazard ($V > 400V$). Factory-molded PVC end caps insulate the cut edges, preventing accidental technician contact and maintaining mandatory creepage and clearance distances inside metal consumer units.
