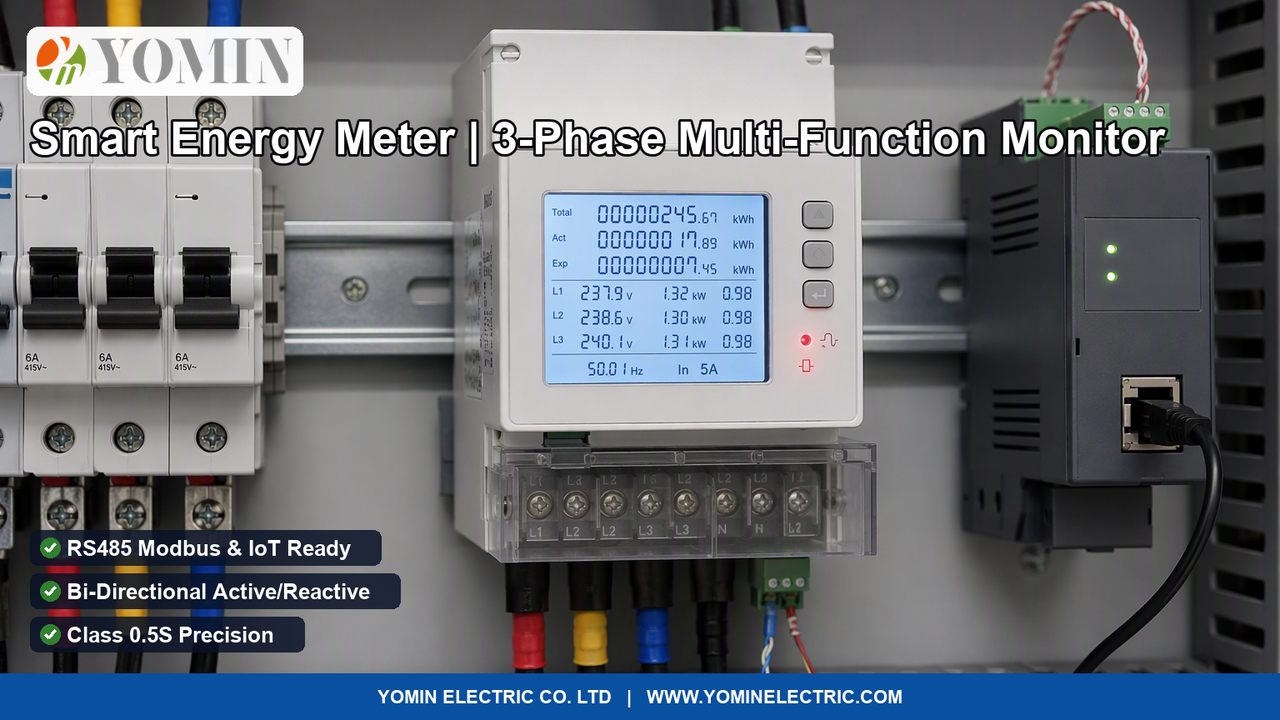

Commercial & Industrial Grid Monitoring: What Is a Smart Energy Meter?
Transitioning to Automated Metering Infrastructure (AMI)
In modern commercial buildings, industrial manufacturing plants, and electrical distribution networks, energy management can no longer rely on monthly manual meter readings. Volatile peak electricity tariffs, distributed rooftop solar generation, and stringent carbon reporting mandates require facility managers to monitor electrical parameters continuously in real time.
The smart energy meter forms the foundational hardware layer of modern smart grids and automated power accounting systems (ASKUE / AMR), turning raw kilowatt-hours into actionable operational intelligence.
Inside a Multi-Function Smart Metering Architecture
A certified commercial smart meter combines five specialized functional blocks:
- Precision Analog Front-End (AFE): High-accuracy internal current transformers and precision voltage divider networks step down line parameters, feeding ultra-fast 24-bit Analog-to-Digital Converters (ADCs) that sample voltage and current thousands of times per AC cycle.
- Digital Signal Processing (DSP) Engine: The processor calculates true RMS voltage, true RMS current, active power (P), reactive power (Q), apparent power (S), power factor (cos phi), and grid frequency with Class 0.5S precision.
- Battery-Backed Real-Time Clock (RTC): A temperature-compensated real-time clock ensures sub-second accuracy for Time-of-Use (TOU) tariff switching, automatically recording consumption into Peak, Shoulder, and Off-Peak billing registers.
- Non-Volatile Memory (EEPROM & Flash): Historical interval load profiles (e.g. 15-minute average kW demand) and power outage event logs are retained securely for up to 10 years without external power.
- Modular Communication Engine: Isolated RS485 serial ports and modular wireless transceivers (4G/LoRa/Ethernet) stream real-time operational telemetry to cloud servers and factory automation platforms.
Traditional Electric Meters vs. Modern Smart Energy Meters
| Capability | Electromechanical Induction Meter | Basic Digital Electronic Meter | Multi-Function Smart Energy Meter |
|---|---|---|---|
| Data Collection | Manual physical site visit once a month. | Manual visual reading from LCD screen. | Automated: continuous interval telemetry via RS485 / 4G. |
| Solar Bi-Directional Power | Cannot distinguish forward/reverse power. | Unidirectional; registers export as error. | 4-Quadrant: independent Import and Export registers. |
| Tariff Flexibility | Single flat-rate tariff only. | Dual tariff via external relay wire. | Multi-Tariff TOU: up to 8 tariffs with holiday schedules. |
| Power Quality Monitoring | None. | Voltage and current display only. | Full Spectrum: THD, harmonics to 31st, sag/swell, demand. |
Frequently Asked Questions
What is a smart energy meter and how does it differ from a traditional digital meter?
A smart energy meter is an advanced solid-state microprocessor instrument that not only measures electrical energy consumption with high digital precision, but also incorporates bi-directional communication capabilities, time-of-use (TOU) tariff registers, power quality diagnostics, and automated remote data transmission. Unlike basic electronic meters that require human meter readers to physically visit the site, a smart meter continuously transmits interval load profiles, peak demand records, and fault alerts over RS485 Modbus, Ethernet, or wireless cellular networks directly to utility and building management system (BMS) servers.
How do smart meters support commercial solar net-metering and bi-directional power flows?
Traditional induction disc meters run backward or fail to register reverse energy when commercial rooftops export excess solar electricity back into the utility grid. A three-phase smart energy meter utilizes high-speed digital signal processing (DSP) to measure active and reactive energy across all four power quadrants independently. It records both "Import kWh" (energy consumed from the utility grid) and "Export kWh" (surplus clean solar energy supplied back to the grid), enabling utilities to execute precise net-metering billing calculations.
What communication protocols do commercial smart energy meters use for automated energy management?
Commercial and industrial smart meters primarily utilize **RS485 Modbus RTU** for local supervisory control and data acquisition (SCADA) and Building Management Systems (BMS). For utility automated metering infrastructure (AMI), smart meters employ standardized **DLMS/COSEM** (Device Language Message Specification / Companion Specification for Energy Metering) over cellular 4G LTE Cat-1, NB-IoT, or LoRaWAN, guaranteeing open interoperability between different meter manufacturers and centralized utility billing software.
Deploying automated metering infrastructure (AMI), commercial tenant sub-metering, or factory energy monitoring systems?
Tell us your grid configuration (single-phase or three-phase four-wire), direct or CT-operated connection, and preferred communication interface (RS485 Modbus, 4G, or LoRa). YOMIN manufactures precision multi-function smart meters engineered to IEC 62053 standards.
