Commercial & Industrial Metering: What Is a CT-Operated Energy Meter?
The Critical Measurement Engine for Commercial & Industrial Energy
In modern commercial high-rises, manufacturing plants, shopping centers, and municipal distribution substations, electrical power distribution operates at continuous current levels far beyond the reach of conventional residential electricity meters.
While residential homes consume 20A to 60A and use direct-connected meters, industrial facilities routinely draw 200A, 400A, 800A, 1600A, up to 5000A across three-phase distribution busbars. Passing these massive currents directly into an electricity meter is physically impossible and thermally hazardous.

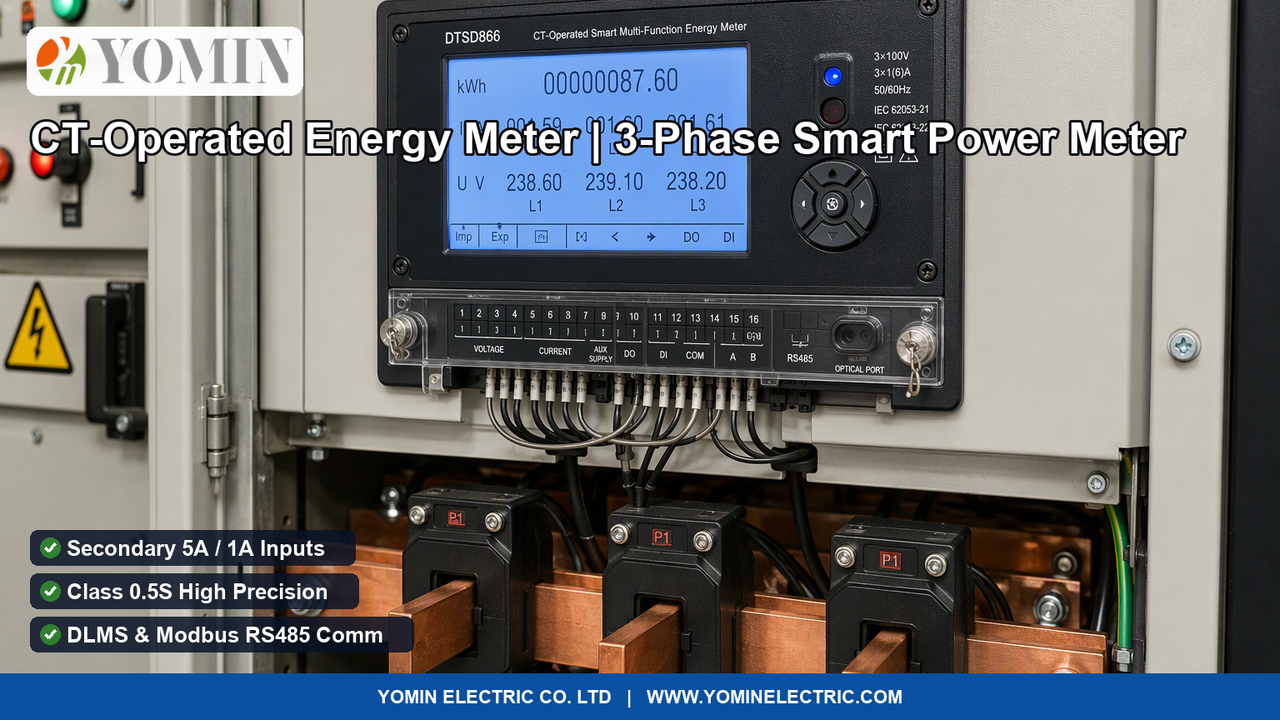

The CT-Operated Energy Meter (Model DTSD / DSSD Series) is the standardized utility instrument: an advanced, high-precision electronic revenue meter designed to measure electrical consumption indirectly through external instrument current transformers (CTs) with standardized 5A or 1A secondary inputs.
Engineering Anatomy: Inside a Class 0.5S CT-Operated Smart Energy Meter
- Precision Current Measurement Inputs (3x1.5/6A or 3x5/6A): Internal high-permeability nanometre alloy isolation transformers step down the 5A/1A secondary current to millivolt signals with negligible phase angle error across temperatures from -25°C to +65°C.
- High-Resolution Digital Signal Processor (DSP): A 32-bit metering core samples voltage and current waveforms simultaneously at thousands of samples per second, computing true RMS voltage, active power, reactive power, power factor, and individual harmonics up to the 31st order.
- Programmable CT and PT Transformation Ratios: Built-in non-volatile EEPROM memory stores user-configured primary CT ratios (e.g., 200/5, 400/5, 1000/5, 2500/5) and PT ratios, enabling direct primary energy reading on the illuminated LCD screen.
- Time-of-Use (TOU) Multi-Tariff Engine: Incorporates a temperature-compensated real-time clock (RTC accurate to ≤ 0.5 s/day) managing up to 8 separate tariff rates, peak/off-peak billing intervals, and 15-minute sliding maximum demand registers.
- Dual Communication Architecture: Equipped with an optical communication port on the front cover for hand-held field interrogations, plus an isolated RS485 communication port supporting open industrial protocols including DLMS/COSEM and Modbus RTU for automated meter reading (AMR/AMI) and SCADA integration.
Comparison: Direct-Connected (Whole-Current) Meter vs. CT-Operated Energy Meter
| Engineering Parameter | Direct-Connected (Whole-Current) Meter | YOMIN CT-Operated Smart Energy Meter (DTSD) |
|---|---|---|
| Current Carrying Capacity | Direct connection: Max 80A or 100A continuous load. | Unlimited Capacity: Measures any load (100A to 5000A+) via external current transformers. |
| Meter Terminal Wiring Size | Requires thick main cables (up to 35 mm²) into meter block. | Standard 2.5 mm² or 4 mm² flexible control wiring from CT secondary terminals. |
| Accuracy Class (IEC 62053-22) | Standard Class 1.0 or Class 2.0. | High-Precision Class 0.5S or Class 0.2S laboratory revenue-grade accuracy. |
| Terminal Thermal Dissipation & Safety | High heat dissipation ($I^2R$); risk of terminal meltdown. | Negligible internal heat (≤ 0.2W burden); main current stays safely on plant busbars. |
| Testing & In-Service Replacement | Requires de-energizing the entire facility to swap meter. | Test Terminal Block (TTB) allows hot-swap meter testing without cutting facility power. |
| Ideal Application Sector | Residential homes, small retail shops, light commercial. | Factories, commercial towers, shopping malls, data centers, and utility substations. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated Input Current & Measurement Range | Rated secondary input current: 3x1.5(6)A or 3x5(6)A via external current transformers; starting current ≤ 0.001 In (1.5mA) |
| Rated Reference Voltage & Connection Mode | Standard 3-Phase 4-Wire: 3x220/380V, 3x230/400V, 3x240/415V AC; 3-Phase 3-Wire: 3x100V or 3x380V AC (50/60 Hz) |
| Measurement Accuracy Class Ratings | Active Energy: Class 0.5S or Class 0.2S (IEC 62053-22 high-precision standard); Reactive Energy: Class 2.0 (IEC 62053-23) |
| Energy Measurement & Quadrant Capabilities | Bi-directional active energy (import/export), 4-quadrant reactive energy (kvarh), apparent energy, instantaneous V, I, kW, kvar, kVA, PF, Hz |
| Programmable CT & PT Multiplication Ratios | Freely programmable primary CT ratios (e.g., 100/5A up to 5000/5A) and PT ratios; auto-calculates primary utility consumption on LCD |
| Time-of-Use (TOU) & Multi-Tariff Billing | Up to 8 tariff rates, 14 daily time intervals, 2 seasonal tariff tables, 12 monthly billing history records, and 15-minute sliding maximum demand |
| Digital Communication & Protocol Support | Dual optical port (IEC 62056-21) and RS485 communication interfaces supporting open DLMS/COSEM and Modbus RTU industrial protocols |
| Anti-Tampering & Security Protection | Full anti-tampering architecture: terminal cover opening detection, reverse current logging, phase failure detection, magnetic interference immunity |
Frequently Asked Questions
What is a CT-Operated Energy Meter and why can direct-connected meters NOT be used for loads above 100A?
A CT-Operated Energy Meter—often designated as a transformer-operated meter, CT-connected meter, or indirect meter—is a specialized three-phase electricity revenue meter engineered to measure electrical energy via external <strong>Current Transformers (CTs)</strong> rather than passing the full circuit load current directly through its internal terminal block. Direct-connected meters (whole-current meters) are physically limited to maximum continuous loads of 80A to 100A for three fundamental engineering reasons: <ul><li><strong>1. Physical Terminal Constraints & Cable Bending:</strong> Industrial loads drawing 200A, 400A, 800A, or 2000A use thick power cables (e.g., 185 mm², 300 mm², or 500 mm²) or rigid copper busbars. It is mechanically impossible to terminate such heavy conductors directly into the compact terminals of a meter. A CT-operated meter measures a scaled-down 5A or 1A secondary signal, using standard 2.5 mm² flexible control wiring.</li><li><strong>2. Terminal Heating & Thermal Burnout:</strong> Passing hundreds of continuous amperes through standard internal current shunt coils generates immense heat dissipation ($I^2R$ losses). Over time, contact resistance causes thermal runaway and catastrophic terminal fires. In a CT-operated system, primary current remains entirely on the heavy main copper busbars; only harmless micro-watts enter the meter itself.</li><li><strong>3. Revenue Meter Accuracy Standards (Class 0.5S vs. Class 1.0):</strong> Commercial billing and industrial tariff structures mandate high-precision metering. Whole-current meters typically achieve Class 1.0. CT-operated smart meters provide certified Class 0.5S or Class 0.2S laboratory-grade precision, guaranteeing accurate billing across wide current swings from light load (1% rated current) to full industrial production.</li></ul>
How does the CT Multiplier Ratio work when reading and calculating consumption on a CT meter?
A CT-operated meter measures the secondary current (0 to 5A) produced by the external current transformers installed on the primary power bus. To determine the true electrical energy consumed by the facility: <ul><li><strong>CT Ratio Concept:</strong> If a factory has 400/5A current transformers, the primary current (400A) is scaled down by a factor of 80 (400 ÷ 5 = 80). Every 1 Ampere flowing through the meter represents 80 Amperes flowing in the main plant busbars.</li><li><strong>Programmable Display (Primary Billing):</strong> YOMIN DTSD meters feature fully programmable internal registers. When the commissioning engineer enters the CT ratio (e.g., 400/5) and PT ratio into the meter via software or optical probe, the meter automatically multiplies the internal register by 80 and displays the true total primary consumption (e.g., in MWh or kWh) directly on the LCD.</li><li><strong>Unprogrammed Display (Secondary Multiplier):</strong> In legacy utility installations where the meter is set to display secondary energy (1:1), the billing utility multiplies the difference between monthly register readings by the external multiplier factor (MF = 80) on the final invoice.</li></ul>
Why is a Test Terminal Block (TTB) mandatory when installing a CT-operated energy meter?
An external current transformer operates as a constant current source. If a CT secondary circuit is opened while the primary conductor is carrying load current, the demagnetizing secondary ampere-turns vanish, causing the iron core to saturate violently and generating <strong>destructive, lethal peak voltages exceeding several thousand volts</strong> that vaporize insulation, destroy the meter, and cause fatal flashovers. A dedicated <strong>Test Terminal Block (TTB)</strong> is installed directly below the meter. The TTB incorporates heavy-duty shorting links and isolation screws that allow technicians to safely short-circuit the CT secondaries and disconnect the voltage taps before removing, testing, or replacing the energy meter without interrupting the customer's electrical power supply.
