Control Panel Wiring: What Is a Bootlace Ferrule?
The Essential Foundation for Safe, Gas-Tight Industrial Control Panel Wiring

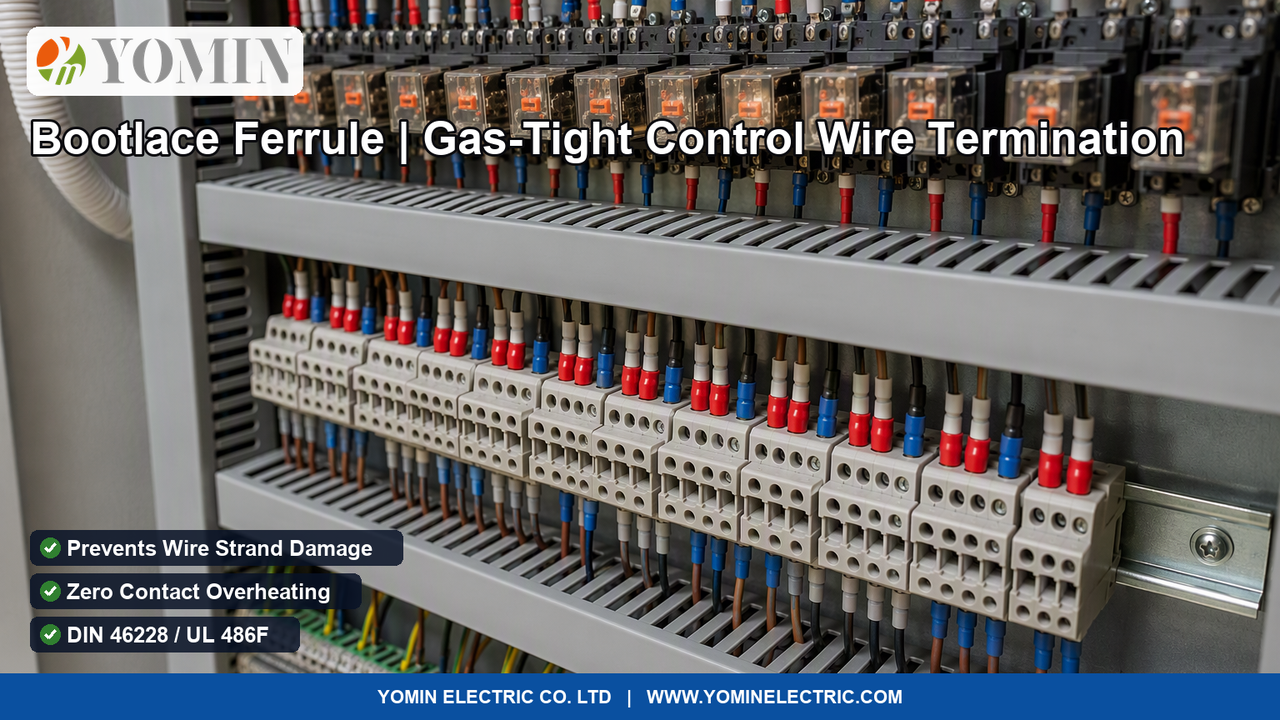

Inside modern industrial automation cabinets, Programmable Logic Controller (PLC) enclosures, motor control centers (MCC), and solar inverter power interfaces, thousands of flexible, finely stranded copper conductors route critical 24V DC sensor signals, 4–20mA analog telemetry, and 230V/400V AC auxiliary control power.
To ensure flexibility and vibration endurance inside electrical cabinets, machine builders utilize Class 5 and Class 6 multi-stranded flexible cables (comprising dozens of micro-thin copper strands).
However, when a technician strips flexible stranded wire and inserts it bare into a terminal block, two dangerous failure modes emerge: fragile individual strands splay outwards, creating hazardous phase-to-phase micro-shorts against adjacent terminals; and tightening terminal screws shears through strands, drastically increasing electrical contact resistance and causing localized heating that melts terminal blocks.
The Insulated Bootlace Ferrule / Cord End Terminal (Model E & TE Series) provides the universal industrial solution: an engineered seamless tinned electrolytic copper sleeve that compresses flexible strands into a solid, gas-tight, vibration-proof pin contact that ensures 100% electrical integrity, zero loose strands, and full compliance with UL 508A and IEC 60204-1 panel building codes.
Engineering Anatomy: Inside Model E / TE Insulated Bootlace Ferrules
- High-Conductivity Electrolytic Copper Sleeve (Cu-ETP ≥ 99.9%): Formed from seamless high-purity copper tube, electro-tin plated to prevent copper oxidation, minimize contact resistance (< 0.1 mΩ), and ensure superior electrical conductivity.
- Flared Polyamide PA66 Insulating Collar: Features a wide conical funnel entry that guides all individual micro-strands effortlessly into the sleeve without snagging or bent strands, dramatically accelerating panel assembly speed.
- Standardized DIN 46228 Color Coding: Molded in distinct industrial colors (e.g., white for 0.5mm², red for 1.0mm², black for 1.5mm², blue for 2.5mm², grey for 4.0mm², yellow for 6.0mm²) for rapid visual verification of wire cross-section during assembly and inspection.
- Engineered Wall Thickness & Ductility: Precise copper wall thickness yields smoothly under crimping pressure without splitting, cracking, or spring-back, locking copper strands into a cold-welded, oxygen-free solid cross-section.
- Twin Dual-Entry Geometry (TE Series): Engineered with an oval, dual-wire entry funnel that neatly merges two identical gauge wires into a single heavy-duty ferrule pin for clean, jumperless daisy-chaining across terminal arrays.
Comparison: Bootlace Ferrule Termination vs. Bare Stranded Wire vs. Soldered (Tinned) Wire
| Engineering Performance Metric | Bare Stranded Wire | Soldered (Tin-Dipped) Wire End | YOMIN Insulated Bootlace Ferrule (E/TE Series) |
|---|---|---|---|
| Strand Damage Under Screw Clamp | Severe: Screw cuts, fractures, and shears fragile copper strands. | Moderate: Screw crushes brittle solder; leads to loose connection. | Zero Damage: Copper sleeve completely absorbs all screw clamping torque. |
| Risk of Stray Strand Short-Circuits | High: Loose micro-strands splay and contact adjacent terminals. | Low: Strands bonded by solder alloy. | Zero Risk: Conical nylon collar and copper barrel capture 100% of strands. |
| Vibration & Solder Creep Endurance | Poor: Strands work-harden and snap under machine vibration. | Critical Failure: Solder suffers cold flow (creep), loosening the screw clamp over time. | Superior: Gas-tight cold-welded crimp resists continuous vibration and thermal cycling. |
| Contact Resistance & Hotspot Risk | High: Inter-strand oxidation causes thermal hotspots > 200°C. | Unpredictable: High resistance flux residues degrade connection. | Ultra-Low (< 0.1 mΩ): Void-free gas-tight connection eliminates oxidation. |
| UL 508A & IEC 60204-1 Compliance | Frequently rejected during panel inspection. | Strictly Prohibited by international electrical safety standards. | Fully Approved: Certified under DIN 46228 Part 4 and UL 486F standards. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Conductive Tube Material & Surface Plating | Electrolytic seamless copper tube (Cu-ETP purity $\ge 99.9\%$), electro-tin plated ($3\,\mu ext{m}$ to $5\,\mu ext{m}$ thickness) for maximum corrosion resistance and low contact resistance |
| Insulating Collar Polymer & Flame Rating | High-impact halogen-free Polyamide 6.6 (Nylon PA66) or Polypropylene (PP); self-extinguishing compliant with UL 94V-2 / UL 94V-0 |
| Wire Gauge Compatibility & Cross-Sections | Standard single-wire range: $0.5\, ext{mm}^2$ to $50\, ext{mm}^2$ (22 AWG to 1/0 AWG); Twin double-wire range: $2 imes 0.5\, ext{mm}^2$ to $2 imes 16\, ext{mm}^2$ (2x20 AWG to 2x6 AWG) |
| Dimensional & Color Code Standard Options | Manufactured to DIN 46228 Part 4 dimensional specifications; available in DIN 46228 German standard color code, French color code, and Telemechanique color sequences |
| Maximum Operating Temperature & Rating | Continuous operational temperature range: $-40^\circ ext{C}$ to $+105^\circ ext{C}$ (Intermittent peak thermal rating up to $+120^\circ ext{C}$) |
| Dielectric Strength of Insulating Collar | Tested breakdown voltage: $\ge 2.5\, ext{kV AC}$; prevents accidental arcing between adjacent tightly packed DIN rail terminal blocks |
| Recommended Crimp Geometry & Tools | Four-mandrel self-adjusting square crimp or six-mandrel hexagonal crimp; produces dense, gas-tight cold-welded copper core without voids |
| International Manufacturing Safety Standards | Fully tested and compliant with DIN 46228 Part 4, UL 486F (Norm for Wire Ferrules), CSA C22.2 No. 291-14, and RoHS / REACH directives |
Frequently Asked Questions
What is a Bootlace Ferrule and why is it mandatory in industrial control panel wiring?
A Bootlace Ferrule—frequently designated in electrical engineering as a cord end terminal, wire ferrule, or end sleeve—is a precision tinned electrolytic copper tube with a flared, color-coded insulating nylon/polypropylene collar designed to be crimped over the stripped end of a multi-stranded flexible copper wire. In industrial control panels, PLC cabinets, and distribution switchgear: <ul><li><strong>Prevents Wire Strand Damage:</strong> When bare stranded wire is inserted directly into screw-clamp terminals, the turning screw shears, splays, and severs individual fragile copper strands. This reduces effective conductor cross-section, creates high localized contact resistance, and generates severe thermal hotspots exceeding 200°C that melt terminal plastic and ignite cabinet fires. A ferrule encases all strands in a protective copper shell, withstanding screw clamping torque without strand deformation.</li><li><strong>Gas-Tight, Vibration-Proof Termination:</strong> Under proper ratcheting crimping pressure, the ferrule and copper strands form a solid, void-free mass (cold weld) that prevents atmospheric oxygen and moisture from entering between strands, eliminating inter-strand oxidation. In vibrating environments (machinery, trains, ships, turbines), ferrule-crimped wires will not loosen or fracture at the terminal entry.</li><li><strong>Code Compliance (UL 508A / NFPA 79 / IEC 60204-1):</strong> Major international standards strictly regulate or prohibit inserting bare finely stranded flexible conductors directly into terminals not specifically certified for bare multi-strand wire.</li></ul>
What is the difference between Single Wire Ferrules and Twin (Double) Wire Ferrules?
Single and twin wire ferrules serve distinct architectural roles in panel wiring: <ul><li><strong>Single Wire Ferrules (Model E Series):</strong> Feature a round insulating collar designed to accept one stranded conductor. Used for point-to-point terminations connecting sensors, pushbuttons, contactors, and PLC I/O modules to terminal strips.</li><li><strong>Twin Wire Ferrules (Model TE Series):</strong> Feature an enlarged, rectangular or oval insulating funnel collar that accommodates two stranded wires of equal cross-section into a single copper tube. This enables neat, professional "daisy-chaining" of 24V DC control power, common neutral buses, and ground loops between adjacent relays or terminal blocks without messy external bridging jumpers.</li></ul>
Which crimp profile is superior: Square, Hexagonal, or Trapezoidal?
The optimal crimp profile depends on the receiving terminal block geometry: <ul><li><strong>Square Crimp:</strong> Produced by 4-jaw self-adjusting ratcheting crimpers. Provides flat, parallel contact surfaces that maximize surface area contact inside square-cage screw clamps and standard box-lug terminals.</li><li><strong>Hexagonal Crimp:</strong> Produced by 6-jaw crimpers. Creates a near-circular cross-section ideal for round spring-cage and push-in terminal blocks, allowing easy, zero-snag insertion into tight round terminal apertures.</li><li><strong>Trapezoidal Crimp:</strong> Created by fixed-die hand crimpers, compressing the ferrule into a trapezoidal shape suitable for high-pressure screw terminals.</li></ul>
Control Panel Wiring: What Is a Bootlace Ferrule?
Building industrial automation control panels, PLC cabinets, motor starter centers, or renewable inverter systems requiring certified DIN 46228 Part 4 / UL 486F insulated single and twin bootlace ferrules (0.5mm² to 50mm², pure tinned copper, gas-tight crimp)? YOMIN manufactures precision E and TE series cord end terminals.
