Control Power Transformer Guide: Sizing, Taps and EN 61558

A control power transformer sits between the mains and everything in a panel that is not a motor: contactor coils, relay coils, indicator lamps, PLC inputs and 24 V signalling. Its job is twofold. It steps the voltage down to what the control circuit needs, and it isolates that control circuit from the supply, so a fault in the control wiring does not put mains potential on a terminal that an operator can touch.

Why isolation is the point, not a bonus

It is tempting to treat the transformer as a voltage changer and nothing more, particularly when the control voltage happens to be close to the supply voltage. That misses the safety function. An isolation control transformer with separate primary and secondary windings means the control circuit floats with respect to earth on the primary side. An earth fault on the secondary then has no return path through the transformer, so it does not become a shock hazard or a fire risk in the same way. This is why the standard for these units is a safety standard, not merely a performance one.

Working out the VA you actually need

Sizing is straightforward arithmetic done properly. Add up the steady-state burden of everything the transformer will feed, then add margin for the two effects that a simple sum ignores:

• Contactor and relay inrush. An AC coil draws several times its holding current for the first cycles of pull-in. If several contactors can energise together, that moment defines the peak demand.
• Simultaneity. Decide which loads can be on at the same time. Adding every lamp and every coil at full rating and then applying a large margin produces an oversized transformer that costs more and takes more panel space than the job needs.

A practical method: total the holding burdens of the devices that run together, add the inrush of the largest device that may start while the rest are energised, then apply a modest margin. If the result lands between two standard ratings, take the larger one.

The standard range

The JBK5 series is the common European-pattern isolation control transformer. The published ratings run from 20 VA up to 2500 VA, with rated input voltages around the 110 V and 230 V classes and typical secondary outputs in the 6 V to 36 V range for control, illumination and indication duties, at 50/60 Hz. Input is rated for circuits not exceeding 1000 V and output for circuits not exceeding 600 V, which covers essentially every machine-tool control application.

Voltage taps: the feature buyers skip

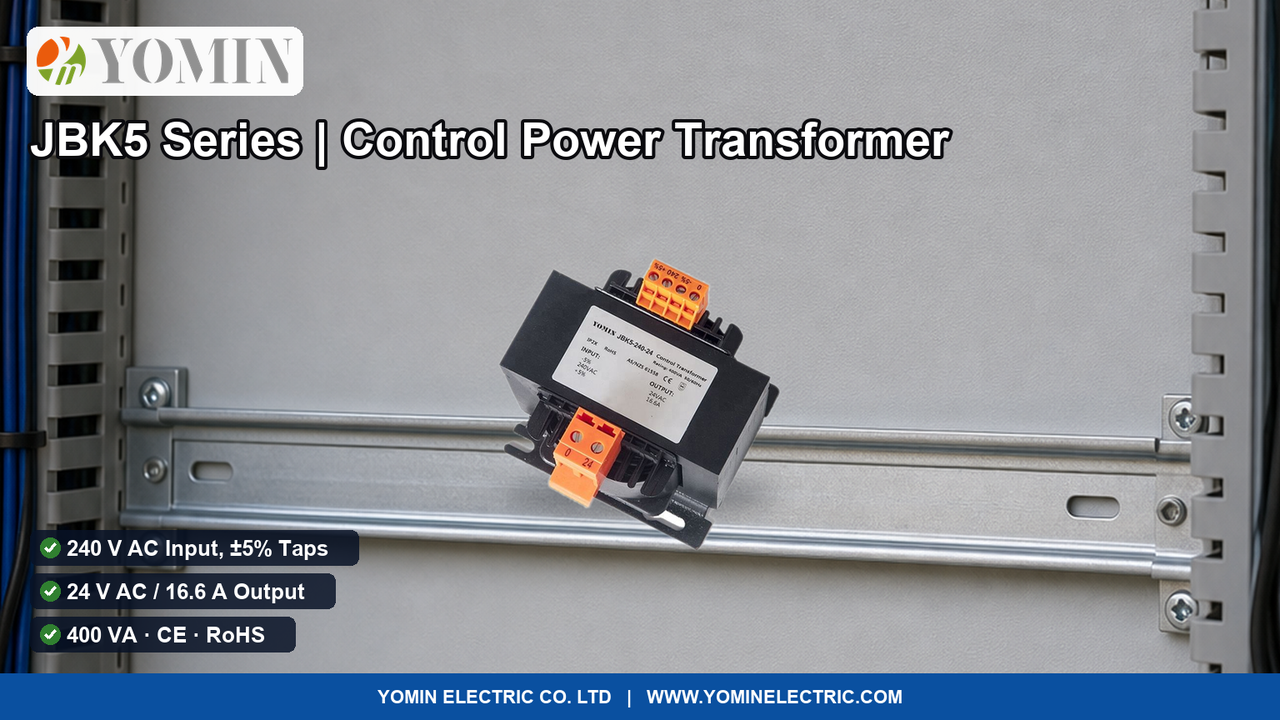

On the unit shown in this guide the primary terminal block is marked with taps at 0, −5%, and +5% around the nominal input, alongside the nominal position. Those taps exist for a specific reason: supply voltage at a real installation sits at the top of its tolerance band about as often as the bottom, and a control circuit that is already marginal will fail in one of those conditions. With taps you can move the primary connection one step and correct the secondary without changing the transformer.

The secondary side is marked for the output configuration in the same way, so a single frame can serve more than one control voltage. When you compare quotations, check whether the taps are there. Two units at the same VA and the same price are not the same product if one of them cannot be corrected on site.

Ambient temperature and derating

A control transformer inside a closed steel enclosure does not see the room temperature. It sees the air in the enclosure, which sits above the room because every contactor coil and every drive in the cabinet is adding heat. If the unit is rated for 40 °C ambient and the panel runs at 55 °C, the rating you can use is lower than the nameplate figure. Either specify the higher ambient class or ventilate the enclosure. This is one of the more common reasons a transformer that is correctly sized on paper runs hot in service.

Inrush on the primary

The same effect that affects any transformer applies here: at switch-on the core can saturate briefly and draw a current several times the rated primary current. In a control panel the primary is usually protected by a small circuit breaker or a fuse. If that device is chosen from the steady-state VA alone it may nuisance-trip when the panel is first energised. Choose the curve with the inrush in mind, and if the transformer is fed from a contactor rather than a switch, check that the contacts are rated for the make-current.

Frequently asked questions

What is a control power transformer used for?

Supplying and isolating the control circuit of a machine or panel — contactor and relay coils, indicator lamps, PLC and signalling circuits — at a lower, safer voltage than the main supply.

How do I size a control power transformer?

Total the holding burden of the devices that operate simultaneously, add the inrush of the largest device that may start while the others are energised, then add margin and round up to the next standard rating. Derate if the enclosure ambient exceeds the transformer's rated ambient.

What do the ±5% taps on the primary do?

They compensate for supply voltage that sits at the edge of its tolerance band. Moving the primary connection one tap step corrects the secondary voltage without changing the transformer, which matters for marginal control circuits.

Is a control transformer the same as an isolation transformer?

A control power transformer with separate primary and secondary windings does provide isolation as well as voltage reduction, which is why it is built and tested to a transformer safety standard rather than only to a performance specification.

If you are specifying one, tell us the panel supply voltage and frequency, the list of control loads and which of them run together, the control voltage you need, and the ambient temperature inside the enclosure. We will confirm the rating and the taps rather than leaving you to guess.
