The Critical Need for Dedicated DC Surge Protection in Solar Photovoltaic Systems

Solar photovoltaic (PV) installations are inherently vulnerable to atmospheric lightning discharges and transient overvoltages. Due to their wide surface area, exposed outdoor locations on open terrain, rooftop arrays, and extensive cable runs connecting solar modules to inverters, PV power plants act as giant antennae for both direct lightning strikes and indirect electromagnetic coupling from cloud-to-ground flashes.

A single indirect lightning strike several hundred meters away can induce transient voltage surges exceeding 10,000 volts along the DC string cabling. Without robust surge protection, these high-energy transients instantly destroy solar module bypass diodes, puncture thin-film solar cell insulation, and obliterate the delicate Maximum Power Point Tracking (MPPT) power semiconductor switches (IGBTs and MOSFETs) inside expensive solar inverters, resulting in costly downtime, equipment write-offs, and fire hazards.

AC vs. DC Arc Physics: The Fatal Error of Using AC SPDs on Solar Strings

One of the most dangerous installation errors in solar contracting is installing standard AC surge protective devices in solar DC circuits. The fundamental physics of electrical arcs in AC and DC circuits are entirely different:

• AC Zero-Crossing Arc Extinguishment: An alternating current voltage naturally oscillates, crossing zero volts twice per electrical cycle (every 10 milliseconds in a 50Hz grid). When an AC varistor degrades or experiences thermal runaway, the internal mechanical spring disconnector separates, and the resulting miniature arc naturally self-extinguishes as the voltage passes through the zero-crossing.
• Sustained DC Arcing: Direct current produced by solar PV arrays maintains a continuous, uninterrupted potential with zero periodic voltage drop. When a standard AC disconnector attempts to open under continuous DC voltage (such as 800V or 1000V DC), the ionized air forms a continuous plasma arc. Because there is no zero-crossing, the arc continues to burn intensely at temperatures exceeding $3,000^\circ ext{C}$, rapidly igniting surrounding plastic housings and causing catastrophic combiner box fires.

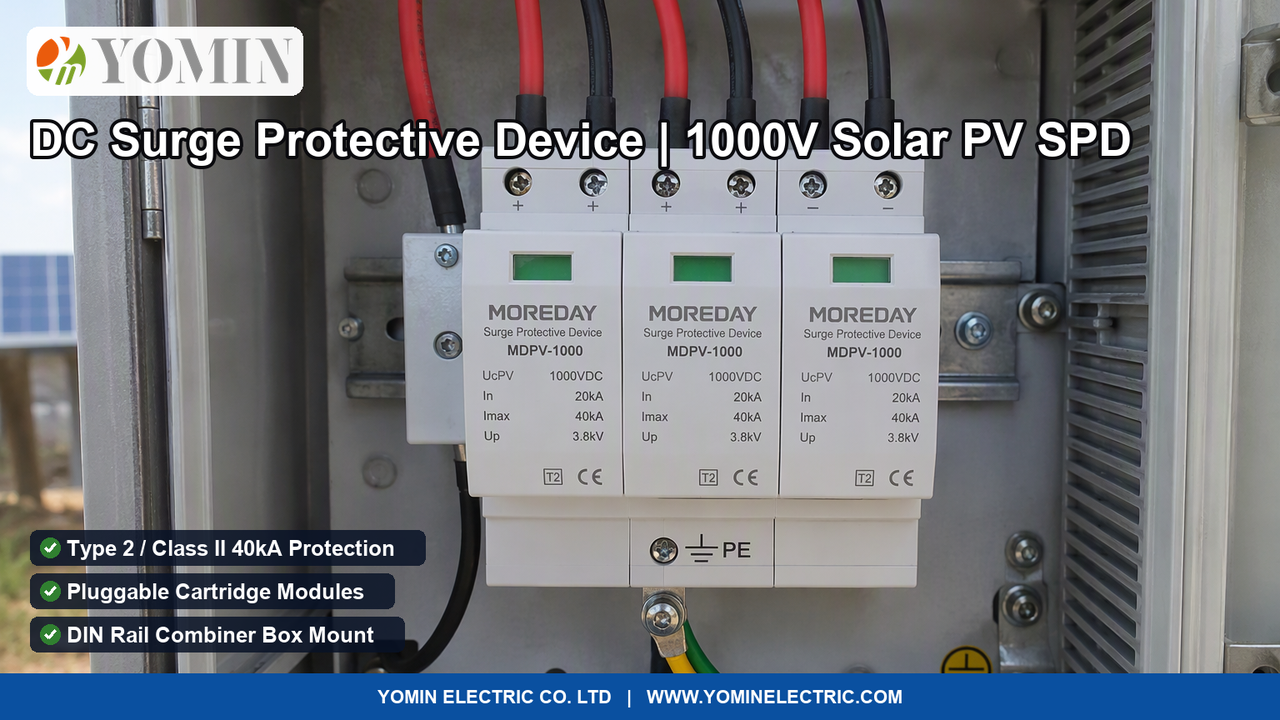

YOMIN YMPV-series DC surge protective devices are engineered specifically to comply with IEC 61643-31 and EN 50539-11 (low-voltage surge protective devices for photovoltaic installations). They incorporate high-speed spring-loaded thermal disconnectors equipped with permanent magnetic blowout fields and arc-splitter plates that forcefully stretch, cool, and extinguish DC arcs within milliseconds.

The Y-Topology Architecture: Safe Protection Against Dual Ground Faults

Traditional two-element surge protectors connect directly between DC+ and Ground, and DC- and Ground. In solar arrays, an ungrounded system operating under high voltage can experience a single ground fault without tripping main protection. If an ordinary SPD experiences varistor breakdown during this condition, a catastrophic phase-to-ground-to-phase short-circuit occurs.

To eliminate this failure mode, YOMIN DC SPDs employ the advanced Y-topology configuration comprising three high-energy Metal Oxide Varistors (MOVs) connected in a "Y" formation:

This Y-configuration ensures that even in the event of an insulation breakdown or severe MOV degradation on one leg, the remaining two varistors continue to block DC current flow, preventing short-circuit current loops and eliminating fire hazard.

Sizing Voltage and Current Parameters for 1000V vs. 1500V Systems

To ensure adequate protection without premature varistor aging, engineers must size two primary ratings:

1. Maximum Continuous Operating Voltage ($U_{cpv}$): The SPD’s continuous voltage rating must exceed the maximum open-circuit voltage ($V_{oc}$) of the solar string under lowest expected ambient winter temperatures ($V_{oc, ext{max}} = V_{oc, ext{STC}} imes [1 + eta imes (T_{ ext{min}} - 25)]$). As a fundamental design rule, $U_{cpv}$ must be sized at least 1.2 times $V_{oc, ext{max}}$. For residential and commercial 1000V strings, choose $U_{cpv} = 1000 ext{V DC}$; for utility-scale 1500V installations, specify $U_{cpv} = 1500 ext{V DC}$.
2. Discharge Current Ratings ($I_n$ and $I_{ ext{max}}$): For Type 2 SPDs installed in string combiner boxes or inverters, specify a nominal discharge current ($I_n$) of at least 20kA (8/20 µs waveform) and a maximum discharge capacity ($I_{ ext{max}}$) of 40kA per pole to ensure long service life against repetitive induced lightning transients.
