DIN Rail Electrical Sub-Metering: What Is a Single Phase Energy Meter?
The Rise of Electrical Sub-Metering in Modern Infrastructure
Across commercial real estate, multi-tenant residential complexes, and light industrial facilities, electrical power costs represent one of the largest operational expenditures. Historically, utilities provided a single bulk master meter at the building service entrance, forcing facility managers to divide electricity bills arbitrarily by square footage. This practice penalized energy-conscious tenants and concealed equipment inefficiencies.

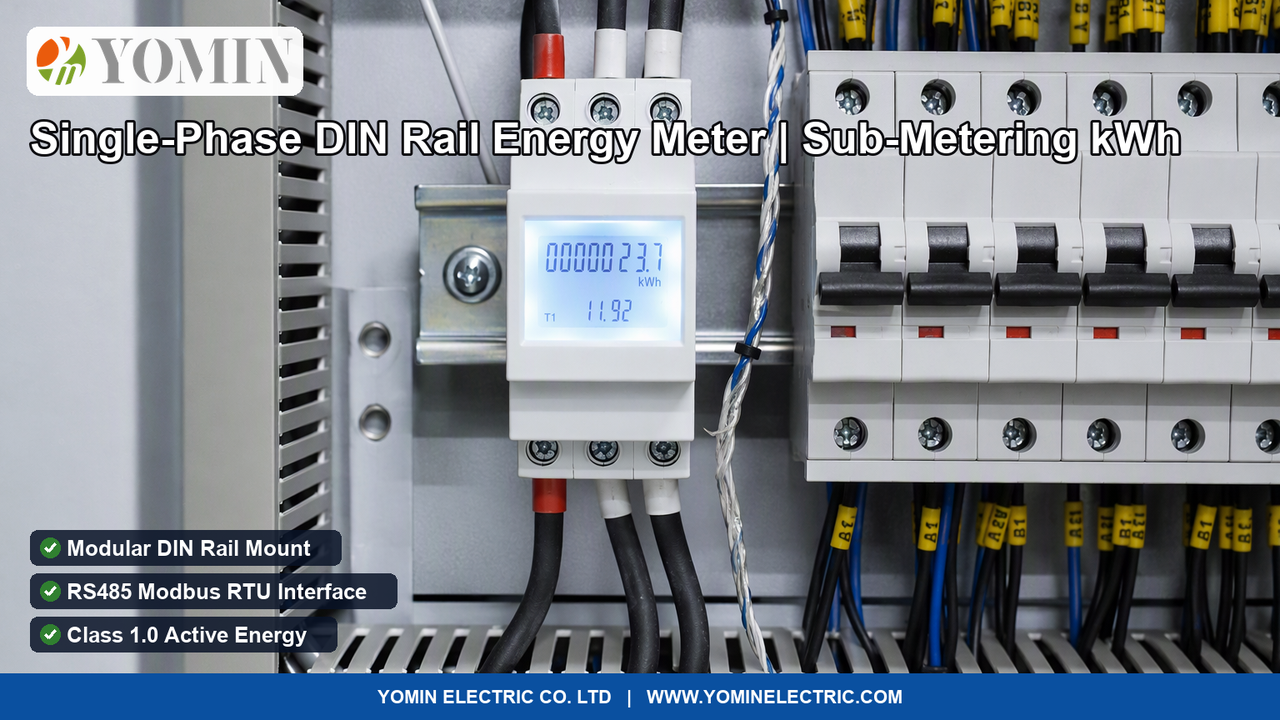

Modern electrical distribution designs mandate tenant sub-metering. Compact modular single-phase DIN-rail energy meters install directly inside branch circuit breaker panels, occupying minimal space alongside standard miniature circuit breakers (MCBs) while providing revenue-grade consumption records.
Internal Architecture of an Electronic Single-Phase Meter
Modern digital kWh meters achieve high reliability through solid-state microelectronics:
- Precision Analog Front End (AFE): High-accuracy manganin shunt resistors measure current flow with negligible thermal coefficient drift, while precision resistive divider networks step down the 230V line voltage.
- Digital Signal Processing (DSP) Core: High-speed 16-bit or 24-bit analog-to-digital converters (ADCs) continuously sample line voltage and current. The integrated DSP calculates root-mean-square (RMS) voltage, RMS current, instantaneous active power ($P$), reactive power ($Q$), and line frequency ($Hz$).
- Time-Integration & Pulse Output: Power calculations are integrated with respect to time to calculate cumulative energy consumption. The meter pulses an optical calibration LED (e.g. 1600 impulses per kWh) and updates the digital LCD display.
Single-Phase Meter Direct Connection vs. CT Connection
| Feature | Direct Connection (Direct Insert) | CT Operated Connection |
|---|---|---|
| Current Rating | Standard 5(60)A or 10(100)A continuous load. | 1.5(6)A secondary rating paired with external CTs. |
| Wiring Mechanism | Phase and neutral line cables pass directly through internal heavy screw clamps. | Main power cables stay outside; only thin 2.5mm² measuring leads connect to meter terminals. |
| Installation Complexity | Simple, plug-and-play wiring directly on DIN rail. | Requires mounting external current transformers and configuring CT turns ratios. |
| Target Application | Individual apartments, offices, server racks, EV charging stations. | Main feeder lines, heavy single-phase air conditioning chillers exceeding 100A. |
Frequently Asked Questions
What is a single-phase energy meter and where is it used in electrical installations?
A single-phase energy meter is an electronic instrument designed to measure total active electrical energy consumption (measured in kilowatt-hours, kWh) in single-phase alternating current circuits. In modern commercial buildings, residential high-rises, shopping centers, and telecommunication shelters, single-phase meters are installed on modular DIN rails to sub-meter individual rental units, data server racks, electric vehicle chargers, and branch lighting circuits for precise billing and tenant allocation.
How does an electronic digital energy meter calculate kilowatt-hours compared to old induction disc meters?
Traditional electromechanical meters relied on an aluminum rotor disc turned by the eddy currents of magnetic coils, which suffered from mechanical friction wear, calibration drift, and vulnerability to external magnetic tampering. Modern digital electronic meters utilize high-precision micro-shunt resistors or internal current transformers paired with a specialized Application-Specific Integrated Circuit (ASIC). The ASIC samples instantaneous voltage and current waveforms at thousands of hertz, computes true instantaneous power (P = V × I × cos φ), integrates power over time, and stores digitized energy data into non-volatile EEPROM.
Why is RS485 Modbus RTU communication essential in modern sub-metering systems?
Manual meter reading across hundreds of tenant distribution boards is labor-intensive, error-prone, and provides no real-time load visibility. Single-phase DIN rail meters equipped with an RS485 serial communication port allow up to 32 meters to be daisy-chained along a single twisted-pair cable. Connected to an IoT data gateway or building management system (BMS), the meters automatically report live voltage, current, active power, power factor, and cumulative kWh every few seconds, enabling automated tenant billing and peak-demand management.
