Electrical Distribution Switchboards: What Is a Neutral Link?

ET
ET Engineering Team October 6, 2026 10 min read

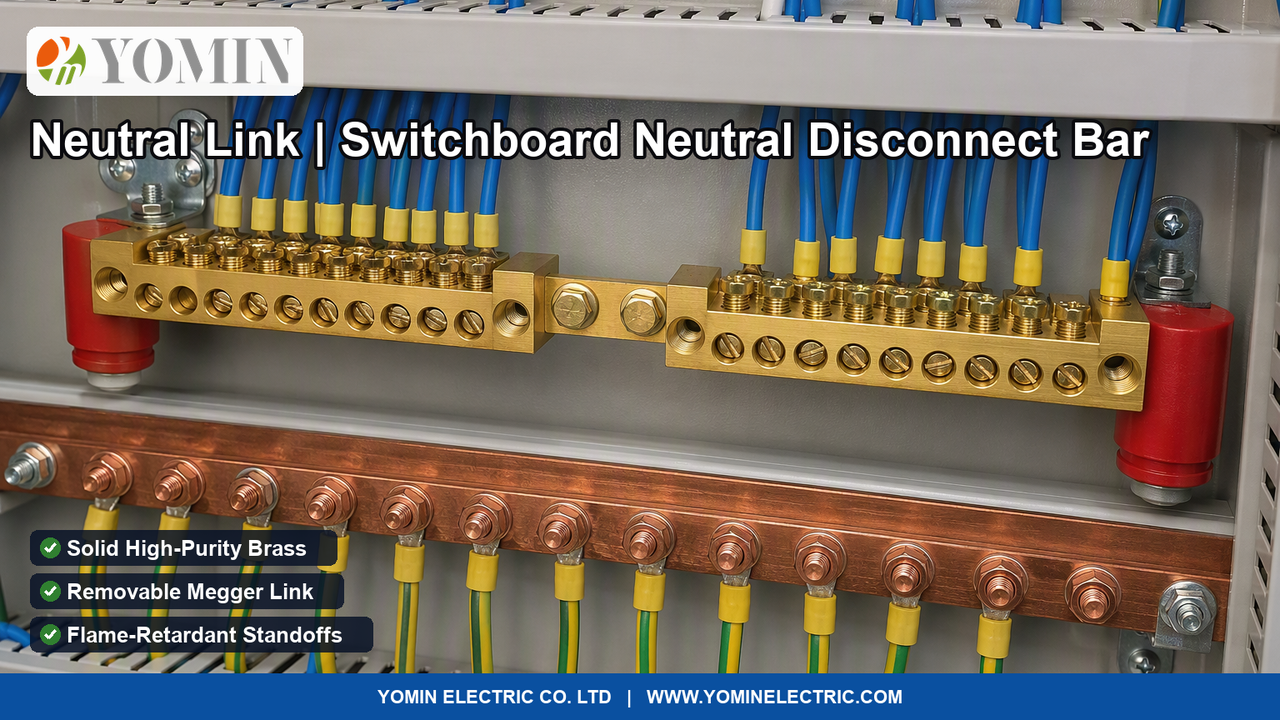

Heavy-duty solid brass Neutral Link and Earthing Terminal Bar (Model YM-NL series) installed inside an industrial low-voltage electrical main distribution board (MDB)

The Critical Return Junction in Low-Voltage Power Distribution

Inside every electrical distribution switchboard—from residential consumer units to multi-megawatt industrial Main Distribution Boards (MDBs)—electrical power is split from incoming supply feeders into dozens of branch circuits supplying lighting, HVAC, and machinery.

While circuit breakers protect the live phase conductors ($L_1, L_2, L_3$), all return current from single-phase and unbalanced loads must return safely back to the power transformer through the neutral circuit ($N$).

Connecting neutral conductors haphazardly with wire nuts or unrated terminal blocks leads to loose terminations, terminal overheating, and the catastrophic hazard known as a "floating neutral."

The Neutral Link / Earth Terminal Bar (Model YM-NL / TB Series) provides the standardized, heavy-duty solution: an insulated, multi-way solid brass terminal bar engineered for high-conductivity return current handling and selective testing isolation.

Engineering Anatomy: Inside a Certified Neutral Disconnecting Link

  1. Solid Extruded Brass Bar (Cu ≥ 58–60%): Precision-extruded and CNC-machined from high-strength electrical brass alloy. Resists thread stripping and delivers low contact resistance under full rated continuous current.
  2. Removable Center Disconnect Bridge: A bolted copper/brass link bar that can be unfastened in seconds to isolate the neutral bar from the utility supply during 500V/1000V DC Megger insulation resistance testing.
  3. Flame-Retardant Polyamide Insulating Standoffs (PA66, UL 94 V-0): Heavy-duty red insulating pillars elevate the neutral bar away from the metal switchboard backplate, providing ≥ 2.5kV dielectric isolation.
  4. Wire-Guarded Clamping Screws: Zinc-plated high-torque screws clamp conductor strands evenly inside the bored tunnels without shearing fine wire strands.
  5. Transparent Protective Polycarbonate Cover: Snap-on clear insulating shield prevents accidental finger contact (IP2X) while allowing visual inspection of wire terminations.

Comparison: Solid Brass Disconnecting Neutral Link vs. Uninsulated Terminal Strip vs. Wire Nut Cluster

Engineering Feature Twisted Wire Nut Cluster Standard Uninsulated Terminal Strip YOMIN YM-NL Disconnecting Brass Neutral Link
Continuous Current Capacity Low (≤ 20A–30A); prone to melting under heavy unbalanced loads. Moderate (≤ 63A); limited by small screw contact area. Heavy-Duty: Rated from 100A to 250A continuous neutral current.
Electrical Isolation from Panel Frame Hangs loose; risk of touching grounded enclosure. Plastic base can crack or track under dust and humidity. Flame-retardant PA66 insulating standoffs rated for 2.5kV AC.
Megger Insulation Testing Facility Requires untwisting every wire individually (laborious). Must unscrew incoming feeder wire manually. Removable bolted link isolates entire bar in seconds.
Prevention of Floating Neutral Failures Extremely poor; loose twists cause neutral detachment and 400V surges. Moderate; vibrations can loosen screw terminals. Solid heavy brass block with high-torque wire-guard clamping screws.
IEC 61439 Switchboard Compliance Non-compliant; prohibited in commercial switchboards. Borderline; often fails temperature rise and short-circuit tests. 100% Compliant with IEC 61439-1/2 and BS 7671 requirements.

Technical Specifications

Technical Specification ParameterEngineering Value & Performance Rating
Bar Material Composition & PurityExtruded high-conductivity solid free-cutting brass alloy (Cu ≥ 58–60%, Pb ≤ 2.5%, balance Zn) or optional high-purity copper
Rated Operational Voltage & Insulation LevelRated operational voltage up to 690V / 1000V AC; insulation standoff rating tested to 2.5kV AC / 1 minute
Continuous Current Rating CapacityStandard modular continuous current ratings from 63A, 100A, 160A, up to 250A for main incoming neutral currents
Number of Outgoing Terminal WaysAvailable in modular lengths: 4, 6, 8, 12, 18, 24, 36, and 48 terminal ways (accommodating 1.5 mm² to 35 mm² branch cables)
Removable Disconnect Link BridgeBolted central removable brass/copper bridge link allowing physical isolation of neutral without disconnecting individual branch wires
Mounting Base & Insulation StandoffMounted on high-dielectric, flame-retardant polyamide (PA66 / UL 94 V-0) or phenolic insulating standoffs (isolated from switchboard metal)
Terminal Clamping Screw HardwareZinc-plated or nickel-plated high-tensile brass clamping screws with wire-protecting pressure pads to prevent conductor strand cutting
Applicable International StandardsManufactured and compliant with IEC 61439-1, IEC 61439-2, BS 7671, and EN 60947-7-1 for low-voltage switchgear assemblies

Frequently Asked Questions

What is a Neutral Link and why is it essential in electrical distribution boards and consumer units?

A Neutral Link—also termed a neutral bar, neutral disconnect bar, or neutral bus link—is a precision-machined solid brass or copper terminal bar mounted on electrical insulating standoffs inside an electrical distribution panel. Its primary engineering function is to serve as the common collection and return junction point for all neutral conductors ($N$) of branch circuits, connecting them back to the main incoming supply neutral. In modern electrical distribution boards, the neutral link fulfills three vital engineering roles: <ul><li><strong>1. Safe Return Current Path:</strong> In single-phase circuits and unbalanced three-phase systems, return current continuously flows through the neutral wire. A loose or high-resistance neutral connection creates a severe fire hazard. A heavy brass neutral link provides a low-resistance, high-ampacity connection point for dozens of circuits.</li><li><strong>2. Prevention of "Floating Neutral" Overvoltages:</strong> If a common neutral connection breaks or comes loose in a three-phase system, the neutral point "floats" dynamically. Single-phase loads on lightly loaded phases can experience up to 400V AC across their 230V terminals, instantly incinerating electronics, LED drivers, and sensitive appliances.</li><li><strong>3. Selective Disconnection for Testing:</strong> Modern neutral links feature a removable bolted center link that allows electricians to isolate the neutral bar from the main incoming supply during maintenance and insulation resistance testing without unbolting dozens of wires.</li></ul>

What is the critical difference between a Neutral Link and an Earth Terminal Bar?

While neutral links and earth terminal bars often look visually similar (both are brass bars with screw terminals), their electrical isolation and operational functions are completely opposite: <ul><li><strong>Neutral Link (Active Live Conductor):</strong> The neutral bar connects active return current paths and operates at near-ground potential under normal conditions. Because it carries continuous return current, it MUST be electrically isolated from the metal panel enclosure by mounting on high-voltage flame-retardant insulating standoffs (such as red PA66 pillars). If a neutral link touches the metal enclosure, it causes nuisance tripping of Residual Current Devices (RCDs/ELCBs) or dangerous stray currents.</li><li><strong>Earth Terminal Bar (Protective Earth Conductor):</strong> The earth bar connects protective grounding wires (PE) and carries current ONLY during an electrical fault condition. Consequently, the earth bar is bolted directly to the metal switchboard frame and bonded to the main grounding electrode without insulation standoffs.</li></ul>

Why do electrical regulations require a removable Disconnecting Link on the neutral bar?

Electrical commissioning and periodic maintenance regulations (such as BS 7671 and IEC 60364-6) mandate periodic <strong>insulation resistance testing (Megger testing)</strong>. During a Megger test, a technician applies 500V or 1000V DC between phase conductors and earth, and between neutral and earth, to detect compromised insulation. If the neutral bar remains connected to the utility transformer supply neutral, the test voltage will either be shorted to earth through the transformer star point, or the 1000V DC test surge will backfeed into upstream electronic meters and utility equipment. By simply removing the two bolts on the central disconnecting link bridge, the entire neutral bar is cleanly isolated from the incoming grid, allowing instant, accurate insulation resistance testing of all building branch circuits in seconds.
