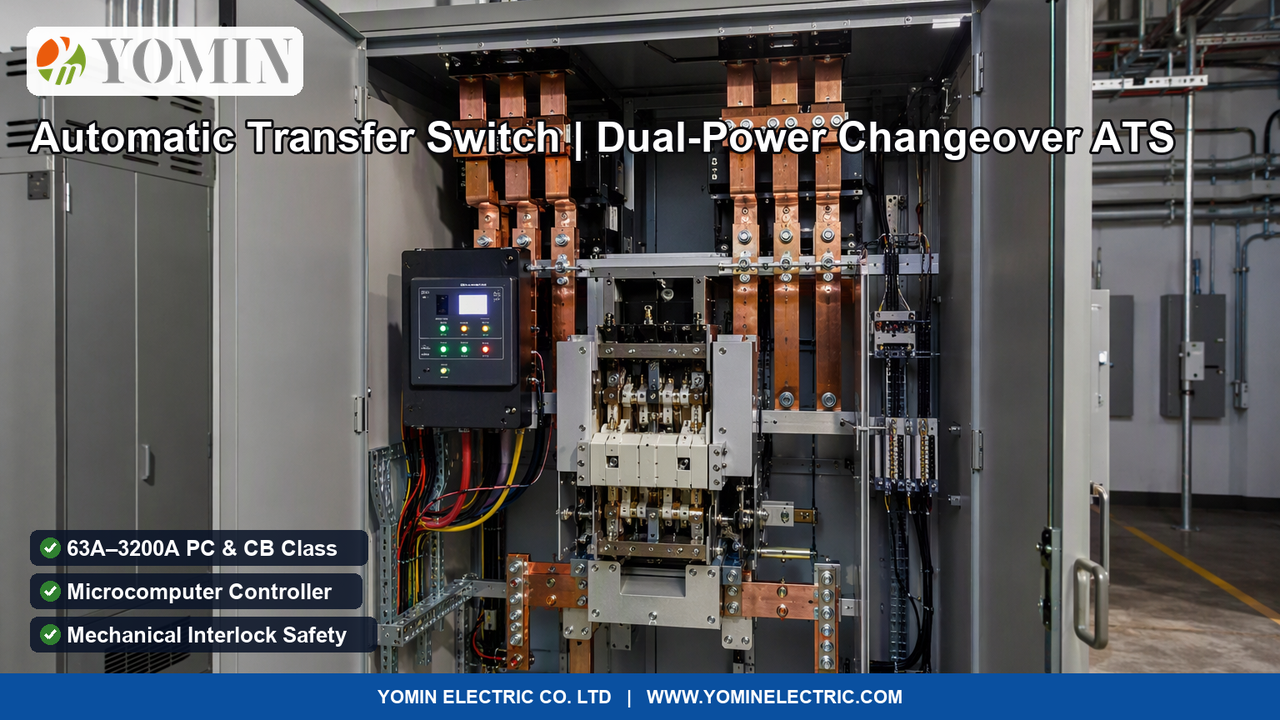

Dual-Power Grid & Generator Backup: What Is an Automatic Transfer Switch?
Uninterrupted Power for Mission-Critical Infrastructure
Modern hospitals, cloud computing data centers, municipal water pumping stations, and automated manufacturing facilities cannot tolerate prolonged electrical power outages. Even a ten-second utility blackout can disrupt life-support systems, corrupt database transactions, and ruin millions of dollars in automated semiconductor production runs.
While installing a standby diesel generator or secondary power substation feeder provides an alternative energy source, power cannot switch automatically without an intelligent switching interface.
The Automatic Transfer Switch (ATS) is the critical bridge that transforms standalone emergency generators into an autonomous, fail-safe emergency power system.
How an Automatic Transfer Switch Operates (Step-by-Step Cycle)
An intelligent microprocessor-controlled ATS manages emergency power transitions through five automated stages:
- Continuous Grid Monitoring: The ATS voltage sensing circuitry continuously monitors all three phases of the normal utility source (Source A). It tracks voltage limits (typically set to ±15% nominal), frequency stability (45Hz–55Hz), and phase sequence.
- Utility Failure Detection & Generator Start: The moment utility voltage drops below the under-voltage threshold or experiences a complete blackout for longer than a preset delay (typically 1 to 3 seconds to ignore momentary grid blips), the ATS controller closes an auxiliary dry contact that signals the standby diesel generator engine to crank.
- Emergency Source Verification & Transfer: As the generator starts and reaches rated speed and voltage (typically within 6 to 10 seconds), the ATS controller confirms Source B voltage and frequency are stable. The motorized mechanism instantly disengages the utility contacts and throws the load terminals over to the emergency generator contacts.
- Utility Power Restoration & Re-Transfer Delay: When normal utility power returns, the ATS does not immediately transfer back. It initiates a programmable "Return Delay Timer" (typically 5 to 30 minutes) to confirm the utility grid is genuinely stable and not experiencing transient re-closing attempts. Once confirmed, the switch transfers the building load back to Source A.
- Engine Cool-Down & Standby Reset: After transferring load back to utility mains, the ATS keeps the generator running unloaded for a programmed 5-minute cool-down cycle to dissipate turbocharger and alternator heat, before de-energizing the run contact and returning to silent standby monitoring.
Comparison: PC-Class ATS vs. CB-Class ATS
| Engineering Feature | PC-Class Automatic Transfer Switch | CB-Class Automatic Transfer Switch |
|---|---|---|
| Core Construction | Dedicated motorized or solenoid-driven contactor mechanism. | Two interlocked Molded Case Circuit Breakers (MCCB). |
| Integral Overcurrent Trip | No: purely switching device; relies on upstream fuses/MCCB. | Yes: includes thermal-magnetic or electronic trip units. |
| Short-Circuit Withstand | Extremely High: heavy silver-tungsten contacts handle peak short-circuits. | Moderate: limited to the breaking capacity (Icu) of the internal breakers. |
| Nuisance Tripping Risk | Zero: will not trip open during motor starting inrush currents. | Possible: internal trip unit may trip during severe motor starting surges. |
| Recommended Applications | Hospitals, data centers, airports, and critical emergency life-safety loads. | Commercial offices, residential complexes, and general standby backup. |
Frequently Asked Questions
What is an Automatic Transfer Switch (ATS) and why is it essential for emergency backup power?
An Automatic Transfer Switch (ATS) is an intelligent, electro-mechanical switching device installed between two independent electrical power sources (typically the primary utility power grid and an emergency backup diesel generator or secondary utility feeder). The ATS continuously monitors the voltage, frequency, and phase balance of the primary utility supply. When utility power fails or experiences brownout sags, the ATS immediately sends a remote-start signal to the backup generator, waits for the generator voltage to stabilize, and automatically transfers the building critical load from the failed utility to the emergency generator. Once utility power is restored, the ATS seamlessly re-transfers the load back to the grid and runs a timed cool-down cycle before shutting down the generator.
What is the difference between PC-Class and CB-Class Automatic Transfer Switches?
Under standard IEC 60947-6-1, transfer switches are classified into two primary construction categories: <ul><li><strong>PC-Class ATS:</strong> Built as a dedicated, heavy-duty contactor or motorized switch capable of making and withstanding short-circuit currents, but it does NOT provide overcurrent protection itself. It relies on upstream circuit breakers or fuses for fault clearing. PC-Class switches are widely preferred in critical infrastructure because their robust silver-alloy contacts will not trip open unexpectedly under transient motor starting surges, ensuring maximum power supply availability.</li><li><strong>CB-Class ATS:</strong> Constructed using two interlocked molded case circuit breakers (MCCBs) equipped with integral overcurrent and short-circuit trip mechanisms. A CB-Class ATS provides both power transfer and branch circuit overcurrent protection in a single enclosure.</li></ul>
Why is a mechanical interlock mandatory in an Automatic Transfer Switch?
A mechanical interlock is a rigid physical linkage (such as a pivoting steel rocker bar or sliding locking plate) that physically blocks both power sources from closing simultaneously. While microprocessors control electrical solenoids or motors, software glitches or welded electrical contacts could theoretically command both the utility breaker and the generator breaker to close at the same time. If an unsynchronized standby generator connects directly to the live utility grid, the resulting massive out-of-phase fault current causes violent electrical explosions, destroys generator alternator windings, and backfeeds lethal high voltage into utility distribution lines, endangering grid repair linemen. A mechanical interlock guarantees that closing one source physically forces the other open, eliminating backfeed risk.
Specifying 63A to 3200A dual-power automatic transfer switches for hospitals, commercial data centers, manufacturing plants, or standby generator sets?
Tell us your required rated current frame, 3-pole or 4-pole configuration, PC-class or CB-class preference, and communication requirements (RS485 Modbus). YOMIN manufactures heavy-duty automatic transfer switches engineered to IEC 60947-6-1 standards.
