Earth Leakage & Overcurrent Protection: What Is an RCBO?
Next-Generation Circuit Protection: Unifying Overload and Life Safety
Electrical safety in commercial buildings, industrial workshops, and residential homes requires two fundamentally different types of protection. First, electrical copper wiring must be protected against overheating and short-circuit fires caused by excessive electrical current. Second, human occupants and sensitive equipment must be protected against electrical shock and ground leakage currents.
Historically, achieving this dual protection required installing a separate Miniature Circuit Breaker (MCB) in series with a bulky Residual Current Device (RCD). Today, modular electrical engineering has converged both vital safety functions into a single device.

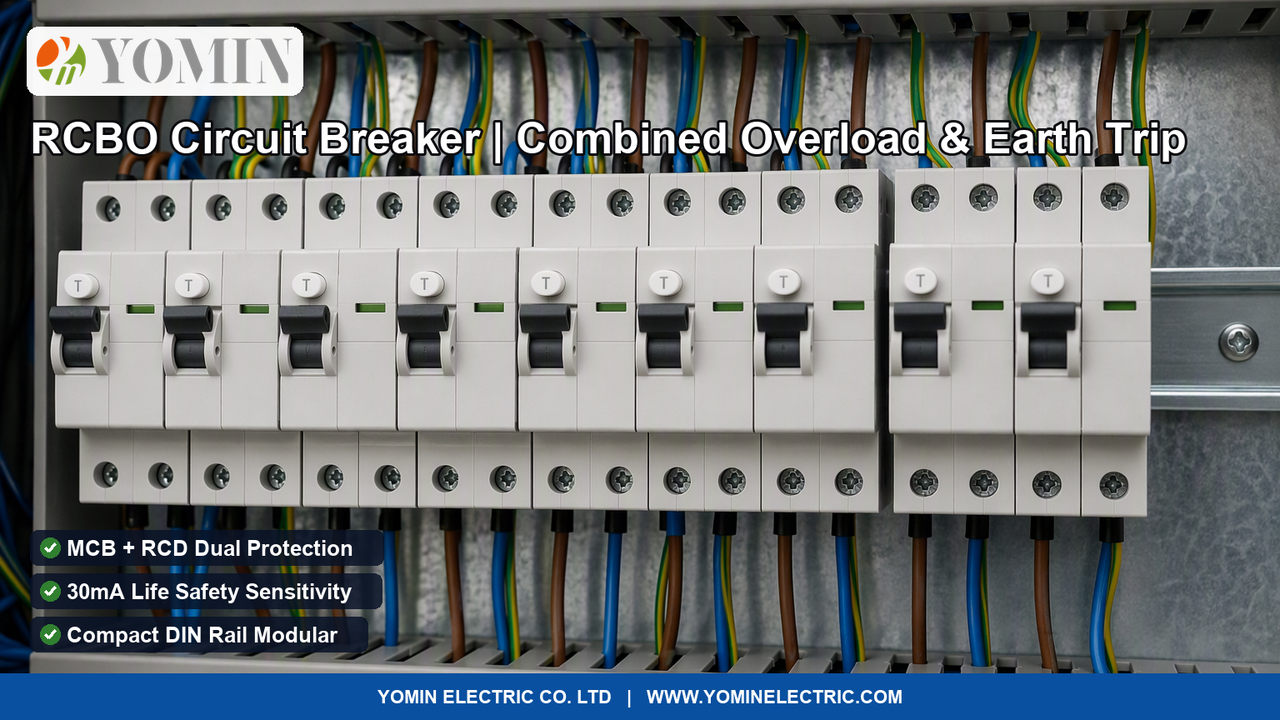

The RCBO (Residual Current Breaker with Overcurrent Protection) represents the modern standard for modular DIN-rail distribution boards, providing dedicated, circuit-by-circuit overcurrent, short-circuit, and life-safety electrocution protection.
Inside an RCBO: How Dual-Mechanism Protection Operates
A certified RCBO integrates three distinct physical sensing mechanisms within a compact 18mm or 36mm molded thermoplastic enclosure:
- Bimetallic Thermal Overload Strip: A calibrated strip composed of two bonded metals with differing thermal expansion coefficients. When continuous overcurrent exceeds the rated current (In)—such as 25A flowing through a 16A breaker—resistive heat causes the strip to bend gradually, releasing a mechanical latch that trips the contacts within seconds to minutes before cable insulation can melt.
- Electromagnetic Short-Circuit Solenoid: When a dead short circuit occurs (such as a drill puncturing live and neutral cables), instantaneous fault currents surge into thousands of amperes. The sudden massive current energizes an internal magnetic solenoid plunger that drives the contact mechanism open in less than 5 to 10 milliseconds, drawing the arc into a de-ionizing arc chute where copper splitter plates extinguish the plasma safely.
- Toroidal Zero-Sequence Differential Core: Both the active phase conductor and the neutral conductor pass symmetrically through a miniature high-permeability toroidal transformer core. Under normal conditions, outgoing phase current matches returning neutral current exactly, producing zero net magnetic flux. If even 30 milliamperes leaks to earth through a damaged appliance or human body, the unbalanced flux induces a secondary signal that fires an ultra-sensitive magnetic release latch, disconnecting power in under 40 milliseconds.
Comparison: MCB vs. RCD vs. RCBO
| Protection Capability | MCB (Miniature Circuit Breaker) | RCD / RCCB (Residual Current Device) | RCBO (Combined Circuit Breaker) |
|---|---|---|---|
| Overload Protection | Yes: thermal bimetallic trip. | No: burns out if overloaded. | Yes: internal thermal bimetallic trip. |
| Short-Circuit Protection | Yes: magnetic solenoid (6kA / 10kA). | No: requires upstream fuse/breaker. | Yes: magnetic solenoid with arc chute. |
| Earth Leakage Protection | No: blind to ground leakage currents. | Yes: trips on residual earth current. | Yes: sensitive toroidal differential trip. |
| Human Electrocution Safety | Zero: 30mA shock will not trip an MCB. | Life Safety: trips at 30mA in < 40ms. | Life Safety: trips at 30mA in < 40ms. |
| Nuisance Tripping Isolation | Affects only single branch circuit. | High Risk: trips 4–6 shared circuits. | Zero: trips ONLY the single faulty circuit. |
Frequently Asked Questions
What is an RCBO and what does the acronym stand for?
RCBO stands for **Residual Current Breaker with Overcurrent Protection**. It is an advanced modular circuit breaker that combines the functions of two separate protective devices into a single compact DIN-rail housing: 1. **Miniature Circuit Breaker (MCB):** protects the circuit against thermal overloads (too many appliances running simultaneously) and violent electromagnetic short circuits. 2. **Residual Current Device (RCD / RCCB):** detects dangerous electrical leakage currents escaping to ground (such as a damaged wire touching a metal appliance chassis or a human contacting a live wire), tripping within 300 milliseconds to prevent fatal electrocution.
What is the crucial difference between an RCD (RCCB), an MCB, and an RCBO?
To understand electrical protection, it is vital to distinguish between these three core DIN-rail components: <ul><li><strong>MCB (Miniature Circuit Breaker):</strong> Protects CABLES from burning up due to overloads and short circuits. It has ZERO earth leakage protection and will NOT protect a human from electrocution.</li><li><strong>RCD / RCCB (Residual Current Circuit Breaker):</strong> Protects HUMANS from electrocution and electrical fires caused by ground leakage. However, it has ZERO overload protection; if an RCD circuit is overloaded, the RCD will burn out without tripping.</li><li><strong>RCBO (Combined Unit):</strong> Does BOTH jobs simultaneously. An RCBO provides complete overcurrent, short-circuit, and life-safety earth leakage protection for an individual dedicated circuit.</li></ul>
Why do modern electrical wiring regulations require RCBOs instead of shared RCD split-load boards?
In older consumer unit installations, a single RCD protected a group of 4 to 6 separate MCB branch circuits (known as a split-load board). If an earth fault occurred on a single appliance—such as an outdoor garden light filling with water—the shared RCD tripped, cutting power to all 6 circuits simultaneously (plunging the entire home or commercial office into darkness, shutting down refrigerators, and crashing servers). Modern electrical codes (such as the UK 18th Edition IET Wiring Regulations BS 7671 and Australian AS/NZS 3000) strongly advocate installing individual RCBOs on every single branch circuit. An earth fault on one socket or luminaire trips ONLY that specific circuit's RCBO, leaving all other building circuits fully energized and making fault diagnosis effortless.
Upgrading commercial distribution boards, residential consumer units, or industrial control panels with compact 1P+N, 2P, and 4P RCBO circuit breakers?
Specify your required operating current (6A to 63A), breaking capacity (6kA or 10kA), tripping sensitivity (30mA life safety or 100mA/300mA fire protection), and Type A or Type AC characteristics. YOMIN manufactures certified modular circuit breakers engineered to IEC 61009-1 standards.
