Electric Meter Security Seal Guide: Anti-Tamper Revenue Protection
Non-technical losses (electricity theft, meter tampering, and unauthorized calibration adjustments) cost global electric utilities billions of dollars annually. As power grids transition to smart meters and advanced metering infrastructure (AMI), electric meter security seals serve as the primary physical barrier against revenue fraud.
For municipal power boards, utility procurement managers, and metering service providers, selecting the right tamper-evident sealing system requires understanding locking mechanics, material durability under UV exposure, and traceability protocols.
| Seal Type | Body Material | Locking Mechanism | Tamper Evidence | Typical Utility Use |
|---|---|---|---|---|
| Twist-Tite Wire Seal (Rotor Seal) | Transparent Polycarbonate body + Acetal rotor | Internal one-way ratchet rotating wheel | Rotor breaks upon reversal; wire cannot be pulled out; body crazes if heated | Smart meter terminal covers, optical port covers, CT test blocks |
| Padlock Plastic Seal | UV-stabilized Polypropylene / Nylon | One-piece snap-lock hasp with barbed insert | Hasp snaps cleanly if forced; cannot be opened without complete destruction | Substation distribution boxes, outdoor meter cabinets, breaker locks |
| Ultrasonic Anchor Seal | Clear Polycarbonate + coloured insert | Spring-loaded barbed insert locked in internal chamber | Visible locking clips inside clear housing; impossible to probe or pull free | Meter main body cover screws, calibration potentiometers |
| Heavy-Duty Cable Seal | Die-cast Aluminium / Zinc body + galvanized steel cable | Internal heat-treated steel locking cam | ISO 17712 security rating; requires hydraulic bolt cutters to remove | Transformer substation gates, pad-mounted transformer enclosures |

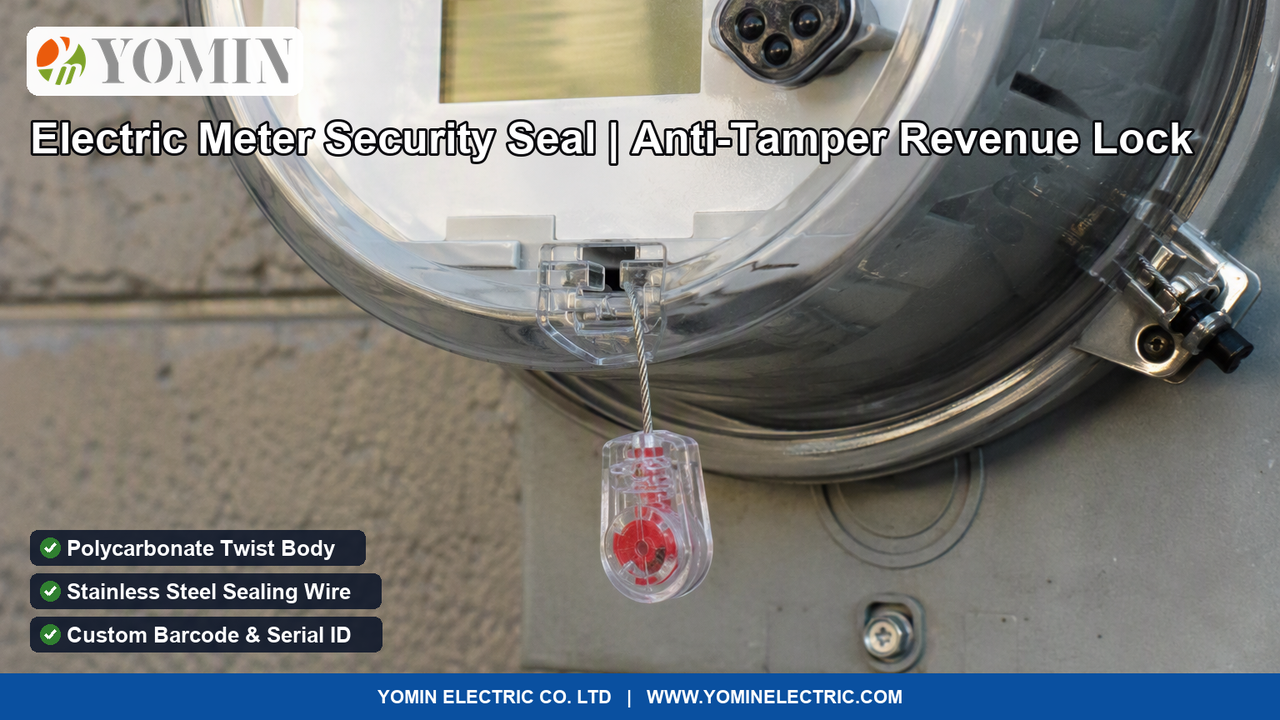

1. Anatomy of Modern Twist-Tite Meter Seals
Modern utility standards (including IEC 62053 and regional utility specs) have completely phased out soft lead seals in favor of polycarbonate twist seals. A high-security twist seal consists of four critical components:
- Crystal-Clear Polycarbonate Housing: Provides complete 360-degree visibility of the internal locking rotor, making any inserted foreign object or internal fracture immediately obvious to meter inspectors.
- One-Way Acetal Locking Core: The internal rotor turns smoothly in one direction (winding the sealing wire tight into the core), but locks rigidly against reverse rotation using molded directional pawls. Over-torquing snaps the twisting wing cleanly off.
- Pre-Stranded Sealing Wire: 7-strand stainless steel wire (optionally PVC-coated) resists corrosion and outdoor weathering. When cut, the individual strands unravel instantly, preventing re-insertion.
- Permanent Laser Marking: High-contrast CO2 or fiber laser marking deeply engraves the utility logo, barcode/QR code, and 8-to-10 digit non-repeatable serial numbers on both the body and the inner core.
2. Common Meter Tampering Methods and How Engineered Seals Counter Them
Field inspection teams regularly encounter sophisticated tampering attempts. Modern security seals are engineered with specific countermeasures:
- Heat and Solvent Attack: Fraudsters attempt to soften plastic bodies using hot water, heat guns, or solvents (acetone) to extract the rotor. High-grade optical polycarbonate crazes, fogs, and discolors permanently under heat or chemical exposure.
- Drilling and Needle Probing: Inserting a fine wire or pin to depress locking pawls is prevented by ultrasonic welding of the casing seams and tortuous internal wire routing chambers.
- Counterfeit Substitution: Fraudsters attempt to replace a broken seal with a look-alike. Matching unique laser-etched serial numbers and 2D DataMatrix codes verified via handheld AMI scanners ensures immediate detection of unrecorded seals.
3. Material and Environmental Durability Standards
Because electric meters operate outdoors across extremes of desert heat, monsoon humidity, and sub-zero winters, seals must meet stringent material specifications:
- UV Resistance: Polycarbonate grade must contain UV stabilizers to withstand 10+ years of direct solar exposure without yellowing, embrittlement, or loss of transparency.
- Operating Temperature Range: Continuous operational stability from -40°C to +120°C.
- Tensile Withstand: Sealing wire and lock must withstand minimum 300 N to 450 N pull force without slipping or release.
4. Utility Procurement: Traceability and Packaging Integrity
When ordering electric meter seals from accredited manufacturers like YOMIN, utility buyers should enforce closed-loop supply chain controls:
- Guaranteed Non-Duplication: Manufacturer maintains secure automated database logs verifying that serial number ranges are never duplicated across production runs.
- Sequential Strip Packaging: Seals are delivered in sequentially numbered mats or sealed bags of 50 or 100 units to streamline field inventory management and audit logs.
- Custom Barcode Formats: Support for Code 128, QR Code, or GS1 DataMatrix symbologies readable by utility billing and asset-management mobile apps.
Frequently Asked Questions
What makes a polycarbonate twist meter seal tamper-evident compared to traditional lead seals?
Traditional lead wire seals can be carefully opened, flattened, and resealed with pliers without obvious destruction. In contrast, modern twist-tite meter seals utilize a clear polycarbonate outer body and an acetal locking rotor assembled via ultrasonic welding. Attempting to reverse the rotor breaks internal one-way ratchets, while chemical or heat tampering visibly fogs or crazes the transparent body. Furthermore, laser-etched non-repeatable sequential serial numbers and DataMatrix codes prevent unauthorized replacement.
What wire material is recommended for utility electric meter sealing?
Multi-strand 304 or 316 stainless steel wire (typically 7-strand galvanized or plastic-coated stainless steel, diameter 0.6 mm to 0.8 mm) is the international utility standard. Stainless steel wire resists corrosion in humid or coastal environments, withstands high pulling forces without stretching, and frays immediately if cut, making invisible re-insertion impossible.
Where should security seals be applied on a commercial or residential electricity meter?
Security seals are installed at two distinct control points: (1) the meter enclosure/glass cover seal, applied by the meter manufacturer or test laboratory to protect internal calibration and electronics; and (2) the lower terminal block cover seal, applied by utility field technicians during installation to prevent bypassing of current transformers, phase links, or neutral connections.
