Utility Feeder Pillars & Substation Protection: What Is a J-Type Fuse Cutout?
The Robust Vanguard of Urban Low-Voltage Power Distribution
In municipal electrical distribution grids across the Middle East, the United Kingdom, and Commonwealth markets, electrical energy travels from primary distribution substations through underground cables into outdoor street-level distribution feeder pillars and compact kiosk substations.
These feeder pillars distribute low-voltage electrical power (415V/500V AC) to residential blocks, street lighting networks, and commercial complexes. Under continuous tropical ambient heat, desert dust storms, and heavy cyclic electrical loads, low-voltage distribution gear must operate reliably for 30 to 40 years without failure.
If an underground municipal cable is damaged by excavation or cable degradation, prospective fault currents can exceed 50,000 to 80,000 amperes. Standard commercial circuit breakers or spring-clip fuses cannot withstand these extreme mechanical forces and thermal stresses.

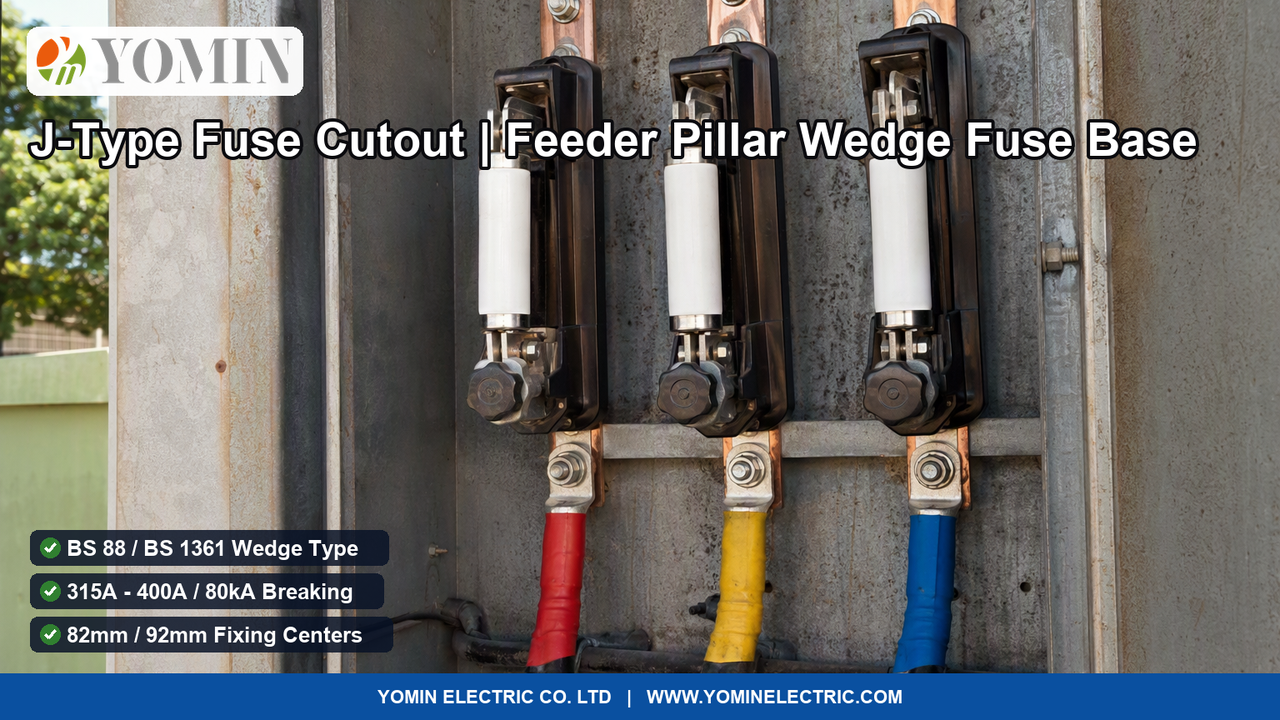

The J-Type Fuse Cutout (Model J-Type 300A/400A Series) represents the field-proven utility standard: a rugged, non-tracking glass-reinforced polyester base housing a heavy wedge-tightened fuse carrier that securely locks BS 88 slotted fuse links under massive contact pressure.
Engineering Anatomy: Inside a Utility-Grade J-Type Wedge Fuse Cutout
- DMC Glass-Reinforced Thermoset Polyester Base: Molded from heavy-duty Dough Molding Compound (DMC) with high dielectric strength and superior resistance to electrical tracking under humid or polluted environments.
- Thumb-Screw Wedge Tightening Carrier: Features an insulated, flame-retardant thermoplastic knob that tightens an internal brass wedge, clamping the slotted fuse tags directly against the silver-plated copper busbar terminal pads.
- Solid Silver-Plated Copper Busbar Terminals: High-conductivity electrolytic copper contact jaws plated with ≥ 5 μm silver, delivering minimal contact resistance and zero thermal runaway under 400A continuous load.
- Standardized 82mm / 92mm Slotted Fixing Geometry: Compatible with all standard utility-approved BS 88 Part 5 high-breaking-capacity (80kA) fuse links.
- Direct Mechanical Cable Clamping: Heavy-duty mechanical shear-bolt or compression lugs accommodate large municipal aluminium and copper underground cables from 70 mm² up to 300 mm².
Comparison: J-Type Wedge Fuse Cutout vs. DIN NH Blade Fuse Base vs. Molded Case Circuit Breaker (MCCB)
| Engineering Parameter | DIN NH Blade Fuse Base | YOMIN J-Type Wedge Fuse Cutout (BS 88) | Molded Case Circuit Breaker (MCCB) |
|---|---|---|---|
| Contact Clamping Mechanism | Spring-tensioned clips (susceptible to fatigue and loosening). | Insulated mechanical screw wedge (permanent high-pressure clamp). | Internal spring-loaded breaker contact fingers. |
| Short-Circuit Breaking Capacity (Icu) | Typically 50kA–100kA. | High Certified Breaking Capacity: 80kA symmetrical RMS at 415V AC. | Typically 25kA–50kA in compact frame sizes. |
| Environmental Resilience in Feeder Pillars | Moderate: Open clips collect dust, sand, and moisture. | Superior: DMC thermoset base immune to tracking; wedge cuts through oxide film. | Sensitive to desert heat, sand ingress, and internal mechanism jamming. |
| Insertion & Removal Safety Under Load | Requires external glove handle; danger of clip arcing. | Built-in insulated knob allows safe insertion and positive wedge locking. | Toggle switch operation (electronic trip unit requires auxiliary power). |
| Utility Network Track Record | Predominant in Continental Europe. | Mandatory specification across Middle East (SEC, DEWA) & British Commonwealth. | Common in private buildings; less common in municipal distributor cables. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated Operational Voltage & Frequency | Rated operational voltage: 415V / 500V AC at 50/60 Hz; rated insulation voltage: 690V / 1000V AC |
| Continuous Current Carrying Ratings | Available in heavy-duty ratings: 315A, 400A, and up to 630A continuous current capacity |
| Short-Circuit Breaking Capacity (Icu) | Certified high breaking capacity (HBC) up to 80kA symmetrical RMS fault current at 415V AC |
| Fuse Link Mounting Fixing Centers | Standardized slotted-tag fixing centers: 82mm (standard distribution) and 92mm (heavy industrial / network) |
| Base Molding Material & Flame Rating | High-strength, non-tracking Dough Molding Compound (DMC) glass-reinforced thermoset polyester (UL 94 V-0, heat-resistant) |
| Wedge Tightening Clamping Mechanism | Insulated thumb-screw or bolted high-tensile brass wedge block clamping slotted fuse tags directly against silver-plated copper busbar pads |
| Incoming & Outgoing Terminal Types | Direct mechanical shear-bolt cable lugs or compression lugs accommodating underground cables from 70 mm² up to 300 mm² |
| Applicable International Utility Standards | Fully compliant with BS 88-1, BS 88-5, BS 1361, IEC 60269-1, IEC 60269-2, and major utility specifications (SEC, DEWA, UK DNOs) |
Frequently Asked Questions
What is a J-Type Fuse Cutout and where is it used in utility power distribution networks?
A J-Type Fuse Cutout—commonly termed a feeder pillar fuse cutout, wedge-type cutout, or BS 88 distribution fuse base—is a heavy-duty electrical distribution protective assembly comprising an insulating glass-reinforced polyester base and a wedge-tightened fuse carrier. It is specifically engineered to hold high-breaking-capacity slotted-tag fuse links (BS 88 Part 5). J-Type cutouts are the standard low-voltage overcurrent protection equipment across municipal and utility networks for three primary applications: <ul><li><strong>1. Outdoor Distribution Feeder Pillars:</strong> Mounted vertically along copper busbars inside street-level feeder pillars to protect individual underground municipal distributor cables branching out to residential neighborhoods and commercial buildings.</li><li><strong>2. Pole-Mounted Distribution Transformer Cutouts:</strong> Installed at overhead-to-underground transition poles (terminal poles) to protect low-voltage cables dropping down from overhead distribution transformers.</li><li><strong>3. Substation LV Switchboards:</strong> Serving as incoming and outgoing circuit protection links in compact urban package substations.</li></ul>
Why do distribution network utilities insist on Wedge-Type J Cutouts instead of standard DIN knife-blade fuses?
While DIN knife-blade fuses (NH type) rely on spring-tensioned copper clips, heavy municipal distribution utilities (across the UK, Middle East, and Commonwealth) mandate bolted or thumb-screw wedge-type J cutouts for critical technical reasons: <ul><li><strong>1. Permanent High Contact Pressure:</strong> Knife-blade clips lose spring tension over years of thermal cycling, causing high contact resistance and catastrophic overheating. The wedge mechanism on a J-type cutout uses an insulated thumb-screw to wedge the slotted fuse tag directly against solid silver-plated copper pads, guaranteeing hundreds of kilograms of constant clamping force that cannot loosen with age.</li><li><strong>2. Elimination of Insertion Arc Flash:</strong> When replacing a fuse in a live feeder pillar, inserting a DIN knife blade under load can cause dangerous arcing. The wedge carrier on a J-type cutout allows the technician to insert the fuse smoothly without contact, and then clamp the wedge tight using the insulated knob, preventing arc flashes and ensuring lineman safety.</li><li><strong>3. Unmatched Short-Circuit Withstand (80kA):</strong> Under severe underground cable faults, massive electromagnetic forces attempt to blow fuse blades out of their jaws. The mechanical wedge physically locks the fuse tags in place, easily containing symmetrical short circuits up to 80,000 amperes.</li></ul>
What is the difference between 82mm and 92mm fixing centers in J-type fuse links?
The dimension refers to the center-to-center distance between the two slotted mounting tags of the cylindrical ceramic fuse link: <ul><li><strong>82mm Fixing Center:</strong> The most widely deployed utility standard across the Middle East (Saudi Electricity Company, DEWA) and the UK. Typically utilized for fuse ratings from 20A up to 400A in standard municipal feeder pillars and transformer service cutouts.</li><li><strong>92mm Fixing Center:</strong> Utilized primarily for heavy industrial distribution feeders and higher current ratings (up to 630A). YOMIN J-type cutout bases are engineered with dual-position terminal studs or dedicated base models to accommodate both 82mm and 92mm utility standards.</li></ul>
