Flexible Busbars: Where They Beat Rigid Bar and How to Specify Them
ET Engineering Team 8 min read · September 2, 2026

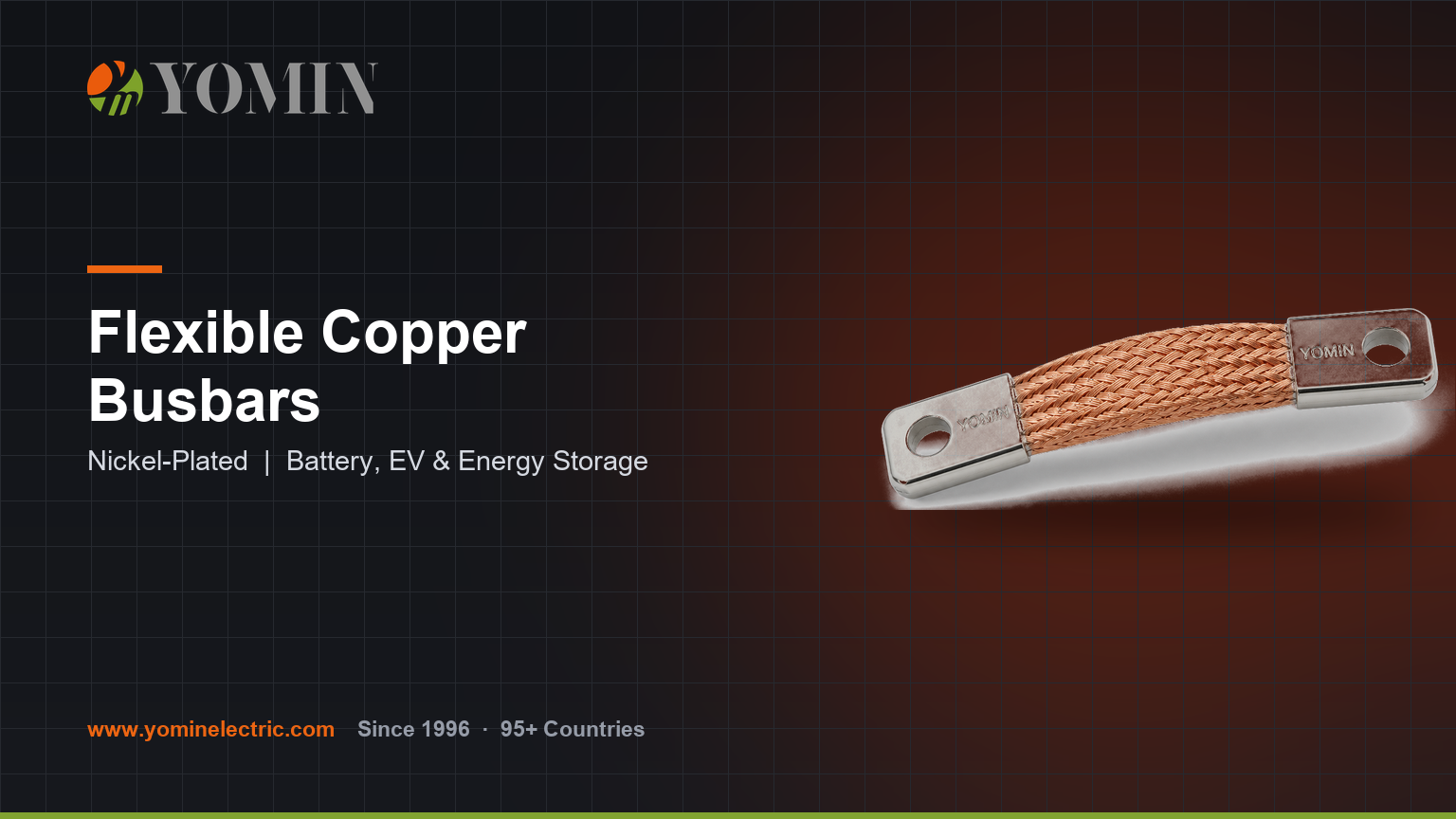

Direct answer: a flexible busbar is a high-current conductor made from braided or laminated copper with solid terminal pads at each end. It carries the same current as a rigid bar but absorbs vibration, thermal expansion and assembly misalignment instead of transmitting them into the terminals.
In battery packs, EV modules and energy-storage cabinets, the cell-to-cell connection has a harder job than it looks. It must carry high continuous current, and it must tolerate movement. Rigid bar does the first well and the second badly.
The Failure Mode Flexible Busbars Prevent
Consider a battery pack. Cells expand and contract as they charge, discharge and change temperature. The enclosure vibrates. Assembly tolerances mean the two terminals are never perfectly aligned.
A rigid bar bolted across that connection has nowhere to put the resulting stress, so it transfers it into the terminal posts and the joint. Over enough cycles you get loosening, then increased contact resistance, then localised heating — and heating accelerates the loosening. It is a self-reinforcing failure that ends at the joint.
A flexible busbar takes up that movement in the braid or laminate. The terminals stay clamped and the joint stays cool.
Braided vs Laminated
| Braided | Laminated (foil stack) | |
|---|---|---|
| Construction | Woven copper strands | Stacked thin copper foils |
| Flexibility | Multi-axis, very compliant | Flexes on one plane |
| Surface area | High — good heat dissipation | Compact cross-section |
| Best for | Vibration, multi-direction movement | Tight stacks, predictable single-plane flex |
Why the Terminals Are Plated
Bare copper oxidises. Copper oxide is a poor conductor, so an oxidised contact face raises joint resistance — and joint resistance in a high-current connection means heat.
- Nickel plating: hard, strong corrosion resistance, good at elevated temperature. The default for battery and ESS work.
- Tin plating: lower contact resistance, softer, cost-effective. Common in general power distribution.
- Bare copper: only where the environment is controlled and the joint is sealed.
One practical warning: avoid pairing dissimilar plated surfaces in a damp environment. Galvanic corrosion at the interface will undo everything the plating was meant to achieve.
What to Specify
A flexible busbar is a made-to-order part. To quote one, a manufacturer needs:
- Continuous current rating — drives the copper cross-section
- Hole centre distance and hole diameter
- Terminal pad width and thickness
- Overall length, and whether a bend or offset is needed
- Plating — nickel, tin or bare
- Insulation — PVC sleeve, heat-shrink, powder coat, or none
- Operating temperature range
Where They Are Used
- LiFePO4 and lithium battery pack cell interconnects
- EV and hybrid vehicle high-voltage distribution
- Energy storage system (ESS) cabinet connections
- Solar inverter and combiner connections
- Switchgear where thermal expansion must be absorbed
- Any connection subject to continuous vibration
Installation Notes
- Torque to the terminal manufacturer's specification — over-torquing deforms the pad and reduces contact area.
- Do not use the busbar to pull misaligned terminals together. It absorbs movement; it is not an alignment tool.
- Keep the flex section genuinely free — if it is clamped along its length, it cannot do its job.
- Re-check torque after the first thermal cycles on a new build.
FAQ
Can a flexible busbar carry the same current as rigid bar?
Yes, given equivalent copper cross-section. Braided construction can actually dissipate heat better thanks to greater surface area.
How flexible is it really?
Enough to absorb thermal expansion, vibration and assembly tolerance. It is not a substitute for a cable in a moving joint that articulates through a large angle repeatedly.
What is the minimum order?
These are custom-manufactured parts, so MOQ depends on configuration. Send your drawing or dimensions and we will confirm MOQ and lead time.
Can you match an existing part?
Yes. Send a drawing, a sample, or even clear photographs with dimensions and we will quote a matching part.
Custom Manufacturing
Yomin Electric produces flexible copper busbars on our own metal deep-processing line in Zhejiang — nickel-plated, tinned or bare, insulated or open, built to your drawing. See the flexible busbar range or send your specification for a factory-direct quotation within 24 hours.
