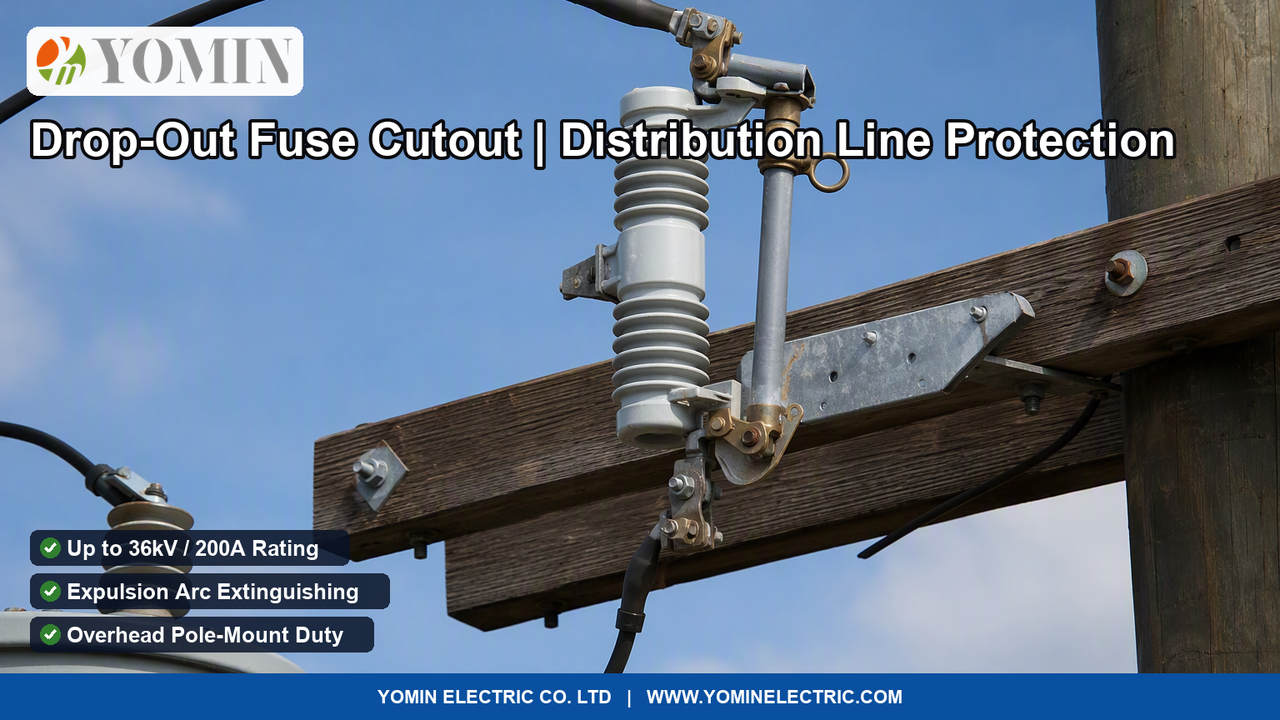

Fuse Cutout Guide: Types, Working Principle and Distribution Sizing
Overhead distribution networks and low-voltage substations rely on fuse cutouts as the first line of defense against short circuits, line faults, and transformer overloads. Combining the functions of an overcurrent protective device and an isolator switch, a fuse cutout provides unmistakable visual indication of blown fuses while ensuring safe isolation for lineworkers.
For municipal utilities, industrial plant operators, and EPC contractors, choosing between overhead drop-out expulsion cutouts and heavy-duty low-voltage J-type cutouts requires understanding interruption physics, fault-level ratings, and coordination with upstream breakers.
| Cutout Type | Rated Voltage | Rated Current | Breaking Capacity (Icu) | Primary Application |
|---|---|---|---|---|
| Medium-Voltage Drop-Out Cutout | 11 kV – 36 kV | 100 A – 200 A | 8 kA – 16 kA sym | Pole-mounted distribution transformers, overhead branch tap-offs |
| Heavy-Duty J-Type LV Cutout | 415 V – 660 V | 300 A – 400 A / 630 A | 80 kA @ 415V | Substation LV feeder pillars, transformer take-off cabinets, busbar tie-ins |
| House Service Cutout (Bakelite/DMC) | 230 V – 415 V | 60 A – 100 A | 25 kA – 33 kA | Utility service entrance, residential metering intake boards |
| Enclosed Disconnector Cutout | 415 V – 1000 V | 160 A – 630 A | 50 kA – 100 kA | Industrial motor distribution, solar PV combiner disconnection |
1. Working Principle: Expulsion vs Current-Limiting Interruption
The core operating mechanism of a medium-voltage fuse cutout is expulsion quenching. Inside the fuse carrier tube, a tin or silver fuse link is held in tension by a spring-loaded toggle mechanism:
- Normal Operation: The fuse link carries normal full-load current with minimal temperature rise. The toggle mechanism remains latched, holding the fuse tube securely in the upper stationary contacts.
- Overcurrent Fault: When a fault occurs, the calibrated element melts. The resulting electric arc attacks the vulcanized fiber lining of the tube, releasing a concentrated de-ionizing gas blast.
- Drop-Out Mechanical Action: As the link burns through, the spring releases the lower latch. The top contact unlatches, and gravity causes the entire fuse tube to swing down into a vertical hanging position, creating an unmistakable air gap isolator that prevents flashover across carbonized residue.
2. Heavy-Duty J-Type Cutouts in Low-Voltage Distribution
In low-voltage utility distribution (415V three-phase systems per BS 7657 and IEC 60269), J-type fuse cutouts serve as feeder disconnectors on distribution transformer takeoff frames, overhead-to-underground transition poles, and municipal distribution pillars. Unlike expulsion cutouts, J-type units house high-breaking-capacity (HRC) slotted-tag fuse links:
- Standard Slotted Centers: Available in 82 mm (up to 400A) and 92 mm (up to 630A) fixing centers, bolted directly with captive M10/M12 stainless steel terminal bolts.
- Flame-Retardant Glass-Filled Polyester (DMC): Engineered bases resist tracking, ultraviolet degradation, and heavy arc discharge, maintaining structural rigidity under high thermal stress.
- Wedge Contact Clamping: Heavy phosphor-bronze or electrolytic copper spring contacts ensure minimal contact resistance (< 0.05 mΩ) even after years of thermal cycling.
3. Sizing and Fuse Link Coordination Rules
Proper application of fuse cutouts requires precise coordination between the transformer kVA rating, inrush duration, and downstream breaker trip curves:
- Magnetizing Inrush Tolerance: The cutout fuse link must withstand 10 to 12 times the transformer rated primary current for 0.1 seconds without element fatigue or partial melting.
- Continuous Thermal Sizing: Rate the fuse link at 140% to 160% of the continuous full-load current to prevent premature nuisance aging during ambient summer peaks.
- Short-Circuit Clearing Time: Ensure the total clearing time of the cutout under secondary terminal fault conditions is faster than the thermal damage limit ($I^2t$) curve of the transformer winding insulation.
4. Specification Checklist for Global Utilities and EPC Buyers
When procuring fuse cutouts for international distribution tenders, verify the following manufacturer compliance data:
- Creepage Distance: Specify minimum 25 mm/kV or 31 mm/kV for coastal, heavy industrial, or desert dust environments (Pollution Class III/IV per IEC 60815).
- Terminal Stud Material: Tinned brass or electrolytic copper studs with dual-hole cable clamp plates suitable for aluminium and copper conductors (50 mm² to 300 mm²).
- Type Test Certification: Demand full type test reports from accredited laboratories (KEMA, ASTA, or CNAS) covering impulse withstand (BIL up to 170 kV for MV cutouts) and temperature rise at full rated current.
Frequently Asked Questions
What is the primary difference between a drop-out fuse cutout and an LV J-type cutout?
A drop-out fuse cutout (expulsion cutout) is primarily designed for medium-voltage overhead distribution lines (11kV to 36kV), using an open fuse tube that physically drops down upon clearing a fault to provide an unmistakable visual air gap. An LV J-type cutout operates in 415V/600V low-voltage networks, housing heavy slotted-tag fuse links (typically 82mm or 92mm fixing centers) inside a robust glass-reinforced polyester or DMC insulating base for feeder pillars and transformer take-offs.
Why do fuse cutouts use expulsion-type arc extinguishing for distribution circuits?
Expulsion fuse tubes are lined with gas-evolving de-ionizing materials such as vulcanized fiber or synthetic resin. When the internal fuse element melts under a fault or severe overload, the resulting electric arc vaporizes the organic tube lining, generating high-pressure de-ionizing gases (water vapor, hydrogen, and carbon monoxide). This high-velocity blast rapidly quenches the plasma channel and expels the ionized particles out the bottom (or both ends) of the tube at current zero.
How do electrical utilities select the fuse link rating for distribution transformer protection?
The continuous rating of the fuse link is typically sized at 140% to 200% of the transformer full-load primary current. This headroom accommodates temporary magnetizing inrush currents (which can reach 8 to 12 times rated current for 0.1 seconds) and permitted short-term peak loading without nuisance tripping, while ensuring rapid clearing under low-impedance secondary feeder faults.
Sourcing fuse cutouts for an overhead or LV distribution project?
Tell us your system voltage, continuous current rating, and fault interruption capacity. YOMIN manufactures heavy-duty J-type LV cutouts (up to 630A) and expulsion dropout cutouts (up to 36kV) with full KEMA / ASTA type test reports.
