Fuse Holder Guide: Sizing a Holder to the Fuse, the Circuit and the Panel

What a fuse holder actually does

A fuse protects a circuit by melting. The holder exists so that it can, and so that a technician can replace it afterwards. That sounds simple until you look at what the holder is responsible for: it fixes which fuse size fits, how much current the assembly can carry continuously, how much fault current it can survive, and whether someone can change the fuse without their fingers reaching live metal.

Most protection failures we see in the field are not the fuse. They are the interface between the fuse and the holder — a contact that has lost spring force, a holder rated below the fuse, or a holder chosen for the fuse size but not for the circuit.

Start with the fuse size, then work outwards

Holders are sold against the fuse they accept, so that is the first decision:

• 10×38 — cylindrical fuses for control circuits, small drives and instrumentation
• 14×51 — the middle step for higher current control and distribution panels
• 22×58 — the workhorse size for industrial and photovoltaic circuits, typically rated 100A and above
• NH (blade type) — bolted or bladed fuses for main distribution, where fault levels are high

Once the size is fixed, check the holder against the fuse rating rather than the other way round. A 22×58 holder carrying a 100A fuse is rated for that 100A continuously, in free air, at the ambient temperature on the datasheet — not inside a sealed enclosure at 55 °C.

Voltage and breaking capacity are holder ratings too

A holder is not a passive piece of plastic. When a fuse clears a fault it produces an arc inside the holder body, and on DC it does not get a zero crossing to help it go out. The holder must be rated for the system voltage and for the prospective fault current at that point.

This is why a holder marked for low voltage DC work must not be assumed suitable for an AC distribution board, and vice versa. The rating printed on the assembly — not the rating of the fuse alone — is what the installation has to satisfy.

Contact geometry: why it decides how long the holder lasts

The contacts inside a holder do two jobs: carry current with as little resistance as possible, and hold that resistance stable across years of thermal cycling and repeated fuse replacements. Box knife-shape contacts do this by presenting a large, sprung contact area to the fuse end cap instead of a small point.

Resistance is the whole story. A contact that has drifted from a fraction of a milliohm to a few milliohms at 100A is dissipating tens of watts in a palm-sized block, and heat is what finally destroys holders — it softens the moulding, relaxes the spring, and raises resistance further.

Matching a holder to the job

Use this as the working checklist before specifying anything:

Photovoltaic strings need a different conversation

In a PV array the fuse sits in a DC string that is live whenever the sun is out. There is no isolator upstream in the usual sense, and the fault current available from a string is limited but never zero. A PV fuse holder therefore has to be rated for the string voltage in DC, hold its contact force through daily thermal cycling for years, and be serviceable by someone wearing gloves on a roof.

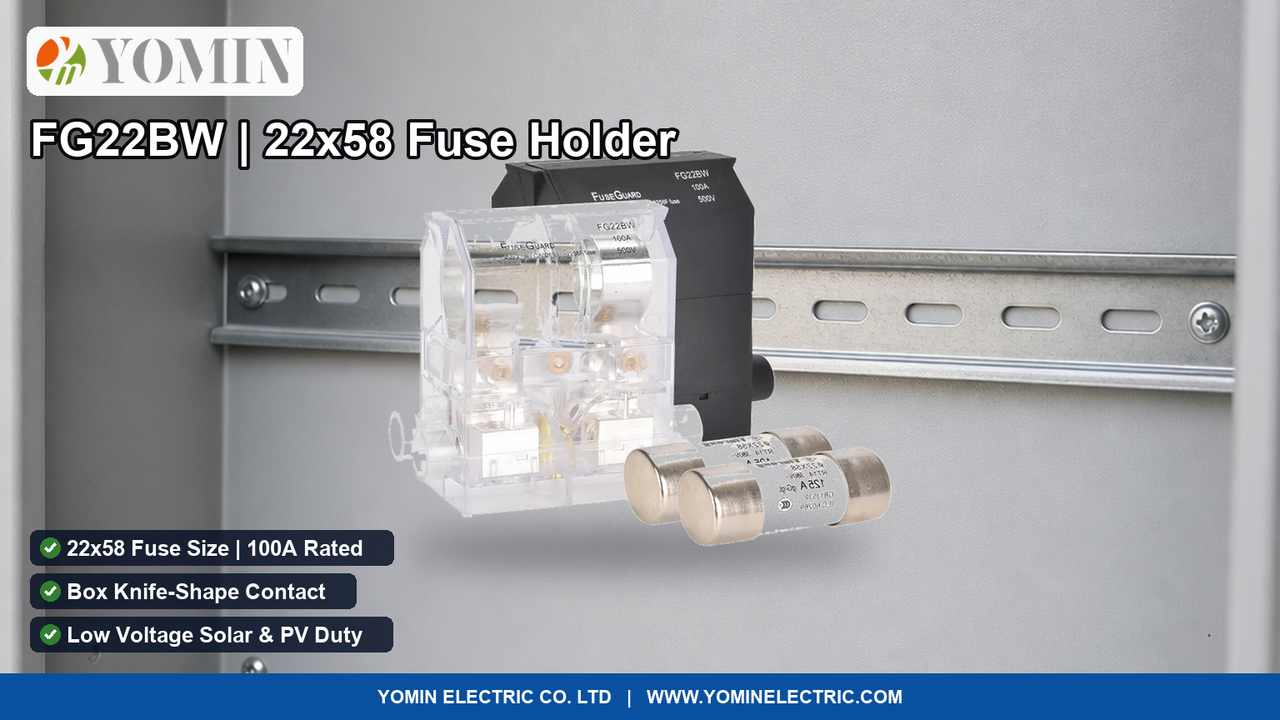

YOMIN supplies the FG Series fuse holder for this duty — a box knife-shape contact holder for 22×58 fuses, marked FG22BW and rated 100A, made for low voltage solar and PV circuits. The same family is available as a replaceable fuse holder for new energy PV fuse series. Because the fuse is a consumable, the holder is what determines whether the string comes back into service in five minutes or becomes a call-out.

Frequently asked questions

What is a fuse holder?

A fuse holder is the carrier that positions a fuse in a circuit and makes the two connections to it. It fixes the fuse size it accepts, the current it can carry, the voltage and breaking capacity of the assembly, and whether the fuse can be changed safely without touching live metal.

How do I match a fuse holder to a fuse?

Match three things: the physical fuse size (10×38, 14×51, 22×58 or NH), the rated current of the fuse, and the rated voltage and breaking capacity of the circuit. A holder whose contact rating is below the fuse rating becomes the weakest point and overheats.

Can I use a higher rated fuse in a smaller holder?

No. The holder must be rated at or above both the fuse current and the prospective fault current. Fitting a larger fuse than the holder is rated for defeats the protection and can cause the holder to fail before the fuse clears.

Why do PV fuse holders look different from AC holders?

PV strings are DC, so the holder has to break a DC arc that does not self-extinguish at a zero crossing. PV holders are built for higher DC voltage, have deeper barriers between poles and use contacts that hold their spring force through years of thermal cycling.

What does box knife-shape contact mean?

It describes the contact geometry inside the holder: a box-shaped body with knife-shape contacts that grip the fuse end caps. It gives a large, stable contact area, which keeps resistance and heating low over repeated fuse changes.

A holder is a five-minute decision that lasts twenty years

Specifying the fuse takes an engineer ten seconds. Specifying the holder correctly is what keeps the circuit protected, the panel cool and the maintenance crew out of an enclosure they should not have to open twice.
