The Critical Function of the Grounding Busbar in Electrical Distribution

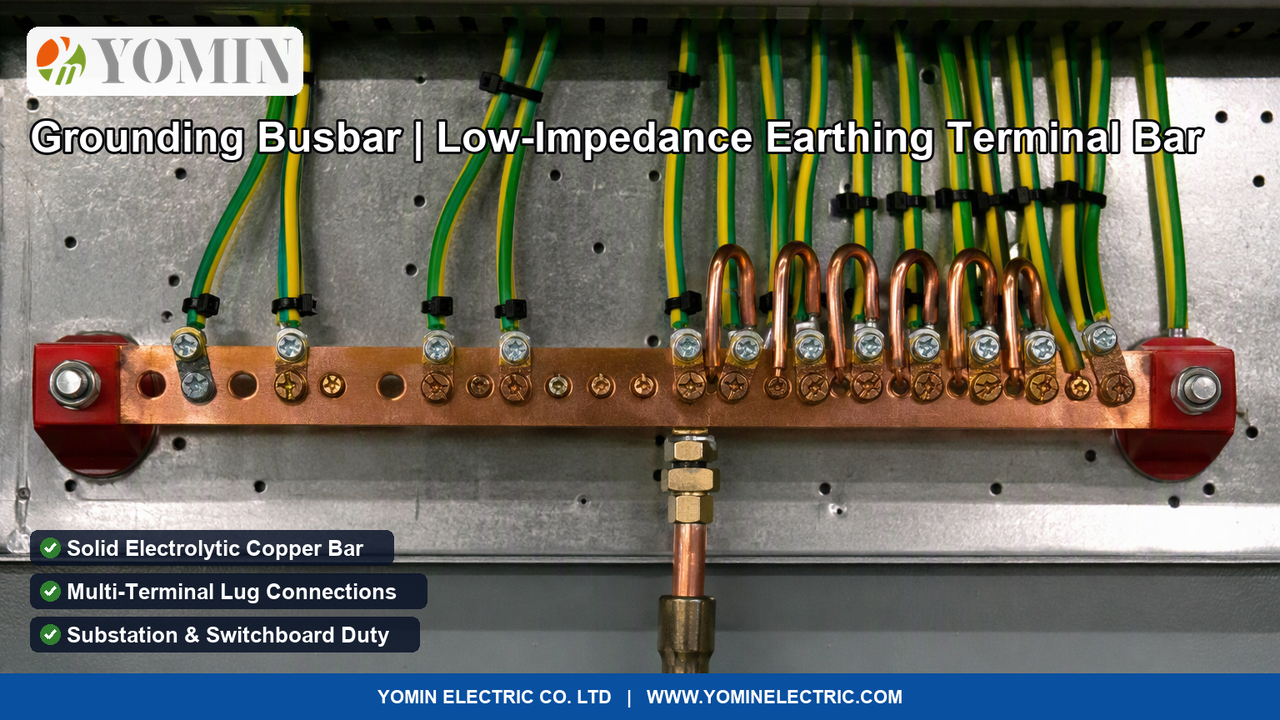

In low-voltage and medium-voltage power distribution systems, the grounding busbar (also referred to as an earth bar or ground terminal bus) serves as the common equipotential reference plane for an entire electrical installation. Installed within main distribution boards (MDBs), motor control centers (MCCs), industrial control cabinets, and telecommunication server racks, the ground busbar coordinates three essential safety functions:
- Fault Current Clearance: In the event of a phase-to-ground insulation breakdown inside an electric motor, feeder cable, or transformer, the grounding busbar provides a deliberate low-impedance metallic path back to the utility transformer neutral. This low resistance allows high fault currents to circulate instantaneously, prompting upstream circuit breakers or HRC fuses to trip within milliseconds, preventing fatal touch voltages ($V_{ ext{touch}} > 50 ext{V}$) on equipment metal enclosures.
- Lightning and Transient Surge Dissipation: Connected directly to surge protective devices (SPDs) and external lightning down-conductors, the ground busbar safely routes tens of thousands of amperes of high-frequency lightning transient currents into the grounding electrode system without flashing over to control electronics.
- Static and High-Frequency Noise Mitigation: Provides an equipotential bonding plane that eliminates circulating ground loops, static charge accumulation, and common-mode electromagnetic interference (EMI) across automation PLCs, variable speed drives, and sensitive instrumentation.
Electrolytic Copper vs. Aluminium: Material Selection Criteria
Specifying the proper metallurgical grade for a grounding busbar depends on the operational environment, ampacity requirements, and budget constraints:
| Engineering Parameter | Electrolytic Tough Pitch (ETP) Copper Ground Bar | 6061-T6 Tin-Plated Aluminium Ground Bar |
|---|---|---|
| Electrical Conductivity | 100% IACS (58.0 MS/m); lowest possible contact impedance. | 55%–61% IACS; requires ~30% larger cross-section for equivalent kA rating. |
| Mechanical Strength & Creep | High tensile strength; virtually zero mechanical creep under terminal bolt torque. | Subject to thermal expansion and creep; requires Belleville spring washers. |
| Corrosion Resistance | Superior atmospheric corrosion resistance; exceptional durability in humid plants. | Requires heavy electro-tin plating to prevent galvanic oxidation and pitting. |
| Weight & Commercial Cost | Heavier (density $8.96\, ext{g/cm}^3$); higher raw material investment. | Lightweight (density $2.70\, ext{g/cm}^3$); cost-effective for large panelboard runs. |
Mechanical Architecture: Hole Sizing, Pitch and Dual-Rated Lug Terminations
A high-performance grounding busbar system requires careful mechanical layout to accommodate diverse cable sizes without overcrowding:
- Direct Tapped Screw Terminals vs. Through-Holes: Smaller load centers utilize factory-tapped holes with steel or brass binder head screws (typically #10-32 or 1/4"-20) accepting single solid or stranded conductors (#14 AWG to #4 AWG). For heavy industrial switchboards, ground bars feature dual rows of through-holes spaced at 1/2", 3/4", or standard 1-3/4" centers, allowing two-hole compression cable lugs to bolt flat against the copper palm with high-tensile hardware.
- Belleville Conical Washers: During thermal cycling caused by summer peak loads or momentary short-circuit heating, terminal metals expand and contract. Utilizing conical Belleville spring washers beneath the hex nut maintains constant compressive pressure (clamping force), eliminating the risk of loose, high-resistance electrical connections over decades of operation.
- Disconnectable Earth Links: Substation and main earthing terminals frequently incorporate a removable bolted copper link (earth test link). This allows maintenance technicians to disconnect the panel grounding busbar from the buried earth grid to perform precision soil resistivity and earth electrode resistance testing using a 3-point fall-of-potential tester without back-feeding into the facility.
Frequently Asked Questions
What is the difference between an isolated ground busbar and an equipment ground busbar in electrical panels?
An equipment ground busbar (EGB) is bonded directly to the metal enclosure of the panelboard or switchgear. It provides a low-impedance fault-clearing path for conductive metal surfaces, tripping circuit breakers during ground faults. An isolated ground busbar (IGB) is mounted on insulated standoff blocks (typically red polyester) and isolated from the steel enclosure. It connects exclusively to sensitive electronic equipment (data centers, audio recording systems, hospital imaging devices) via dedicated green/yellow ground wires with an orange tracer, routing electrical noise directly back to the grounding electrode without circulating through the building frame.
How do you calculate the minimum cross-sectional area of a copper ground busbar for a given fault current?
Under IEC 60364-5-54 and IEEE Standard 80, the minimum protective conductor cross-section (S) is calculated using the adiabatic formula: S = sqrt(I^2 * t) / k, where I is the prospective RMS fault current in Amperes, t is the fault clearance operating time in seconds, and k is the material thermal constant (k = 176 for copper conductors with 70°C initial and 160°C final temperatures). For an industrial switchboard with 25kA prospective short-circuit current cleared in 0.5 seconds, the minimum copper busbar cross-section required is S = sqrt(25000^2 * 0.5) / 176 = 100.4 mm^2 (equivalent to a standard 25mm x 5mm copper busbar bar with 125 mm^2 cross-section).
Can aluminium conductors be terminated directly onto an unplated copper grounding busbar?
No. Terminating bare aluminium conductors directly onto bare copper causes aggressive galvanic (bimetallic) corrosion. When moisture or atmospheric humidity is present, the electrochemical potential difference between copper (+0.34V) and aluminium (-1.66V) drives rapid galvanic oxidation of the aluminium. The aluminium oxidizes into non-conductive aluminium oxide, causing loose terminals, high-resistance overheating, and eventual fire hazards. For mixed aluminium and copper terminations, panel builders must specify tin-plated copper ground busbars or use dual-rated AL9CU mechanical screw lugs with antioxidant joint compound.
