Electrical Grounding & Power Distribution: What Is a C-Tap Connector?
The Permanent Copper Bond: Why C-Tap Connectors Dominate Grounding Infrastructure
In high-voltage electrical substations, commercial solar photovoltaic arrays, telecommunication towers, and industrial power plants, the earthing and grounding grid is the most critical life-safety system in the facility. If a high-voltage lightning strike or short-circuit earth fault occurs, the grounding grid must dissipate tens of thousands of amperes into the earth in milliseconds.
However, an earth grid is only as reliable as its conductor joints. Splicing or tapping buried copper grounding conductors using mechanical screw-type fasteners often leads to disaster, as soil vibrations and thermal cycling loosen threaded nuts, causing catastrophic grounding failure.

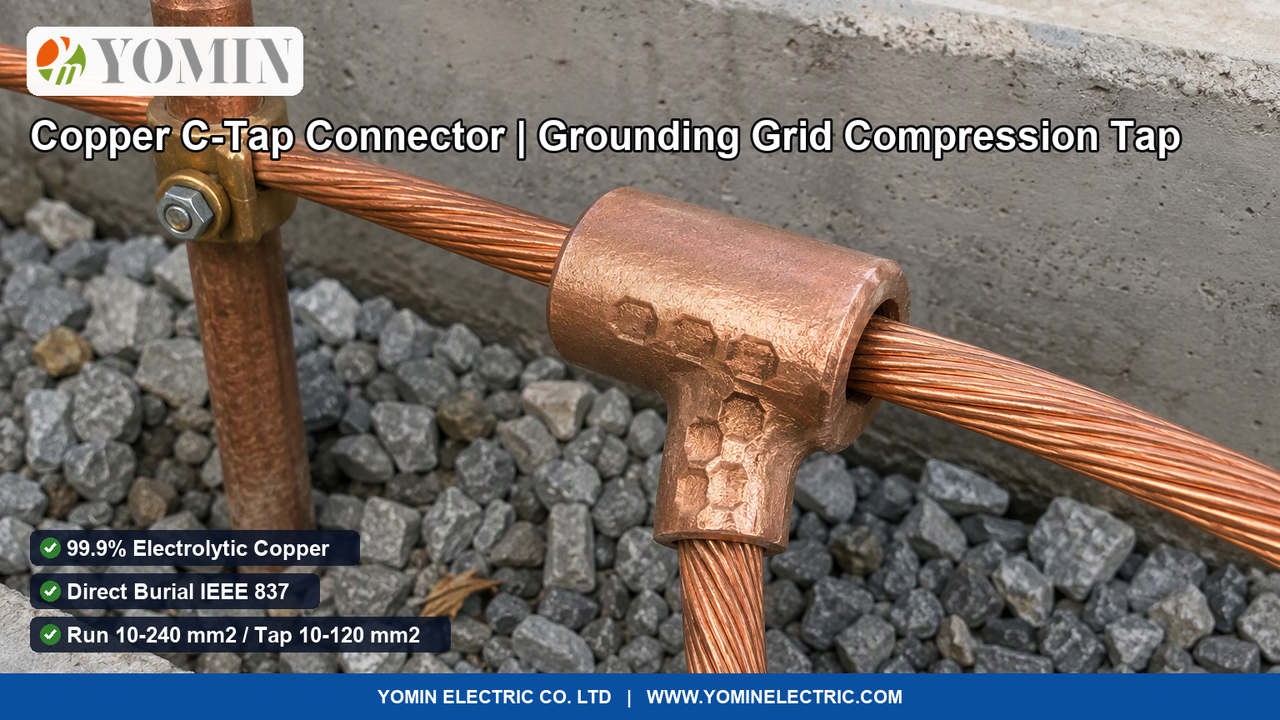

The Copper C-Tap Connector (C-Type Compression Clamp) provides the engineering solution: a permanent, solderless, irreversible cold-welded copper joint that withstands direct burial for 40+ years without maintenance.
Engineering Anatomy: Why the "C" Geometry is Superior
- 99.9% Pure Electrolytic Copper (UNS C11000): Forged from high-conductivity electrolytic copper with electrical conductivity exceeding 98% IACS. The connection exhibits lower electrical resistance than an equivalent unbroken length of cable.
- Continuous Run "Hook-On" Installation: The open "C" profile allows electricians to place the clamp directly over continuous perimeter grounding ring conductors without cutting the main wire or creating high-resistance splices.
- Homogeneous Molecular Compression: When compressed under 12 tons of hydraulic force, the ductile copper clamp flows plastically around and between the conductor strands, expelling all air and creating an impenetrable, gastight joint certified under IEEE 837 and UL 467.
- Surface Options for Every Environment: Available in natural bare copper for direct soil burial, or electro-tin plated to prevent galvanic reaction when connecting to aluminium structures or indoor switchboards.
Comparison: Compression C-Tap vs. Mechanical Split-Bolt vs. Exothermic Cadweld
| Comparison Parameter | Mechanical Split-Bolt Connector | YOMIN Hydraulic Compression C-Tap | Exothermic Cadweld Welding |
|---|---|---|---|
| Connection Permanence | Temporary / Reversible (Threaded nut). | Permanent / Irreversible (Cold-welded copper). | Permanent (Melted copper weld). |
| Vibration & Thermal Loosening | High risk of loosening over time in soil. | Zero loosening; solid homogeneous copper mass. | Zero loosening; fused joint. |
| Installation Safety Aloft & Trench | Safe wrench tightening. | 100% Safe Cold Hydraulic Crimp — no fire hazard. | Dangerous open ignition powder & molten metal (1000°C+). |
| Weather & Moisture Sensitivity | Corrodes easily in acidic/alkaline soils. | Impermeable to moisture; UL 467 direct burial. | Fails if mold or cable is damp during ignition. |
| Installation Speed & Tooling | Slow wrench tightening (torque critical). | Under 30 seconds with standard hydraulic crimper. | Slow: Clamp molds, igniter powder, cleaning molds. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Material Composition & Copper Purity | Forged high-conductivity electrolytic tough pitch (ETP) copper (UNS C11000, ≥ 99.9% pure copper) for maximum conductivity |
| Main Run Conductor Capacity Range | Accommodates solid or stranded copper run cables from 10 mm² (#8 AWG) up to 240 mm² (500 kcmil) continuous bus |
| Branch Tap Conductor Capacity Range | Accommodates branch tap copper cables from 10 mm² (#8 AWG) up to 120 mm² (250 kcmil) perpendicular or parallel takeoff |
| Direct Burial & Grounding Certification | UL 467 Listed for grounding and bonding; compliant with IEEE 837 qualifying standard for permanent sub-surface direct burial earth grids |
| Electrical Conductivity Rating | Minimum electrical conductivity ≥ 98% IACS (International Annealed Copper Standard); lower resistance than equivalent cable length |
| Compression Tooling & Die Match | Permanent crimp installation utilizing standard hydraulic compression tools with color-coded and index-matched mechanical dies |
| Surface Finish & Corrosion Protection | Available in natural bright dipped bare copper (for direct burial earth grids) or electro-tin plated (for indoor switchboards and busbars) |
| Short-Circuit Fault Current Withstand | Withstands fault surge currents exceeding 25 kA / 1 second without mechanical separation, joint deformation, or thermal failure |
Frequently Asked Questions
What is a C-Tap Connector and where is it used in electrical grounding and distribution networks?
A C-Tap Connector—also termed a copper C-crimp, C-clamp tap connector, or compression tap clamp—is a heavy-duty, C-shaped pure electrolytic copper fitting engineered to make permanent, solderless branch and tap connections between two parallel or perpendicular copper conductors. Its open "C" geometry allows linemen and electricians to hook the connector directly over a continuous, unbroken main run conductor without needing to cut, de-energize, or loop the cable. The branch tap cable is laid into the secondary groove, and a hydraulic crimping tool applies massive tonnage, cold-forming the solid copper clamp into an airtight, homogeneous molecular bond. C-tap connectors are universally deployed in electric utility substation grounding grids, lightning protection down-conductor networks, utility transformer bonding, commercial building perimeter grounding loops, and utility solar photovoltaic earthing trenches.
Why do engineers prefer compression C-Taps over mechanical split-bolt connectors for underground grounding grids?
While mechanical split-bolt connectors have been used historically, they suffer from fatal weaknesses in underground and grounding applications: <ul><li><strong>Loosening Under Thermal Cycles:</strong> Underground grounding grids carry massive lightning discharge surges and earth fault currents. These surges heat the metal, causing expansion and contraction. Threaded split-bolt nuts loosen over time due to thermal cycling and soil settling, increasing contact resistance until the ground connection fails entirely.</li><li><strong>Corrosion in Soil:</strong> Mechanical bolts leave air gaps and micro-voids between the threads and cable strands. Soil moisture and corrosive chemicals penetrate these voids, causing severe galvanic oxidation. In contrast, a hydraulic compression C-tap exerts such extreme force that the copper strands and connector cold-weld into a virtually solid mass of copper, eliminating all internal voids and creating a permanent, corrosion-proof connection certified for IEEE 837 direct burial.</li></ul>
How do you properly size and crimp a copper C-Tap connector?
Proper installation requires three precise engineering steps: <ul><li><strong>1. Match Run and Tap Sizes:</strong> Consult the manufacturer sizing chart. C-taps are engineered for specific ranges (e.g., Run: 70–95 mm², Tap: 35–50 mm²). Using an oversized C-tap leaves loose strands; using an undersized clamp damages conductors.</li><li><strong>2. Use Correct Die and Hydraulic Tool:</strong> Each C-tap size corresponds to an exact mechanical die index (e.g. Die Index "C", "D", or "E"). The die must be paired with a calibrated hydraulic crimper (minimum 6 to 12 tons pressure).</li><li><strong>3. Full Die Closure:</strong> The hydraulic tool must be pumped until the die faces fully touch and the pressure release valve clicks, guaranteeing complete circumferential compression and cold-flow deformation of the copper.</li></ul>
Electrical Grounding & Power Distribution: What Is a C-Tap Connector?
Designing substation earth grids, commercial solar farm grounding networks, or industrial power distribution taps requiring IEEE 837 certified copper C-tap connectors? YOMIN manufactures pure electrolytic forged copper C-clamps.
