Heat-Shrink Sleeve Guide: Solder-Splice Butt Joints and AWG Sizing
Most cable joint failures are not electrical. They are moisture, vibration or corrosion getting into a connection that was electrically sound on the day it was made. A heat-shrink sleeve with a solder ring inside solves all three problems in one step, which is why it has become the standard repair and production joint in harsh environments.
What a solder-splice sleeve actually is
The sleeve is a piece of heat-shrink tubing with two things inside it: a ring of solder in the middle, and a band of hot-melt adhesive at each end. Applying heat does two jobs at once.
- The solder ring melts and wicks into the stranded conductors, forming a permanent electrical joint.
- The tubing shrinks and the adhesive at each end flows, sealing the joint against moisture.
The result is a soldered, insulated, strain-relieved and sealed connection produced with a heat gun in a few seconds. No separate crimp tool, no separate insulation step.
Reading the colour code

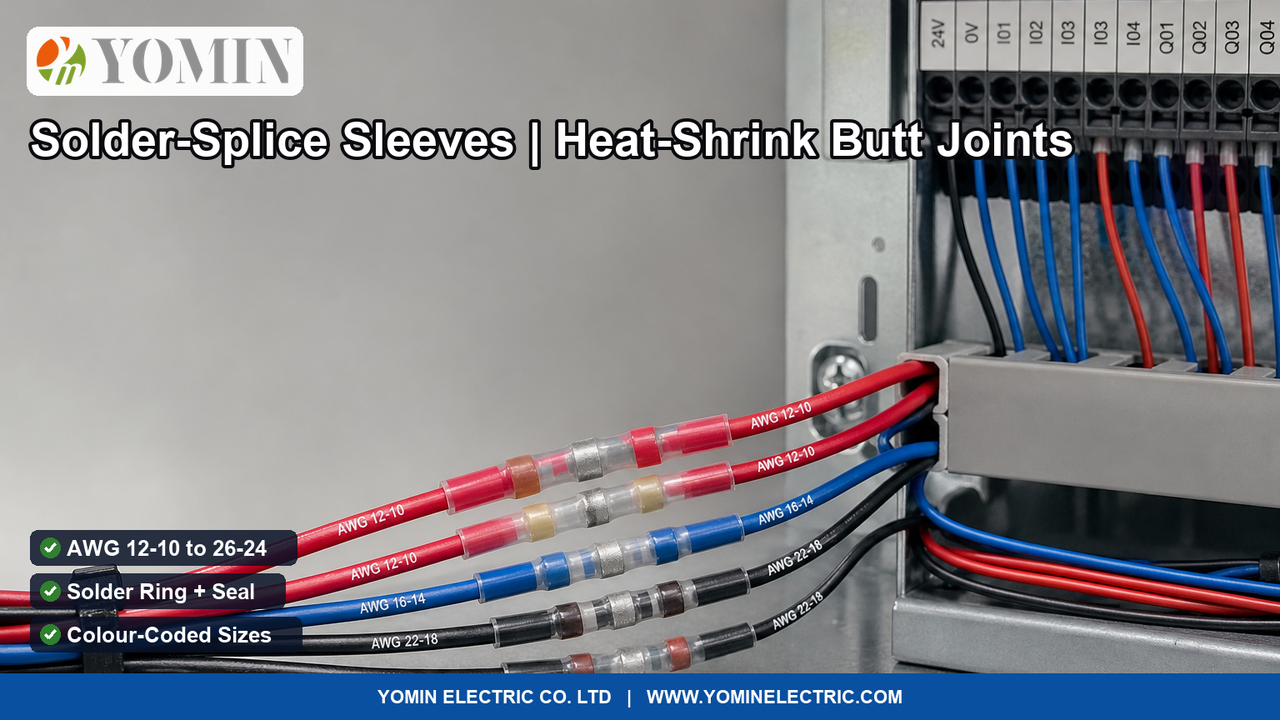

Sleeves are colour-coded to the conductor range they accept, and the range is also printed on the sleeve. The standard coding runs:
| Colour | Conductor range | Typical use |
|---|---|---|
| White | AWG 26–24 | Instrument and signal wiring |
| Red | AWG 22–18 | Control wiring, small sensors |
| Blue | AWG 16–14 | General control and lighting circuits |
| Yellow | AWG 12–10 | Power and motor circuits |
The colour is a guide, not a substitute for the marking. Always confirm the printed range on the sleeve itself, because a joint made with the wrong size either will not fill with solder or will not close around the strands.
When a sealed solder joint beats a plain crimp
A correctly made crimp is an excellent connection and remains the right choice for the majority of terminal work. The solder-splice sleeve wins in specific conditions:
- Wet, humid or washdown areas — the adhesive seal is the point of the product, and a bare crimp with tape over it will not match it.
- Vibration — the solder wicks through the whole strand bundle rather than gripping it at one point, which resists fatigue better than a single crimp barrel.
- Field repair where a crimp tool is not practical — a heat gun is easier to carry up a ladder than a calibrated crimper.
- Buried or inaccessible joints — where the joint will never be inspected again, sealing is worth the extra cost.
Making the joint properly
- Strip to the sleeve's window, not by eye. Most sleeves are transparent in the middle so you can confirm the conductors overlap before you heat them.
- Do not twist the strands together first. Solder needs to wick between them; a tight twist can leave the centre dry.
- Heat evenly from the middle outwards. The solder flows first, then the tubing recovers. Heating one end first traps air and can leave a void.
- Stop when the solder ring has gone and the tubing has fully recovered. Continuing to heat after that damages the adhesive and can char the insulation.
- Let it cool before you bend it. Molten solder is still soft, and moving the joint while it sets is a common cause of a weak connection.
Errors that cost the joint
Three mistakes account for most failures. Using too small a sleeve so the solder cannot bridge the gap. Using too large a sleeve so the tubing shrinks but never grips the conductor. And heating the wrong end first, which pushes adhesive into the middle of the joint instead of leaving it at the ends.
A fourth is worth calling out separately: using a solder-splice sleeve where a specific standard or approval demands a crimped termination. Sealed solder joints are widely accepted, but on some industrial and rail specifications the approved method is a certified crimp. Check the specification before you change the joint method on an existing design.
Supply
YOMIN supplies solder-splice heat-shrink kits and loose sleeves in the standard colour-coded AWG ranges for butt connector and terminal work, under ISO 9001 production with CE marking. Standard lead time is 15–25 working days, extending to 30–45 days for OEM and customised sizes, with a minimum order of 100 units (500 for OEM or customisation). Units carry a two-year warranty against manufacturing defects.
Frequently asked questions
How do I choose the right heat-shrink sleeve size?
Match the sleeve to the conductor range printed on it and colour-coded on the packaging: white AWG 26-24, red AWG 22-18, blue AWG 16-14, yellow AWG 12-10. A sleeve that is too small cannot bridge the gap and one that is too large will not grip the strands.
Is a solder-splice sleeve better than a crimp?
For dry, accessible terminal work a correct crimp is equally good and faster. The sealed solder sleeve wins in wet or washdown areas, under vibration, and for buried joints that will never be inspected again, because it solders and seals in one operation.
Should I twist the wires before heating the sleeve?
No. Twisting can leave the centre of the bundle dry because solder cannot wick between tightly twisted strands. Lay the conductors alongside each other in the sleeve window and let the solder flow through them.
