Heavy-Duty Connections: What Is a Two-Hole Cable Lug?
The Anti-Rotation Electrical Foundation for High-Current Power Infrastructure
Inside modern electrical utility substations, telecommunication DC power plants, industrial motor control centers, and high-vibration generator enclosures carrying currents from 100A to over 1000A, electrical bolted terminations face severe mechanical and thermal stresses.
Terminating heavy-gauge power conductors (such as 4/0 AWG, 250 MCM, 350 MCM, or 500 MCM) using conventional single-hole cable lugs introduces a major mechanical vulnerability: cable stiffness and thermal expansion exert relentless rotational torque on the single mounting bolt.
Over months of operational heating cycles and transformer acoustic vibration, single bolts work loose. Micro-gaps form between the lug palm and the copper busbar, joint resistance spikes, and severe localized overheating triggers explosive arc-flash fires.

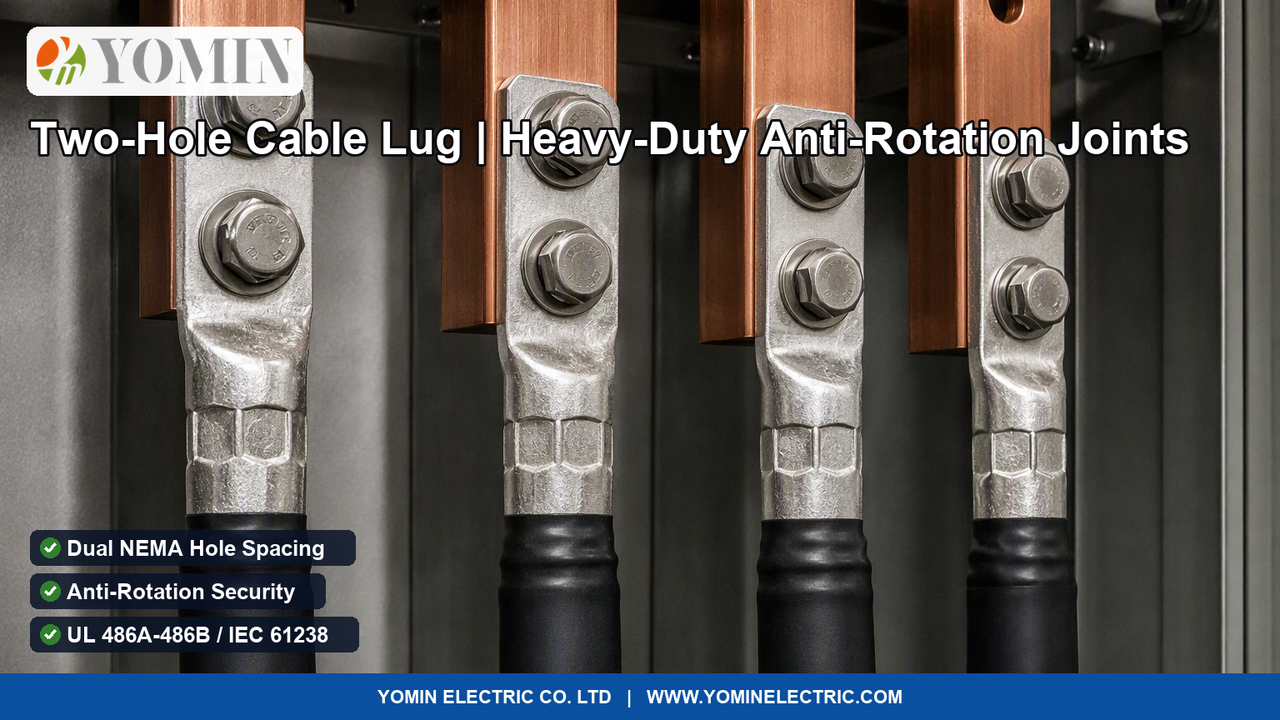

The Heavy-Duty Long-Barrel Two-Hole Copper Compression Lug (Model DT-2 / YM-2HL Series) provides the permanent engineering solution: a rugged seamless electrolytic copper connector featuring two precision NEMA-spaced bolt holes that mechanically lock the terminal against rotation, double the contact surface area, and guarantee vibration-proof electrical continuity.
Engineering Anatomy: Inside a Model DT-2 Long-Barrel Two-Hole Copper Lug
- Seamless Heavy-Wall Electrolytic Copper Tube (Cu-ETP 99.9%): Extruded from pure copper with thick, uniform sidewalls that resist cracking under high-tonnage hydraulic crimping forces, providing maximum electrical conductivity (≥ 99.5% IACS).
- Dual NEMA Standard Spaced Bolt Holes: Features two precision-punched holes with standard 1-inch or 1-3/4-inch center-to-center spacing, accommodating pairs of M8, M10, M12, or 1/2" high-tensile bolts for complete anti-rotation clamping.
- Extended Long-Barrel Crimp Zone: Designed with extended barrel length allowing 2 to 3 consecutive hydraulic hex or indent crimps, maximizing mechanical pull-out tensile strength under severe cable tension.
- Electro-Tin Protective Plating (≥ 8 μm): Heavy surface electro-tinning prevents atmospheric copper oxidation and inhibits galvanic corrosion when bolted directly to aluminum or tin-plated copper busbars.
- Solid-Back Blind-End Palm Design: Solid seamless transition between barrel and palm with zero inspection hole, preventing rain, condensation, and environmental sulfur from entering the stranded cable core in outdoor and telecom installations.
Comparison: Heavy-Duty Two-Hole Lug vs. Standard Single-Hole Lug vs. Mechanical Set-Screw Lug
| Operational Metric | Mechanical Set-Screw Screw Lug | Standard Single-Hole Compression Lug | YOMIN Heavy-Duty Two-Hole Lug (DT-2 Series) |
|---|---|---|---|
| Anti-Rotation Joint Security | Poor: Single mounting bolt allows cable torque to twist lug. | Poor: Prone to rotational loosening under thermal cycles. | 100% Anti-Rotation: Dual NEMA bolts mechanically lock joint forever. |
| Vibration & Seismic Immunity | Low: Screws back out under continuous motor vibration. | Moderate: Single bolt works loose under harmonic vibration. | Immune: Dual bolts with Belleville washers absorb 100% of vibration. |
| Busbar Contact Surface Area | Small: Compact rectangular base with limited contact width. | Standard: Single circular contact zone around mounting bolt. | Double Surface: Extended rectangular palm cuts joint resistance in half. |
| Mechanical Pull-Out Tensile Strength | Moderate: Screw point clamps individual cable strands. | Standard: Short barrel accommodates only 1 hydraulic crimp. | Maximum: Long barrel accommodates 2–3 hydraulic crimps for extreme pull-out. |
| Telecom NEBS / Data Center Compliance | Prohibited on critical DC battery bus infrastructure. | Strictly prohibited on high-current central office DC buses. | Mandatory: Fully meets NEBS and Telcordia telecommunication standards. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Conductor Raw Material & Copper Purity | Seamless heavy-wall electrolytic copper tube (Cu-ETP 99.9% purity; electrical conductivity ≥ 99.5% IACS) |
| Surface Electro-Tin Plating Finish | Bright electro-tin electroplating (≥ 8 μm thickness; passes 96-hour salt spray ASTM B117 anti-corrosion test) |
| Cable Wire Gauge Cross-Section Range | Full wire range: 35 mm² to 630 mm² (Imperial sizing: #6 AWG, 1/0, 2/0, 4/0 AWG, 250 MCM, 350 MCM, up to 750 MCM) |
| Bolt Hole Configuration & NEMA Spacing | Precision-punched dual bolt holes: Standard NEMA spacing (1-inch or 1-3/4-inch center-to-center; bolt sizes M8, M10, M12, 1/2") |
| Barrel Construction & Crimp Accommodations | Long-barrel heavy-duty design (Accommodates 2 to 3 hydraulic compression crimps for maximum tensile pull-out strength) |
| Internal Inspection Window / Solid Palm | Solid-back blind-end palm design to prevent moisture ingress into stranded conductors in outdoor / telecom environments |
| Rated Operating Voltage & Current Limits | Maximum operating voltage: 600V to 35 kV (UL rated for power distribution; rated to conductor ampacity up to 1000A+) |
| International Manufacturing Safety Standards | Fully tested and certified compliant with UL 486A-486B (Wire Connectors), CSA C22.2, and IEC 61238-1 Class A |
Frequently Asked Questions
What is a Two-Hole Cable Lug and why is it preferred over single-hole lugs in heavy-duty switchgear?
A Two-Hole Cable Lug—frequently designated as a dual-hole compression lug, long-barrel 2-hole terminal, or NEMA-spaced battery lug—is a heavy-duty electrical connector fabricated from seamless electrolytic copper tube with an extended flat contact palm featuring two precision-drilled bolt holes aligned along the axis of the conductor. In high-current electrical infrastructure and telecommunication power systems: <ul><li><strong>Anti-Rotation Mechanical Locking:</strong> When heavy, stiff power cables (such as 4/0 AWG, 250 MCM, or 500 MCM) are terminated with a single-bolt lug, any lateral cable movement, thermal expansion, or physical vibration exerts continuous rotational torque on the single bolt. Over time, this twists the lug, works the bolt loose, dramatically increases joint contact resistance, and triggers catastrophic thermal runaway. A two-hole lug secures the connection with two separate bolts, mechanically locking the palm flat against the busbar and completely preventing rotation.</li><li><strong>Doubled Contact Surface Area:</strong> The extended palm provides more than double the metal-to-metal contact surface area against the switchboard busbar, cutting electrical joint resistance in half and lowering operating temperatures under continuous full-load currents.</li></ul>
Why do Telecommunications and Data Center standards (NEBS) mandate Two-Hole Lugs on battery buses?
In telecommunication central offices, mobile cell sites, and hyperscale data centers running -48V DC power plants with multi-megawatt battery banks, Network Equipment-Building System (NEBS) standards strictly prohibit single-hole lugs on DC power buses: <ul><li><strong>High DC Current Reliability:</strong> DC circuits carry massive continuous currents (thousands of amperes) at low voltages. A loose connection causing a mere 5 milliohm contact resistance drop produces immense localized heat ($P = I^2 imes R$) that ignites cable insulation.</li><li><strong>Seismic & Maintenance Immunity:</strong> Technicians pulling adjacent cables through battery racks can accidentally bump single-hole lugs, spinning them into adjacent live buses and causing explosive DC short-circuits. Two-hole lugs provide rigid structural immobility under seismic shocks and maintenance activities.</li></ul>
What is the difference between Long-Barrel and Standard-Barrel Two-Hole Compression Lugs?
Standard-barrel lugs feature a short crimp zone intended for light-duty commercial wiring, accommodating only a single hydraulic crimp die press. <strong>Long-Barrel Two-Hole Lugs (YOMIN DT-2 series)</strong> feature an extended tubular copper barrel that accommodates two or three consecutive die crimps. This dramatically increases mechanical pull-out strength (withstanding over 500 to 1,500 lbs of cable tension without slipping), maximizes electrical contact area between stranded wire strands and copper tube, and provides superior resistance to thermal cycling fatigue.
Heavy-Duty Connections: What Is a Two-Hole Cable Lug?
Designing utility substation switchgear, telecom central office DC battery backup rooms, industrial transformer ground buses, or heavy generator distribution panels requiring certified UL 486A-486B / IEC 61238-1 heavy-duty two-hole copper compression lugs (35mm² to 630mm² / #6 AWG to 750 MCM, NEMA dual bolt spacing)? YOMIN manufactures precision DT-2 series lugs.
