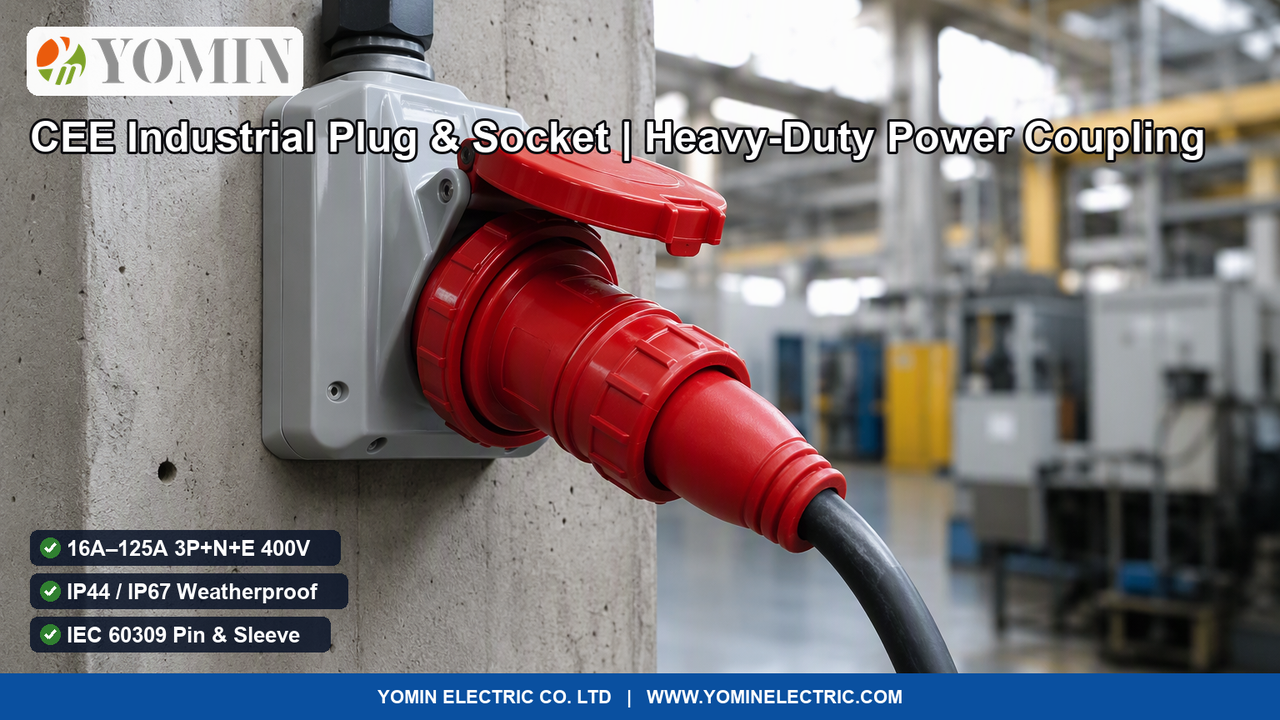

Heavy-Duty Industrial Power Distribution: What Is an Industrial Plug and Socket?
Rugged Power Coupling for Demanding Industrial Environments
On modern industrial construction sites, automated manufacturing floors, marine shipyards, and outdoor entertainment events, electrical equipment operates under punishing conditions. Heavy machinery draws tens or hundreds of amperes, trailing cables are dragged through chemical oils and puddles, and temporary power distribution requires frequent reconnection by non-electrician operators.
The CEE / IEC 60309 industrial plug and socket system provides the international benchmark for rugged, safe, and mistake-proof electrical power delivery.
Key Safety Mechanisms of IEC 60309 Pin-and-Sleeve Connectors
Industrial connectors incorporate four fail-safe engineering layers:
- First-Make, Last-Break Earth Pin: The protective earth (ground) pin is visibly longer and thicker than the active phase pins. When the plug is inserted into the socket, the earth connection establishes first before any energized phase pins touch. During disconnection, the earth connection breaks last, ensuring the metal chassis of connected machinery is never ungrounded while energized.
- Mechanical Clock-Face Keying: As defined by IEC 60309-2, each voltage and frequency combination is assigned a specific keyway angle (the "clock hour"). An earth pin at 6h cannot physically enter a socket keyed for 9h, preventing catastrophic equipment destruction from wrong-voltage connections.
- Spring-Loaded Weatherproof Flap: Surface-mounted and panel-mounted sockets feature a spring-loaded cover with an elastomeric gasket. When no plug is connected, the cover snaps shut to keep out water, dust, and metal shavings. When connected, a raised catch on the cover locks behind a retaining lug on the plug, preventing accidental cable pull-out.
- Heavy-Duty Screw Cable Clamps: The rear connector housing incorporates a self-centering external cable clamp and rubber gland that grips the outer cable jacket tightly, ensuring that mechanical pulling forces on the cable never stress the internal copper electrical screw terminals.
Comparison of Industrial Ingress Protection: IP44 vs. IP67
| Engineering Parameter | IP44 Splashproof Connectors | IP67 / IP68 Watertight Connectors |
|---|---|---|
| Moisture Protection | Protects against water splashing from any direction. | Hermetic: withstands temporary immersion in water under pressure. |
| Dust & Solid Ingress | Protects against solid objects larger than 1.0 mm. | Dust-tight: complete protection against fine dust and sand. |
| Locking Mechanism | Snap-fit spring flap with retaining clip. | Threaded bayonet locking ring with silicone compression gasket. |
| Recommended Environments | Indoor dry factory floors, workshops, machinery control panels. | Outdoor construction sites, food processing washdown areas, shipyards. |
Frequently Asked Questions
What is an industrial plug and socket and why are domestic outlets forbidden in industrial environments?
An industrial plug and socket (commonly known as a CEEform, IEC 60309, or pin-and-sleeve connector) is a heavy-duty electrical connection system engineered specifically to deliver high alternating current (from 16A up to 125A) to factory machinery, construction equipment, and outdoor generators. Domestic domestic wall plugs (like Type A, C, or G) are engineered strictly for dry, gentle residential loads under 13A or 16A; their exposed thin brass blades easily bend, offer zero protection against moisture or industrial cutting oils, and spark dangerously if pulled under load. Industrial plugs feature massive cylindrical solid brass pins, rugged shockproof housings, secure cable compression strain reliefs, and spring-loaded weatherproof covers.
What do the standard colors (Yellow, Blue, Red) signify on industrial plugs and sockets?
Under international standard IEC 60309, the color of an industrial plug or socket housing is not a cosmetic choice; it provides instant visual identification of the system voltage and frequency to prevent catastrophic equipment misconnections: <ul><li><strong>Yellow:</strong> 110V to 130V AC (single-phase, widely used on construction sites and safety power tools).</li><li><strong>Blue:</strong> 220V to 250V AC (single-phase standard utility mains for heavy portable machinery and commercial refrigeration).</li><li><strong>Red:</strong> 380V to 415V AC (three-phase 4-pin or 5-pin power for industrial motors, welding stations, and distribution boards).</li><li><strong>Black:</strong> 500V AC (specialized heavy mining and heavy industrial process machinery).</li></ul>
How does the "Clock Position" (Earth Pin Keyway) prevent connecting incompatible voltages?
To make cross-connection physically impossible, every IEC 60309 socket features an internal guide keyway, and the ground (earth) pin is positioned at a specific angle relative to this keyway, designated by the hour hand on a standard 12-hour clock face. For example, the standard blue single-phase 230V socket has its earth pin at the **6h** (6 o'clock) position, whereas an industrial refrigerated shipping container socket uses the **3h** (3 o'clock) position. Even if a technician attempts to force a 230V plug into a 400V socket, the mismatched keyway and earth pin diameter physically block insertion, protecting personnel and equipment.
Equipping factory production lines, construction distribution boards, or marine workshops with IEC 60309 industrial plugs, sockets, and interlocked switch outlets?
Specify your required current rating (16A, 32A, 63A, or 125A), voltage color code (blue 230V, red 400V, yellow 110V), pin count (3P, 4P, or 5P), and IP44 or IP67 protection tier. YOMIN supplies durable industrial connection systems tested to international safety standards.
