High-Current Electrical Connections: What Is a Flexible Busbar?
Solving Mechanical Stress in High-Current Power Engineering
In modern industrial power distribution, connecting large equipment—such as 2500A air circuit breakers (ACBs), dry-type step-down distribution transformers, and Battery Energy Storage Systems (BESS)—presents severe spatial and mechanical challenges. Traditional rigid copper busbars require complex engineering drafts, specialized hydraulic bending presses, and millimeter-perfect manufacturing tolerances. When bolted into place, rigid bars transmit destructive mechanical vibrations and thermal expansion stresses directly to circuit breaker terminals and fragile porcelain transformer bushings.

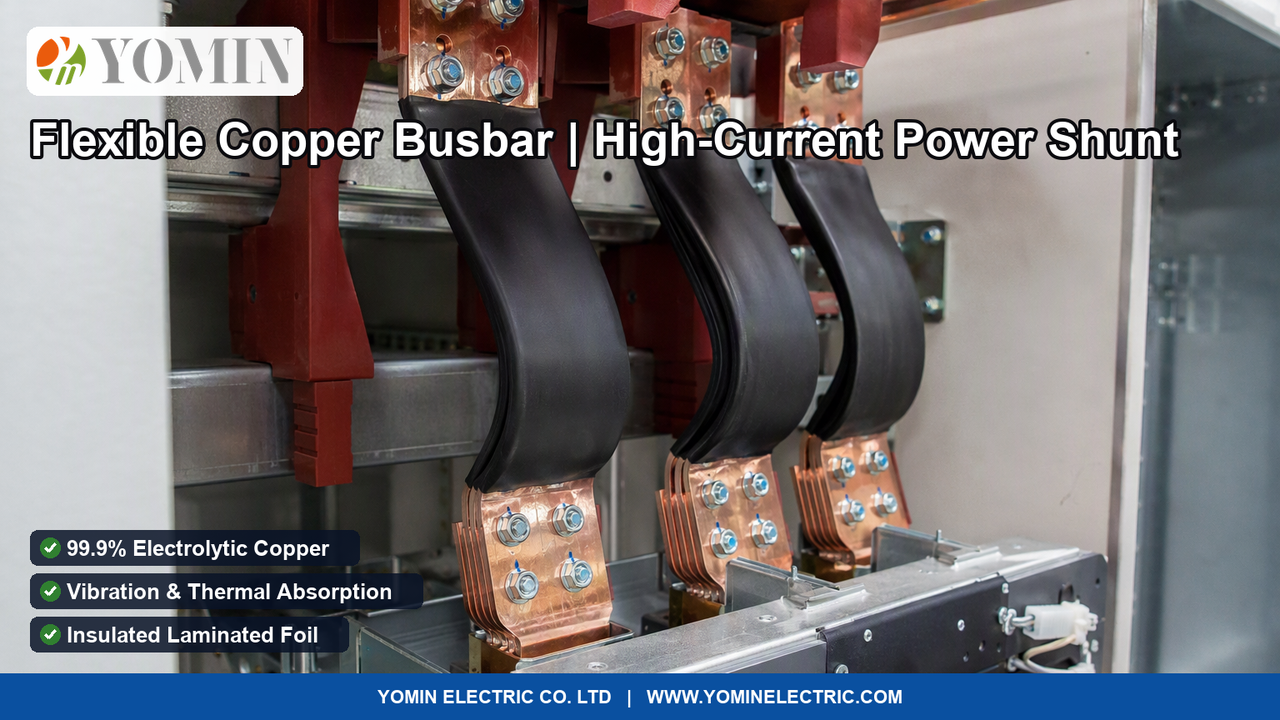

Insulated flexible copper busbars provide an advanced solution, combining the high ampacity of solid electrolytic copper with the routing flexibility of electrical cables.
Laminated Foil Architecture & Molecular Diffusion Bonding
The superior performance of flexible busbars stems from their multi-layer composite construction:
- Sliding Layer Design: Stacking dozens of ultra-thin (0.1mm to 0.3mm) electrolytic copper foils allows the individual sheets to slide freely against one another during deformation. This enables extremely tight manual bends in three dimensions without cracking or distorting the conductor.
- High-Dielectric Extruded Jacket: The stacked copper is encapsulated in a high-grade self-extinguishing PVC or halogen-free silicone insulation jacket. With a dielectric strength exceeding 20kV/mm, conductors can touch neighboring phases or grounded panel frames safely, drastically reducing cabinet volume.
- Diffusion-Welded Connection Palms: At the connection ends, the individual copper foils are molecularly fused under extreme heat and pressure using solid-state diffusion welding (press welding). This creates a homogeneous, solid copper palm with zero air voids, eliminating contact resistance without requiring solder or braze filler.
Flexible Busbars vs. Power Cables vs. Rigid Solid Busbars
| Parameter | Flexible Laminated Busbar | Multi-Core Power Cable | Rigid Solid Copper Bar |
|---|---|---|---|
| Space Requirement | Minimal: ultra-compact rectangular profile with tight bends. | Large: bulky circular cables require wide sweeping bend radiuses. | Moderate: requires straight runs and wide 90° forged bends. |
| Vibration Absorption | High: absorbs mechanical oscillations from motors & transformers. | Moderate: cable flexibility absorbs some motion. | None: rigid structure transfers vibration directly to terminals. |
| Installation Labor | Fast: shapes by hand; zero cable lugs or crimping tools required. | Slow: requires cutting, stripping, crimping heavy lugs, and torqueing. | Slow: requires hydraulic bending machines and precision cutting. |
| Skin Effect & Ampacity | Superior: high surface area dissipates heat rapidly. | Poor: mutual heating requires significant ampacity de-rating. | Standard: solid core suffers skin effect at high AC frequencies. |
Frequently Asked Questions
What is a flexible busbar and how is it manufactured?
A flexible busbar (often called an insulated laminated busbar or flexible copper shunt) is a high-current electrical conductor formed by stacking multiple layers of thin, high-purity electrolytic copper foils (typically 0.1mm to 0.3mm thickness) inside a durable, high-dielectric extruded insulating sleeve. Unlike rigid solid copper bars that require heavy hydraulic bending machines, the individual copper layers inside a flexible busbar slide past each other smoothly when bent, allowing switchgear technicians to twist, bend, and shape complex 3D routing paths easily by hand. The ends are formed into solid contact connection palms through molecular diffusion bonding or precision punching and tin-plating.
Why do switchgear builders prefer flexible busbars over heavy electrical cables?
To carry massive currents (e.g. 1000A or 2000A), electrical engineers traditionally had to parallel multiple heavy single-core cables (e.g. three or four 240mm² or 300mm² cables per phase). These heavy cables require wide bending radiuses, occupy massive cabinet volume, require dozens of costly crimp lugs, and suffer from current de-rating due to mutual proximity heating. A single compact flexible busbar carries equivalent current in a fraction of the cross-sectional space, has a significantly smaller bending radius, connects directly to breaker terminals without cable lugs, and provides superior surface area for convective heat dissipation.
What is the role of flexible busbars in absorbing thermal expansion and mechanical vibration?
Heavy electrical transformers, diesel generators, and large AC induction motors generate continuous mechanical vibrations and intense thermal expansion cycles as operating temperatures swing between no-load and full-load states. If rigid solid copper busbars are bolted directly between a vibrating transformer bushing and fixed switchgear, the rigid metal undergoes severe cyclic fatigue stress, leading to loose contact bolts, arcing, and fractured porcelain insulator bushings. Flexible braided and laminated busbars act as mechanical expansion joints, absorbing vibration and thermal elongation without transmitting mechanical stress to fragile equipment terminals.
Designing high-current power connections for switchboards, transformer bushings, EV battery storage racks, or power electronics?
Specify your continuous current rating (100A to 5000A), required palm hole dimensions, and custom 3D bending geometry. YOMIN manufactures precision insulated laminated flexible copper busbars and braided connectors tested to IEC 61439.
