High Voltage Current Transformer Guide: 10kV–35kV Outdoor CT Sizing
The Role of Medium- and High-Voltage Current Transformers in Substation Engineering
In electrical utility substations and medium-voltage (MV) distribution grids operating at 10kV, 12kV, 24kV, and 35kV, primary transmission lines carry thousands of volts and heavy load currents. Because digital microprocessor relays, PLC controllers, and revenue energy meters operate exclusively on safe low voltages ($< 600 ext{V}$) and nominal secondary currents (5A or 1A), direct electrical connection to the high-voltage busbar is impossible.
The high-voltage instrument current transformer (HV CT) serves two vital functions: it provides galvanic insulation, stepping down line voltages to earth potential while reproducing a scaled, precise replica of the primary current in its secondary winding. The integrity of the entire electrical protection scheme—including instantaneous overcurrent, directional earth fault, and differential busbar protection—relies on the precision and transient withstand capability of the high-voltage current transformer.
Insulation Technology: Vacuum-Cast Cycloaliphatic Epoxy Resin (HCEP)

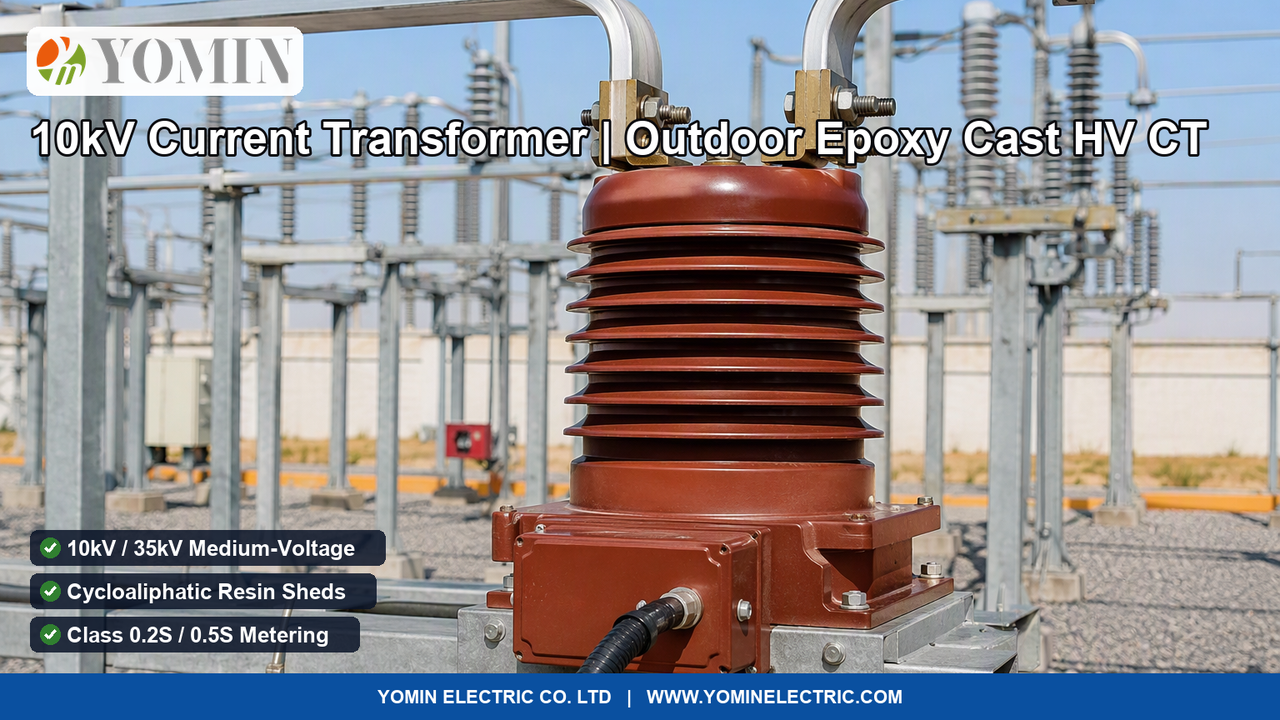

Unlike indoor low-voltage CTs housed in plastic ABS casings, outdoor medium-voltage current transformers are directly exposed to severe environmental stressors: solar ultraviolet (UV) radiation, acid rain, ocean salt fog, industrial chemical smog, and seasonal freeze-thaw cycles. YOMIN outdoor 10kV–35kV current transformers utilize advanced Hydrophobic Cycloaliphatic Epoxy Resin (HCEP) insulation:
- Molded Aerodynamic Creepage Sheds: The exterior housing is molded with deep alternating aerodynamic insulator sheds. These sheds dramatically lengthen the physical surface leakage distance (creepage distance, typically $\geq 31\, ext{mm/kV}$ for Class IV heavy pollution zones). Even when rain or dew wets the transformer, the hydrophobicity of the resin breaks moisture into isolated beads rather than a continuous conductive film, preventing dry-band arcing and destructive flashovers.
- Degassed Vacuum Casting: The high-permeability magnetic cores and high-purity copper windings are encapsulated within an automated vacuum casting chamber under precise pressure and temperature profiles. This zero-void casting technique eliminates internal microscopic air bubbles, guaranteeing partial discharge levels below 5 picocoulombs ($PD < 5 ext{pC}$) at 1.2 times operating voltage, preventing internal tracking and insulation degradation over a 30-year operational lifespan.
- Hermetic Secondary Terminal Compartment: The secondary leads terminate into a heavy-duty cast aluminum junction box at the base of the unit, sealed with an oil-resistant neoprene gasket and threaded conduit entry fittings rated to IP66/IP67 ingress protection to prevent moisture ingress.
Metering vs. Protection Cores: Technical Specifications & Operating Characteristics
Modern high-voltage current transformers incorporate multi-core architectures, containing two to four independent toroidal cores wound inside a single cast housing:
| Specification Parameter | Tariff Revenue Metering Core (Class 0.2S / 0.5S) | Relay Protection Core (Class 5P10 / 5P20) |
|---|---|---|
| Core Magnetic Material | Super-high permeability nanocrystalline or grain-oriented silicon steel. | High-saturation cold-rolled grain-oriented (CRGO) magnetic steel. |
| Operating Range | Extreme linear precision from 1% to 120% of rated current ($I_n$). | Linear measurement extending from 100% up to 20x or 30x rated fault current. |
| Saturation Threshold | Saturates early ($FS \leq 5$); protects sensitive meter inputs. | High saturation ceiling ($ALF \geq 20$); captures full fault waveform. |
| Composite Error Limit | $\pm 0.2\%$ ratio error and $\pm 10$ minutes phase displacement. | $\pm 5\%$ composite error at 20 times rated current ($20 imes I_n$). |
| Connected Equipment | Multi-tariff billing energy meters, power quality analyzers, SCADA transducers. | Overcurrent relays, distance relays, differential protective relays. |
Substation Installation and Secondary Circuit Earthing Safety
Installing high-voltage instrument transformers mandates strict adherence to utility safety standards:
- Single-Point Secondary Earthing: Exactly one terminal of each CT secondary winding (typically S2 or the star-connected neutral point in 3-phase banks) must be solidly bonded to the substation station ground grid. This single earth connection drains capacitive leakage currents, preventing high electrostatic voltages from coupling onto secondary wiring, while avoiding circulating ground loops between multiple earthing points.
- Secondary Burden Matching: Total connected burden (internal resistance of relays, meters, and connecting copper leads) must not exceed the rated volt-ampere (VA) capacity of the CT core (typically 10VA, 15VA, or 30VA). For substations with control rooms located over 100 meters away, specifying a 1A secondary rating instead of 5A reduces lead $I^2R$ burden losses by a factor of 25, allowing longer cable runs without degrading measurement accuracy.
Frequently Asked Questions
What is the difference between a Class 0.2S metering CT core and a standard Class 0.2 CT core?
Standard Class 0.2 CTs are calibrated for accuracy between 20% and 120% of rated primary current ($I_n$). However, in commercial power grids, industrial loads fluctuate widely, frequently operating at low capacity (e.g. at night). A Class 0.2S (Special Accuracy) current transformer guarantees extreme precision down to 1% of rated current (maximum allowable error is only ±0.75% at 1% $I_n$ and ±0.35% at 5% $I_n$, compared to unrated errors on standard CTs). Class 0.2S is mandated by electric utilities for tariff revenue metering and grid interconnection points to prevent unmetered energy losses during low-load periods.
Why do high-voltage current transformers feature separate cores for metering and protective relaying?
Metering cores and protection cores serve opposing engineering objectives. A metering core must be highly accurate at normal load currents, but it must saturate magnetically at 1.5 to 2 times rated current (low Instrument Security Factor, FS <= 5) to protect sensitive digital meters from being destroyed by massive short-circuit currents. Conversely, a protection core (e.g. 5P20) must maintain linear magnetic response and NOT saturate even when fault currents reach 20 times nominal rating (Accuracy Limit Factor, ALF >= 20). This enables protective relays to accurately measure massive prospective short-circuits and trip high-voltage circuit breakers within cycles.
Why must the secondary winding of a high-voltage current transformer never be open-circuited while energized?
In an energized current transformer, the primary current is governed entirely by the external power system load. When the secondary is closed through a meter or relay, the secondary current produces a counter-magnetomotive force ($N_s I_s$) that balances 99% of the primary flux. If the secondary circuit is opened ($I_s = 0$), the entire primary current acts as an unrestrained magnetizing force. The magnetic core saturates violently, inducing extreme peak voltages across the open secondary terminals that routinely exceed 2,000V to 5,000V. This lethal voltage flashover destroys insulation, causes fire, and presents an immediate fatal electrocution hazard to utility personnel.
Engineering medium-voltage utility distribution lines, substation metering bays, or 10kV–35kV metal-clad switchgear?
Specify your primary current rating, accuracy classes (Class 0.2S for revenue metering or 5P20 for protection), and outdoor installation creepage requirements. YOMIN manufactures vacuum-cast cycloaliphatic epoxy resin high-voltage current transformers tested to IEC 61869 standards.
