Industrial Circuit Protection & Sizing: What Is a Moulded Case Circuit Breaker (MCCB)?
The Backbone of Industrial Electrical Distribution
In modern industrial manufacturing plants, commercial high-rise towers, and utility distribution substations, electrical faults carry catastrophic energy. A short circuit occurring directly downstream of a 1000 kVA or 2000 kVA distribution transformer can unleash prospective fault currents exceeding 35,000 to 65,000 amperes in less than three milliseconds.
Small domestic Miniature Circuit Breakers (MCBs) would vaporize instantly under such severe electromagnetic forces. Industrial facilities require robust, arc-quenching circuit protection engineered to withstand and isolate massive fault currents while carrying hundreds of amperes continuously without thermal drift.

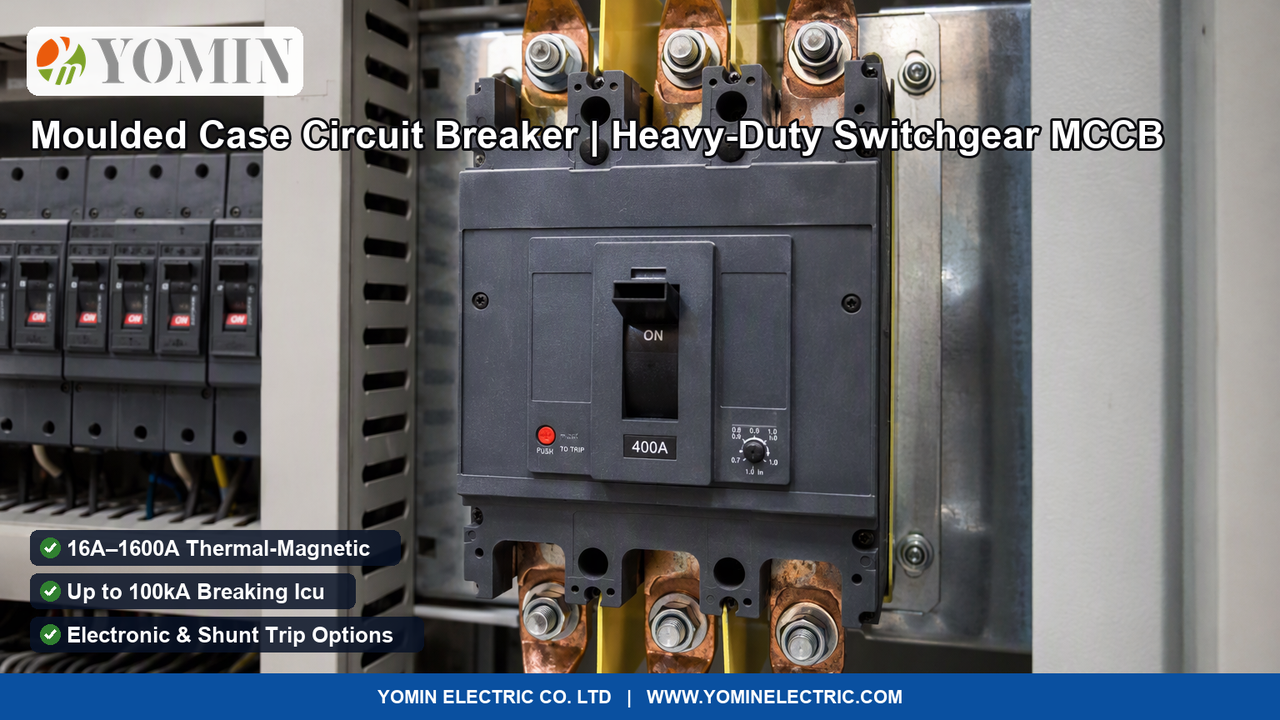

The Moulded Case Circuit Breaker (MCCB) serves as the foundational protective device for incoming mains, motor branch feeders, and heavy commercial distribution switchgear worldwide.
Inside an MCCB: Heavy-Duty Architecture and Current Limiting
Unlike consumer-grade plastic modular breakers, an industrial MCCB is constructed within a heavy-duty thermoset molded case capable of withstanding intense internal mechanical pressures, scorching arc plasma temperatures exceeding 6,000°C, and extreme dielectric stresses:
- Rotary Double-Break Contact Mechanism: Advanced MCCBs employ rotary contact arms that leverage electrodynamic repulsion forces. When a severe short circuit occurs, the opposing magnetic fields generated by the fault current violently blow the contacts apart before the mechanical operating latch has even unlatched. This "current-limiting" action extinguishes the arc in under 4 milliseconds, dramatically reducing the I²t thermal stress let-through to downstream cables.
- De-Ionizing Arc Splitter Chutes: A stack of insulated steel splitter plates positioned adjacent to the contact gap draws the expanding plasma arc inward, stretching it and cooling it across multiple series arcs. The metallic plates absorb heat, recombining ionized gas particles into non-conductive air within milliseconds.
- Adjustable Trip Calibration: Front-accessible dials allow plant electrical engineers to fine-tune the thermal overload threshold (Ir) to match exact cable ampacities, eliminating nuisance trips caused by ambient summer heat while providing tight overload protection.
Comparison: MCB vs. MCCB vs. ACB
| Engineering Feature | MCB (Miniature Circuit Breaker) | MCCB (Moulded Case Circuit Breaker) | ACB (Air Circuit Breaker) |
|---|---|---|---|
| Current Rating Range | 0.5A to 125A | 16A to 1600A | 630A to 6300A |
| Breaking Capacity (Icu) | 6kA to 10kA (rarely 15kA) | 25kA to 100kA | 50kA to 150kA |
| Trip Unit Adjustability | Fixed; non-adjustable curves. | Adjustable thermal & magnetic (or ETU). | Fully programmable digital microprocessor. |
| Mounting Architecture | 35mm DIN-rail snap-on. | Baseplate bolted, plug-in, or withdrawable. | Draw-out cassette chassis with racking handle. |
| Primary Application Tier | Final sub-circuits (lighting/plugs). | Main distribution panels, feeders, motors. | Main incoming substation switchgear. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated Operational Current (In) | 16A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A, 160A, 200A, 250A, 315A, 400A, 500A, 630A, 800A, 1000A, 1250A, 1600A frame sizes |
| Number of Poles | 3-Pole (3P for 3-phase 3-wire industrial motor/feeder circuits) and 4-Pole (4P with 100% or 50% neutral protection for 3-phase 4-wire commercial distribution) |
| Rated Insulation & Operational Voltage | Ui 800V AC / 1000V AC; Ue 400V / 415V / 690V AC (50/60Hz); DC applications up to 1000V DC for battery storage and solar inverters |
| Ultimate Short-Circuit Breaking Capacity (Icu) | Standard Economical (S: 25kA–35kA), High-Breaking (H: 50kA–70kA), and Ultra-High Current Limiting (R: 85kA–100kA at 400V AC) |
| Trip Unit Technologies | Thermal-Magnetic Fixed (TMD), Thermal Adjustable / Magnetic Fixed (ATFM), and Intelligent Microprocessor Electronic Trip Unit (ETU / Micrologic) |
| Protection Adjustments & Settings | Long-Time Overload Pick-up (Ir = 0.7 to 1.0 In), Short-Time Short-Circuit Delay (Isd = 1.5 to 10 Ir), and Instantaneous Short-Circuit (Ii = 10 to 12 In) |
| Installation & Mounting Formats | Fixed front-connection mounting, plug-in base, and withdrawable (draw-out) cradle format with mechanical safety interlocks |
| Applicable International Standards | IEC 60947-2 (Low-voltage switchgear and controlgear - Circuit-breakers), EN 60947-2, GB/T 14048.2, CE certified, RoHS compliant |
Frequently Asked Questions
What is a Moulded Case Circuit Breaker (MCCB) and how does it differ from a standard Miniature Circuit Breaker (MCB)?
A Moulded Case Circuit Breaker (MCCB) is an industrial-grade electrical protection device housed in an injection-molded, arc-resistant thermoset glass-reinforced polyester casing. While both MCBs and MCCBs protect against overloads and short circuits, they operate at fundamentally different tiers: 1. **Current Rating:** MCBs typically top out at 63A or 125A with fixed thermal ratings, whereas MCCBs protect high-current feeders from 16A up to 1600A. 2. **Short-Circuit Interrupting Capacity:** Standard MCBs interrupt 6kA to 10kA fault currents; industrial MCCBs feature massive de-ionizing arc chutes that safely interrupt violent prospective faults from 25kA up to 100kA. 3. **Adjustability:** MCBs have non-adjustable, factory-fixed trip curves (B, C, D curves). MCCBs feature adjustable thermal dials (typically 0.7x to 1.0x In) or digital microprocessor trip units, allowing electrical engineers to dial in precise discrimination and selective coordination across upstream and downstream boards.
What is the difference between thermal-magnetic and electronic trip units in an MCCB?
An MCCB can be equipped with either of two core trip unit technologies: <ul><li><strong>Thermal-Magnetic Trip Unit (TMD):</strong> Relies on mechanical physics. A bimetallic strip bends under resistive heat to trip overloads, and an electromagnetic coil pulls a mechanical plunger during high-current short circuits. It is cost-effective, robust, and impervious to electromagnetic interference (EMI).</li><li><strong>Electronic Trip Unit (ETU):</strong> Utilizes internal current sensors (Rogowski coils or iron-core CTs) paired with a microprocessor logic controller. It measures true RMS current, provides precise digital dial or LCD adjustments for LSI/LSIG curves (Long-time, Short-time delay, Instantaneous, and Ground fault protection), and enables Modbus RS485 communication for smart switchboard telemetry.</li></ul>
What do the ratings Icu and Ics mean when specifying an industrial MCCB?
Under standard IEC 60947-2, short-circuit interrupting ratings are specified by two critical parameters: 1. **Icu (Ultimate Short-Circuit Breaking Capacity):** The absolute maximum short-circuit current that the MCCB can successfully interrupt at rated voltage. Following an Icu test sequence (Open - Time Delay - Close/Open: O-t-CO), the breaker is permitted to suffer internal contact erosion and may require replacement. 2. **Ics (Service Short-Circuit Breaking Capacity):** The fault level that the breaker can clear repeatedly (O-t-CO-t-CO) without losing its ability to carry continuous rated current and provide ongoing overload protection. Premium industrial MCCBs feature an **Ics = 100% Icu** rating, guaranteeing full operational continuity after clearing major switchgear faults.
