Industrial Control Panels & Automation: What Is a Control Transformer?
The Electrical Foundation of Industrial Automation and Machinery Control
Inside modern manufacturing plants, automated assembly lines, and CNC machine shops, industrial control panels house thousands of delicate control components: programmable logic controllers (PLCs), magnetic motor starters, safety relays, and human-machine interfaces (HMIs).
While heavy industrial machinery operates on high primary line voltages—such as 380V, 415V, or 480V AC three-phase—delicate control relays and operator pushbuttons require safe, regulated auxiliary voltages such as 24V AC, 110V AC, or 220V AC.
Attempting to power control circuits directly from the mains or using unrated commercial transformers leads to nuisance contactor chatter, PLC reboots from electrical noise, and hazardous operator shock risks.
The Industrial Control Transformer (Model JBK5 Series) provides the standardized solution: a heavy-duty, dry-type galvanic isolation transformer engineered for high momentary inrush capability, tight voltage regulation, and robust thermal endurance under continuous 24/7 industrial duty.

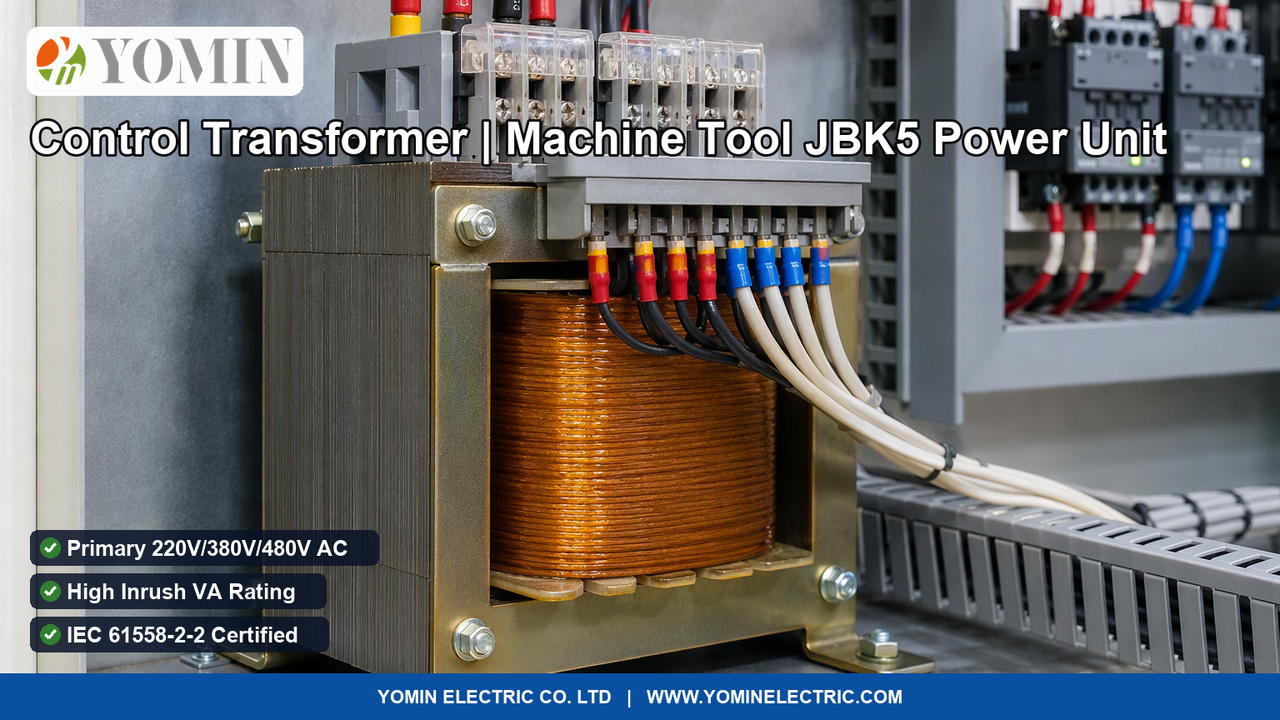

Engineering Anatomy: Inside a Model JBK5 Machine Tool Control Transformer
- High-Permeability Grain-Oriented Silicon Steel Core: Precision-stamped CRGO laminations tightly clamped with anti-vibration brackets to minimize no-load excitation losses and acoustic hum.
- Vacuum Pressure Impregnated (VPI) Copper Windings: Heavy-gauge Class F (155°C) or Class H (180°C) insulated copper magnet wire vacuum-baked with golden electrical varnish to resist industrial moisture, dust, and vibration.
- Exceptionally Low Voltage Regulation Impedance: Designed to supply massive instantaneous inrush currents (up to 8× rated VA) without dropping secondary control voltage below contactor pull-in thresholds.
- Multi-Tap Primary & Secondary Terminal Configurations: Multi-voltage primary taps (e.g., 220V/380V/415V/480V) allow international machine builders to export standardized panels globally without redesigning internal controls.
- Touch-Safe IP20 Terminal Blocks with Integral Fuse Clips: Finger-proof shrouded terminal screws prevent accidental contact by maintenance technicians and accommodate optional midget fuses directly on the transformer frame.
Comparison: Industrial Control Transformer (JBK5) vs. Standard Distribution Transformer vs. Switched-Mode DC Power Supply (SMPS)
| Engineering Feature | Standard Distribution Transformer | YOMIN JBK5 Industrial Control Transformer | Switched-Mode DC Power Supply (SMPS) |
|---|---|---|---|
| Momentary Inrush VA Handling | Poor: High internal impedance causes severe secondary voltage collapse under coil pickup. | Superior: Low regulation impedance handles 300%–800% inrush VA with < 10% voltage drop. | Poor: Trips into overcurrent foldback / hiccup mode under heavy inductive surges. |
| Galvanic Isolation & Noise Rejection | Moderate: Interwinding capacitance passes high-frequency noise spikes. | High: Electrostatic shielding and dielectric isolation block utility harmonics and spikes. | Electronic isolation; sensitive to lightning surges and high-temperature degradation. |
| Output Voltage Type & Applications | Stepped-down AC for general utility power. | Isolated AC (24V, 110V, 220V) for AC contactor coils, solenoids, and AC control loops. | Regulated 24V DC for sensors, PLCs, and digital electronic modules. |
| Thermal Resilience in Sealed Panels | Standard Class B insulation (130°C limit). | Class F/H insulation (155°C/180°C) withstands hot, enclosed industrial control cabinets. | Electrolytic capacitors dry out rapidly in ambient temperatures above 50°C. |
| Machine Safety Standard Compliance | Not rated for industrial machine tools. | Fully compliant with IEC 61558-2-2 and EN 60204-1 (Safety of Machinery). | Complies with low-voltage directive; requires auxiliary filtering for inductive kickback. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Primary Rated Input Voltages | Multi-tap primary options: 220V, 380V, 400V, 415V, 440V, or 480V AC ± 5% at 50/60 Hz |
| Secondary Auxiliary Output Voltages | Standard isolated secondary taps: 24V AC, 36V AC, 110V/120V AC, 220V/230V AC (isolated control and signaling power) |
| Continuous Power Rating Capacity | Modular standard continuous power capacities: 100VA, 160VA, 250VA, 400VA, 500VA, 800VA, 1000VA, 1600VA, up to 5000VA |
| Momentary Inrush VA Sizing Capability | High instantaneous inrush current capacity: delivers 300% to 800% of rated VA during contactor/solenoid pickup without voltage collapse |
| Core Material & Magnetic Treatment | High-permeability, low-loss grain-oriented cold-rolled silicon steel laminations (CRGO) annealed for minimal eddy current losses |
| Coil Winding & Vacuum Impregnation | Precision-wound Class F/H electrolytic copper magnet wire vacuum pressure impregnated (VPI) with high-grade insulating varnish |
| Terminal Block & Fuse Protection Options | Touch-safe finger-proof IP20 screw terminal blocks; optional integrated primary and secondary fuse holders with status indicators |
| Applicable International Quality Standards | Certified to IEC 61558-1, IEC 61558-2-2, EN 60204-1 (electrical equipment of machines), UL 5085, and CE/RoHS |
Frequently Asked Questions
What is an Industrial Control Transformer (CPT) and why can control circuits NOT be powered directly from main supply lines?
An Industrial Control Transformer—frequently abbreviated as a CPT (Control Power Transformer) or machine tool transformer—is a specialized single-phase, dry-type step-down isolation transformer engineered specifically to supply stable, low-voltage power to control circuit devices such as magnetic motor contactor coils, relays, timers, PLCs, solenoids, pilot lights, and emergency stop circuits. Powering control circuits directly from primary three-phase lines (e.g., 380V, 415V, or 480V AC) is forbidden in modern industrial panels for three critical reasons: <ul><li><strong>1. Personnel Safety & Shock Hazard:</strong> Pushbuttons, foot pedals, limit switches, and cabinet indicator lamps are accessible to machine operators. Stepping down voltage to a safe control potential (such as 24V AC or 110V AC) drastically minimizes the risk of fatal electric shock during operation or maintenance.</li><li><strong>2. Galvanic Isolation Against Supply Noise:</strong> Industrial mains supply lines suffer from severe voltage spikes, harmonic distortion, and lightning transients. A control transformer provides complete magnetic galvanic isolation between the primary utility feed and the secondary control loop, blocking common-mode electrical noise that would otherwise reset PLCs or damage sensitive microprocessor controls.</li><li><strong>3. Ground Fault Containment:</strong> In an isolated secondary control loop, a single ground fault does not immediately trip the main upstream feeder breaker, preventing uncontrolled emergency machine shutdowns and allowing controlled diagnostic stopping.</li></ul>
How does the "Inrush VA" capacity of a control transformer differ from its continuous rated VA?
When an electromechanical magnetic contactor or pneumatic solenoid valve energizes, its magnetic core is initially unseated (open air-gap). In this state, the coil exhibits extremely low inductive reactance, drawing a massive momentary <strong>inrush current equal to 6 to 10 times its normal sealed holding current</strong> for the first 30 to 50 milliseconds. Standard lighting or distribution transformers have high internal impedance; under such inrush surges, their output voltage severely collapses, causing contactors to chatter, weld contacts, or fail to pull in completely. YOMIN JBK5 Industrial Control Transformers are custom-engineered with heavy-gauge copper windings and high-saturation silicon steel cores that exhibit exceptionally low internal regulation impedance (≤ 5% to 8%). They deliver up to <strong>800% of their continuous VA rating momentarily while maintaining secondary voltage above 90% of nominal</strong>, ensuring instantaneous, positive contactor pickup every single cycle.
What is the difference between an Autotransformer and an Isolated Industrial Control Transformer?
The distinction lies in physical winding separation and electrical isolation: <ul><li><strong>Autotransformer (Non-Isolated):</strong> Uses a single continuous winding where the secondary voltage is tapped from part of the same coil. While compact and cost-effective for pure voltage stepping (such as variacs or motor starters), it provides ZERO galvanic isolation. A primary line spike or ground fault passes directly through to the secondary side, making it unsafe for operator control circuits.</li><li><strong>Control Transformer (Galvanically Isolated):</strong> Built with two or more physically separate, electrically insulated windings (primary and secondary) linked exclusively through magnetic induction. This provides complete electrical separation between the utility grid and control wiring, complying strictly with machine safety standard EN 60204-1.</li></ul>
Industrial Control Panels & Automation: What Is a Control Transformer?
Manufacturing industrial automation panels, motor control centers (MCC), CNC machine tools, or HVAC control cabinets requiring certified, heavy-duty industrial control transformers (100VA to 5000VA)? YOMIN manufactures precision-engineered JBK5 transformers.
