Insulated Busbar Guide: Epoxy-Coated Copper for Low-Impedance Distribution

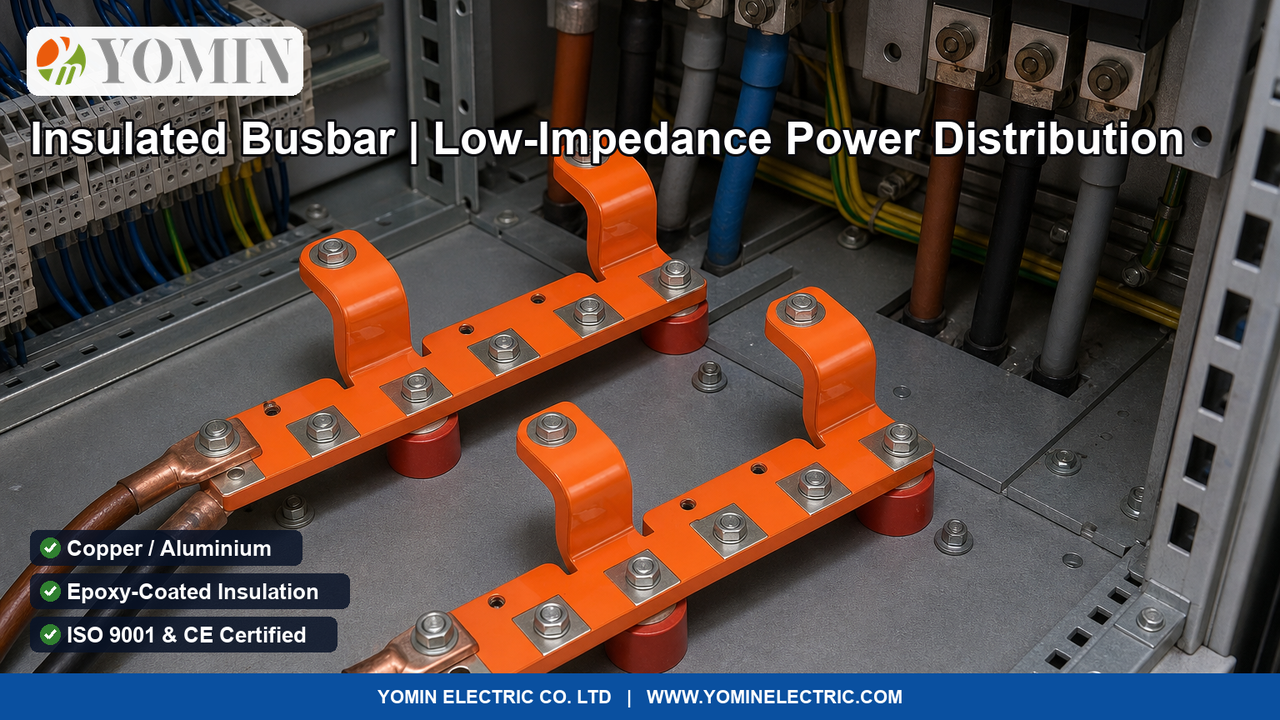

An insulated busbar is a conductor that arrives from the factory already covered in an electrical insulation layer. In most high-current switchgear and battery work that layer is an epoxy powder coating, applied over the copper or aluminium bar and cured hard. The copper underneath is unchanged — you are not buying a different conductor, you are buying the same conductor with the air-gap problem solved for you.

That single difference changes how much space a design needs, how it is inspected, and how it is installed.

What the insulation actually buys you

A bare copper bar has to be kept away from everything else. Clearance and creepage distances are set by the pollution degree and the working voltage, so a bare bar in a crowded enclosure often forces the panel to grow. Once the bar is coated, the exposed conductive surface is gone: the bar can be run closer to other phases, closer to the enclosure wall, and closer to the cable loom.

Three practical consequences:

• Smaller enclosures. Phase-to-phase spacing is set by the insulation system rather than by air, so busbars stack tighter.
• Fewer accidental shorts. A dropped fastener or a wandering tool cannot bridge a coated bar to the enclosure.
• Touch safety during assembly. Only the deliberately exposed contact pads remain live to touch — the coated run is not.

An insulated busbar is not a busbar insulator

These two get mixed up constantly, and specifying the wrong one wastes a purchase order.

Most real installations use both: coated bars for the current path, and insulators to mount them. If you are buying one, be sure which problem you are solving.

Copper or aluminium?

Both are published options on the YOMIN insulated busbar range, and the material field on the product page reads simply Copper / aluminium. The choice is a straightforward trade:

• Copper carries more current per unit of cross-section and is the usual answer where space is tight and the current is high.
• Aluminium is lighter and cheaper per kilogram, which matters on larger bars and on anything that has to be handled or shipped in volume. It needs more cross-section for the same current and more care at the termination.

Whichever you choose, the contact areas are the part that matters. On a coated bar the plating is left exposed only where a connection is actually made, so the joint quality is set by those pads — their plating, their flatness and their hole pattern.

Where an insulated busbar earns its place

The published application field for these bars is low-impedance power distribution in switchgear, panelboards and battery packs. In practice that covers:

• Low-voltage switchgear and panelboards — main and distribution bars where a coated run lets the enclosure shrink.
• Battery packs and energy storage racks — high-current links between modules and to the DC bus, where vibration and tight packaging both matter.
• Power distribution equipment generally — anywhere a rigid bar replaces a heavy cable run.

What to send when you ask for a quote

A busbar is a drawing-driven part. There is no useful catalogue number that describes your bar, because the geometry is the whole product. Send:

1. A drawing or sketch with the bend angles and the overall envelope.
2. The hole pattern — hole diameter, pitch and the position of every pad.
3. The current rating you need to carry, and whether it is continuous or short-time.
4. The material — copper or aluminium — and the plating you want on the contact pads.
5. The insulation requirement: coating type, and whether any area must be left bare.
6. The environment: indoor or outdoor, ambient temperature and anything corrosive.

With those six items a manufacturer can quote properly. Without them, any price you receive is a guess that will be revised.

Manufacturing and quality

The YOMIN busbar range is produced under ISO 9001 and CE certified manufacturing, and bars are made to order rather than stocked in fixed lengths. Standard lead time is 15–25 working days for catalogue work and 30–45 days for OEM and custom production, with a minimum order of 100 units (500 for OEM or custom). Every unit carries a two-year warranty against manufacturing defects.

Because these are custom parts, insist on a first-article sample before volume production. Check the hole positions against your drawing, check that the coating is continuous over the full run, and check that the contact pads are clean and fully plated. Those three checks catch almost every problem that would otherwise surface on the assembly line.
