Mechanical Lug Guide: Dual-Rated Solderless Set-Screw Connectors
Understanding Mechanical Lugs in Modern Switchgear & Distribution Panels
In low-voltage electrical distribution, terminating large-diameter power feeders requires connections that maintain low electrical resistance, withstand severe short-circuit electromagnetic forces, and accommodate conductor thermal cycling over decades of service. Electrical engineers and panel builders traditionally choose between two termination philosophies: hydraulic compression crimp lugs or solderless mechanical lugs.

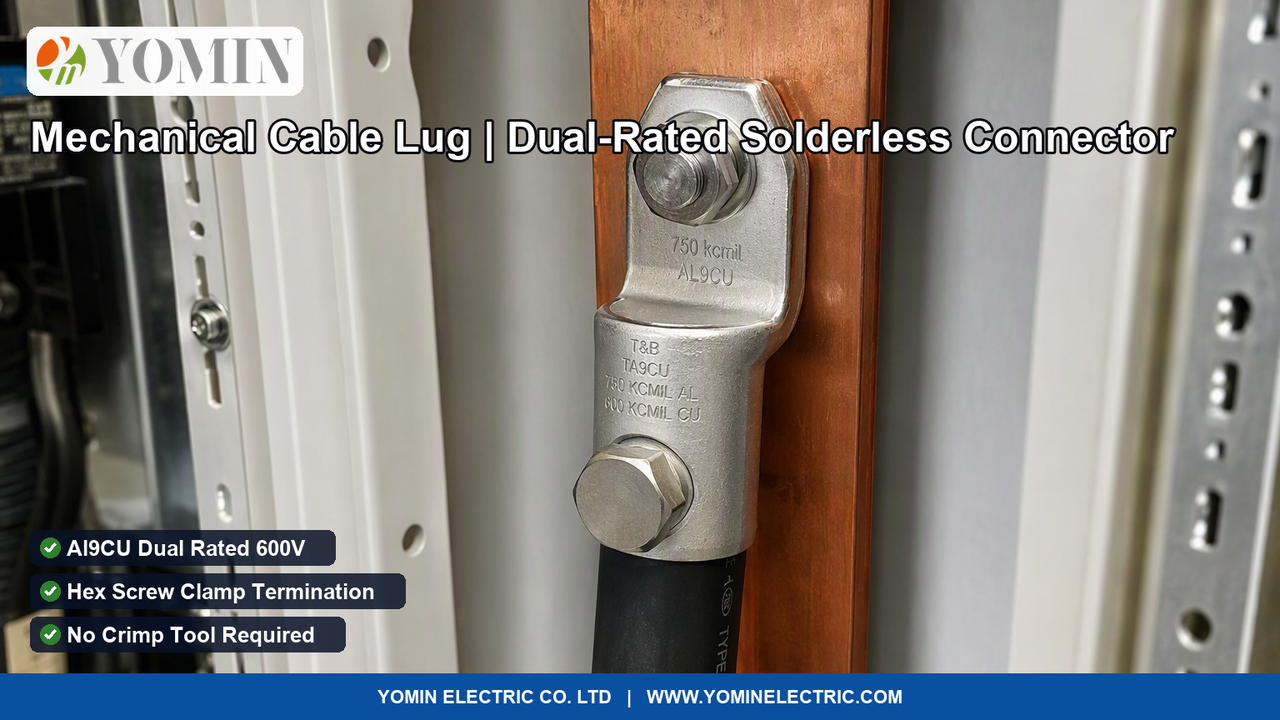

A mechanical lug (also known as a set-screw connector or mechanical connector) uses mechanical clamping pressure exerted by an internal set-screw to compress stranded electrical conductors against a high-conductivity metallic lug body. Unlike crimp connectors, which require dedicated hydraulic press tooling, matched die sets, and skilled operator technique for every wire gauge, mechanical lugs are terminated using standard hex socket or Allen wrenches. This makes them indispensable for main distribution panelboards, motor control centers (MCCs), dry-type transformer terminals, and heavy industrial disconnect switches where field adjustments and maintenance access are essential.
Dual-Rated AL9CU Metallurgy: Terminating Copper and Aluminium Safely
One of the primary engineering advantages of quality mechanical lugs is their dual AL9CU rating. When terminating electrical power cables, engineers frequently encounter the challenge of connecting aluminium feeder conductors to copper switchgear busbars. Terminating bare aluminium directly against copper in the presence of atmospheric humidity triggers intense galvanic corrosion due to the 1.66V electrochemical potential difference between the two metals, leading to rapid oxide buildup, severe joint overheating, and fire risk.
To eliminate this failure mode, YOMIN Model TA-250 mechanical lugs are engineered from premium 6061-T6 structural aluminium alloy, precision-machined and 100% electro-tin plated. The tin barrier serves three vital functions:
- Galvanic Isolation: Electro-tin plating provides an inert metallic buffer with a neutral electrochemical potential against both bare copper and bare aluminium conductors.
- Contact Resistance Optimization: Tin is a ductile metal that deforms plastically under set-screw torque, filling surface micro-asperities and dramatically increasing effective electrical contact area.
- Atmospheric Oxidation Resistance: The non-porous tin coating hermetically seals the underlying aluminium core, preventing the rapid formation of non-conductive aluminium oxide films.
Key Specification Parameters for Engineering Procurement
When selecting and sizing mechanical lugs for project bills of quantities (BOQ), electrical engineers must verify five fundamental parameters:
| Specification Parameter | Engineering Benchmark | Application Consequence of Incorrect Sizing |
|---|---|---|
| Conductor Wire Range | 250 MCM to #6 AWG (120 mm² to 16 mm²) | Undersized lugs pinch or sever strands; oversized lugs fail to achieve compact wire compression. |
| Set-Screw Drive Type | 5/16" Internal Hex Socket or Slotted | Internal hex sockets enable precise calibrated torque application without cam-out damage. |
| Mounting Hole Dimension | 0.41" (10.5 mm) for M10 / 3/8" Fasteners | Must match busbar hole pitch and withstand dynamic short-circuit electrodynamic deflection. |
| Continuous Current Rating | Up to 290A (Aluminium) / 355A (Copper) | Must match 90°C conductor ampacity under local electrical code installation factors. |
| Plating Thickness | Minimum 8 µm Matte Tin Plate | Inadequate plating thickness wears through during cable insertion, exposing raw aluminium. |
Installation Best Practices: Torque Calibration and Anti-Oxidant Compound
The operational reliability of a mechanical lug connection is directly determined by installation workmanship. Unlike crimp joints where the die establishes final geometry, mechanical lugs depend on the tightening torque of the set-screw. Field technicians must adhere to three mandatory engineering rules:
- Conductor Preparation: Strip cable insulation cleanly without nicking or cutting outer conductor strands. When terminating aluminium cables (such as AA-8000 series building wire), lightly wire-brush the exposed strands to break down surface oxide and immediately coat the conductors with an approved synthetic anti-oxidant joint compound containing suspended zinc particles.
- Calibrated Torque Application: Never tighten mechanical lugs by feel or impact driver. Over-tightening pinches and shears the outer cable strands, reducing effective cross-sectional area and causing localized heating. Under-tightening leaves high contact resistance. Use a calibrated torque wrench to achieve manufacturer-rated torque (375 in-lbs / 42.4 Nm for 250 MCM; 275 in-lbs / 31.1 Nm for 2/0 to 4/0 AWG).
- Busbar Bolting: When fastening the lug mounting pad to switchgear busbars, use Grade 8.8 or Grade 5 high-tensile steel fasteners, flat washers on both sides, and a conical Belleville spring washer under the nut to maintain constant contact pressure through thermal cycles.
Frequently Asked Questions
What is the difference between a mechanical lug and a crimp compression lug?
A mechanical lug secures cable strands using a threaded set-screw tightened to a specific torque, requiring only standard hand tools (hex Allen key or wrench) rather than specialized hydraulic crimping dies. Mechanical lugs are reusable, field-adjustable, and typically dual-rated (AL9CU) for both copper and aluminium conductors, making them ideal for heavy feeder terminations in switchgear and panelboards.
Why do mechanical lugs require dual AL9CU certification?
Aluminium and copper have different coefficients of thermal expansion and electrolytic potentials. An AL9CU-rated mechanical lug uses an extruded 6061-T6 aluminium alloy body electro-tin plated to a precise thickness (minimum 8 microns), which prevents galvanic corrosion between dissimilar metals and accommodates thermal expansion without loosening or fatiguing the wire bundle.
Why is tightening torque critical on mechanical screw terminal lugs?
Under-torquing leaves microscopic air gaps between conductor strands, increasing contact resistance and causing catastrophic thermal runaway under load. Over-torquing can sever individual conductor strands or strip internal threads. Always use a calibrated torque wrench to the manufacturer’s specified torque (e.g., 375 in-lbs / 42.4 Nm for 250 MCM conductors) and apply antioxidant joint compound on aluminium conductors.
