Industrial Motor Overload & Phase Failure Protection: What Is a Motor Protection Circuit Breaker?
Shielding Industrial Motors from Costly Catastrophic Burnout
Three-phase induction electric motors are the primary workhorses of modern manufacturing, driving conveyor systems, centrifugal water pumps, refrigeration compressors, industrial fans, and hydraulic power units. However, electric motors are also among the most electrically vulnerable assets in any factory.
Continuous mechanical overloads, bearing friction, frequent high-inertia start cycles, low voltage brownouts, and supply phase loss generate excessive heat within copper stator windings. Because winding insulation life is halved for every 10°C increase above rated operating temperature, an unprotected motor can suffer irreversible insulation breakdown in minutes.
The Motor Protection Circuit Breaker (MPCB) provides dedicated, comprehensive protection tailored specifically to the thermal and electromagnetic physics of industrial electric motors.
Three Pillars of MPCB Motor Protection

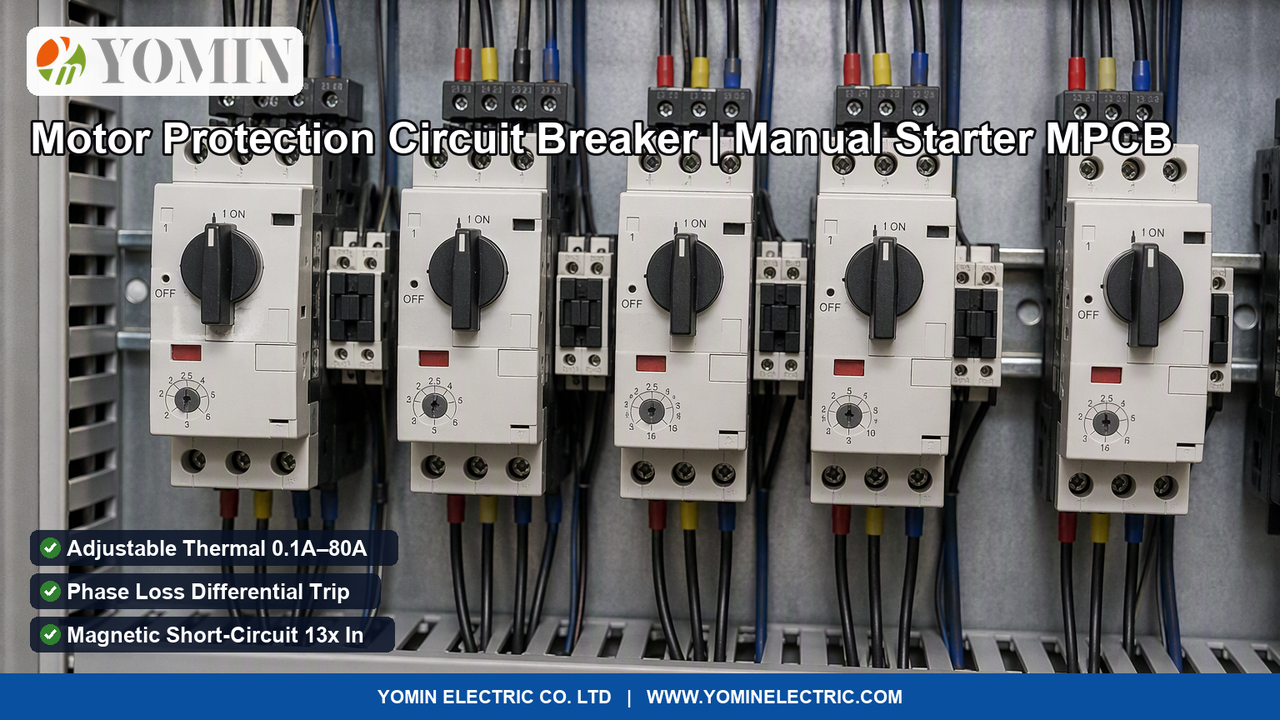

A certified MPCB integrates three complementary protective functions within a single modular 45mm DIN-rail housing:
- Adjustable Thermal Overload Protection: Equipped with an external dial calibrated in full-load amperes (FLA). Unlike fixed breakers, an engineer can adjust the trip setting precisely to the motor's nameplate rating (e.g. 14.5 Amperes). The internal bimetallic strips follow an inverse-time characteristic: they absorb the motor's 6x to 8x starting inrush surge without tripping, but react progressively faster as continuous overload magnitude increases.
- High-Speed Electromagnetic Short-Circuit Clearing: Built-in magnetic solenoids detect instantaneous short circuits (such as a winding-to-ground or phase-to-phase dead short), tripping the contacts open in under 3 milliseconds. With breaking capacities reaching 50kA or 100kA at 400V, the MPCB eliminates the need for upstream backup fuses.
- Differential Phase Loss (Single-Phasing) Sensitivity: An ingenious sliding differential bar mechanism detects when one phase conductor loses voltage. Under single-phasing, the remaining two operational phases carry excessive current that will rapidly overheat the stator. The MPCB detects the unequal deflection of the bimetallic strips and trips within seconds, completely preventing motor burnout.
Comparison: Standard MCB vs. Overload Relay (TOR) vs. MPCB
| Protective Capability | Standard MCB (Miniature Breaker) | Thermal Overload Relay (TOR) | Motor Protection Circuit Breaker (MPCB) |
|---|---|---|---|
| Overload Setting Precision | Fixed: 10A, 16A, 20A step ratings. | Adjustable dial (e.g. 9–14A). | Adjustable dial (precision 0.1A). |
| Short-Circuit Protection | Yes: 6kA–10kA rating. | No: will explode without fuses. | Yes: heavy-duty 50kA–100kA Icu. |
| Phase Failure Sensitivity | No: completely blind to single-phasing. | Yes: differential trip bar. | Yes: integrated differential trip bar. |
| Manual Motor Isolation | Yes: toggle lever. | No: requires upstream isolator. | Yes: rotary handle with padlock lockout. |
| Panel Space Required | 3 modules (54mm) + TOR (45mm). | Mounted under contactor. | Compact single unit (45mm width). |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Thermal Current Setting Range (Ir) | Precision adjustable current dials spanning 0.1A to 80A across multiple frame sizes (0.1–0.16A up to 56–80A) |
| Short-Circuit Magnetic Release (Irm) | Fixed instantaneous electromagnetic trip set to 13 to 15 times the maximum dial setting (13–15 In) for motor inrush ride-through |
| Phase Failure / Unbalance Protection | Differential bimetallic trip mechanism detecting single-phasing and severe phase unbalance within ≤ 3 seconds per IEC 60947-4-1 |
| Ambient Temperature Compensation | Built-in compensation bimetal ensuring precise overload trip calibration across −20°C to +60°C operating ambient temperatures |
| Rated Breaking Capacity (Icu) | High short-circuit interrupting capacity: 10kA to 100kA at 400V/415V AC; Type 2 coordination ready (eliminates upstream backup fuses) |
| Operating Mechanisms | Ergonomic rotary handle or dual START/STOP pushbuttons with trip-free mechanism and padlockable handle in the OFF position |
| Auxiliary Contacts & Accessories | Front/side-mounted instantaneous auxiliary contacts (1NO+1NC or 2NO), fault signaling trip alarm contacts, and undervoltage/shunt trip releases |
| Applicable International Standards | IEC 60947-2, IEC 60947-4-1 (Motor starters - Electromechanical contactors and motor-starters), UL 508, CE certified, RoHS compliant |
Frequently Asked Questions
What is a Motor Protection Circuit Breaker (MPCB) and why can't standard MCBs protect industrial electric motors?
A Motor Protection Circuit Breaker (MPCB), also classified as a manual motor starter, is an electromechanical protection device specially tailored to the operating characteristics of three-phase electric induction motors. Standard Miniature Circuit Breakers (MCBs) cannot adequately protect motors for three reasons: 1. **Motor Inrush Current:** An AC motor draws a starting surge of 6 to 8 times its full-load current (FLA). A standard MCB will either nuisance-trip during startup, or if oversized, fail to protect the motor from mild continuous running overloads. 2. **Non-Adjustable Calibration:** MCBs have fixed factory ratings (e.g. 10A, 16A, 20A). An MPCB features a fine-tuning dial allowing engineers to match the trip threshold to the exact nameplate full-load current of the motor down to 0.1A increments. 3. **Phase Failure Detection:** The leading cause of motor burnout is "single-phasing" (losing one phase due to a blown fuse or loose wire). An MCB is blind to single-phasing; an MPCB incorporates a differential mechanism that trips immediately when one phase drops, saving the motor from winding burnout.
How does the differential mechanism in an MPCB detect phase failure (single-phasing)?
The MPCB contains three calibrated bimetallic strips—one for each electrical phase—interconnected through two sliding differential trip bars. Under normal balanced running conditions, all three bimetallic strips bend equally, shifting both bars together without triggering the release latch. However, if one phase is lost while the motor is running, the current in the remaining two phases spikes by approximately 1.73 times normal load, causing their bimetals to heat and bend severely while the cold bimetal of the dead phase remains straight. This differential displacement causes the two sliding bars to pivot against each other, tripping the mechanical release latch in under 2 to 3 seconds, long before the motor stator windings can overheat and melt their dielectric enamel.
What is the difference between an MPCB and a traditional Contactor + Thermal Overload Relay (TOR) combination?
In conventional motor control, protection requires three separate devices: fuses/MCB (for short circuits) + magnetic contactor (for switching) + thermal overload relay (for overload). An MPCB merges the short-circuit protection and overload protection into a single compact 45mm DIN-rail unit. When paired with a contactor, it provides complete **Type 2 Coordination**, meaning after clearing a heavy short circuit, the MPCB and contactor suffer no damage and can be safely reset immediately without replacing burnt fuse links, minimizing industrial assembly downtime.
