Multifunction Energy Meter Guide: 3-Phase Digital Power Monitoring

The Modern Transition to Digital Multifunction Power Analysis

In commercial buildings, industrial manufacturing plants, data centers, and renewable energy facilities, electrical engineers no longer rely on dedicated, individual analog dial gauges to monitor electrical switchboards. Installing separate analog voltmeters, ammeters, power factor meters, and kWh counters requires extensive panel cutouts, complex manual wiring looms, and external transducer boxes.

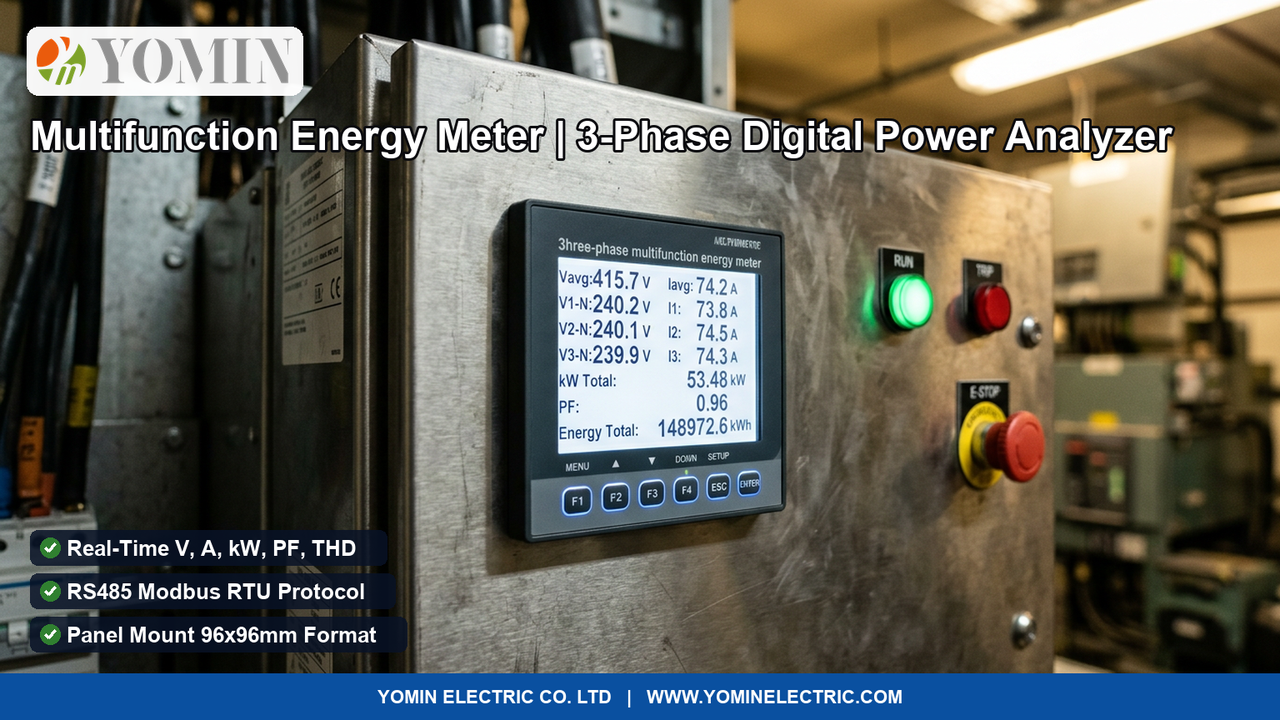

The digital three-phase multifunction energy meter (also known as a multifunction power analyzer or digital panel meter) consolidates all AC measurement, power quality analysis, multi-tariff revenue metering, and digital network telemetry into a single, compact standard 96mm x 96mm DIN panel-mount enclosure. By digitizing voltage and current signals directly from instrument transformers, the multifunction meter serves as the intelligent data acquisition hub for building automation, SCADA networks, and enterprise Energy Management Systems (EMS).

Real-Time Measurement Capabilities: Beyond Basic Kilowatt-Hours

A high-precision multifunction meter continuously samples the three-phase electrical network across four quadrants of power flow:

• Comprehensive Instantaneous Electrical Parameters: True RMS measurement of line-to-neutral voltages ($V_{L1}, V_{L2}, V_{L3}$), line-to-line voltages ($V_{12}, V_{23}, V_{31}$), phase currents ($I_1, I_2, I_3$), and calculated neutral conductor current ($I_N$).
• Four-Quadrant Power Vectors: Computes active real power (kW), reactive magnetizing power (kvar), and apparent power (kVA) on each individual phase and as a three-phase total vector. It accurately tracks four-quadrant energy flow—distinguishing between imported grid power, exported solar generation, inductive motor loads, and capacitive power factor banks.
• Power Factor & System Frequency: Continuous monitoring of true displacement power factor ($\cos\phi$) and line frequency ($Hz$) allows automated power factor correction (APFC) capacitor banks to maintain power factor above statutory penalty limits (typically $PF \geq 0.95$).
• Harmonic Analysis & Power Quality: Built-in digital signal processors (DSP) perform Fast Fourier Transform (FFT) algorithms, calculating Total Harmonic Distortion ($THD_V$ and $THD_I$) as well as individual harmonic amplitudes from the 2nd up to the 31st harmonic order, exposing power pollution caused by VFDs and non-linear power supplies.

Wiring Topologies: 3-Phase 4-Wire vs. 3-Phase 3-Wire Installations

Connecting a multifunction energy meter correctly to the power circuit depends on the electrical distribution scheme:

Centralized Telemetry: RS485 Modbus RTU and IoT Gateway Integration

The greatest operational value of digital multifunction meters lies in their networking capability:

1. Daisy-Chained RS485 Serial Bus: Utilizing a differential two-wire RS485 serial bus running the open Modbus RTU protocol, up to 32 meters can be linked along a single shielded twisted-pair run over distances up to 1,200 meters without requiring external signal repeaters.
2. Programmable Primary CT and PT Ratios: The meter’s microcomputer firmware allows technicians to configure primary transformer ratios directly via front pushbuttons or remotely over Modbus (e.g. setting a 1200/5A CT ratio or 10kV/100V PT ratio), enabling the meter to display actual primary high-voltage engineering units automatically.
3. Automated Energy Management & Carbon Tracking: In modern industrial facilities targeting ISO 50001 certification, energy management software polls networked meters every 15 minutes. Facility managers analyze real-time load profiles, peak demand times, and energy consumption patterns, detecting abnormal equipment loads before catastrophic failure occurs.
