NH Fuse Guide: DIN Blade Fuse Sizing, Classes and Base Selection

The Engineering Foundations of the DIN NH Fuse System

In low-voltage industrial power distribution, the DIN NH fuse system (standardized under DIN 43620 and IEC 60269-2) represents the worldwide benchmark for high-breaking-capacity overcurrent protection. Developed originally in Germany, the NH system—short for Niederspannungs-Hochleistungs-Sicherungen—is engineered specifically for low-voltage feeder networks, commercial main distribution boards, motor control centers (MCC), and utility substation transformer secondary protection.

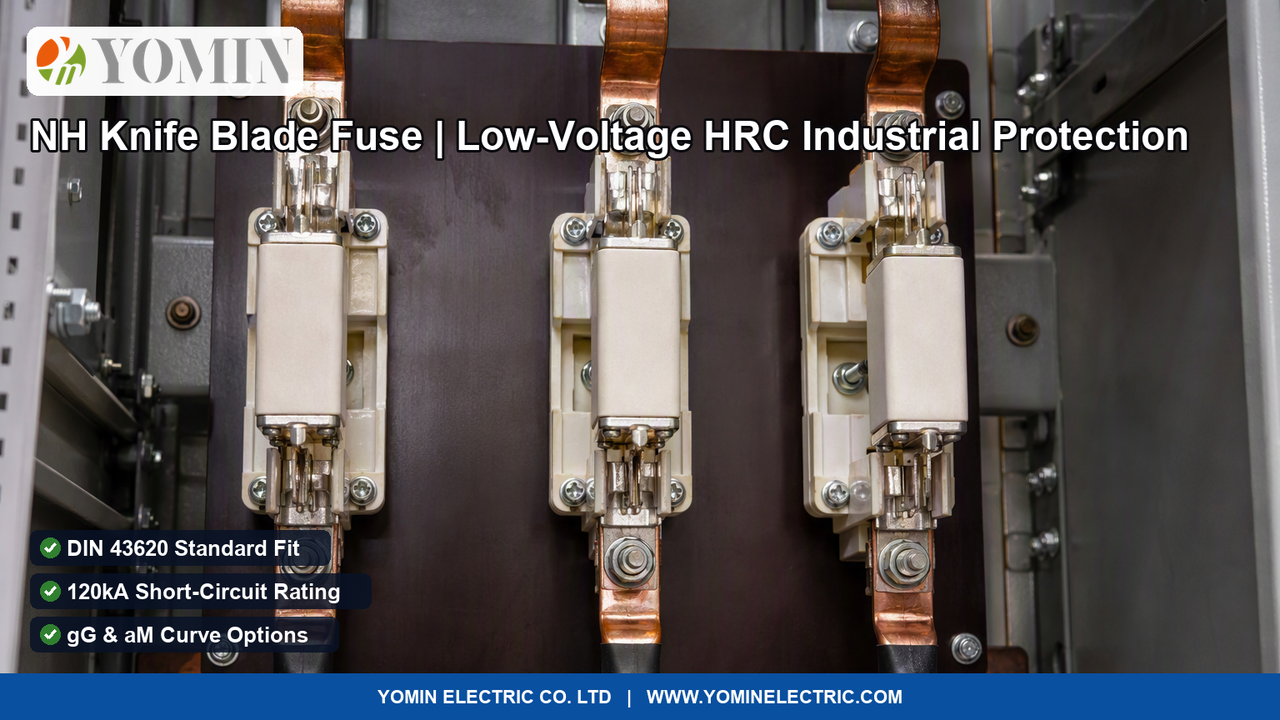

Unlike miniature cylindrical fuses or bolt-down tag fuses, an NH fuse link features solid rectangular steatite ceramic housing and heavy, silver-plated copper knife-blade contacts projecting from top and bottom. These blades slot directly into spring-loaded silver-plated jaw contacts inside open fuse bases or integrated triple-pole fuse switch disconnectors. This blade architecture delivers immense contact clamping pressure, extremely low electrical resistance, and rapid, tool-assisted replacement during plant maintenance.

Size Classifications: Physical Dimensions from NH000 to NH4

The DIN 43620 standard organizes NH fuses into discrete physical size classifications. Each step in size accommodates larger conductor cross-sections, higher continuous thermal currents, and increased internal quartz volume required to absorb greater short-circuit energies ($I^2t$):

Operating Characteristics: gG vs. aM Curve Selection

Specifying the correct time-current characteristic is vital to avoid either nuisance blowing or catastrophic thermal overload:

• Class gG (General Purpose Cable & Line Protection): Full-range breaking capacity. The melting element incorporates precision dual-material geometry: narrow copper bridge necks for instantaneous short-circuit clearance and localized low-temperature eutectic alloy solder beads (M-effect) that melt under small, sustained overcurrents (typically 1.6 to 2.1 times rated current). Class gG fuses protect distribution cables and standard resistive/inductive plant loads.
• Class aM (Accompanied Motor Circuit Protection): Partial-range breaking capacity. Engineered exclusively for motor branch circuits where upstream or downstream thermal overload relays handle normal overloads. Class aM fuses withstand the heavy inrush currents of direct-on-line (DOL) motor starts (up to 7 times nominal current for several seconds) without aging, yet rupture within milliseconds under short-circuit conditions above 4 times $I_n$.

Arc Quenching Physics: Why NH Fuses Excel at 120kA Fault Clearance

The remarkable short-circuit performance of YOMIN NH fuse links—capable of interrupting up to 120,000 Amperes (120kA) at 500V AC—derives from the physics of internal arc extinguishing. The high-purity ceramic body is filled with chemically pure, dry, granulometrically graded quartz sand ($SiO_2$).

When an extreme short-circuit fault occurs, the restricted silver element necks vaporize in less than 2 milliseconds, creating multiple high-voltage electric arcs. The intense heat of the arc ($>3000^\circ ext{C}$) instantly melts the surrounding quartz sand, converting it into a non-conducting glass-like matrix known as fulgurite. This rapid heat extraction and chemical vapor absorption increases arc resistance exponentially, forcing the alternating fault current to zero long before it reaches its natural peak—a phenomenon known as current limitation.
