Overhead ABC Distribution Lines: What Is a Pre-Insulated Sleeve (MJPT)?
The Critical Mid-Span Splicing Solution for Aerial Bundled Conductors (ABC)
Modern electrical utilities worldwide have widely adopted Aerial Bundled Conductors (ABC) for low-voltage overhead power distribution. By twisting insulated phase and neutral conductors into a single weather-sealed bundle, ABC systems virtually eliminate the phase-to-phase short circuits, bushfire hazards, and illegal tapping common on bare wire grids.
However, when utility linemen construct new overhead lines, repair storm-damaged spans, or extend existing feeders, two cables must be spliced together in mid-air. Making a splice mid-span between two utility poles requires joining conductors under immense mechanical pulling tension while ensuring zero water ingress into the aluminium strands.

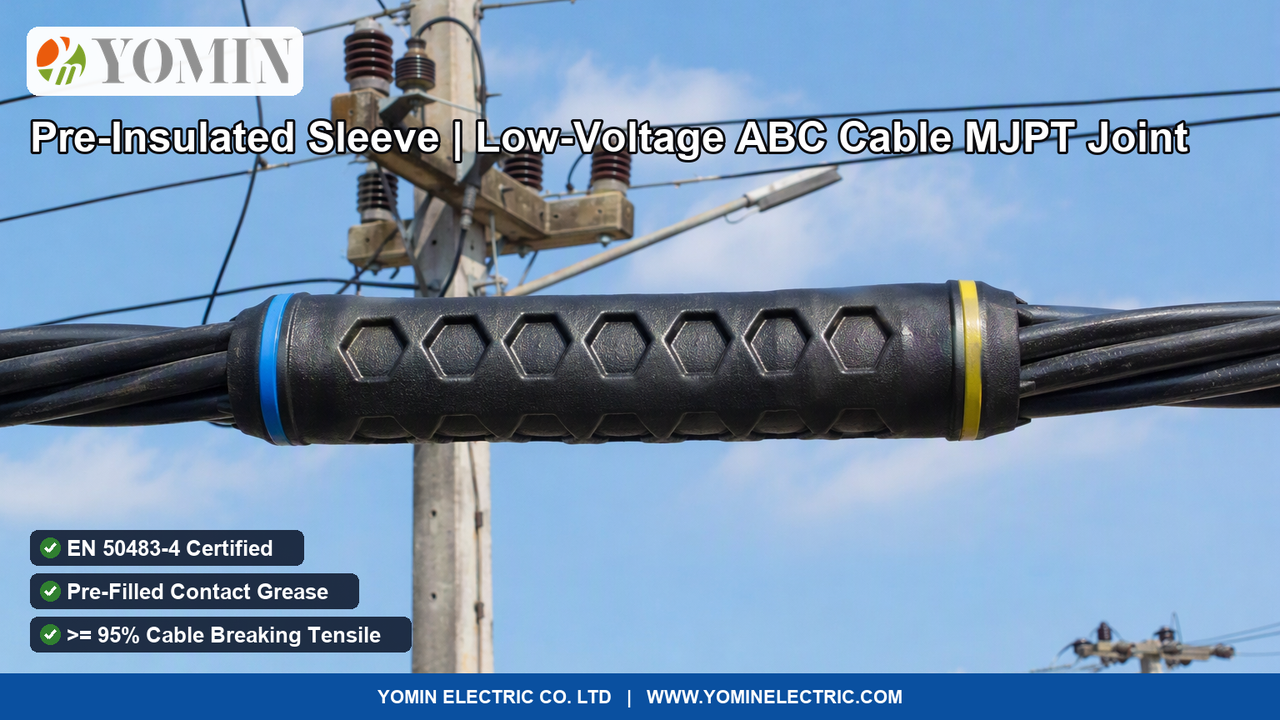

The Pre-Insulated Sleeve (MJPT) is the standardized international hardware engineered to solve this challenge, providing a permanent, watertight, full-tension mechanical splice in a single crimping operation.
Engineering Anatomy: Inside a Certified MJPT Pre-Insulated Sleeve
- High-Conductivity Aluminium Barrel (Al ≥ 99.5%): An extruded, precision-annealed aluminium compression tube provides low electrical resistance and high ductility during hexagonal crimping, matching the thermal expansion characteristics of the aluminium conductors.
- Integrated Center Mechanical Stop: A solid aluminium internal partition ensures that both conductor ends are inserted to the exact required depth, guaranteeing equal crimping engagement and balanced tensile load distribution.
- Factory-Loaded Contact Antioxidant Grease: Prevents galvanic oxidation, breaks down surface oxide films during crimping, and excludes moisture from the wire strands.
- Color-Coded Elastomeric End Seals: Soft rubber end-gaskets hug the cable insulation tightly before and after crimping. The vibrant color coding instantly identifies conductor cross-section (e.g. 16mm² blue, 25mm² orange, 50mm² red, 70mm² yellow, 95mm² white).
- Bonded Weatherproof Polymer Outer Jacket: An extruded layer of black, UV-resistant cross-linked polymer provides durable 6kV dielectric protection without requiring auxiliary heat-shrink tubing.
Comparison: MJPT Pre-Insulated Sleeve vs. Uninsulated Crimp Link + Heat Shrink
| Engineering Feature | Uninsulated Copper/Aluminium Lug + Heat Shrink Tube | YOMIN MJPT Pre-Insulated Compression Sleeve |
|---|---|---|
| Installation Complexity Aloft | Multi-step: Wire brushing, paste application, crimping, open-flame torch heating. | Single-step: Strip cable, insert to stop, crimp with standard die. |
| Open Flame / Gas Torch Hazard | Requires dangerous open-flame gas torch while working on bucket trucks aloft. | 100% Cold Installation — zero flame, zero heat-gun needed aloft. |
| Full Tensile Strength Rating | Often limited; standard lugs slip under heavy line tension (< 50% UTS). | Full Tension: Withstands ≥ 95% of conductor breaking load (UTS). |
| Water Ingress & Corrosion Risk | Heat-shrink adhesive can split or unseal under wind vibration and thermal cycles. | Dual elastomeric sealing rings pass 6kV underwater dielectric test. |
| Oxide Removal Assurance | Dependent on manual lineman wire brushing aloft (frequent human error). | Factory pre-filled with calibrated antioxidant grease. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Applicable Cable Construction & Voltage | Low-voltage Aerial Bundled Conductors (ABC) with cross-linked polyethylene (XLPE) insulation; rated up to 1000V AC (0.6/1kV) |
| Conductor Cross-Section Accommodation | Accommodates phase and neutral conductors from 16 mm², 25 mm², 35 mm², 50 mm², 70 mm², 95 mm², to 150 mm² (equal and transition sizes) |
| Mechanical Tensile Breaking Strength | Full-tension design withstanding ≥ 95% of the conductor's nominal breaking load (UTS) without cable pull-out or barrel slippage |
| Compression Barrel Material & Finish | High-conductivity, high-purity aluminium alloy sleeve (purity ≥ 99.5%) with internal mechanical center stop ring |
| Contact Protection & Oxidation Prevention | Factory pre-filled with high-temperature synthetic antioxidant contact grease to eliminate aluminium oxide film and prevent moisture ingress |
| Insulating Sleeve Material & UV Stability | Heavy-duty weather-resistant and UV-stabilized black thermoplastic elastomeric jacket permanently bonded to the metal barrel |
| Dielectric Withstand Voltage Underwater | Tested and certified to withstand ≥ 6kV AC dielectric voltage underwater for 1 minute per EN 50483-4 and NFC 33-021 standards |
| Color-Coded End-Cap Identification | Elastomeric sealing rings color-coded by conductor cross-section (e.g. blue for 16mm², orange for 25mm², red for 50mm², yellow for 70mm², white for 95mm²) |
Frequently Asked Questions
What is a Pre-Insulated Sleeve (MJPT) and why is it essential for Aerial Bundled Conductor (ABC) networks?
A Pre-Insulated Sleeve—universally designated by utility standards as an MJPT (Manchon de Jonction Pré-Isolé pour réseaux Torsadés)—is a specialized compression joint engineered to splice two low-voltage insulated aerial bundled conductors mid-span under full mechanical tension. In overhead distribution lines, splicing conductors presents two simultaneous engineering challenges: <ul><li><strong>1. Mechanical Tension:</strong> The joint must carry the entire physical dead weight, wind buffeting, and ice loading of the span without pulling apart. Standard crimp links or mechanical connectors pull out or fracture under high tensile loads.</li><li><strong>2. Environmental Insulation:</strong> Because ABC cables are insulated with cross-linked polyethylene (XLPE), any mid-span joint must restore 100% of the cable's electrical insulation and water-tightness. If moisture penetrates the stranded aluminium core, rapid galvanic corrosion occurs, leading to high-resistance hotspots.</li></ul>The MJPT sleeve integrates an aluminium compression barrel, factory-applied antioxidant grease, and a bonded UV-resistant outer insulating sheath into a single factory-tested component. Once crimped with a standard hexagonal die, it permanently restores both the mechanical tensile strength (≥ 95% UTS) and the electrical insulation (≥ 6kV underwater dielectric strength) without requiring heat-shrink tubing, insulating tape, or specialized torches aloft on the utility pole.
How does the factory-applied antioxidant grease prevent aluminium joint failure over decades of service?
Aluminium is highly chemically reactive: the instant it is exposed to atmospheric oxygen, a micro-thin, hard layer of aluminium oxide ($Al_2O_3$) forms over the strands. Aluminium oxide is an electrical insulator with high electrical resistance. If an aluminium cable is crimped without removing this oxide film, the joint will have high contact resistance. Under heavy electrical load, $I^2R$ resistive heating will cause the connection to overheat, burn the insulation, and eventually drop the line. MJPT sleeves are factory-sealed and pre-filled with a specialized synthetic antioxidant grease containing sharp, microscopic suspended particles. When the hexagonal crimping die compresses the sleeve, the aluminium barrel indents into the conductor strands. The grease is forced between the strands under massive pressure, scraping away the brittle oxide layer and creating hundreds of microscopic metal-to-metal contact points. Simultaneously, the grease seals all interstitial voids between strands, permanently barring oxygen and moisture from re-entering the joint.
What is the difference between an MJPT Sleeve (Full Tension) and an MJPB Sleeve (Non-Tension)?
The critical distinction lies in mechanical pulling capability and network application: <ul><li><strong>MJPT (Full Tension Splicing Sleeve):</strong> Engineered for mid-span joints on self-supporting phase conductors and neutral messengers. It features a longer aluminium compression barrel and deeper crimping zones designed to withstand at least 95% of the conductor's ultimate tensile breaking load.</li><li><strong>MJPB (Non-Tension / Service Splicing Sleeve):</strong> Designed for low-tension residential service drop connections or jumper connections inside transformer kiosks. It has a shorter barrel, lower tensile holding capacity (typically 50% UTS), and is used where mechanical pulling forces are negligible.</li></ul>
