Overhead Distribution Lines: What Is a Line Post Insulator?
The Mechanical Backbone for Modern Compact Overhead Distribution Grids
In urban distribution networks, expanding metropolitan corridors, and rural electrification grids worldwide operating from 11kV to 69kV, electrical utilities face an acute challenge: routing high-voltage conductors through increasingly constrained public corridors.
Traditional utility pole construction relies on bulky wooden or galvanized steel crossarms extending 2 to 3 meters horizontally. In modern roadside rights-of-way (ROW), tree-lined avenues, and dense commercial districts, wide crossarms violate municipal building setback distances and require aggressive tree-trimming.
Furthermore, under strong lateral wind gusts, conductors suspended from traditional strings sway violently ("conductor blowout"), leading to catastrophic phase-to-phase flashovers and widespread power outages.

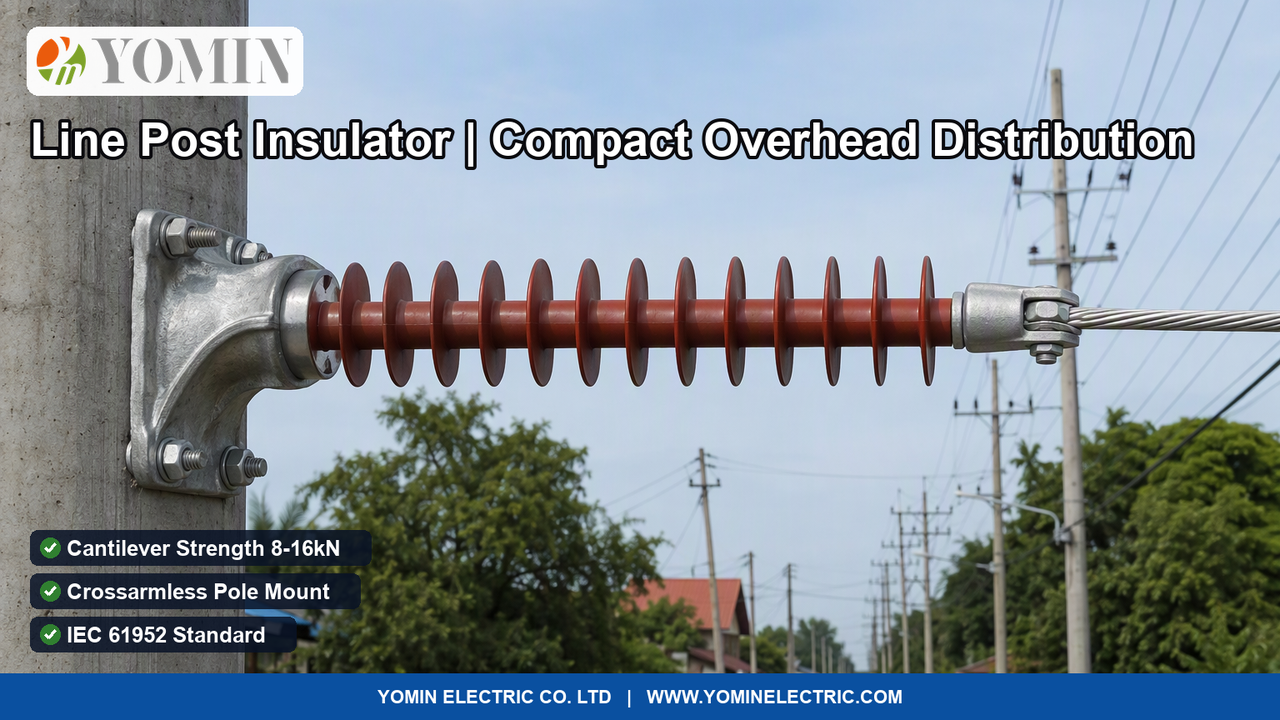

The Composite Polymer Line Post Insulator (Model FPB Series) provides the universal engineering solution: a high-strength, rigid insulating column bolted horizontally or vertically directly onto the utility pole without crossarms. By rigidly immobilizing the conductor, it slashes the required corridor width by up to 50% and eliminates conductor blowout entirely.
Engineering Anatomy: Inside a Model FPB Composite Line Post Insulator
- Heavy-Gauge Solid ECR Fiberglass Core Rod: Pultruded from electrical-grade, boron-free glass fibers bonded with high-performance epoxy resin. Features an enlarged diameter (45mm to 65mm) engineered specifically to withstand extreme cantilever bending moments exceeding 16 kN without mechanical fatigue.
- High-Temperature Vulcanized (HTV) Silicone Rubber Housing: High-pressure injection molded seamlessly over the core rod. Its permanent hydrophobic surface beads water into isolated droplets, preventing the formation of conductive moisture films in heavy coastal salt fog and industrial pollution.
- Curved Ductile Iron Base Flange: Cast from high-strength ductile iron and hot-dip galvanized to ASTM A153. The curved mounting base conforms snugly to round concrete, steel, or wood poles, secured rigidly by heavy through-bolts or steel strapping.
- Universal Top Conductor Clamping Interface: Available with an articulated aluminum clamp-top (trunnion clamp) that captures ACSR or all-aluminum conductors securely without requiring separate ties, or an ANSI standard tie-top neck.
- Computerized Radial Compression Crimping: The base flange and top clamp are attached to the solid fiberglass rod using computerized radial swaging with acoustic emission monitoring, guaranteeing zero slippage under maximum design cantilever loads.
Comparison: Horizontal Composite Line Post Construction vs. Traditional Crossarm Construction
| Engineering Parameter | Traditional Crossarm Pin/Suspension Assembly | YOMIN Horizontal Composite Line Post (FPB Series) |
|---|---|---|
| Right-of-Way (ROW) Width Requirement | Wide: 3 to 5 meters required for crossarm span and conductor wind sway envelope. | Ultra-Compact: Corridor width reduced by 40%–50%; ideal for roadside and urban streets. |
| Conductor Wind Blowout & Phase Spacing | Conductors swing freely under wind gusts; requires wide phase spacing to avoid mid-span clashing. | Rigidly Restrained: Insulator holds conductor firmly; zero wind blowout or phase-to-phase contact. |
| Pole Top Hardware Weight & Complexity | Heavy steel crossarm, braces, through-bolts, and separate insulators (total weight 60–90 kg per pole). | Minimalist: Crossarms and braces completely eliminated; total assembly weight reduced by 70%. |
| Mechanical Cantilever Bending Resilience | Porcelain post units fracture under falling tree branch impacts or mechanical line shocks. | Elastic Fiberglass Core: Bends elastically under shock loads up to 16 kN and rebounds undamaged. |
| Installation Labor & Bucket Truck Time | Lengthy multi-step assembly aloft (assembling crossarms, braces, pins, and tying conductors). | Fast & Ergonomic: Direct bolt-on to pre-drilled pole holes in under 5 minutes per phase. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated System Operating Voltage Class | Engineered for medium-voltage overhead distribution and sub-transmission: 11kV, 24kV, 33kV, 45kV, and 69kV AC |
| Specified Cantilever Failing Load (SCL) | Heavy mechanical bending ratings: 8 kN, 10 kN, 12.5 kN, and 16 kN (certified cantilever bending moment to IEC 61952) |
| Maximum Design Cantilever Load (MDCL) | Continuous operational working load: 4.0 kN to 8.0 kN (designed for 50% of SCL under heavy wind and ice spans) |
| Core Rod Material & Construction | Extra-thick diameter solid electrical-grade boron-free ECR fiberglass epoxy core rod (resists acid hydrolysis and brittle fracture) |
| Insulating Housing & Shed Weather Cover | Seamless one-piece high-temperature vulcanized (HTV) liquid silicone rubber housing (permanent hydrophobicity class HC1/HC2) |
| Base Flange Mounting & Attachment | Hot-dip galvanized ductile iron curved base flange with slotted holes for direct through-bolt pole clamping (wood, steel, or concrete) |
| Conductor Top Hardware Interface | Standard utility line configurations: Horizontal/Vertical Clamp-Top (trunnion clamp for ACSR) or Tie-Top (ANSI C29.18 neck) |
| Pollution & Creepage Distance Rating | Extra-heavy pollution performance (≥ 31 mm/kV specific creepage distance); aerodynamic sheds resist sandstorms and salt fog |
Frequently Asked Questions
What is a Line Post Insulator and where is it installed on overhead distribution grids?
A Line Post Insulator—frequently designated as a post-type distribution insulator, horizontal post insulator, or rigid standoff insulator—is a heavy-duty rigid insulating column designed to physically support and electrically isolate high-voltage phase conductors while subjected primarily to severe <strong>cantilever bending moments</strong>, vertical dead weight, and transverse wind forces. Unlike suspension insulators that hang freely or pin insulators mounted on crossarms, line post insulators are installed in specialized configurations: <ul><li><strong>1. Horizontal Crossarmless Pole Mounting:</strong> Bolted directly to the sides of concrete, steel, or wooden utility poles without requiring horizontal crossarms, braces, or heavy structural steel hardware.</li><li><strong>2. Narrow Rights-of-Way (ROW) Corridors:</strong> Deployed along congested urban streets, highway rights-of-way, and railway corridors where land acquisition is limited and wide crossarms would violate building clearance regulations.</li><li><strong>3. Compact Distribution & Substation Bays:</strong> Installed inside distribution substations as rigid busbar standoffs, disconnect switch supports, and jumper supports where conductor sway must be physically eliminated.</li></ul>
How does a Line Post Insulator differ from a standard Pin Insulator and a Suspension Insulator?
The three major overhead insulator families are engineered for completely different mechanical load profiles: <ul><li><strong>Line Post Insulator (Rigid Cantilever Support):</strong> Built with an extra-thick solid core rod and wide base flange. It is engineered specifically to withstand massive <strong>cantilever bending forces (8kN to 16kN)</strong> when installed horizontally or vertically. It rigidly fixes the conductor position in space, preventing conductor blowout and phase-to-phase mid-span collisions.</li><li><strong>Pin Insulator (Upright Crossarm Tangent):</strong> Mounted upright on a threaded steel spindle pin atop a horizontal crossarm. It only resists moderate vertical loads and small bending forces (5kN to 12.5kN), restricted to lower-tension straight-line runs below 33kV.</li><li><strong>Suspension Insulator (Tension Long-Rod):</strong> Designed exclusively for pure <strong>axial tensile tension (70kN to 160kN)</strong>. It possesses negligible cantilever bending strength and swings freely under crossarms.</li></ul>
Why are composite silicone line post insulators replacing traditional porcelain post insulators?
Traditional porcelain post insulators suffer from heavy weight, vulnerability to vandalism, and catastrophic brittle fracture under thermal shock or impact. Composite silicone line post insulators provide three revolutionary utility advantages: <ul><li><strong>1. Superior Bending Elasticity & Shock Absorption:</strong> The pultruded ECR fiberglass core rod possesses tremendous flexural resilience. When falling tree branches or wind gusts strike the line, the composite post flexes elastically and recovers, whereas porcelain snaps catastrophically.</li><li><strong>2. Permanent Hydrophobic Anti-Flashover Protection:</strong> HTV silicone rubber naturally repels moisture into non-conductive droplets. In coastal salt mist and desert industrial zones, composite post insulators eliminate leakage currents and prevent pollution flashovers without washing.</li><li><strong>3. 70% Weight Reduction & Ergonomic Handling:</strong> A 33kV porcelain line post weighs 18 to 25 kg; the equivalent composite unit weighs just 4 to 6 kg, drastically reducing pole top deadweight and allowing single-lineman bucket truck installation.</li></ul>
Overhead Distribution Lines: What Is a Line Post Insulator?
Designing compact overhead distribution lines, urban roadside rights-of-way, or crossarmless pole rebuilds requiring certified IEC 61952 composite line post insulators (8kN to 16kN cantilever SCL, 11kV to 69kV)? YOMIN manufactures precision-engineered FPB series polymer line post insulators.
