Overhead Line Tapping & Hardware: What Is a Parallel Groove Clamp (PG Clamp)?
The Essential Non-Tension Tapping Fitting for Overhead Power Lines
Along thousands of kilometers of medium-voltage and low-voltage overhead transmission and distribution lines, electrical energy must be branched, tapped, and transferred around insulator assemblies. Unlike dead-end anchor clamps that bear tons of pulling tension, these jumper and equipment tap connections are non-tension connections.
However, an overhead electrical connection must endure decades of severe environmental exposure: harsh solar UV radiation, high-velocity wind vibration, thermal load cycling, and corrosive atmospheric pollutants.

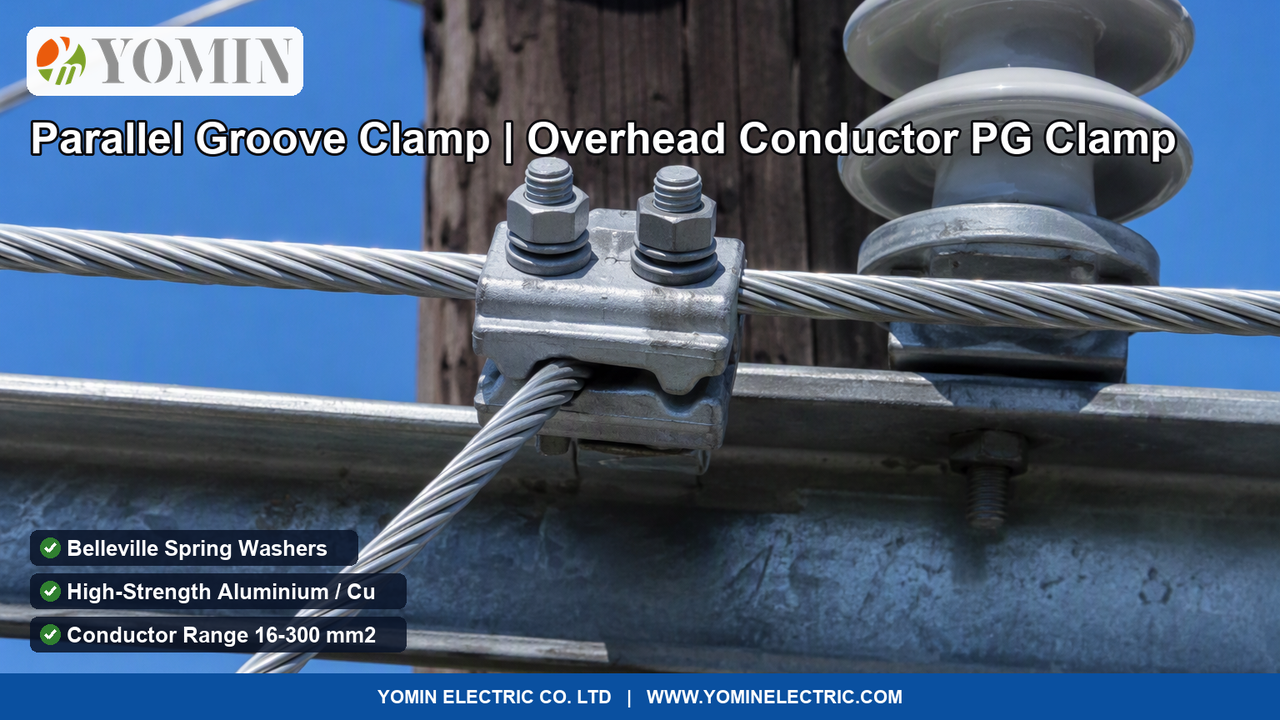

The Parallel Groove Clamp (PG Clamp / Model JB & CAPG Series) is the internationally standardized connector developed to provide a secure, high-conductivity, solderless electrical connection between parallel overhead conductors.
Engineering Anatomy: Inside a Certified Parallel Groove Clamp
- Precision-Grooved Aluminium Body: Molded or extruded from high-purity aluminium alloy (Al ≥ 99.5%). The parallel grooves feature precision radii that cradle the circular stranded conductor, maximizing contact surface area and preventing strand crushing.
- Friction-Welded Bimetallic Lining (CAPG Series): A plate of pure electrolytic copper is friction-welded into the tap groove, preventing lethal galvanic oxidation when tapping copper leads off aluminium main conductors.
- Grade 8.8 High-Tensile Steel Bolts: Hot-dip galvanized clamping bolts (with minimum 85 μm zinc coating) deliver massive clamping torque without thread stripping.
- Belleville Conical Spring Washers: High-resilience spring washers absorb differential thermal expansion between the aluminium clamp body and steel bolts, maintaining constant contact force through seasonal thermal cycles.
- Anti-Corrosive Neutral Contact Grease: Factory-coated grooves filled with neutral petrolatum antioxidant compound containing silica particles to break down aluminium surface oxide films.
Comparison: Parallel Groove Clamp vs. Split-Bolt Connector vs. Wedge Tap Connector
| Engineering Feature | Mechanical Split-Bolt Connector | YOMIN Parallel Groove Clamp (JB / CAPG) | Explosive / Mechanical Wedge Tap Connector |
|---|---|---|---|
| Conductor Alignment & Seating | Perpendicular crossing; pinches wires at single contact point. | Parallel longitudinal grooves; wide contact surface area. | C-shaped member with driven wedge. |
| Aluminium to Copper Tapping | Requires loose bi-metal washers (prone to misalignment). | Integrated friction-welded copper liner (CAPG series). | Requires specialized bimetallic cartridges. |
| Thermal Cycling Compensation | None (Threaded nut loosens over thermal cycles). | Belleville conical spring washers maintain constant pressure. | Spring action of C-body maintains force. |
| Installation & Reusability | Requires wrenches; threads often gall or strip. | Standard socket wrench; fully removable and reusable. | Requires explosive powder gun or specialized tool; single-use. |
| Conductor Damage Risk | High; narrow bolt edges easily sever outer conductor strands. | Zero strand damage; smooth contoured groove radius. | Can shear strands if wedge is overdriven. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Applicable Overhead Conductor Types | Bare all-aluminium conductors (AAC), aluminium conductor steel reinforced (ACSR), aluminium alloy (AAAC), and copper conductors |
| Conductor Cross-Section Accommodation | Accommodates main run and branch tap conductors from 16 mm², 25 mm², 50 mm², 70 mm², 120 mm², up to 300 mm² (equal and transition sizes) |
| Clamp Body Material & Manufacturing | High-strength, corrosion-resistant cast or extruded aluminium alloy (Al ≥ 99.5%) with precision-contoured parallel conductor grooves |
| Bimetallic Transition Technology (CAPG) | Friction-welded or hot-rolled electrolytic copper sheet lining metallurgically bonded to one groove for aluminium-to-copper tap connections |
| Bolt Hardware & Tensile Strength Grade | Hot-dip galvanized high-tensile carbon steel (Grade 8.8) or stainless steel bolts (1, 2, or 3 bolts depending on current rating) |
| Dynamic Thermal Expansion Compensation | Fitted with concave conical Belleville spring washers beneath bolt nuts to maintain constant contact pressure through heating/cooling cycles |
| Electrical Conductivity & Temperature Rise | Contact electrical resistance lower than equivalent length of conductor; joint temperature rise lower than adjacent conductor under load |
| Standards Compliance & Testing | Compliant with IEC 61284, BS 3288, ANSI C119.4 Class A, and EN 50483-4 for overhead line non-tension fittings |
Frequently Asked Questions
What is a Parallel Groove Clamp (PG Clamp) and what specific role does it perform in overhead power lines?
A Parallel Groove Clamp—universally abbreviated by linemen and transmission engineers as a PG Clamp—is a bolt-tightened electrical mechanical connector featuring two parallel longitudinal grooves designed to join two parallel overhead conductors. In electrical power transmission and distribution networks, conductors must frequently be tapped or bridged without severing the main wire: <ul><li><strong>1. Transformer & Equipment Taps:</strong> Branching down-leads from the overhead main feeder line down to pole-mounted distribution transformers, surge arresters, and drop-out fuse cutouts.</li><li><strong>2. Jumper Loops at Strain Poles:</strong> Bridging the electrical circuit around dead-end tension insulator assemblies at corner and terminal poles.</li><li><strong>3. Mid-Span Tap Lines:</strong> Tapping rural branch lines off an existing medium-voltage or low-voltage trunk circuit.</li></ul>Because PG clamps are non-tension connectors (used where the conductors are slack or held by strain insulators), their primary engineering mission is electrical: providing an ultra-low-resistance, permanent electrical bond that withstands outdoor weather without developing high-resistance hotspots.
Why are bimetallic PG clamps (Al-Cu / CAPG) essential when connecting aluminium conductors to copper equipment?
When aluminium and copper metals come into direct physical contact in the presence of outdoor atmospheric moisture (electrolyte), an electrochemical reaction called <strong>galvanic corrosion</strong> occurs. Aluminium is far more electronegative (-1.66V standard potential) than copper (+0.34V). In direct contact, the aluminium rapidly sacrifices itself: it oxidizes, pits, and disintegrates into white powder. Within months, the joint loses electrical contact, overheats, and burns off. Bimetallic PG clamps (Model CAPG series) solve this by metallurgically bonding a pure electrolytic copper liner into one groove using molecular friction welding. The aluminium main conductor rests entirely in the aluminium groove; the copper branch conductor rests entirely in the copper-lined groove. Because the copper-aluminium interface inside the clamp body is molecularly welded without air or moisture gaps, galvanic corrosion is completely prevented.
Why are conical Belleville spring washers mandatory on PG clamp clamping bolts?
During daily operation, overhead distribution lines undergo dramatic temperature swings: solar radiation and heavy peak electrical loads heat conductors up to 75°C–90°C, followed by cooling down to ambient night temperatures. Aluminium expands at approximately twice the rate of the steel clamping bolts ($23 imes 10^{-6}/ ext{K}$ for aluminium vs $12 imes 10^{-6}/ ext{K}$ for steel). Under heat, the expanding aluminium would deform plastically against a rigid bolt. When the line cools, the conductor shrinks, leaving the connection loose. A loose connection has high contact resistance, leading to rapid thermal runaway and joint burnout. Belleville spring washers act as mechanical energy reservoirs: they flex elastically to absorb the thermal expansion during peak load and push back continuously during cooling, maintaining constant, calibrated clamping pressure over decades of service.
