Photovoltaic Array Lightning Protection: What Is a Solar DC SPD?
Shielding Photovoltaic Infrastructure from High-Energy Lightning Transients
Solar photovoltaic installations represent expansive metallic collector networks installed across open fields, industrial warehouse roofs, and desert terrains. These extensive conductor loops act as massive antennas, capturing electromagnetic fields generated by lightning strikes occurring miles away.
Direct lightning strikes and indirect lightning electromagnetic pulses (LEMP) induce massive transient voltage spikes exceeding 15,000 to 40,000 volts along DC string wiring. Because sensitive maximum power point tracking (MPPT) semiconductor circuits inside modern solar inverters have an impulse withstand rating (Uw) of only 4,000 to 6,000 volts, an unprotected solar array will suffer destroyed inverter bridges and catastrophic downtime.

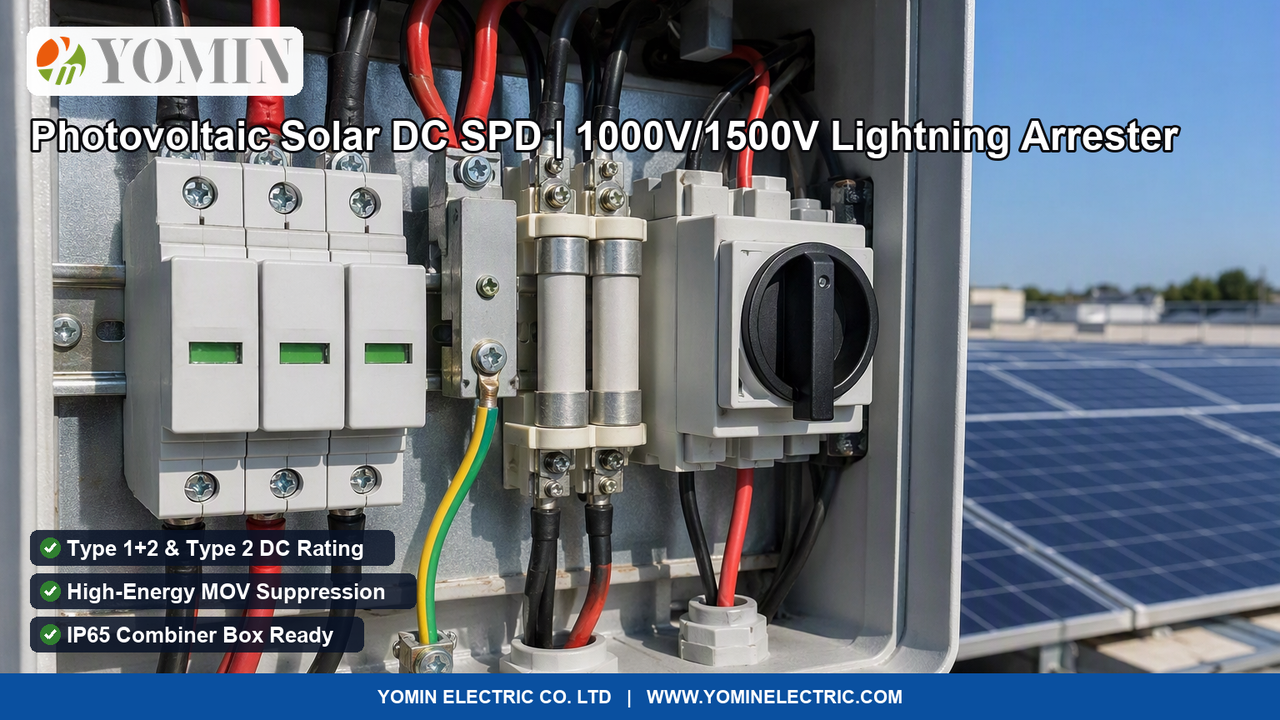

The Solar DC Surge Protective Device (SPD) is the essential barrier that clamps incoming lightning surges within nanoseconds, shunting thousands of amperes safely to earth before transient voltages reach inverter electronics.
Physical Realities of DC Arcing vs. AC Suppression
Photovoltaic surge protection requires fundamentally different engineering compared to building AC electrical panels:
| Engineering Parameter | Standard AC Surge Protector | Dedicated Solar DC Photovoltaic SPD |
|---|---|---|
| Operating Voltage Nature | Sinusoidal AC crossing zero 100/120 times/sec. | Continuous, relentless DC voltage (0V to 1500V DC). |
| Arc Extinguishment Physics | Self-extinguishes as AC voltage passes through zero. | Requires mechanical rotary barriers & arc splitter chambers. |
| Internal Varistor Topology | Single or dual MOV branches (Line to Neutral/PE). | 3-Branch Y-topology (DC+, DC-, PE) with thermal fuse disconnects. |
| End-of-Life Failure Mode | Trips upstream AC breaker safely. | High risk of continuous DC fire without certified DC disconnectors. |
| Applicable Metrology Standard | IEC 61643-11 / EN 61643-11 | IEC 61643-31 / EN 50539-11 (Photovoltaic Specific). |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Rated Maximum Continuous Operating Voltage (Ucpv) | 600V DC, 1000V DC, and 1500V DC configurations engineered specifically for high-voltage PV strings |
| SPD Classification & Test Class | Type 1+2 / Class I+II (combined direct lightning impulse & induced surge) and Type 2 / Class II (induced transient clamping) |
| Lightning Impulse Current (Iimp 10/350 μs) | 12.5 kA per pole (Type 1+2) simulating direct physical lightning strikes on exposed solar array racking structures |
| Nominal & Maximum Discharge Current | In 20 kA (8/20 μs); Imax 40 kA to 80 kA (8/20 μs) for severe indirect lightning electromagnetic pulses (LEMP) |
| Voltage Protection Level (Up) | ≤ 3.2 kV at 1000V DC; ≤ 4.5 kV at 1500V DC (strictly coordinated below solar inverter impulse withstand ratings) |
| Internal Circuit Topology | U-configuration (Y-topology) with three high-energy metal oxide varistors (MOV) and thermal disconnectors preventing single-MOV burnout |
| Thermal Disconnector & Status Indication | Patented mechanical thermal fuse disconnect with optical green/red visual flag window and optional 3-pin remote telemetry contact |
| Applicable International Standards | EN 50539-11 (Surge protective devices for photovoltaic installations), IEC 61643-31, UL 1449 4th Edition, CE certified, TUV Rheinland tested |
Frequently Asked Questions
What is a Solar DC SPD and why can't standard AC surge protectors be used on photovoltaic arrays?
A Solar DC Surge Protective Device (SPD) is a specialized transient voltage suppressor engineered to protect direct-current photovoltaic circuits from lightning strikes and grid switching overvoltages. **Standard AC surge protectors must never be installed on solar DC circuits** for a critical physical reason: Alternating current naturally crosses zero voltage 100 or 120 times every second, allowing internal AC spark gaps and thermal disconnectors to extinguish power arcs easily. Direct current from solar panels maintains a relentless, continuous voltage without zero crossings. If an AC surge protector fails under a lightning surge on a 1000V DC array, the resulting DC arc will fail to extinguish, generating plasma heat exceeding 3,000°C that rapidly incinerates combiner boxes and causes catastrophic fires. Photovoltaic DC SPDs feature specialized arc-extinguishing chambers, rotational thermal disconnectors, and Y-shaped MOV arrays designed to safely quench high-voltage DC arcs.
What is the difference between Type 1+2 and Type 2 DC SPDs in solar farm installations?
The choice between Type 1+2 and Type 2 DC SPDs depends on the facility's lightning risk assessment per IEC 62305 and IEC 61643-32: <ul><li><strong>Type 1+2 DC SPD (Class I+II):</strong> Tested with both a $10/350\,\mu\text{s}$ direct lightning current waveform (Iimp) and an $8/20\,\mu\text{s}$ induced waveform. Mandatory for rooftop solar arrays equipped with external lightning protection rods (LPS) where the separation distance 's' cannot be maintained, as well as ground-mount solar farms in open terrain prone to direct lightning strikes.</li><li><strong>Type 2 DC SPD (Class II):</strong> Tested with an $8/20\,\mu\text{s}$ current waveform (In/Imax) to suppress indirect, induced overvoltages caused by cloud-to-cloud lightning flashes or nearby ground strikes. Standard installation choice inside string inverters and secondary array combiner boxes.</li></ul>
What is the Y-shaped (U-configuration) internal circuit topology in a solar DC SPD?
In early solar installations, surge arresters were wired directly line-to-earth (+ to PE and - to PE). If insulation degraded on the positive DC line, a double earth fault would drive the entire string voltage through a single varistor, causing catastrophic thermal runaway. Modern certified solar DC SPDs use a **Y-configuration** containing three varistor branches: one connected from DC+ to a common floating point, one from DC- to the common point, and a third from the common point to protective earth (PE). This balanced delta ensures that even if a continuous insulation fault occurs on one solar cable, the remaining varistors continue dividing the string voltage safely, completely preventing thermal burnout.
Photovoltaic Array Lightning Protection: What Is a Solar DC SPD?
Specifying 1000V or 1500V DC surge protective devices for utility-scale solar farms, commercial rooftop combiner boxes, or central solar inverter stations? YOMIN manufactures TUV and CE certified photovoltaic SPDs engineered to IEC 61643-31 and EN 50539-11.
