Power Distribution Block Guide: Sizing, DIN Rail Mounting and Feeder Splitting

In electrical control panel design and switchgear manufacturing, splitting a heavy incoming power feeder into multiple branch circuits has historically been one of the most failure-prone points of an installation. Traditional daisy-chaining across standard terminal blocks introduces cumulative resistance, while improvised splitters waste enclosure space and fail thermal inspections under load.

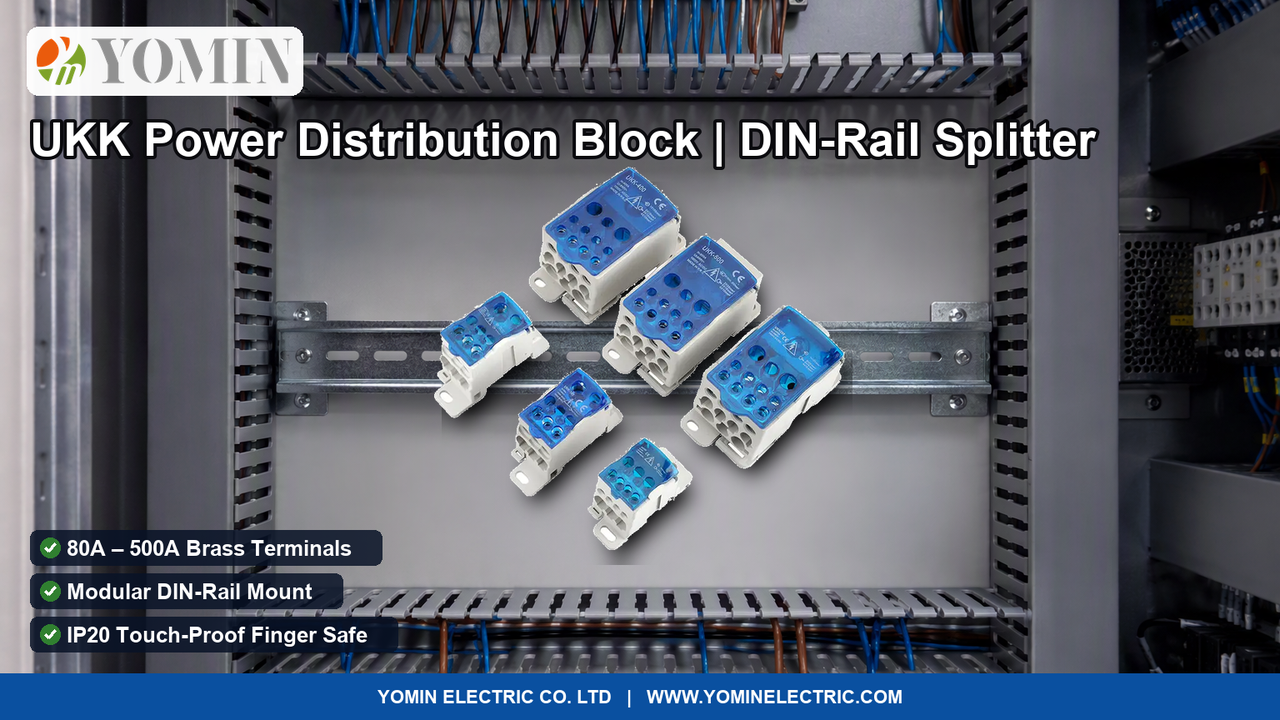

A modular DIN rail power distribution block — often referred to as a unipolar splitter box — solves this by providing a solid brass or tinned copper busbar core inside an insulated, finger-safe housing. Understanding how to properly specify conductor cross-sections, thermal ratings, and short-circuit withstand ensures the distribution block operates reliably without hotspot formation.

Feeder splitting: why unipolar blocks replace daisy-chaining

When feeding multiple miniature circuit breakers (MCBs), contactors, or motor starters from a single main supply, looping conductors between terminals creates severe engineering vulnerabilities:

• Thermal concentration: The first terminal in a daisy chain carries the aggregate current of all downstream loads, creating an asymmetric thermal gradient across the rail.
• Vibration loosening: Standard screw terminals subjected to cyclic thermal expansion and mechanical vibration loosen over time, leading to micro-arcing.
• Maintenance downtime: Servicing or replacing one branch device requires unthreading conductors, interrupting power to adjacent circuits.

A unipolar power distribution block accepts a single large-gauge incoming feeder cable and branches it internally across a one-piece machined conductive block into 4, 6, 8, or 10 secondary terminals. Each branch circuit is mechanically and electrically independent.

Current rating and conductor cross-sections

Power distribution blocks are rated by their nominal continuous current ($I_n$) and the mechanical wire gauge capacity of both the primary (line) and secondary (load) ports:

When selecting wire sizes, ensure the conductor insulation type matches the temperature rating of the block. Blocks tested to 75°C or 90°C require conductor ampacity calculations based on the corresponding column of IEC 60364-5-52 or NEC Table 310.16.

Mechanical construction: brass vs. copper and plating standards

The core conductive element of a distribution block must deliver low electrical resistance while resisting mechanical deformation under screw torque:

• Machined brass: High-grade brass (HPb59-1 / CuZn39Pb2) provides excellent mechanical machinability, rigid thread engagement, and corrosion resistance. It is the industrial standard for modular unipolar blocks up to 250 A.
• Electrolytic copper: For ratings above 250 A, high-conductivity electrolytic copper (ETP copper, 99.9% Cu) minimizes internal $I^2R$ resistive heating under heavy continuous loading.
• Nickel / tin electroplating: All contact surfaces should feature tin or nickel plating (typically 5–10 μm thickness) to prevent oxidation, reduce galvanic corrosion when landing aluminum conductors with bimetal ferrules, and maintain low contact resistance.

IP20 touch-proof finger safety and DIN rail mounting

Modern electrical safety standards (IEC 60529 and EN 50274) mandate IP20 finger-safe protection for all components inside low-voltage switchgear accessible during routine maintenance. The transparent or tinted blue polycarbonate (PC) cover on UKK blocks provides complete touch prevention against live internal metal parts, while permitting visual inspection of wire insertion depth and screw seating without removing the shield.

Mounting is typically dual-mode: snap-on installation onto standard 35 mm DIN rails (EN 60715 / IEC 60715 top-hat rail) for rapid modular panel assembly, with secondary screw-mounting holes in the baseplate for high-vibration applications such as marine or mobile generator enclosures.

Installation and torque management

Improper torque application accounts for over 80% of terminal block overheating failures:

• Always use a calibrated torque driver: Never estimate tightening torque with a standard Allen key or screwdriver. Over-torquing strips brass threads; under-torquing causes high contact resistance and thermal runaway.
• Use cord-end ferrules on stranded conductors: Fine-stranded flexible conductors (Class 5 or Class 6) must be terminated with insulated wire ferrules before insertion into screw clamps to prevent strand splaying and localized pinching.
• Observe conductor strip length: Stripping insulation too short prevents full clamp engagement; stripping too long leaves exposed bare copper outside the IP20 housing envelope.

Supply and technical specifications

YOMIN manufactures CW01 and UKK series modular power distribution blocks ranging from 80 A to 500 A under ISO 9001 quality management, certified to CE and compliant with IEC 60947-7-1. Standard production lead time is 15–25 working days, extending to 30–45 days for custom multi-gang arrangements or OEM labelling, with a minimum order quantity of 100 units. Units carry a two-year manufacturing defect warranty.

Provide your incoming feeder cross-section, total continuous load, and required number of branch circuits for immediate technical recommendation and dimensional layout confirmation.

Frequently asked questions

What is the difference between a standard terminal block and a power distribution block?

A standard DIN rail terminal block is typically a 1-to-1 feed-through connector designed for point-to-point wiring. A power distribution block features a single high-current incoming line port connected to an internal bus that branches out to multiple smaller-gauge load ports, eliminating the need to daisy-chain jumpers across multiple individual terminals.

Can I terminate aluminum conductors into a brass power distribution block?

Direct termination of bare aluminum cable into brass or copper distribution blocks is not recommended due to galvanic corrosion and thermal expansion differences. To land aluminum conductors, always use bimetallic crimp ferrules or pins with tin plating and apply an approved anti-oxidation paste.

Why are distribution block covers transparent blue?

The blue polycarbonate cover provides IP20 finger-safety while allowing visual inspection of conductor insertion depth and contact seating. The transparent tint also visually distinguishes neutral distribution blocks from line or ground blocks in standardized three-phase control cabinets.
