Do I need a dedicated power factor meter or a multifunction meter?

A multifunction energy meter (like the YEM051 or DTSD666) measures kWh, kvarh, power factor, voltage, current and frequency simultaneously and logs all values with a timestamp. It replaces both the kWh meter and any separate PF meter. A dedicated PF meter is only useful when you need a simple panel-mount display showing live PF without billing-grade kWh recording.

How does a multifunction meter measure power factor?

The meter samples voltage and current waveforms simultaneously at high frequency, calculates real power (P) and apparent power (S) from the fundamental components, then computes PF = P/S. Reactive power (Q) is also calculated and recorded as kvarh alongside active energy (kWh). This gives a complete picture of how efficiently power is being used.

Metering & Instrumentation

Power Factor Meters: What They Measure, How to Read Them and Which Type to Choose

Q: What does a power factor meter measure?

A power factor meter measures the ratio of real power (watts) to apparent power (volt-amperes) in an AC circuit. The result is a dimensionless number between 0 and 1 (or expressed as a percentage). A power factor of 1.0 means all current drawn from the supply is doing useful work. A power factor of 0.7 means only 70% of the drawn current is productive — the remaining 30% causes losses in cables and transformers without doing useful work.

Q: What is a good power factor reading?

For industrial and commercial installations, a power factor above 0.95 is generally considered good. Most utilities start applying power factor surcharges when the measured power factor falls below 0.85 or 0.90. Capacitor banks or power factor correction units are used to raise a low power factor toward unity.

September 12, 20267 min read

Every electrical meter displays kWh — but the power factor display is the one that tells you whether your installation is costing you more than it should. A low power factor means you are paying for apparent power that your equipment doesn't actually convert to work. Understanding what the PF reading means, and choosing the right meter to track it, is one of the highest-ROI instrumentation decisions a facility manager can make.

What power factor actually measures

In an AC circuit, voltage and current can be out of phase with each other. When current lags behind voltage (inductive load — motors, transformers, fluorescent ballasts), the product of V × I at any instant includes a reactive component that flows back and forth without doing work. Power factor is the cosine of the phase angle φ between voltage and current: PF = cos(φ) = Real Power (W) / Apparent Power (VA). A purely resistive load (electric heater) has PF = 1.0. A motor running at light load might have PF = 0.6.

Why utilities charge for low power factor

Utilities must size their cables, transformers and switchgear for apparent power (kVA), not just the kilowatts you actually use. When your PF is 0.7, the utility carries 43% more current than a unity-PF customer using the same real power. Most commercial tariffs include a reactive energy (kvarh) charge or a minimum PF clause (typically 0.9 or 0.95 lagging). Falling below the threshold triggers a penalty multiplier on your monthly bill.

Dedicated PF meter vs multifunction energy meter

A dedicated panel-mount power factor meter shows a live PF reading — useful for monitoring a specific motor or transformer on the panel door. It does not record energy, generate demand reports or provide RS485 data output.

A multifunction energy meter (YEM051, DTSD666-7P) provides all of the above in a single DIN-rail or panel-mount device: active energy (kWh), reactive energy (kvarh), power factor, voltage, current, frequency, demand and harmonics — with Modbus-RTU RS485 output for SCADA and BMS integration. For any installation where you need to track energy cost, log data or communicate with a building management system, the multifunction meter is the correct choice.

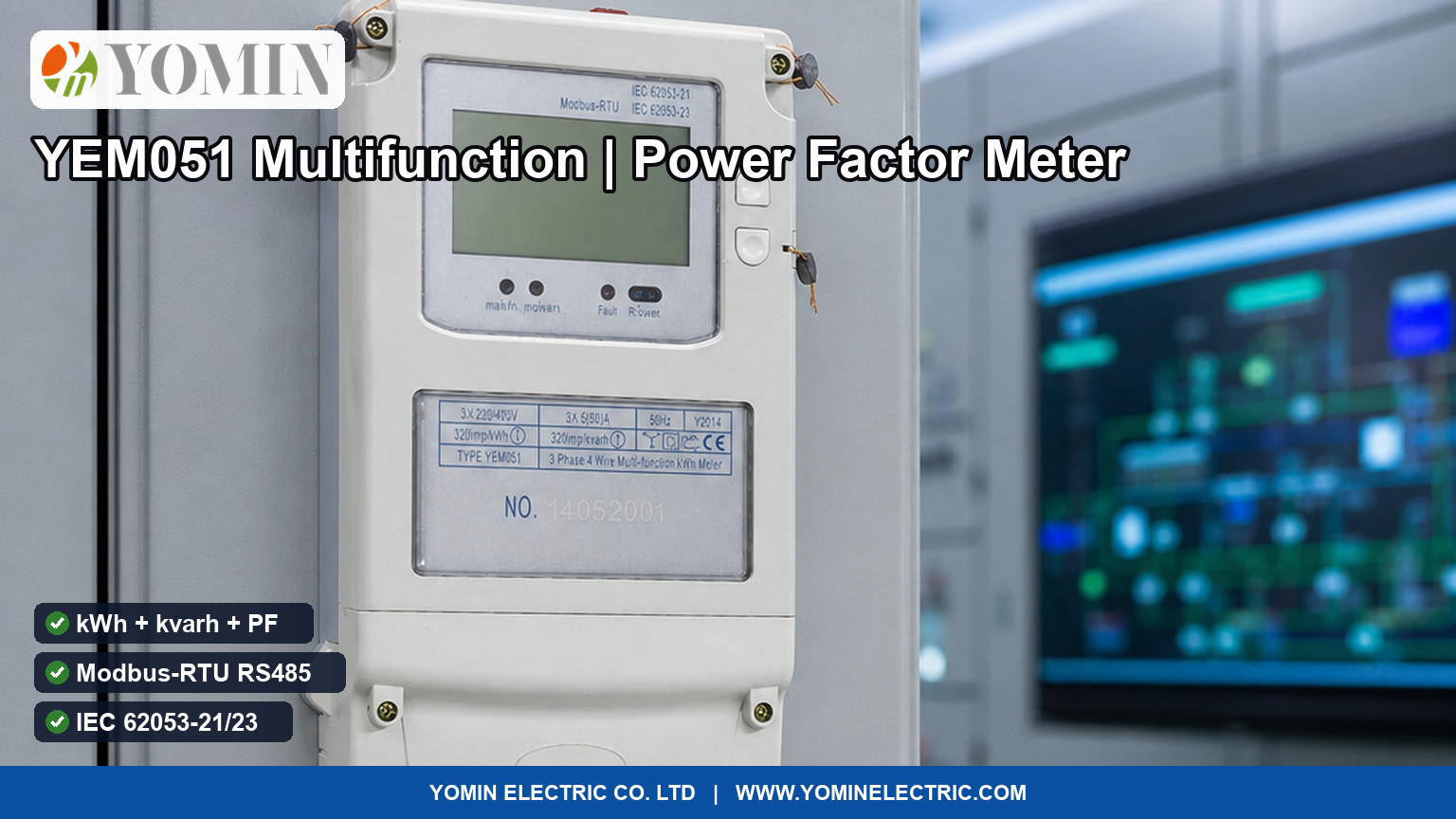

YEM051 multifunction meter: PF measurement in context

The YEM051 3-phase 4-wire multifunction kWh meter measures power factor per phase and for the total three-phase load simultaneously. The LCD shows real-time PF alongside kWh and kvarh totals. Communication: Modbus-RTU over RS485 at 1200–9600 baud. Certification: IEC 62053-21 (active energy Class 1), IEC 62053-23 (reactive energy). Suitable for industrial incomer metering, sub-metering in multi-tenant buildings and power quality monitoring.

FAQ

What does a power factor meter measure?

It measures the ratio of real power (W) to apparent power (VA) — showing how efficiently the electrical load is converting current into useful work.

What is a good power factor reading?

Above 0.95 is good for most commercial and industrial applications. Most utilities charge penalties below 0.85–0.90.

Do I need a dedicated PF meter or a multifunction meter?

For most installations, a multifunction meter (kWh + kvarh + PF + RS485) replaces both a kWh meter and any separate PF instrument — at a lower combined cost.

Need power factor monitoring with data logging and RS485?

We manufacture the YEM051 and DTSD666 multifunction three-phase energy meters with real-time power factor display, Modbus-RTU RS485 output and IEC 62053 certification. Send us your panel configuration and communication requirements — we confirm the right model within one working day.
