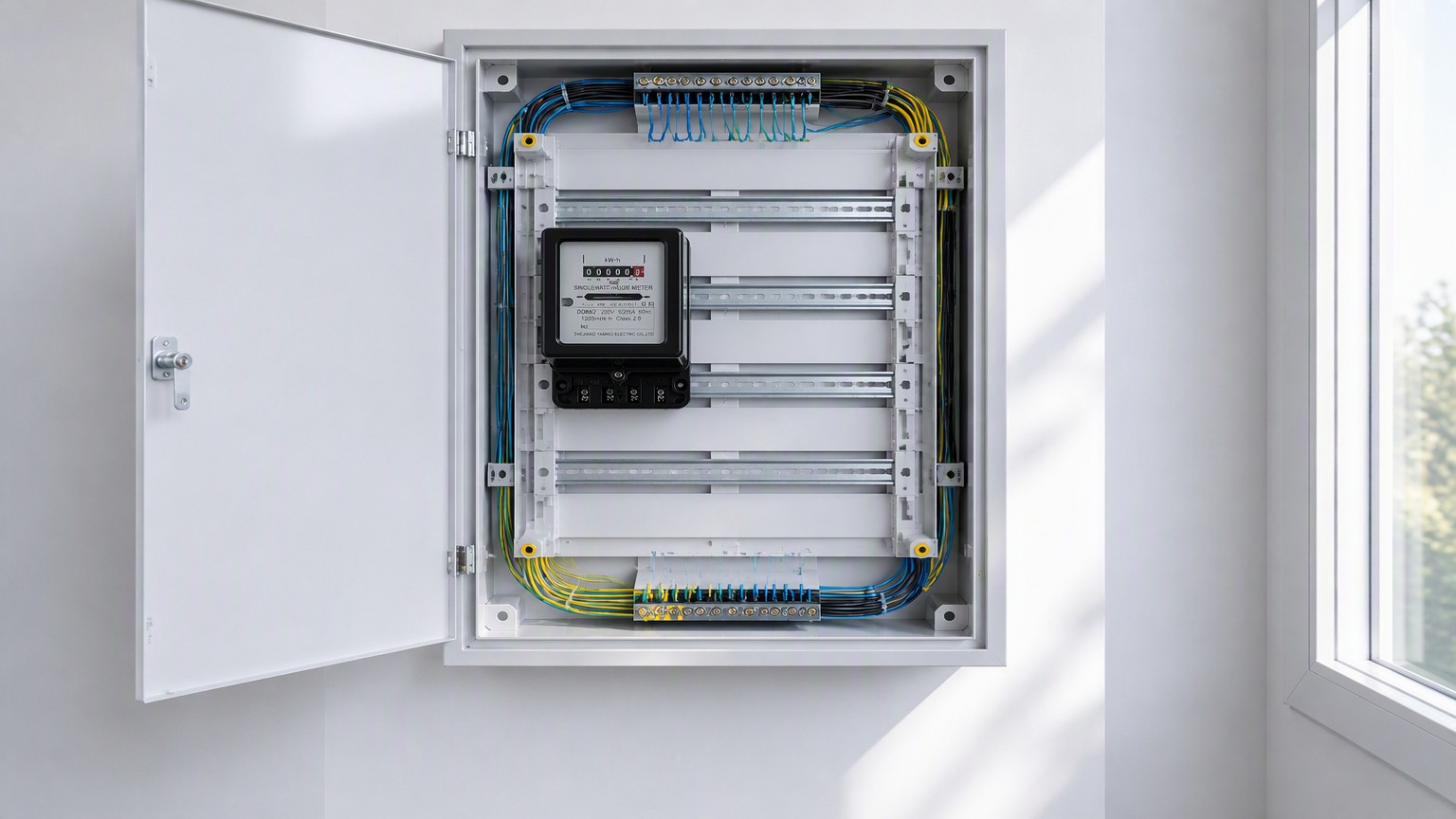

Precision in Power Monitoring: A Comprehensive Overview of DIN Rail Energy Meters
A DIN rail energy meter is a compact, certified energy meter that mounts on a standard DIN rail inside a distribution panel to measure kWh and electrical parameters with precision. It is the workhorse of modern power monitoring — found in homes, commercial panels, and industrial switchboards.
What is a DIN rail energy meter?
A DIN rail energy meter is designed to snap onto a 35 mm DIN rail, the standard mounting system for electrical enclosures worldwide. It measures energy in kWh and typically displays voltage, current, power, power factor, and frequency. Models range from single-phase to three-phase, direct-connected or CT-operated.
Key features
- Compact DIN-rail form — saves panel space and standardizes installation.
- Accurate kWh measurement — class 1 or class 2 per IEC 62053.
- Multi-parameter display — energy, voltage, current, power, frequency.
- Communication options — RS485/MODBUS, pulse, or wireless.
- MID certification — legal billing in the EU.
- Prepaid and smart variants — for credit-controlled and connected metering.
Types of DIN rail meters
| Type | Typical use |
|---|---|
| Single-phase direct-connected | Homes, small shops, apartments |
| Three-phase direct-connected | Commercial and light industrial |
| Three-phase CT-operated | High-current feeders with current transformers |
| Smart / prepaid DIN rail meters | Remote management and credit billing |
How to choose a DIN rail energy meter
- Match phase and current rating to the supply.
- Choose direct-connected or CT-operated based on load (over ~100 A usually needs CTs).
- Select the accuracy class and certification (MID for billing).
- Pick communication if you need remote reading or integration.
- Consider multi-tariff registers for time-of-use billing.
Yomin Electric’s DIN rail energy meters cover single-phase, three-phase, CT-operated, smart, and prepaid models. Related: What Is a Single Phase Electronic kWh Meter?
FAQ
What is a DIN rail energy meter?
A DIN rail energy meter is a compact energy meter that clips onto a standard DIN rail inside a distribution panel, measuring kWh and electrical parameters for monitoring and billing.
Can a DIN rail meter be used for billing?
Yes — many DIN rail meters are MID-certified or comply with IEC 62053, making them suitable for billing and submetering applications.
What parameters can a DIN rail meter display?
Most display energy (kWh), voltage, current, power, power factor, and frequency; advanced models add demand, harmonics, and communication.
Final Thoughts
DIN rail energy meters combine precision, compactness, and certification — the practical foundation of any power monitoring system. Choose the right configuration and you gain accurate billing, clear visibility, and room to grow.
