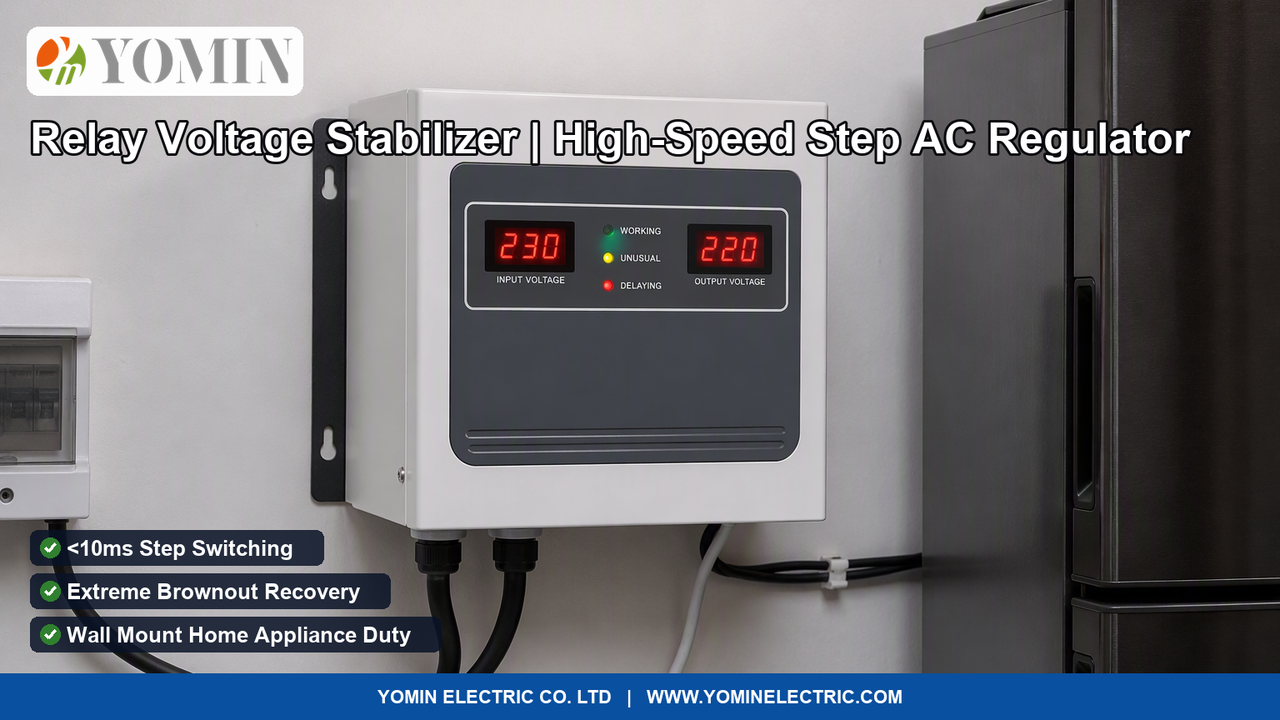

Relay Type Voltage Stabilizer Guide: High-Speed Step AC Regulation

The Need for High-Speed Step Voltage Regulation in Unstable Grids

In many rapidly developing regions across Africa, South Asia, Latin America, and the Middle East, electrical distribution infrastructure struggles with severe power deficits. Residential and commercial neighborhoods routinely suffer from severe voltage sags (brownouts dropping to 100V–140V on a nominal 220V grid) during peak evening hours, followed by sharp over-voltage spikes (surging past 260V) when heavy industrial factories disconnect at night.

Modern household appliances—particularly refrigerators, deep freezers, inverter air conditioners, washing machines, and televisions—are highly vulnerable to these erratic voltage extremes. Low voltage starves compressor motors of power, causing them to stall and burn out internal windings, while over-voltage punctures power supply filter capacitors. The relay-type automatic voltage stabilizer (frequently termed an Automatic Voltage Switcher or AVS) provides the most cost-effective, rugged, and ultra-fast solution for appliance protection.

Operating Principle: Microprocessor-Controlled Multi-Tap Autotransformers

Unlike continuous-slider servo regulators, a relay-type stabilizer achieves voltage correction by electronically selecting discrete tap ratios on an autotransformer winding:

1. Multi-Tap Autotransformer: The internal transformer core (wound with high-temperature enameled copper or aluminium wire on high-grade silicon steel laminations) features multiple winding taps—typically consisting of 1 input neutral, 1 baseline winding, 2 to 3 buck (step-down) taps, and 2 to 3 boost (step-up) taps.
2. Zero-Crossing Relay Matrix: Heavy-duty sealed electromagnetic relays with silver-nickel ($AgNi$) or silver-tin-oxide ($AgSnO_2$) contacts connect to each transformer tap. A high-speed 8-bit RISC microcontroller continuously samples the incoming grid waveform. When the input voltage crosses predefined threshold windows, the CPU fires the corresponding relay coil.
3. Sub-Cycle Switching Speed (<10ms): Because electromagnetic relay armatures actuate within 5 to 10 milliseconds, the voltage correction occurs within a single half-cycle of the AC waveform. If the utility grid suddenly collapses from 220V down to 130V when an industrial mill starts nearby, a relay stabilizer boosts the output back to safe operating levels in a fraction of a second, preventing refrigerator compressors from stalling.

Technical Comparison: Relay-Type vs. Servo-Motor vs. Static Electronic Stabilizers

Selecting the right voltage stabilization technology depends on the speed of fluctuation versus the required voltage tolerance:

Essential Safety Features: The 180-Second Compressor Delay Mechanism

The single most important functional feature of YOMIN residential relay stabilizers is the selectable delay timer switch:

• 3-Second Delay Mode: Used for television sets, personal computers, sound systems, and general home lighting that tolerate immediate power restoration without damage.
• 180-Second (3-Minute) Compressor Delay Mode: Absolutely mandatory for all refrigeration and air-conditioning equipment. When an electrical brownout causes the stabilizer to disconnect, high-pressure gas remains locked on the discharge side of the compressor. If power were restored instantly, the compressor motor would attempt to turn against immense mechanical head pressure, drawing locked-rotor stall currents that exceed 30A on a 10A breaker. The 180-second pause gives the refrigerant capillary tubes time to equalize pressure, guaranteeing a safe, zero-strain motor restart.
