Smart Metering & AMI: What Is a PLC Smart Energy Meter?
The Zero-Telecom Carrier Solution Powering Urban Smart Grid Telemetry
Across modern municipal power distribution utilities, high-density residential apartment complexes, commercial shopping centers, and industrial facilities, deploying automated smart metering faces a major connectivity dilemma.
While wireless smart meters (utilizing 4G cellular, NB-IoT, or RF mesh) perform well in flat suburban neighborhoods, they suffer catastrophic communication dropouts in high-rise concrete buildings and underground electrical basement vaults where Faraday cage shielding blocks wireless radio waves.
Furthermore, deploying tens of thousands of cellular-connected meters locks utilities into millions of dollars in recurring monthly SIM card telecom contracts and exposes infrastructure to carrier cellular network sunsetting.
The Power Line Carrier (PLC) Smart Energy Meter (Model DTS / DDS Series) provides the definitive engineering answer: an intelligent electronic revenue meter that utilizes the physical electrical copper cables already wired into the building to transmit high-speed digital metering data directly to the substation Data Concentrator Unit (DCU) with zero radio blind spots and zero recurring carrier fees.

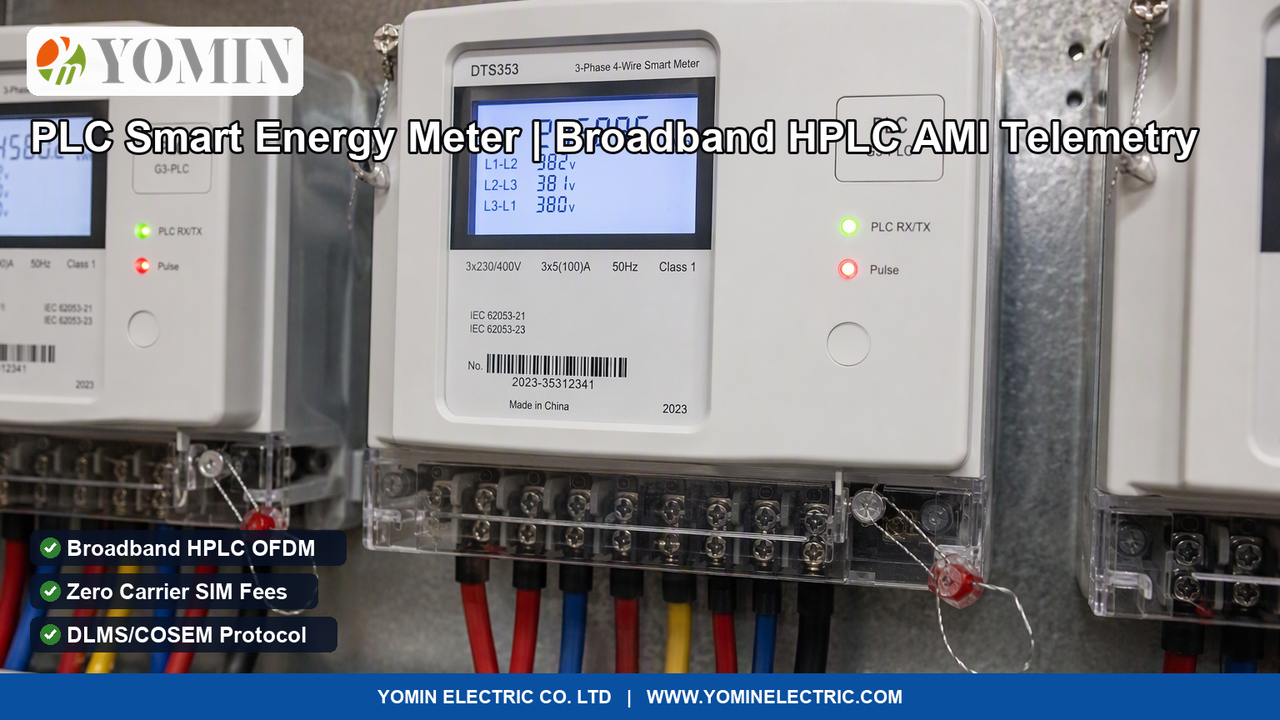

Engineering Anatomy: Inside a Model DTS Broadband HPLC Smart Energy Meter
- Broadband HPLC Modulator-Demodulator Engine: Features an integrated 32-bit high-performance DSP processing Orthogonal Frequency Division Multiplexing (OFDM) across 2 MHz to 12 MHz sub-carrier frequencies with adaptive channel modulation and Reed-Solomon forward error correction.
- High-Precision Metering Analog Front-End (AFE): Dedicated metering chip sampling multi-channel phase voltage and current with Class 1.0 (or Class 0.5S) active energy accuracy and Class 2.0 reactive energy accuracy over a wide dynamic load range from 0.05% starting current to maximum nominal current.
- High-Coupling Line Interface Transformer & Surge Filter: High-dielectric isolation transformer and transient voltage suppressor (TVS) circuit that safely couples low-voltage high-frequency PLC communication signals onto the 230V/400V power lines while protecting internal microelectronics from 6kV lightning surges.
- Backlit Multi-Parameter LCD Display: High-contrast industrial LCD screen displaying cumulative active kWh, reactive kvarh, instant active power (kW), line voltages, phase currents, power factor, tariff rate, and active PLC communication indicators.
- Tamper Detection & Revenue Protection Circuitry: Continuous hardware monitoring that detects and logs magnetic field tampering, meter cover opening, reverse power flow, and neutral line disconnection, transmitting immediate alarm alerts to utility head-end software.
Comparison: Broadband HPLC Smart Meter vs. Wireless LoRaWAN Smart Meter vs. Cellular 4G/NB-IoT Smart Meter
| Operational Metric | Cellular 4G / NB-IoT Smart Meter | Wireless LoRaWAN Smart Meter | YOMIN Broadband HPLC Smart Meter (DTS Series) |
|---|---|---|---|
| Transmission Physical Medium | Public cellular telecommunication towers. | Unlicensed Sub-GHz wireless RF radio (868/915 MHz). | Existing 230V/400V low-voltage AC power cables; zero wireless RF. |
| Penetration in Concrete & Basements | Poor: Fails in underground electrical vaults and concrete basements. | Moderate: Struggles through multiple floors of dense reinforced concrete. | 100% Penetration: Follows physical copper power wires directly into meter rooms. |
| Recurring Operational Telecom Costs | High: Requires monthly SIM card cellular data contracts for every meter. | Zero: Private gateway ownership; but requires RF gateway site leases. | 100% Free Communication: Utility owns the power wires; zero telecom carrier bills. |
| Data Throughput & Reading Latency | High throughput (Mbps); but dependent on cell tower congestion. | Low throughput (< 5 kbps); strict regional RF duty cycle limits. | High Speed: Broadband OFDM (> 100 kbps to 10 Mbps); sub-second response times. |
| Ideal Utility Deployment Scenario | Scattered rural single-phase consumer connections. | Expansive industrial campuses, solar farms, and water/gas combo metering. | Dense urban apartment towers, commercial plazas, and municipal transformer grids. |
Technical Specifications
| Technical Specification Parameter | Engineering Value & Performance Rating |
|---|---|
| Communication Technology & Carrier Frequency | Broadband High-Speed Power Line Carrier (HPLC) utilizing Orthogonal Frequency Division Multiplexing (OFDM, 2 MHz to 12 MHz) |
| Telemetry Data Transmission Media | Direct modulation onto existing low-voltage AC power distribution cables (220V / 380V, 50/60 Hz; zero dedicated communication cabling) |
| Metering Accuracy Class Standards | Class 1.0 (IEC 62053-21) active energy, Class 2.0 (IEC 62053-23) reactive energy (Optional Class 0.5S high-precision transformer operated) |
| Carrier Data Transmission Rate & Latency | High-throughput PHY data rates up to 10 Mbps (effective application layer throughput > 100 kbps; sub-second query latency) |
| Application Layer Protocol & Interoperability | Standardized open utility protocols: DLMS/COSEM (IEC 62056) and PRIME / G3-PLC international smart grid standards |
| Operating Voltage & Current Ratings | Rated nominal voltage: 3×230/400V AC (3-Phase 4-Wire); Direct-connected current ratings: 5(60)A, 10(100)A; CT-operated: 1.5(6)A |
| Anti-Tamper & Revenue Protection Security | Comprehensive multi-event detection: magnetic interference detection, neutral line missing bypass detection, terminal cover open alarm |
| Power Consumption & Environmental Tolerance | Internal voltage circuit burden: ≤ 1.5W / 6VA; Operating temperature range: $-40^\circ ext{C}$ to $+70^\circ ext{C}$; IP54 weatherproof enclosure |
Frequently Asked Questions
What is a PLC Smart Energy Meter and how does Power Line Carrier communication work?
A PLC Smart Energy Meter—frequently designated as a Power Line Carrier electricity meter, HPLC smart meter, or CPL energy meter—is a digital electronic revenue meter equipped with an integrated or modular power line carrier transceiver that transmits metering data directly over the existing low-voltage AC power cables supplying the building. In modern Advanced Metering Infrastructure (AMI) and automated meter reading (AMR / ASKUE) networks: <ul><li><strong>Physical Signal Superimposition:</strong> The meter converts digital telemetry bytes (active/reactive kWh, voltage, current, load curves) into high-frequency carrier wave packets using advanced Orthogonal Frequency Division Multiplexing (OFDM) modulation. These micro-voltage signals are superimposed directly onto the fundamental 50Hz/60Hz AC sine wave traveling through the building's copper conductors.</li><li><strong>Zero-Cabling Gateway Aggregation:</strong> At the local distribution transformer substation, a Data Concentrator Unit (DCU) equipped with a matching PLC receiver captures and demodulates the carrier signals from all connected meters, aggregating billing records and forwarding them via fiber optic or 4G backhaul to the utility central head-end software (HES).</li></ul>
Why do utilities deploy PLC Smart Meters instead of Cellular (4G/NB-IoT) or Wireless RF meters in urban areas?
While wireless smart meters function well in open rural landscapes, they encounter severe physical and financial roadblocks in dense urban centers: <ul><li><strong>100% Penetration in RF Blind Spots:</strong> In multi-story apartment towers, high-rise condominiums, shopping malls, and underground basement electrical rooms, thick reinforced concrete walls, steel elevator shafts, and subterranean earth completely block cellular (4G/LTE, NB-IoT) and wireless RF (LoRa, Zigbee) signals. Because every building and apartment is physically connected to the electrical power grid, PLC signals flow unhindered through existing cables directly to the basement meters.</li><li><strong>Zero Cellular SIM Data Fees & Permanent Ownership:</strong> Cellular meters require an active telecom SIM card with monthly carrier subscription fees multiplied across hundreds of thousands of utility meters, alongside risks of telecom 2G/3G network shutdowns. PLC communication runs over utility-owned physical wires with <strong>zero recurring carrier data bills</strong> and permanent operational lifespan.</li></ul>
What is the difference between legacy Narrowband PLC and modern Broadband HPLC?
Early generation narrowband PLC (operating below 500 kHz, such as legacy FSK or BPSK) suffered from slow transmission speeds (< 2.4 kbps), high sensitivity to electrical grid noise (from LED power supplies, inverter air conditioners, and arc welders), and frequent packet loss. <strong>Broadband High-Speed PLC (HPLC)</strong> operates in the high-frequency 2 MHz to 12 MHz spectrum using multi-carrier OFDM with dynamic subcarrier channel estimation. It automatically avoids noisy frequency bands, achieving transmission speeds exceeding 100 kbps to 10 Mbps with mesh automatic routing, enabling real-time second-level meter queries, power outage event push notifications, and remote firmware upgrades.
